CPm 100-ST4 - Single-phase stainless steel centrifugal electric pump 0.33 HP Pedrollo - 1

-42%

CPm 100-ST4 - Single-phase 0.33 HP stainless steel centrifugal electric pump

Name: CPm 100-ST4 - Single-phase 0.33 HP stainless steel centrifugal electric pump
Brand: Pedrollo
SKU: CPm 100-ST4
Price: 179.02 EUR
Availability: InStock
Rating: 4 (1 reviews)

Made of AISI 304 stainless steel. Flow rate up to 90 l/min (5.4 m³/h). Head up to 16 m. 0.25 kW (0.33 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

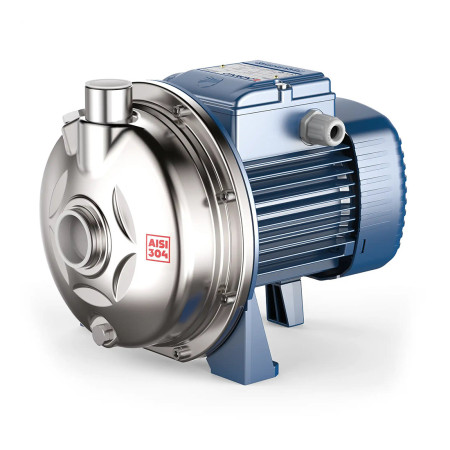

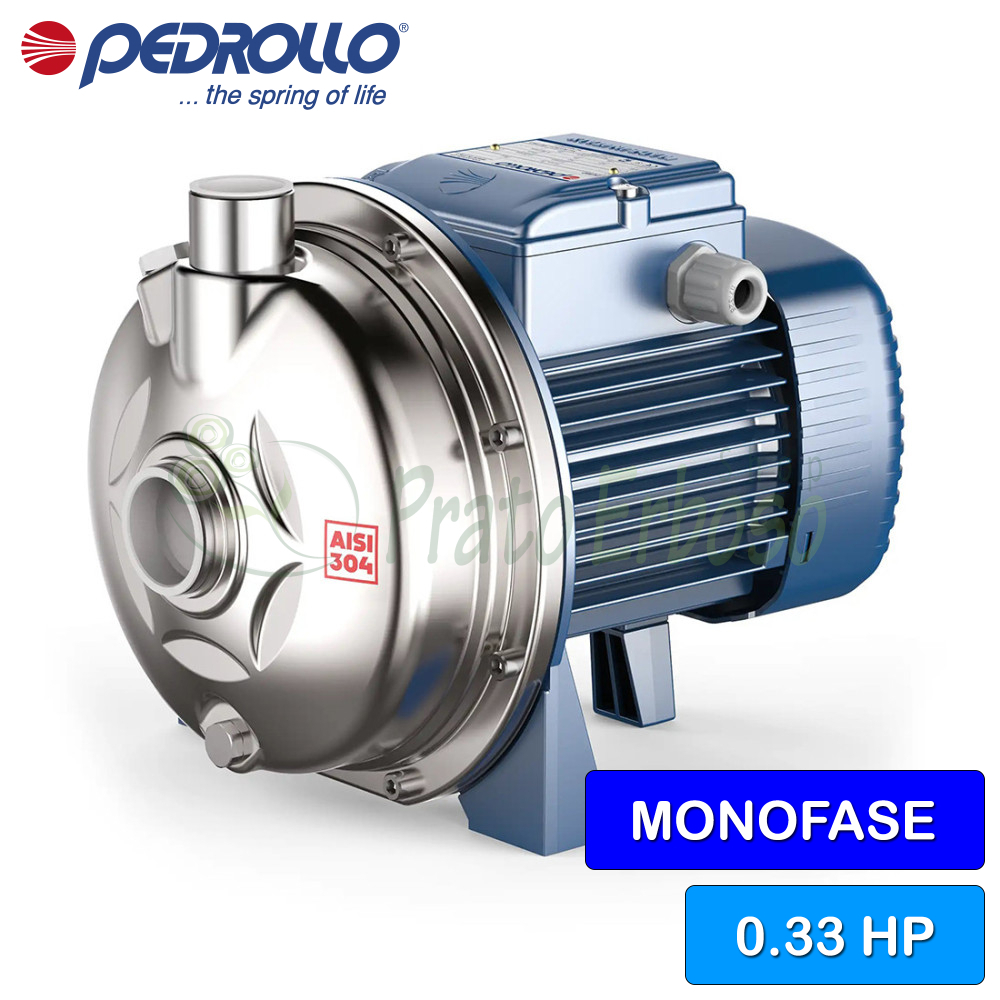

The Pedrollo CPm 100-ST4 centrifugal electric pump is made entirely of stainless steel.

The pump body and impeller are made of AISI 304 stainless steel while the shaft is made of AISI 431 stainless steel.

The CPm 100-ST4 is recommended for use in the agricultural, domestic and industrial sectors.

It can pump clean water and liquids that are not aggressive to the pump materials.

All components in contact with the pumped liquid are made of AISI 304 stainless steel to guarantee total hygiene and maximum resistance to corrosion.

Data sheet

Motor connection: SINGLE-PHASE
Power (HP): 0.33
Absorption at 230V (A): 2
Impeller: AISI 316L Stainless Steel
Minimum flow rate (l./min.): 10
Max. flow rate (l./min.): 90
Min. head (m.): 6.5
Max. head (m.): 16
Max. liquid temperature (°C): +90°C
Height (cm): 18.5
Width (cm): 26.6
Depth (cm): 18.1
Weight (Kg): 5.7

Attachments

CP-ST data sheet

Models, performance curves and construction features of Pedrollo CP-ST series pumps.

Download (762.97KB)

CPm-ST4 models and performance

GUY

single phase

CPm 100-ST4

CPm 130-ST4

CPm 132-ST4

CPm 150-ST4

CPm 158-ST4

CPm 170-ST4

CPm 170M-ST4

CPm 180-ST4

CPm 190-ST4

CPm 200-ST4

POWER
KW	HP
0.25	0.33
0.37	0.50
0.55	0.75
0.75	1
0.75	1
1.1	1.5
1.1	1.5
1.1	1.5
1.5	2
2.2	3

PERFORMANCE
Q litres/min	H meters
10 ÷ 90	16 ÷ 6.5
10 ÷ 100	22.5 ÷ 9
10 ÷ 120	24 ÷ 12
10 ÷ 150	32 ÷ 14
10 ÷ 120	36.5 ÷ 19
10 ÷ 140	41 ÷ 20
10 ÷ 160	36.5 ÷ 19
10 ÷ 230	31.5 ÷ 13
10 ÷ 250	37 ÷ 15.5
10 ÷ 270	45 ÷ 18

MOUTH
wait.	send.
1 1/4"	1"

Q	m³/hour	0	0.6	1.2	2.4	3.6	5.4	6.0	7.2	8.4	9.0	9.6	12	13.8	15	16.2
Q	l/min	0	10	20	40	60	90	100	120	140	150	160	200	230	250	270
H	meters	16	15.5	15	13.5	11.2	6.5
		22.5	21.5	20.8	18.8	16	10.8	9
		24	-	23	21.5	19.8	16.5	15	12
		32	-	31	29.8	28	24.8	23.2	20	16	14
		36.5	35.5	34.5	33	31	26.2	24	19
		41	40	39.2	37.8	36	32	30	25.8	20
		36.5	-	35.5	34.3	33	30	29	26.4	23	21	19
		31.5	-	-	30	29.2	27.5	26.8	25.2	23.5	22.5	21.5	17	13
		37	-	-	35	34	32.2	31.5	30.2	28.7	27.8	27	22.7	18.5	15.5
		45	-	-	43	42	40.2	39.5	38	36.5	35.5	34.5	29.8	25.5	22	18

Construction data of the CP 100-130-132-ST4

Bearings

Pump side motor bearing	6201 ZZ
Opposite side motor bearing	6201 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	AR-12
LP diameter	12
Fixed ring LP	Ceramic
Rotating ring LP	Graphite
LP elastomer	NBR

Mat

1.0 - Pump Body	EN 1.4301 stainless steel (AISI 304)
2.1 - Seal holder cover	EN 1.4301 stainless steel (AISI 304)
3.0 - Impeller	EN 1.4301 stainless steel (AISI 304)
4.0 - Pump shaft	EN 1.4057 stainless steel (AISI 431)
5.2 - Shim Ring	PTFE
6.0 - Motor holder	Aluminum EN-AB 46100
6.1 - Engine cover	Aluminum EN-AB 46100
7.0 - Lantern	Aluminum EN-AB 46100

Review the product
Product review processing policy

Il cliente non ha lasciato alcun commento.

By Umberto F. the 11/16/2018

Compare with Similar Products

	CPm 100-ST4 - Single-phase 0.33 HP stainless steel centrifugal electric pump This product Made of AISI 304 stainless steel. Flow rate up to 90 l/min (5.4 m³/h). Head up to 16 m. 0.25 kW (0.33 HP) motor.	CPm 130-ST4 - Single-phase stainless steel centrifugal electric pump, 0.50 HP Quick View Made of AISI 304 stainless steel. Flow rate up to 100 l/min (6 m³/h). Head up to 22.5 m. 0.37 kW (0.50 HP) motor.	CPm 132-ST4 - 0.75 HP single-phase stainless steel centrifugal electric pump Quick View Made of AISI 304 stainless steel. Flow rate up to 120 l/min (7.2 m³/h). Head up to 24 m. 0.55 kW (0.75 HP) motor.	CPm 150-ST4 - 1 HP single-phase stainless steel centrifugal electric pump Quick View Made of AISI 304 stainless steel. Flow rate up to 150 l/min (9 m³/h). Head up to 32 m. 0.75 kW (1 HP) motor.
Price	Price €308.66 -42% €179.02	Price €346.48 -42% €200.96	Price €334.28 -42% €193.88	Price €389.18 -42% €225.72
Motor connection	Motor connection SINGLE-PHASE	Motor connection SINGLE-PHASE	Motor connection SINGLE-PHASE	Motor connection SINGLE-PHASE
Power (HP)	Power (HP) 0.33	Power (HP) 0.50	Power (HP) 0.75	Power (HP) 1
Absorption at 230V (A)	Absorption at 230V (A) 2	Absorption at 230V (A) 3	Absorption at 230V (A) 3.7	Absorption at 230V (A) 6
Capacitor	Capacitor --	Capacitor --	Capacitor 14 µF 450 VL	Capacitor 20 µF 450 VL
Suction mouth	Suction mouth --	Suction mouth 1" 1/4	Suction mouth 1/4"	Suction mouth 1" 1/4
Delivery mouth	Delivery mouth --	Delivery mouth 1"	Delivery mouth 1"	Delivery mouth 1"
Pump body	Pump body --	Pump body AISI 304 stainless steel	Pump body AISI 304 stainless steel	Pump body AISI 304 stainless steel
Impeller	Impeller AISI 316L Stainless Steel	Impeller AISI 304 stainless steel	Impeller AISI 304 stainless steel	Impeller AISI 304 stainless steel
Number of impellers	Number of impellers --	Number of impellers 1	Number of impellers 1	Number of impellers 1
Crankshaft	Crankshaft --	Crankshaft AISI 431 stainless steel	Crankshaft AISI 431 stainless steel	Crankshaft AISI 431 stainless steel
Check valve	Check valve --	Check valve No	Check valve No	Check valve No
Degree of protection	Degree of protection --	Degree of protection IP 44	Degree of protection IP 44	Degree of protection IP 44
Minimum flow rate (l./min.)	Minimum flow rate (l./min.) 10	Minimum flow rate (l./min.) 10	Minimum flow rate (l./min.) 10	Minimum flow rate (l./min.) 20
Max. flow rate (l./min.)	Max. flow rate (l./min.) 90	Max. flow rate (l./min.) 100	Max. flow rate (l./min.) 120	Max. flow rate (l./min.) 150
Min. head (m.)	Min. head (m.) 6.5	Min. head (m.) 9	Min. head (m.) 12	Min. head (m.) 14
Max. head (m.)	Max. head (m.) 16	Max. head (m.) 22.5	Max. head (m.) 24	Max. head (m.) 32
Jobs	Jobs --	Jobs water supply, irrigation, cooling systems, air conditioning systems, washing systems, water treatment plants	Jobs water supply, irrigation, cooling systems, air conditioning systems, washing systems, water treatment plants	Jobs water supply, irrigation, cooling systems, air conditioning systems, washing systems, water treatment plants
Max. liquid temperature (°C)	Max. liquid temperature (°C) +90°C	Max. liquid temperature (°C) +90°C	Max. liquid temperature (°C) +90°C	Max. liquid temperature (°C) 90
Motor voltage	Motor voltage --	Motor voltage 230 V	Motor voltage 230 V	Motor voltage 230 V
Height (cm)	Height (cm) 18.5	Height (cm) 6.55pm	Height (cm) 6.55pm	Height (cm) 21.9
Width (cm)	Width (cm) 26.6	Width (cm) 26.6	Width (cm) 26.6	Width (cm) 29.6
Depth (cm)	Depth (cm) 18.1	Depth (cm) 18.1	Depth (cm) 18.1	Depth (cm) 22.1
Weight (Kg)	Weight (Kg) 5.7	Weight (Kg) 6.5	Weight (Kg) 7.2	Weight (Kg) 10.8
Warranty (years)	Warranty (years) --	Warranty (years) 2	Warranty (years) 2	Warranty (years) 2
