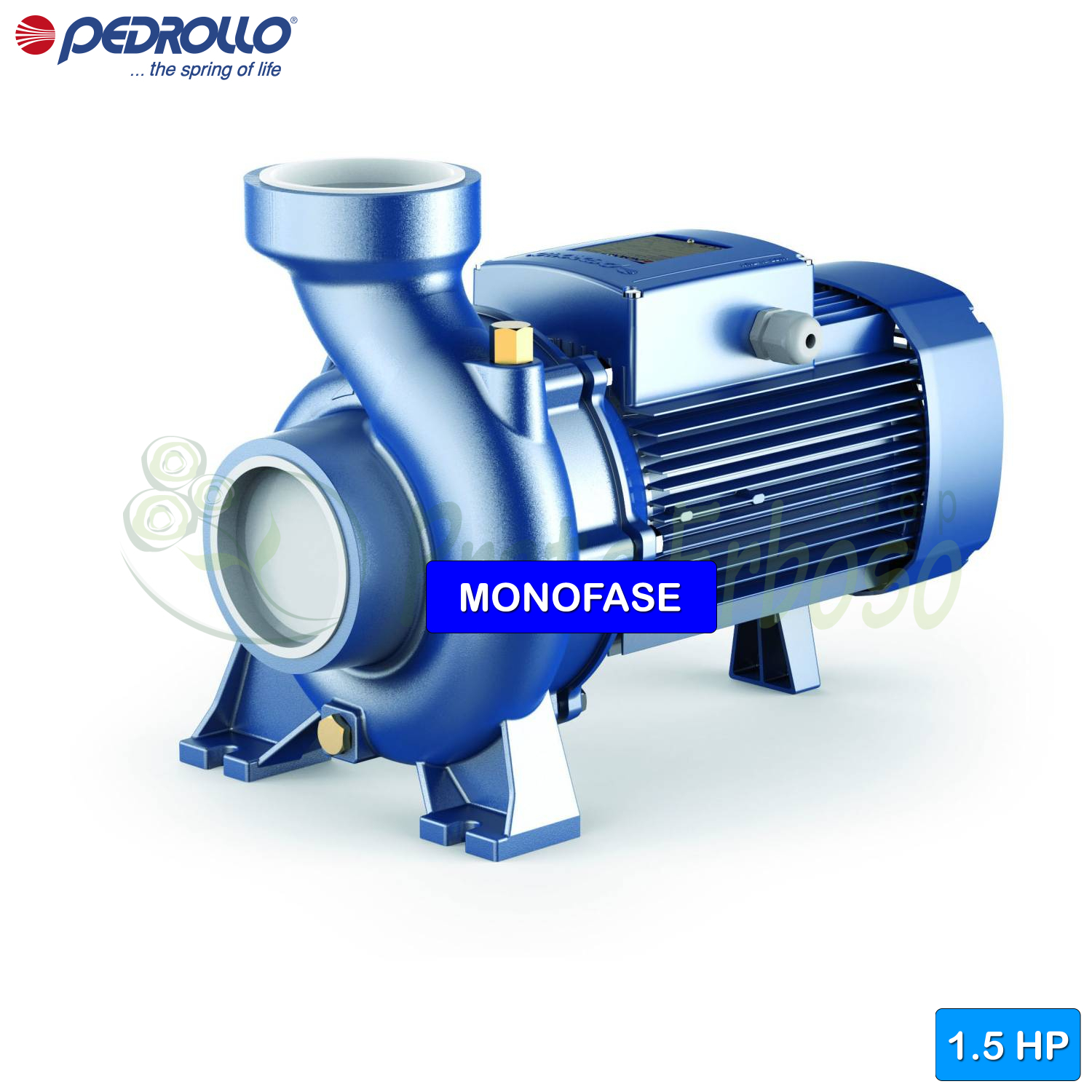

HFm 6C - 1.5 HP Single Phase Centrifugal Electric Pump

Name: HFm 6C - 1.5 HP Single Phase Centrifugal Electric Pump
Brand: Pedrollo
SKU: HFm 6C
Price: 346.72 EUR
Availability: InStock
Rating: 5 (1 reviews)

Flow rate up to 1000 l/min (60 m³/h). Head up to 12 m. 1.1 Kw (1.5 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The PEDROLLO pumps of the HF high flow rate line are recommended for civil and agricultural environments.

The PEDROLLO HF 6C has a flow rate that varies from 200 to 1000 litres per minute with a head from 12 to 4 metres.

The high achievable yields and the possibility of continuous use make the use of this electric pump advantageous for flow or rain irrigation, for drawing water from lakes, rivers, wells or for the most varied industrial uses characterised by the need to achieve considerable flow rates in a medium-low prevalence ratio.

Installation must be carried out indoors or in any case protected from the elements.

Data sheet

Motor connection: SINGLE PHASE
Power (Kw): 1.1
Power (HP): 1.5
Absorption at 230V (A): 8.8
Capacitor: 31.5 µF450 VL
Suction mouth: 3 "
Delivery port: 3 "
Body Pump: Cast iron
Impeller: Brass
Number of impellers: 1
Motor shaft: AISI 431 stainless steel
Check valve: no
Degree of protection: IP 44
Flow rate min. (l./min.): 200
Max flow (l./min.): 1000
Min head (m.): 4
Max head (m.): 12
Employments: water supply, irrigation, cooling systems, transfer of tanks
Liquid temperature max. (° C): +90°C
Motor voltage: 230 V
Height (cm): 31.2
Width (cm): 41.1
Depth (cm): 24
Weight kg): 25.5
Guarantee: 2

Attachments

High flow HF data sheet

Construction and operating characteristics. Working curves, limits of use and dimensions of Pedrollo high flow HF series pumps.

Download (357.54KB)

HF models and performances - High flow rates

GUY

single phase

HFm 4

HFm 6C

HFm 6B

POWER
KW	HP
0.75	1
1.1	1.5
1.5	2

PERFORMANCE
Q litres/min	H meters
200 ÷ 800	9.8 ÷ 4
200 ÷ 1000	12 ÷ 4
200 ÷ 1100	14.8 ÷ 5

MOUTH
wait.	send.
2 1/2"	2 1/2"
3"	3"

Q	m³/hour	0	12	18	24	30	36	42	48	54	60	66	72	87	102	114	129	144
Q	l/min	0	200	300	400	500	600	700	800	900	1000	1100	1200	1450	1700	1900	2150	2400
H	meters	9.8	9.5	9.1	8.5	7.6	6.6	5.4	4
		12	12	11.8	11.4	10.8	10	8.9	7.6	6	4
		14.8	14.8	14.6	14.2	13.6	12.8	11.8	10.5	9	7.2	5

Construction data of the HF 6C-6B-6A

Section of the Pedrollo HF high flow pump

Bearings

Pump side motor bearing	6304 ZZ
Opposite side motor bearing	6204 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	FN-18
LP diameter	18
Fixed ring LP	Graphite
Rotating ring LP	Ceramic
LP elastomer	NBR

Mat

1.0 - Pump Body	Cast iron GJL 200 EN 1561
2.1 - Seal holder cover	Cast iron GJL 200 EN 1561
3.0 - Impeller	Brass CW617N EN 12165
4.0 - Pump shaft	EN 1.4057 stainless steel (AISI 431)
6.0 - Motor holder	Aluminum EN-AB 46100
6.1 - Engine cover	Aluminum EN-AB 46100
7.0 - Lantern	Aluminum EN-AB 46100
