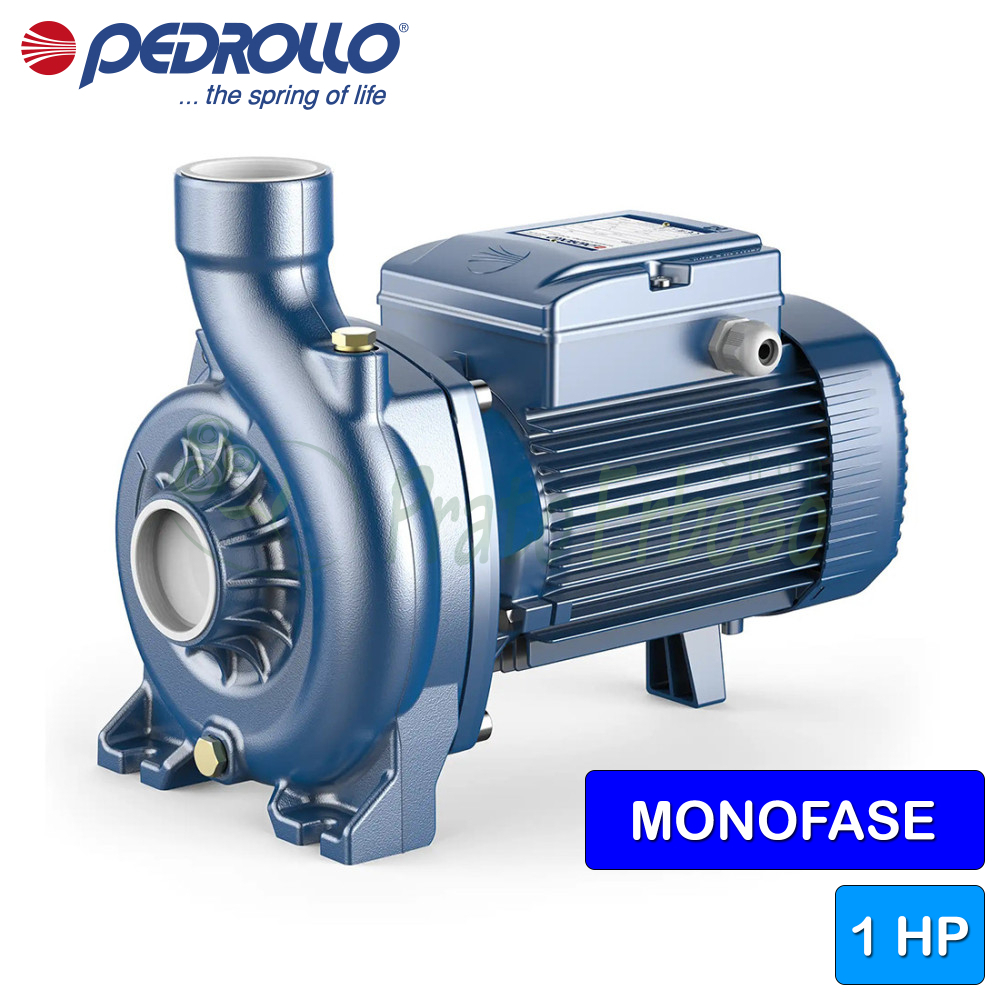

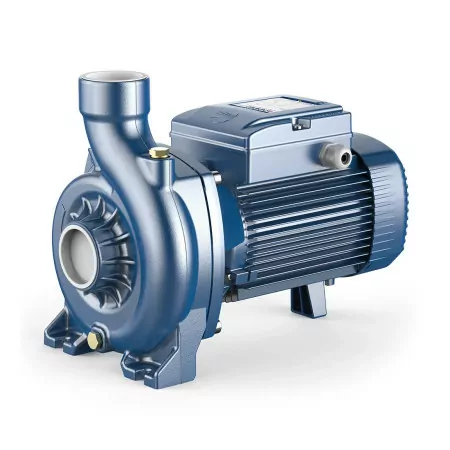

NGAm 2A - 1 HP single-phase open impeller centrifugal electric pump

Name: NGAm 2A - 1 HP single-phase open impeller centrifugal electric pump
Brand: Pedrollo
SKU: NGAm 2A
Price: 206.62 EUR
Availability: InStock
Rating: 5 (1 reviews)

Flow rate up to 550 l/min (33 m³/h). Head up to 11 m. 0.75 Kw (1 HP) motor.

Variants:

Order it before 12:00 of tomorrow and receive it between Tuesday 29 April and Wednesday 30 April with Mail Boxes - 2 giorni

Delivery Options

	Description	Estimated Delivery
Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Tuesday 29 April - Wednesday 30 April
Poste Italiane - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust them with the products.	Tuesday 29 April - Wednesday 30 April
DHL - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust the products to him.	Tuesday 29 April - Wednesday 30 April

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Tuesday 29 April - Wednesday 30 April

Carrier: Poste Italiane - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.

Estimated delivery:
Tuesday 29 April - Wednesday 30 April

Carrier: DHL - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.

Estimated delivery:
Tuesday 29 April - Wednesday 30 April

✖

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The PEDROLLO pumps of the NGA line are recommended for pumping water and liquids that are chemically non-aggressive for the materials from which the pump is made.

The PEDROLLO NGAm 2A has a flow rate that varies from 50 to 550 litres per minute with a head from 11 to 4 metres.

The open impeller design solution allows pumping fluids relatively loaded with impurities without the risk of clogging the impeller. For this feature, the NGA series pumps are used in industry, in the transfer of water from canals, rivers, tanks, basins, etc.

Installation must be carried out indoors or in any case protected from the elements.

Data sheet

Motor connection: SINGLE PHASE
Power (Kw): 0.75
Power (HP): 1
Suction mouth: 2"
Delivery mouth: 2"
Pump body: Cast iron
Impeller: AISI 316 stainless steel
Number of impellers: 1
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 44
Min. flow rate (l./min.): 50
Max. flow rate (l./min.): 550
Min. head (m.): 4
Max. head (m.): 11
Jobs: washing systems, water supply
Max. liquid temperature (°C): +90°C
Motor voltage: 230 V
Warranty (years): 2

Attachments

NGA data sheet

Construction and operating characteristics. Working curves and limits of use of Pedrollo NGA series pumps.

Download (478.7KB)

NGAm 2-3 models and performance

GUY

three-phase

NGAm 2B

NGAm 2A

NGAm 3D

NGAm 3C

NGAm 3B

NG Am 3A

POWER
KW	HP
0.55	0.75
0.75	1
1.1	1.5
1.5	2
1.8	2.5
2.2	3

PERFORMANCE
Q litres/min	H meters
50 ÷ 450	9.5 ÷ 4
50 ÷ 550	11 ÷ 4
50 ÷ 700	12.5 ÷ 5
100 ÷ 770	14.8 ÷ 5.7
100 ÷ 840	17 ÷ 7
100 ÷ 900	19.5 ÷ 8.5

MOUTH
wait.	send.
1/2"	1/2"
2"	2"

Q	m³/hour	0	3	6	12	18	24	27	33	42	46.2	50.4	54
Q	l/min	0	50	100	200	300	400	450	550	700	770	840	900
H	meters	9.5	9.4	9.3	8.4	7	5.2	4
		11	10.8	10.5	9.8	8.8	7.4	6.4	4
		12.5	-	12	11.5	10.8	9.8	9.3	7.8	5
		14.8	-	14.4	13.8	13.1	12.2	11.7	10.3	7.4	5.7
		17	-	16.5	16	15.3	14.5	14	12.8	10.3	8.8	7
		19.5	-	19	18.4	17.8	17	16.5	15.4	13	11.5	10	8.5
