-45%

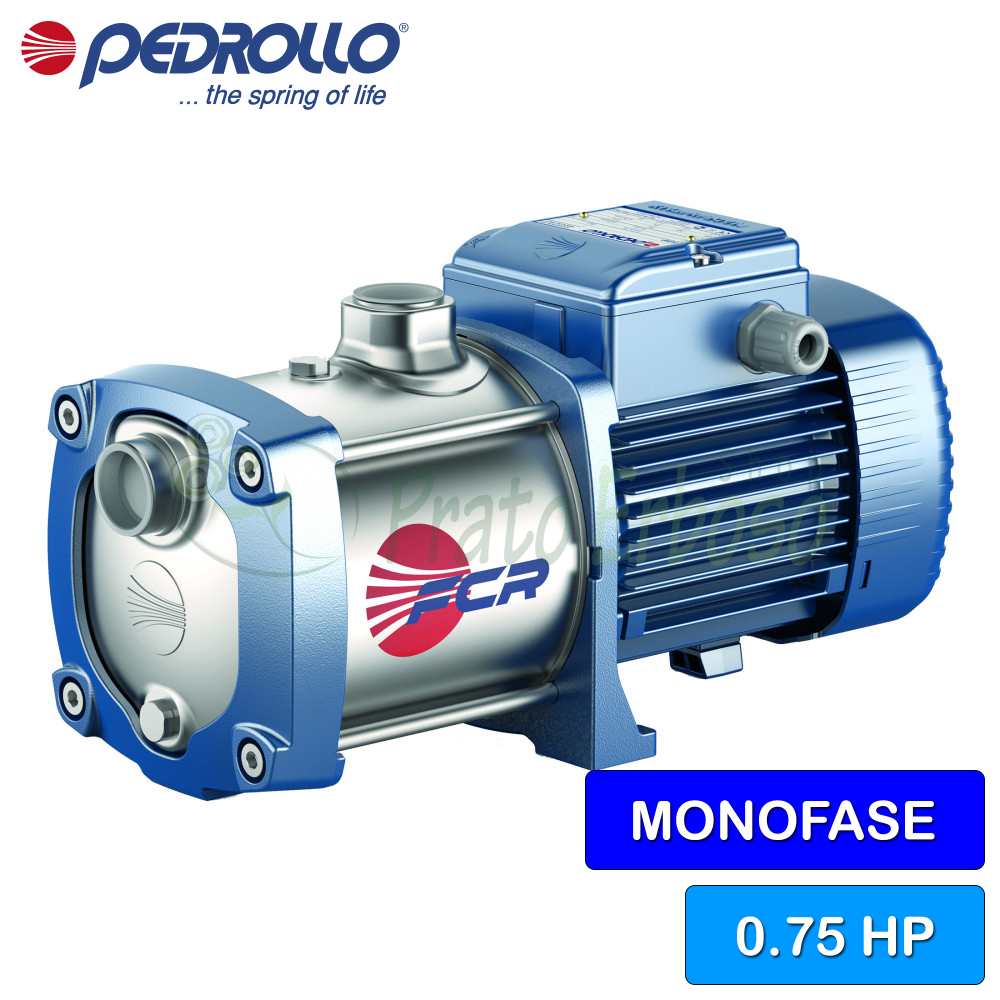

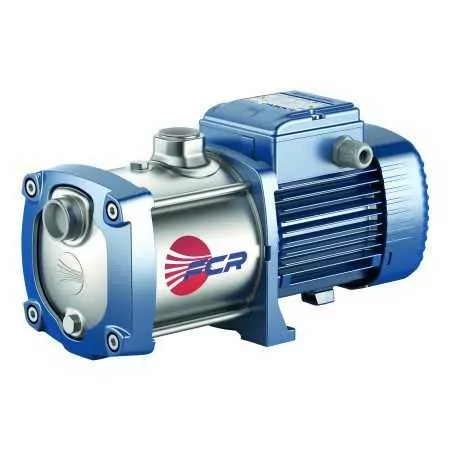

FCRm 80/4 - 0.75 HP single-phase multi-impeller electric pump

Name: FCRm 80/4 - 0.75 HP single-phase multi-impeller electric pump
Brand: Pedrollo
SKU: FCRm 80/4
Price: 234.85 EUR
Availability: InStock

With stainless steel impeller. Flow rate up to 80 l/min (4.8 m³/h). Head up to 52 m. Motor 0.55 Kw (0.75 HP).

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The Pedrollo FCRm 80/4 centrifugal electric pump is particularly silent.

Pedrollo has studied and created this pump with the aim of creating a very silent product that also allows for good energy savings.

The construction of the FCRm 80/4 is multi-stage which allows for a significant reduction in noise during use.

The use of stainless steel for all components, in addition to making the pump resistant, also makes it very silent.

The FCRm 80/4 is recommended in the domestic and civil sector, particularly for the distribution of water in combination with pressure tanks, for industrial applications and irrigation systems.

Data sheet

Motor connection: SINGLE-PHASE
Power (Kw): 0.55
Power (HP): 0.75
Absorption at 230V (A): 3.9
Suction mouth: 1" 1/4
Delivery mouth: 1"
Pump body: AISI 304 stainless steel
Impeller: AISI 304 stainless steel
Number of impellers: 4
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 44
Minimum flow rate (l./min.): 5
Max. flow rate (l./min.): 80
Min. head (m.): 10
Max. head (m.): 52
Jobs: irrigation
Max. liquid temperature (°C): +60°C
Height (cm): 17.1
Width (cm): 16.0
Depth (cm): 35.8
Weight (Kg): 9.3
Warranty (years): 2

Attachments

FCR 80-100 Technical Data Sheet

Construction and operating characteristics. Operating curves, operating limits, and dimensions of Pedrollo's FCR 80-100 series pumps.

Download (529.07KB)

Models and performances FCRm 80

TYPE

single phase

FCRM 80/2

FCRM 80/3

FCRM 80/4

FCRM 80/5

POWER
KW	HP
0.30	0.40
0.40	0.60
0.55	0.75
0.75	1

PERFORMANCES
Q liters/min	H meters
5 ÷ 70	27 ÷ 5
5 ÷ 80	40 ÷ 5
5 ÷ 80	52 ÷ 10
5 ÷ 80	67 ÷12

MOUTH
asp.	send.
1"	1"

Q	m³/hour	0	0.3	0.6	0.9	1.2	1.5	1.8	2.4	3.0	3.6	4.2	4.8
Q	l/min	0	5	10	15	20	25	30	40	50	60	70	80
H	meters	27	26	25	24	22.5	21	20	16.5	13	9	5
		40	38	37	36	34.5	33	31	27	22.5	17	11	5
		52	50	49	47	44.5	42	40	34	28.5	22.5	16	10
		67	66	64	62	59	56	53	45.5	37.5	29.5	20.5	12

Compare with Similar Products

	FCRm 80/4 - 0.75 HP single-phase multi-impeller electric pump This product With stainless steel impeller. Flow rate up to 80 l/min (4.8 m³/h). Head up to 52 m. Motor 0.55 Kw (0.75 HP).	4CRm 80 - 0.75 HP single-phase multi-impeller centrifugal electric pump Quick View Flow rate up to 80 l/min (4.8 m³/h). Head up to 52 m. Motor 0.55 Kw (0.75 HP).
Price	Price €427.00 -45% €234.85	Price €351.36 -42% €203.79
Motor connection	Motor connection SINGLE-PHASE	Motor connection SINGLE-PHASE
Power (Kw)	Power (Kw) 0.55	Power (Kw) 0.55
Power (HP)	Power (HP) 0.75	Power (HP) 0.75
Absorption at 230V (A)	Absorption at 230V (A) 3.9	Absorption at 230V (A) 3.9
Capacitor	Capacitor --	Capacitor 14 µF 450 VL
Suction mouth	Suction mouth 1" 1/4	Suction mouth 1"
Delivery mouth	Delivery mouth 1"	Delivery mouth 1"
Pump body	Pump body AISI 304 stainless steel	Pump body AISI 304 stainless steel
Impeller	Impeller AISI 304 stainless steel	Impeller Noryl
Number of impellers	Number of impellers 4	Number of impellers 4
Crankshaft	Crankshaft AISI 431 stainless steel	Crankshaft Stainless steel EN 10088-3 1.4104
Check valve	Check valve No	Check valve No
Degree of protection	Degree of protection IP 44	Degree of protection IP 44
Minimum flow rate (l./min.)	Minimum flow rate (l./min.) 5	Minimum flow rate (l./min.) 5
Max. flow rate (l./min.)	Max. flow rate (l./min.) 80	Max. flow rate (l./min.) 80
Min. head (m.)	Min. head (m.) 10	Min. head (m.) 10
Max. head (m.)	Max. head (m.) 52	Max. head (m.) 52
Jobs	Jobs irrigation	Jobs water supply, pressurization systems, irrigation
Max. liquid temperature (°C)	Max. liquid temperature (°C) +60°C	Max. liquid temperature (°C) +40°C
Height (cm)	Height (cm) 17.1	Height (cm) 18.2
Width (cm)	Width (cm) 16.0	Width (cm) 18.2
Depth (cm)	Depth (cm) 35.8	Depth (cm) 38.6
Weight (Kg)	Weight (Kg) 9.3	Weight (Kg) 8.3
Warranty (years)	Warranty (years) 2	Warranty (years) 2
