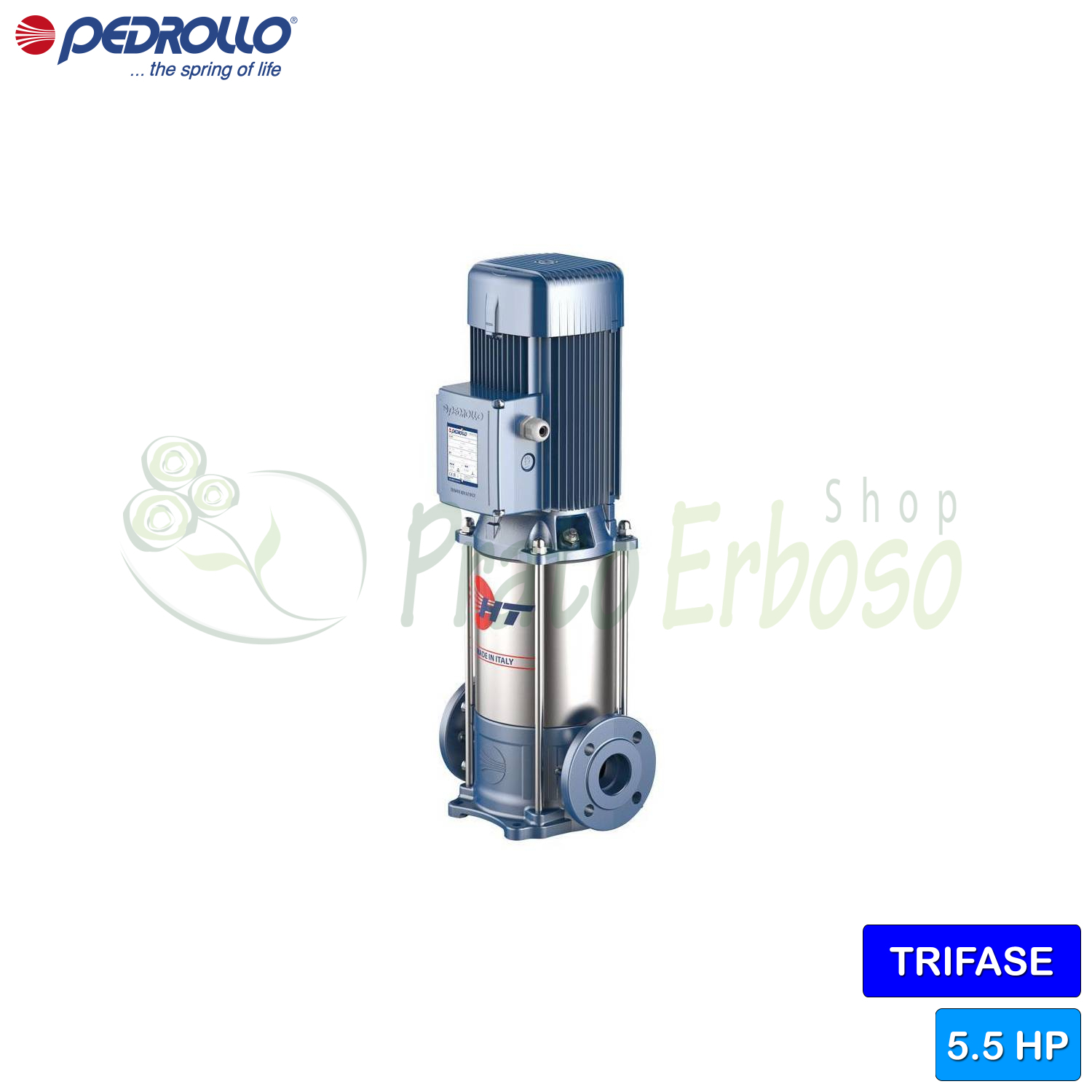

HT 8/8 - 5.5 HP three-phase vertical multistage electric pump
Flow rate up to 200 l/min (12 m³/h). Head up to 125 m. Motor 4 Kw (5.5 HP).
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Tuesday 30 June - Wednesday 1 July |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Tuesday 30 June - Wednesday 1 July |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 3 July - Monday 6 July |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Tuesday 30 June - Wednesday 1 July
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Tuesday 30 June - Wednesday 1 July
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 3 July - Monday 6 July
The Pedrollo HT 8/8 multi-impeller centrifugal electric pump is ideal for pumping clean water and liquids that are chemically non-aggressive for the materials from which the pump is made.
This electric pump is designed to ensure high performance combined with a compact construction.
The HT 8/8 is ideal for applications in the domestic, civil, agricultural and industrial fields. In particular, it can also be used for the distribution of water in conjunction with pressure tanks, for increasing pressure in the network, for fire-fighting systems, for washing systems and for irrigation.
The flow rate ranges from 20 to 200 liters per minute. The head ranges from 45.5 to 125 meters.
The HT 8/8 must be powered by a three-phase voltage, has a horsepower of 4 HP and the temperature of the liquid to be pumped ranges from -15 degrees centigrade up to +90.
The pump is made of AISI 304 stainless steel and cast iron which guarantee the pump compactness but above all resistance and robustness.
The assembly of the 3 steel impellers ensures that the pump is also extremely silent despite its small size.
With the multi-stage construction, the operating noise is particularly low.
The HT 8/8 must be installed indoors or in any case protected from the elements.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 4
- Power (HP)
- 5.5
- Absorption at 230V (A)
- 14.7
- Current consumption at 400V (A)
- 8.5
- Suction mouth
- 1" 1/2
- Delivery mouth
- 1" 1/2
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 3
- Crankshaft
- AISI 304 stainless steel
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 200
- Min. head (m.)
- 45.5
- Max. head (m.)
- 125
- Jobs
- fire prevention systems, washing systems, irrigation, pressurization systems, water supply
- Height (cm)
- 69.0
- Width (cm)
- 28.0
- Depth (cm)
- 25.7
- Weight (Kg)
- 52.7
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
-
-
- -40%
€6.40 tax incl. €10.66
Compare with Similar Products
 HT 8/8 - 5.5 HP three-phase vertical multistage electric pumpThis product Flow rate up to 200 l/min (12 m³/h). Head up to 125 m. Motor 4 Kw (5.5 HP). |  HT 8/8-PRO - 5.5 HP three-phase vertical multistage electric pump Flow rate up to 200 l/min (12.0 m³/h). Head up to 125 m. Motor 4 Kw (5.5 HP). | |
|---|---|---|
| Price | Price €2,280.18 -45% €1,254.10 | Price €2,997.54 -45% €1,648.65 |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 4 | Power (Kw) 4 |
| Power (HP) | Power (HP) 5.5 | Power (HP) 5.5 |
| Absorption at 230V (A) | Absorption at 230V (A) 14.7 | Absorption at 230V (A) -- |
| Current consumption at 400V (A) | Current consumption at 400V (A) 8.5 | Current consumption at 400V (A) -- |
| Suction mouth | Suction mouth 1" 1/2 | Suction mouth 1" 1/4 |
| Delivery mouth | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/4 |
| Pump body | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel |
| Number of impellers | Number of impellers 3 | Number of impellers 8 |
| Crankshaft | Crankshaft AISI 304 stainless steel | Crankshaft -- |
| Check valve | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 44 | Degree of protection -- |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 20 | Minimum flow rate (l./min.) 20 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 200 | Max. flow rate (l./min.) 200 |
| Min. head (m.) | Min. head (m.) 45.5 | Min. head (m.) 45.5 |
| Max. head (m.) | Max. head (m.) 125 | Max. head (m.) 125 |
| Jobs | Jobs fire prevention systems, washing systems, irrigation, pressurization systems, water supply | Jobs fire prevention systems, washing systems, irrigation, pressurization systems, water supply |
| Height (cm) | Height (cm) 69.0 | Height (cm) 69.0 |
| Width (cm) | Width (cm) 28.0 | Width (cm) 28.0 |
| Depth (cm) | Depth (cm) 25.7 | Depth (cm) 25.7 |
| Weight (Kg) | Weight (Kg) 52.7 | Weight (Kg) 48.7 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 |
