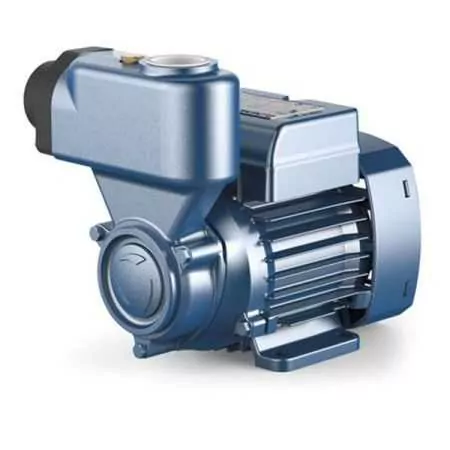

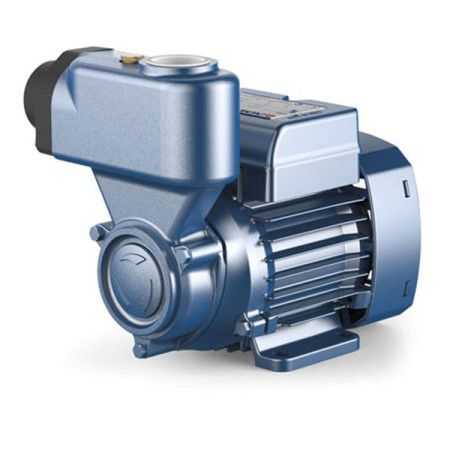

PKS 60 - Self-priming electric pump with three-phase peripheral impeller, 0.40 HP Pedrollo - 1

-42%

PKS 60 - Self-priming electric pump with 0.40 HP three-phase peripheral impeller

Name: PKS 60 - Self-priming electric pump with 0.40 HP three-phase peripheral impeller
Brand: Pedrollo
SKU: PKS 60
Price: 115.34 EUR
Availability: InStock

Flow rate up to 40 l/min (2.4 m³/h). Head up to 40 m. 0.30 Kw (0.40 HP) motor.

Variants:

There are no reviews yet

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The advantages of the Pedrollo PKS 60 peripheral electric pump include compactness, reliability and affordability.

Recommended for installation in domestic systems.

The pump is very quiet, the noise has been reduced by 20% and its use is less annoying in a home environment.

The PKS 60 can be used for water distribution in conjunction with small pressure tanks, for irrigation of vegetable gardens and gardens.

Equipped with anti-lock braking system.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 0.30
Power (HP): 0.40
Absorption at 230V (A): 2
Current consumption at 400V (A): 1.15
Suction mouth: 1"
Delivery mouth: 1"
Pump body: Cast iron
Impeller: Brass
Number of impellers: 1
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 44
Minimum flow rate (l./min.): 5
Max. flow rate (l./min.): 40
Min. head (m.): 5
Max. head (m.): 40
Jobs: water supply
Max. liquid temperature (°C): +60°C
Motor voltage: 230 V, 400V
Height (cm): 18.3
Width (cm): 19.6
Depth (cm): 14.8
Weight (Kg): 5.6
Warranty (years): 2

Attachments

PKS data sheet

Construction and operating characteristics. Working curves, limits of use and dimensions of Pedrollo PKS series pumps.

Download (515.05KB)

PKS models and performance

TYPE

three phase

PKS 60

PKS 65

PKS 80

POWER
KW	HP
0.37	0.50
0.55	0.75
0.75	1

PERFORMANCES
Q liters/min	H meters
5 ÷ 40	40 ÷ 5
5 ÷ 50	55 ÷ 8
5 ÷ 50	70 ÷ 22

MOUTH
asp.	send.
1"	1"

Q	m³/hour	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7	3.0
Q	l/min	0	5	10	15	20	25	30	35	40	45	50
H	meters	40	38	33.5	29	24	19.5	15	10	5
		55	50	45.5	40.5	36	31	27	22	17	12.5	8
		70	66	61	56	51	46	41	36.5	31	27	22

Construction data of the PKS 60-65

Bearings

Pump side motor bearing	6201 ZZ
Opposite side motor bearing	6201 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	AR-12
LP diameter	12
Fixed ring LP	Ceramic
Rotating ring LP	Graphite
LP elastomer	NBR

Mat

1.0 - Pump Body	Cast iron GJL 200 EN 1561
2.1 - Seal holder cover	Brass CW617N EN 12165
3.0 - Impeller	Brass CW617N EN 12165
4.0 - Pump shaft	EN 1.4057 stainless steel (AISI 431)
6.0 - Motor holder	Aluminum EN-AB 46100
6.1 - Engine cover	DX53D EN 10346 galvanized steel
7.0 - Lantern	Aluminum EN-AB 46100
