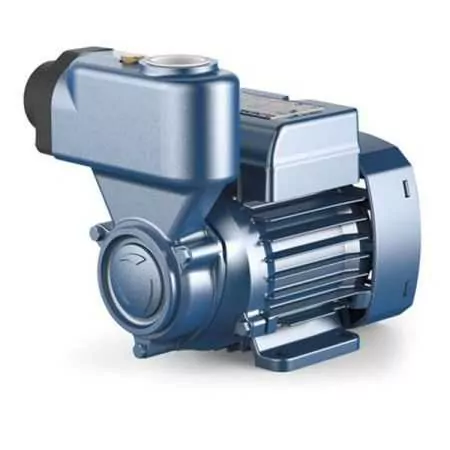

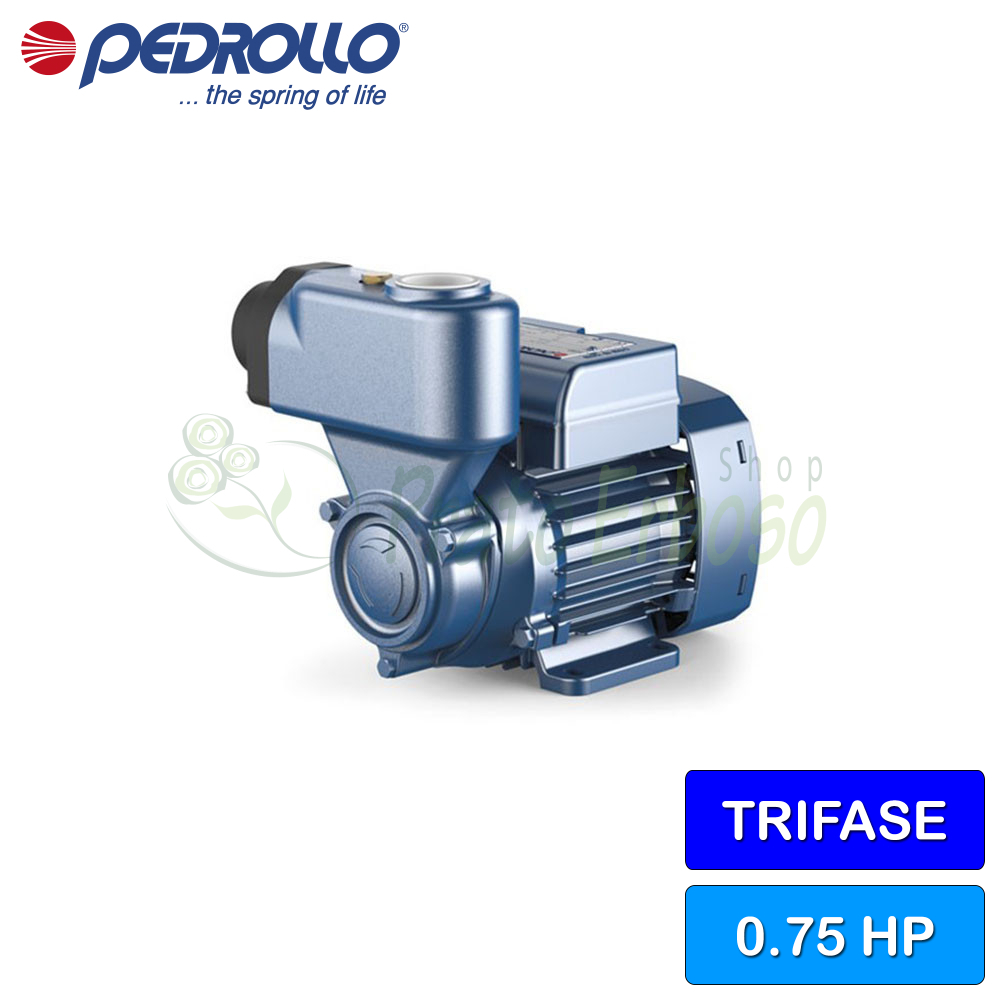

PKS 65 - Self-priming electric pump with 0.75 HP three-phase peripheral impeller

Name: PKS 65 - Self-priming electric pump with 0.75 HP three-phase peripheral impeller
Brand: Pedrollo
SKU: PKS 65
Price: 150.72 EUR
Availability: InStock

Flow rate up to 50 l/min (3 m³/h). Head up to 55 m. 0.55 kW (0.75 HP) motor.

Variants:

Order it before 12:00 on Monday and receive it between Thursday 25 June and Friday 26 June with Mail Boxes - 2 giorni

Delivery Options

Carrier		Description	Estimated Delivery
	Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Thursday 25 June - Friday 26 June
	Poste Italiane - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust them with the products.	Thursday 25 June - Friday 26 June

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Thursday 25 June - Friday 26 June

Carrier: Poste Italiane - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.

Estimated delivery:
Thursday 25 June - Friday 26 June

There are no reviews yet

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The Pedrollo PKS 65 peripheral electric pump is recommended for use in the domestic sector.

Suitable for pumping clean water that does not contain particles or liquids that could damage the components.

The PKS 65 can be used for water distribution in conjunction with small pressure tanks, for irrigation of vegetable gardens and gardens.

The particular advantages of this pump are its compactness, reliability and economy.

The pump is supplied with a check valve on the suction side.

Data sheet

Motor connection: THREE-PHASE
Power (HP): 0.75
Absorption at 230V (A): 3
Current consumption at 400V (A): 1.7
Suction mouth: 1"
Delivery mouth: 1"
Pump body: Cast iron
Impeller: Brass
Number of impellers: 1
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 44
Minimum flow rate (l./min.): 5
Max. flow rate (l./min.): 50
Min. head (m.): 8
Max. head (m.): 55
Jobs: water supply
Max. liquid temperature (°C): +60°C
Motor voltage: 230 V, 400V
Height (cm): 19
Width (cm): 22.7
Depth (cm): 14.8
Weight (Kg): 6.9
Warranty (years): 2

Attachments

PKS data sheet

Construction and operating characteristics. Working curves, limits of use and dimensions of Pedrollo PKS series pumps.

Download (515.05KB)

PKS models and performance

TYPE

three phase

PKS 60

PKS 65

PKS 80

POWER
KW	HP
0.37	0.50
0.55	0.75
0.75	1

PERFORMANCES
Q liters/min	H meters
5 ÷ 40	40 ÷ 5
5 ÷ 50	55 ÷ 8
5 ÷ 50	70 ÷ 22

MOUTH
asp.	send.
1"	1"

Q	m³/hour	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7	3.0
Q	l/min	0	5	10	15	20	25	30	35	40	45	50
H	meters	40	38	33.5	29	24	19.5	15	10	5
		55	50	45.5	40.5	36	31	27	22	17	12.5	8
		70	66	61	56	51	46	41	36.5	31	27	22

Construction data of the PKS 60-65

Bearings

Pump side motor bearing	6201 ZZ
Opposite side motor bearing	6201 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	AR-12
LP diameter	12
Fixed ring LP	Ceramic
Rotating ring LP	Graphite
LP elastomer	NBR

Mat

1.0 - Pump Body	Cast iron GJL 200 EN 1561
2.1 - Seal holder cover	Brass CW617N EN 12165
3.0 - Impeller	Brass CW617N EN 12165
4.0 - Pump shaft	EN 1.4057 stainless steel (AISI 431)
6.0 - Motor holder	Aluminum EN-AB 46100
6.1 - Engine cover	DX53D EN 10346 galvanized steel
7.0 - Lantern	Aluminum EN-AB 46100
