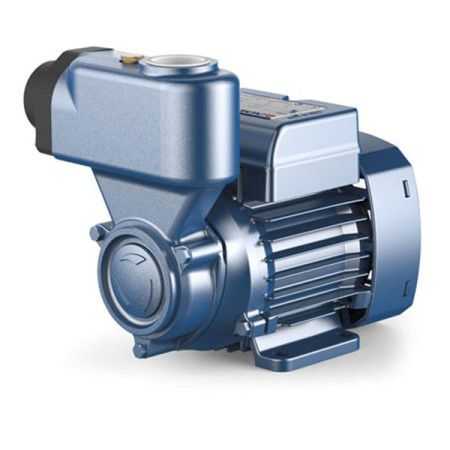

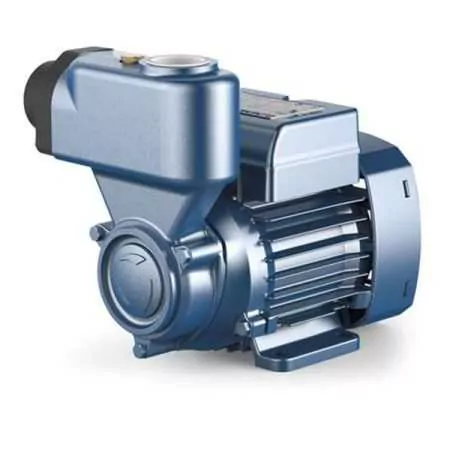

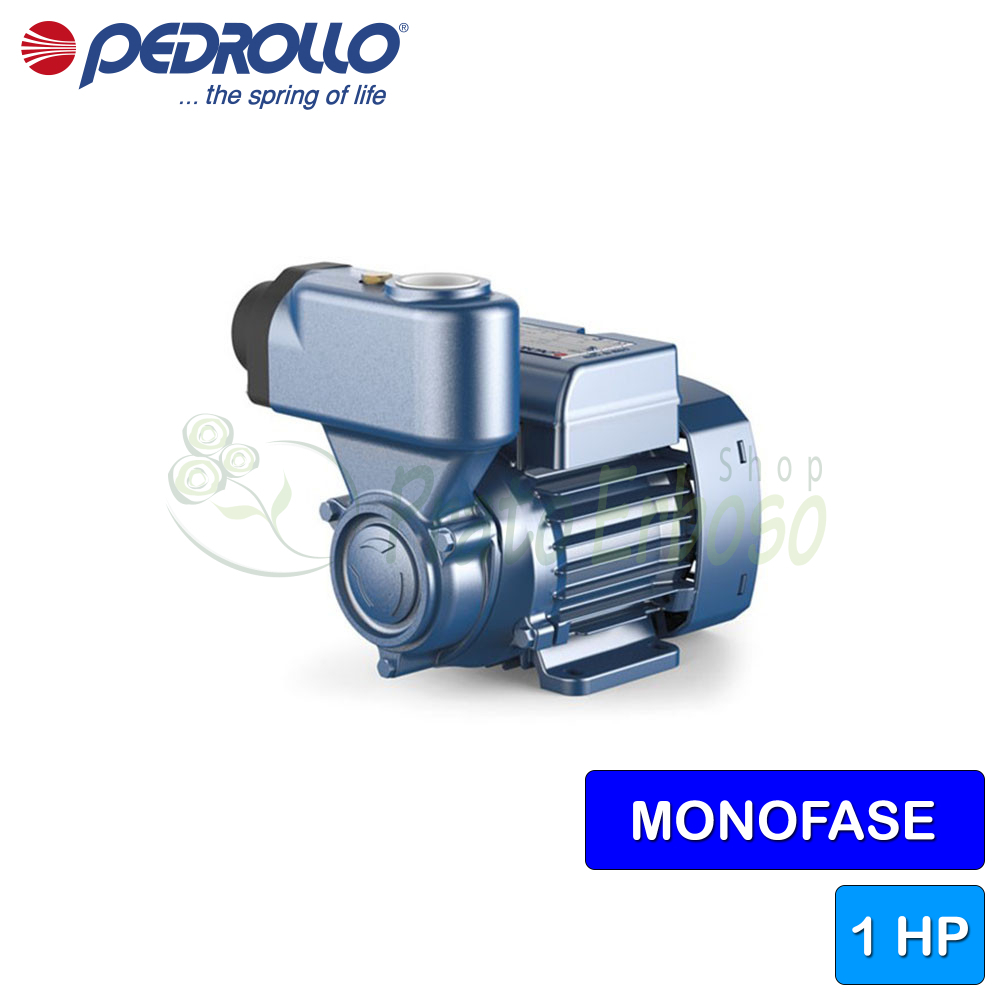

PKSm 80 - 1 HP single-phase self-priming electric pump with peripheral impeller
Flow rate up to 50 l/min (3 m³/h). Head up to 70 m. 0.75 Kw (1 HP) motor.
Variants:
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Monday 20 July - Tuesday 21 July |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Monday 20 July - Tuesday 21 July |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Monday 20 July - Tuesday 21 July
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Monday 20 July - Tuesday 21 July
×
There are no reviews yet
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The advantages of the Pedrollo PKSm 80 peripheral electric pump include compactness, reliability and affordability.
Recommended for installation in domestic systems.
The pump is very quiet, the noise has been reduced by 20% and its use is less annoying in a home environment.
The PKSm 80 can be used for water distribution in conjunction with small pressure tanks, for irrigation of vegetable gardens and gardens.
Equipped with anti-lock braking system.
Data sheet
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 5.2
- Capacitor
- 20 µF 450 VL
- Suction mouth
- 1"
- Delivery mouth
- 1"
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 50
- Min. head (m.)
- 22
- Max. head (m.)
- 70
- Jobs
- water supply
- Max. liquid temperature (°C)
- 60
- Motor voltage
- 230 V
- Height (cm)
- 19.8
- Width (cm)
- 26.3
- Depth (cm)
- 16
- Weight (Kg)
- 10.5
- Warranty (years)
- 2
PKSm models and performance
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the PKS 70-80
Bearings
| Pump side motor bearing | 6203 ZZ |
| Opposite side motor bearing | 6203 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | AR-12 |
| LP diameter | 12 |
| Fixed ring LP | Ceramic |
| Rotating ring LP | Graphite |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | Brass CW617N EN 12165 |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
