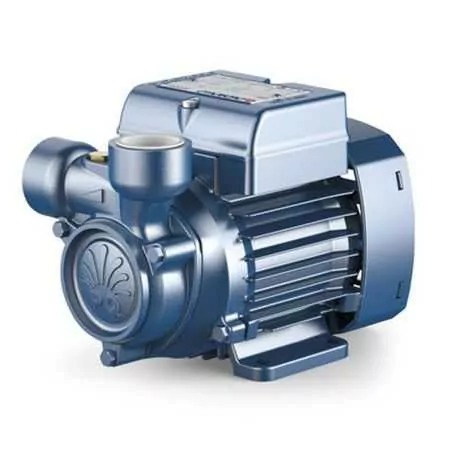

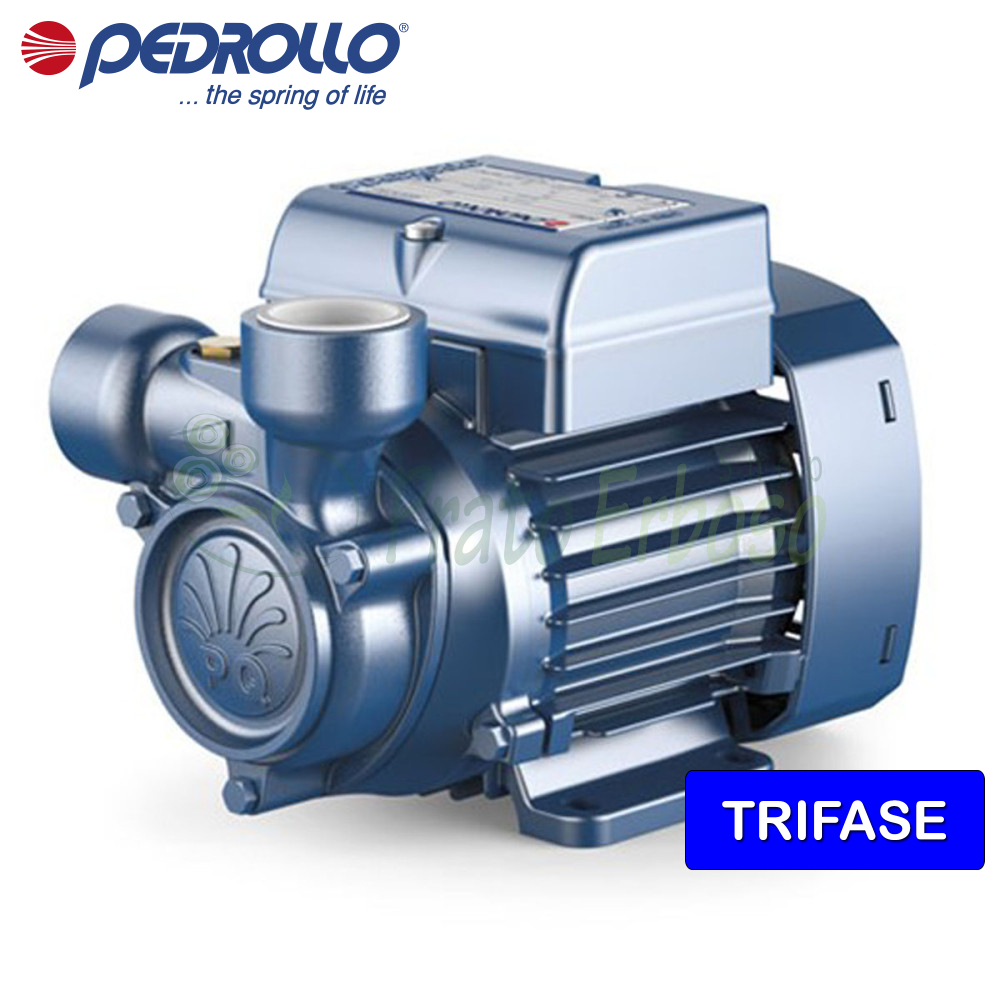

PQ 60 - Three-phase peripheral impeller electric pump 0.40 HP
Flow rate up to 40 l/min (2.4 m³/h). Head up to 40 m. 0.30 Kw (0.40 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Wednesday 21 October - Thursday 22 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Wednesday 21 October - Thursday 22 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Wednesday 21 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Wednesday 21 October - Thursday 22 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 21 October - Thursday 22 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 21 October
The Pedrollo PQ 60 peripheral electric pump with radial suction is suitable for domestic applications.
The operation of the peripheral pump is very simple and reliable, as the movement of the impellers in the pumping body increases the pressure of the pumped water.
The PQ 60 is recommended for pumping clean water without abrasive particles and liquids that are chemically non-aggressive for the materials from which the pump is made.
The hydraulic characteristics of this pump, combined with its compactness, suggest its use in the domestic sector. Characterized by its noise, in the new version the pump is 20% quieter.
The flow rate ranges from 5 to 40 liters per minute. The head ranges from 5 to 38 meters.
The PQ 60 must be powered by a three-phase voltage, has a horsepower of 0.4 HP and the temperature of the liquid to be pumped ranges from -10 degrees centigrade up to +90.
The pump body is made of cast iron and internally has a brass impeller and stainless steel drive shaft, therefore all materials particularly suitable for the correct and reliable use of the electric pump, guaranteeing excellent performance and long life over time.
The installation must be carried out in well-ventilated closed places or in any case protected from the elements as its certified protection is IPX5.
- Jobs
- water supply, irrigation
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.30
- Power (HP)
- 0.40
- Absorption at 230V (A)
- 2
- Current consumption at 400V (A)
- 1.15
- Capacitor
- 10 µF 450 VL
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 40
- Min. head (m.)
- 5
- Max. head (m.)
- 40
- Max. liquid temperature (°C)
- 90
- Motor voltage
- 230 V, 400 V
- Degree of protection
- IP 55
- Suction mouth
- 1"
- Delivery mouth
- 1"
- Height (cm)
- 14.5
- Width (cm)
- 19.2
- Depth (cm)
- 10
- Weight (Kg)
- 4.8
- Warranty (years)
- 2
Use and formulation of products
- Jobs
- water supply, irrigation
Engine and mechanical performance
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.30
- Power (HP)
- 0.40
- Absorption at 230V (A)
- 2
- Current consumption at 400V (A)
- 1.15
- Capacitor
- 10 µF 450 VL
Pump components and construction
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 40
- Min. head (m.)
- 5
- Max. head (m.)
- 40
Liquids and pumping conditions
- Max. liquid temperature (°C)
- 90
Power supply and electrical parameters
- Motor voltage
- 230 V, 400 V
Safety and protection
- Degree of protection
- IP 55
Installation and connections
- Suction mouth
- 1"
- Delivery mouth
- 1"
Dimensions and weight
- Height (cm)
- 14.5
- Width (cm)
- 19.2
- Depth (cm)
- 10
- Weight (Kg)
- 4.8
Packaging, maintenance, and warranty
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6201 ZZ |
| Opposite side motor bearing | 6201 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | AR-12 |
| LP diameter | 12 |
| Fixed ring LP | Ceramic |
| Rotating ring LP | Graphite |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | Brass CW617N EN 12165 |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | DX53D EN 10346 galvanized steel |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
