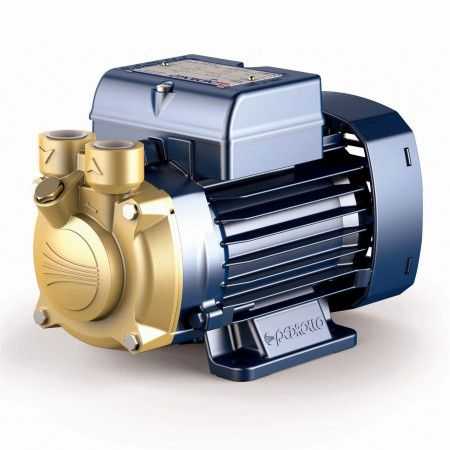

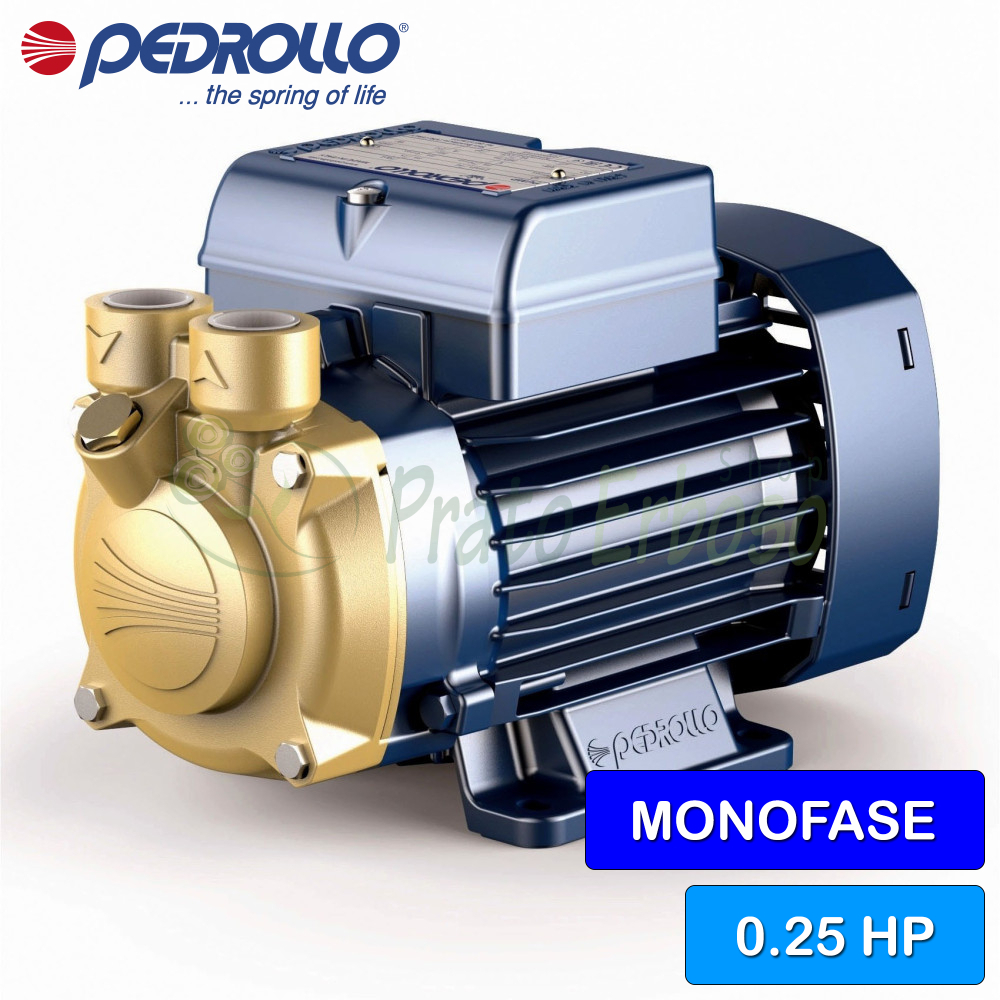

PVm 55 - 0.25 HP single-phase electric pump with peripheral impeller
Flow rate up to 10 l/min (0.6 m³/h). Head up to 43 m. 0.18 kW (0.25 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Wednesday 24 June - Thursday 25 June |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Wednesday 24 June - Thursday 25 June |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Wednesday 24 June - Thursday 25 June
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 24 June - Thursday 25 June
The Pedrollo PVm 55 peripheral electric pump is recommended for use in the industrial sector.
Pedrollo suggests using it for cooling and air conditioning.
It can pump clean water without abrasive particles and liquids that are chemically non-aggressive for the pump materials.
The PVm 55 is made of brass which is a guarantee against the formation of rust and oxidation.
Particularly compact, it is easy to install.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.18
- Power (HP)
- 0.25
- Absorption at 230V (A)
- 1.6
- Capacitor
- 10 µF 450 VL
- Suction mouth
- 1/4"
- Delivery mouth
- 1/4"
- Pump body
- Brass
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 2
- Max. flow rate (l./min.)
- 10
- Min. head (m.)
- 5
- Max. head (m.)
- 43
- Jobs
- air conditioning systems
- Max. liquid temperature (°C)
- +90°C
- Motor voltage
- 230 V
- Height (cm)
- 14.5
- Width (cm)
- 19.4
- Depth (cm)
- 11.6
- Weight (Kg)
- 4.4
- Warranty (years)
- 2
Bearings
| Pump side motor bearing | 6201 ZZ |
| Opposite side motor bearing | 6201 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | ST1-12 |
| LP diameter | 12 |
| Fixed ring LP | Silicon carbide |
| Rotating ring LP | Graphite |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Brass CW617N EN 12165 |
| 2.1 - Seal holder cover | Brass CW617N EN 12165 |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | DX53D EN 10346 galvanized steel |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
