PVm 90 - 1 HP single-phase electric pump with peripheral impeller

Name: PVm 90 - 1 HP single-phase electric pump with peripheral impeller
Brand: Pedrollo
SKU: PVm 90
Price: 292.95 EUR
Availability: InStock

Flow rate up to 36 l/min (2.16 m³/h). Head up to 105 m. 0.75 Kw (1 HP) motor.

Variants:

Order it before 12:00 and receive it between Friday 26 June and Monday 29 June with Mail Boxes - 2 giorni

Delivery Options

Carrier		Description	Estimated Delivery
	Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Friday 26 June - Monday 29 June
	Poste Italiane - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust them with the products.	Friday 26 June - Monday 29 June

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Friday 26 June - Monday 29 June

Carrier: Poste Italiane - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.

Estimated delivery:
Friday 26 June - Monday 29 June

There are no reviews yet

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

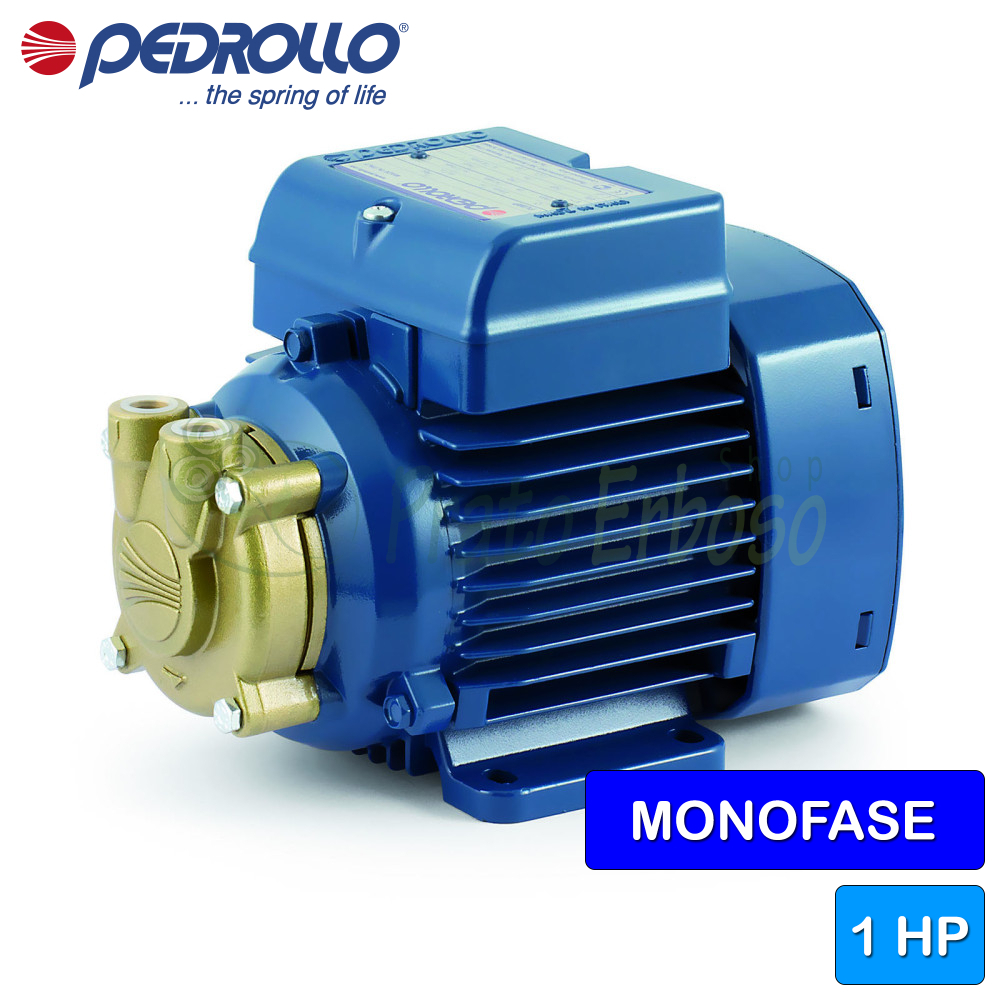

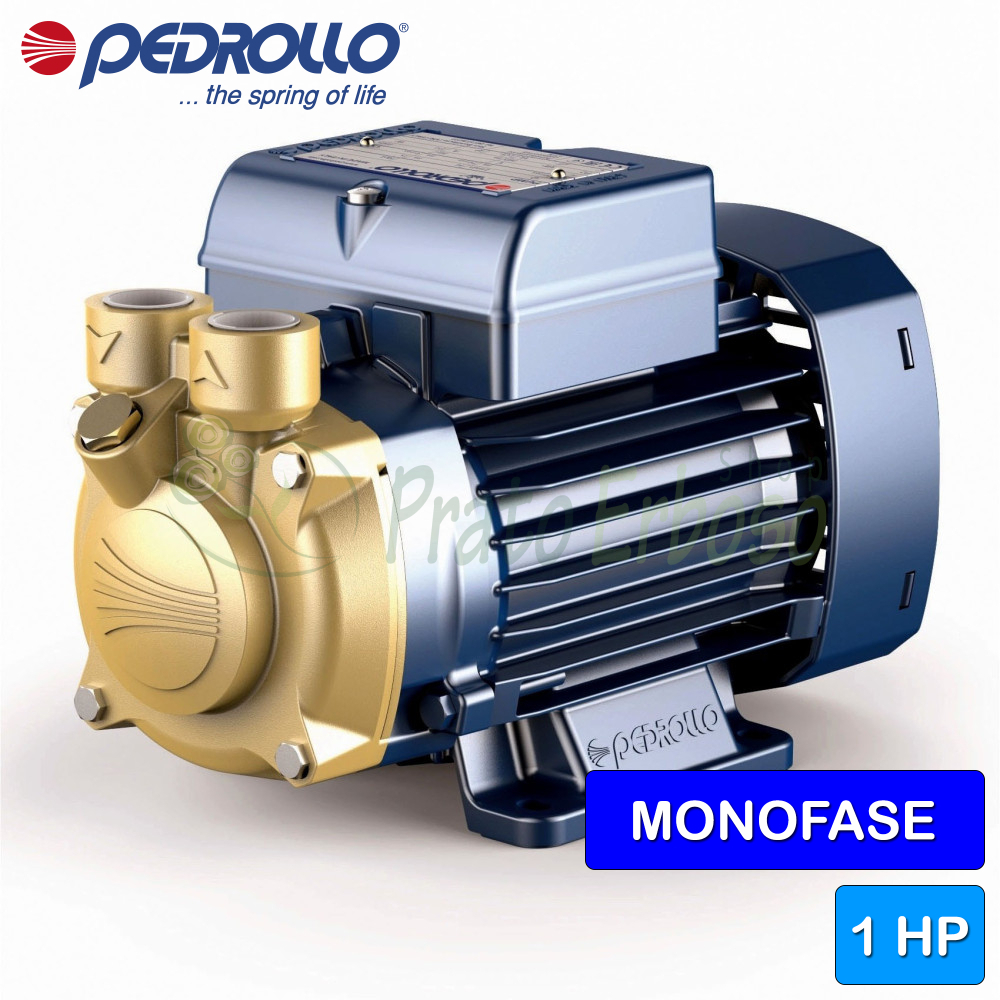

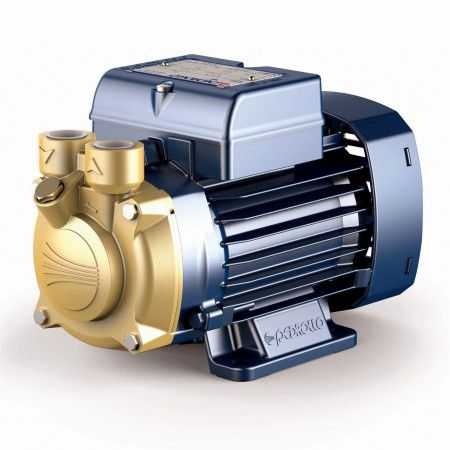

The Pedrollo PVm 90 peripheral electric pump is particularly compact and resistant.

Thanks to its compact size, it can be installed easily, even in tight spaces.

Made of brass which is a guarantee against rust and oxidation.

The PVm 90 is recommended for use in the industrial sector such as cooling and air conditioning activities.

It can pump clean water without abrasive particles or liquids that can damage components.

Data sheet

Motor connection: SINGLE-PHASE
Power (Kw): 0.75
Power (HP): 1
Absorption at 230V (A): 6.3
Capacitor: 25 µF 450 VL
Suction mouth: 3/4"
Delivery mouth: 3/4"
Pump body: Brass
Impeller: Brass
Number of impellers: 1
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 44
Minimum flow rate (l./min.): 2
Max. flow rate (l./min.): 36
Min. head (m.): 7
Max. head (m.): 105
Jobs: air conditioning systems
Max. liquid temperature (°C): +90°C
Motor voltage: 230 V
Height (cm): 7.1
Width (cm): 27.5
Depth (cm): 13.4
Weight (Kg): 10.0
Warranty (years): 2

Attachments

PV data sheet

Construction and operating characteristics. Working curves, limits of use and dimensions of the Pedrollo PV series pumps.

Download (1.04MB)

Models and PVm performances

TYPE

single phase

PVm 60

PVm 81

PVm 65

PVm 70

PVm 90

POWER
KW	HP
0.37	0.50
0.37	0.50
0.60	0.85
0.90	1.20
0.90	1.20

PERFORMANCES
Q liters/min	H meters
2 ÷ 32	43 ÷ 5
2 ÷ 17	85 ÷ 5
2 ÷ 42	58 ÷ 5
2 ÷ 45	74 ÷ 5
2 ÷ 35	100 ÷ 5

MOUTH
asp.	send.
1/2"	1/2"
3/4"	3/4"

Q	m³/hour	0	0.12	0.30	0.60	0.90	1.02	1.2	1.5	1.8	1.9	2.1	2.5	2.7
Q	l/min	0	2	5	10	15	17	20	25	30	32	35	42	45
H	meters	43	41	37.5	31.5	25.5	23	19.5	13	7.5	5
		85	75	61	38	15	5
		58	55	51	45	39	36	32.5	26	20	17.5	14	5
		74	70	65.5	58	50	47	43	35	28	25	20	9.5	5
		100	95	87	73	59.5	54	46	32	19	13	5

Construction data of the PV 70-90

Bearings

Pump side motor bearing	6203 ZZ
Opposite side motor bearing	6203 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	ST1-12
LP diameter	12
Fixed ring LP	Silicon carbide
Rotating ring LP	Graphite
LP elastomer	NBR

Mat

1.0 - Pump Body	Brass CW617N EN 12165
2.1 - Seal holder cover	Brass CW617N EN 12165
3.0 - Impeller	Brass CW617N EN 12165
4.0 - Pump shaft	EN 1.4057 stainless steel (AISI 431)
6.0 - Motor holder	Aluminum EN-AB 46100
6.1 - Engine cover	Aluminum EN-AB 46100
7.0 - Lantern	Aluminum EN-AB 46100
