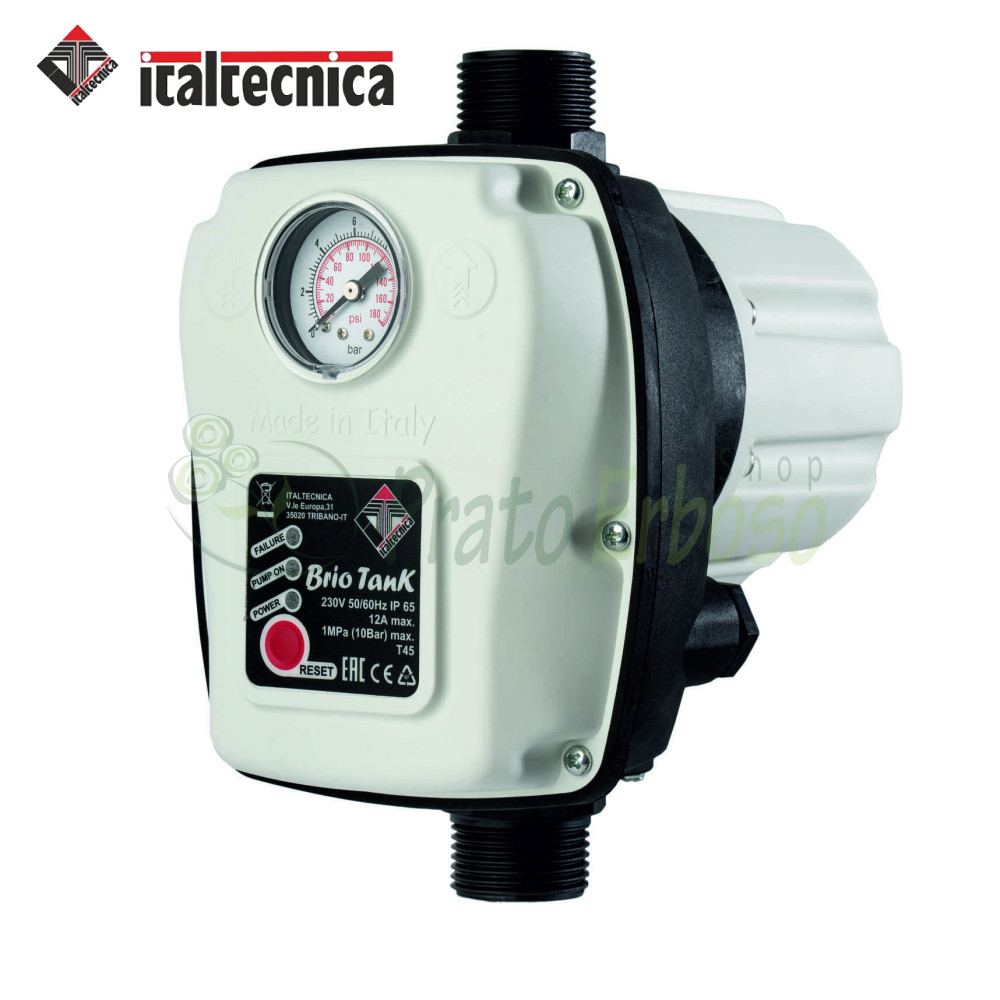

Brio Tank - Electronic pressure regulator
For pumps up to 2 HP. With pressure gauge. With auto-reset.
The Italtecnica Brio Tank pressure-flow switch automatically controls the start and stop of single-phase electric pumps up to 2 HP. It completely replaces the traditional system consisting of a pressure switch and expansion tank.
It starts the electric pump following a decrease in pressure and stops it when the flow of liquid stops at the maximum pressure of the electric pump.
The device incorporates a small 0.4-litre expansion vessel that prevents the electric pump from continuously starting and stopping in the event of system leaks or small water requests.
The pressure gauge is integrated which protects against dry running and water hammer.
It can be installed in any position, both vertical and horizontal, respecting the direction of flow.
- Power (HP)
- 2
- Degree of protection
- IP 65
- Max. working pressure (bar)
- Restart pressure (bar)
- 1 bar
- Jobs
- water supply, pressurization systems, irrigation
- Max. liquid temperature (°C)
- Line power supply
- single-phase
- Supply voltage (Volts)
- 230
- Line Current (Ampere)
- Engine power supply
- single phase
- Motor voltage
- 230 V
- Dry running protection
- Yes
- Height (cm)
- Attack size
- 1 "
- Weight (Kg)
- Warranty (years)
- 2
- Type of attack
- male
Compare with Similar Products
Brio Tank - Electronic pressure regulatorThis product For pumps up to 2 HP. With pressure gauge. With auto-reset. |
EASYPRESS-YELLOW - Electronic pressure regulatorFor pumps up to 2 HP. With pressure gauge. With auto-reset. Restart pressure 0.8 bar . |
PRESFLO VARIO - Electronic pressure regulatorFor pumps up to 2 HP. With pressure gauge. With auto-reset. |
Brio Top 2.0 - 1" Electronic Pressure RegulatorFor pumps up to 3 HP. With pressure gauge. With auto-reset. |
|
|---|---|---|---|---|
| Power (HP) | Power (HP) 2 | Power (HP) 2 | Power (HP) 2 | Power (HP) 3 |
| Degree of protection | Degree of protection IP 65 | Degree of protection IP 65 | Degree of protection IP 65 | Degree of protection IP 65 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) -- | Max. flow rate (l./min.) -- | Max. flow rate (l./min.) -- | Max. flow rate (l./min.) -- |
| Max. working pressure (bar) | Max. working pressure (bar) -- | Max. working pressure (bar) -- | Max. working pressure (bar) -- | Max. working pressure (bar) -- |
| Restart pressure (bar) | Restart pressure (bar) 1 bar | Restart pressure (bar) 0.8 | Restart pressure (bar) 0.8 | Restart pressure (bar) 8 |
| Jobs | Jobs water supply, pressurization systems, irrigation | Jobs irrigation, pressurization systems, water supply | Jobs water supply, pressurization systems, irrigation | Jobs water supply, pressurization systems, irrigation |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) -- | Max. liquid temperature (°C) 50 | Max. liquid temperature (°C) -- | Max. liquid temperature (°C) -- |
| Line power supply | Line power supply single-phase | Line power supply single-phase | Line power supply single-phase | Line power supply single-phase |
| Supply voltage (Volts) | Supply voltage (Volts) 230 | Supply voltage (Volts) 230 | Supply voltage (Volts) 230 | Supply voltage (Volts) 230 |
| Line Current (Ampere) | Line Current (Ampere) -- | Line Current (Ampere) 16 A | Line Current (Ampere) -- | Line Current (Ampere) 16 A |
| Engine power supply | Engine power supply single phase | Engine power supply single phase | Engine power supply single phase | Engine power supply single phase |
| Motor voltage | Motor voltage 230 V | Motor voltage 230 V | Motor voltage 230 V | Motor voltage 230 V |
| Dry running protection | Dry running protection Yes | Dry running protection Yes | Dry running protection Yes | Dry running protection Yes |
| Height (cm) | Height (cm) -- | Height (cm) 17.7 | Height (cm) -- | Height (cm) -- |
| Attack size | Attack size 1 " | Attack size 1 " | Attack size 1 " | Attack size 1 " |
| Weight (Kg) | Weight (Kg) -- | Weight (Kg) 0.7 | Weight (Kg) -- | Weight (Kg) -- |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
| Type of attack | Type of attack male | Type of attack male | Type of attack female | Type of attack male |
-
€40.97 tax incl.
-
€105.69 tax incl.
-
€109.85 tax incl.
Reviews (4) - Review moderation
veloci e affidabilissimi!
Already reported
Il cliente non ha lasciato alcun commento.
Already reported
This is a replacement for an old Brio 2000M. The old Brio continuously stopped and started the pump even if the water flow was as high as 20 L/min. Reset of the flow sensor did not help. Perhaps the sensor is dirty but the sensor cannot be removed for cleaning in the old model. Water should not be particularly dirty because a 50 micron filter is in use. The new 2023 Brio Tank allows very low water flow without stopping the pump. I tested with 3,4 L/min. I had to increase the starting pressure from factory setting by turning the knob 2 total turns clockwise. My highest water tap is about 16 meters above the lake.
Already reported
Velocissimi... Ottimo imballaggio ... Prodotto arrivato come da descrizione.
Already reported
