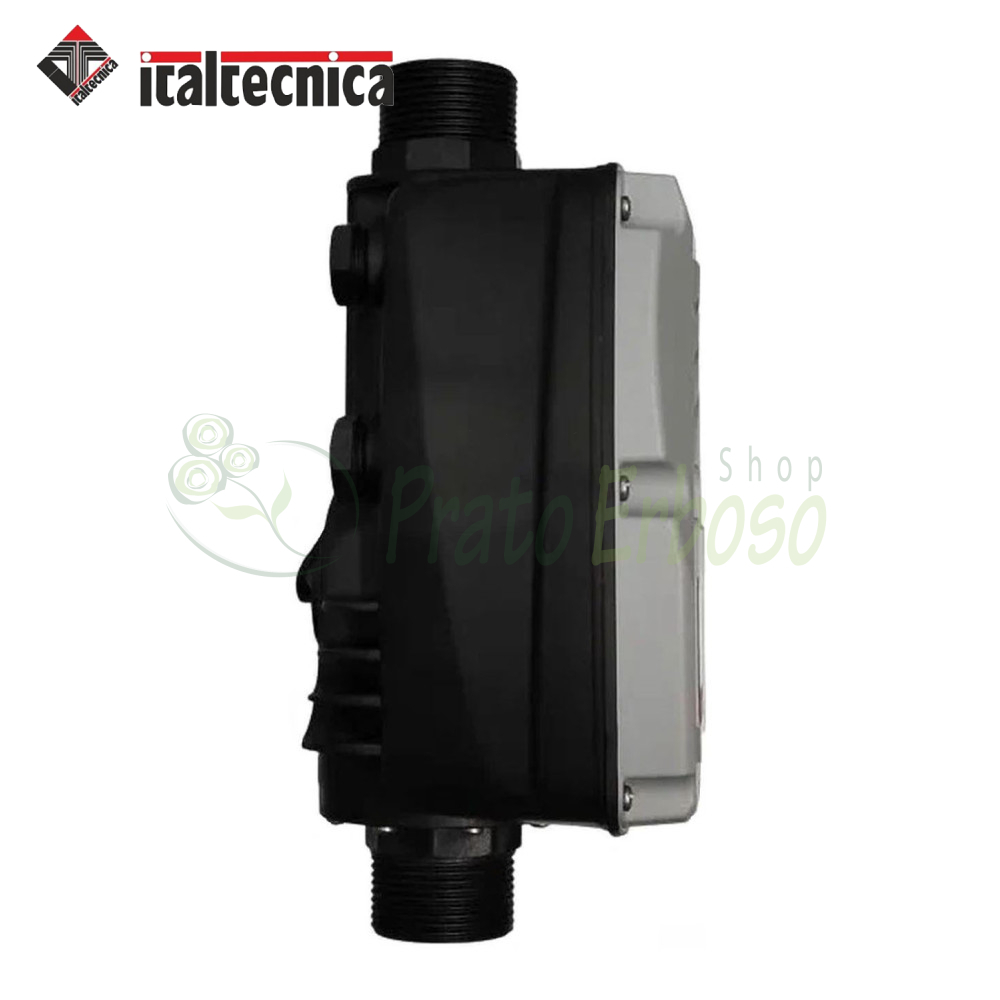

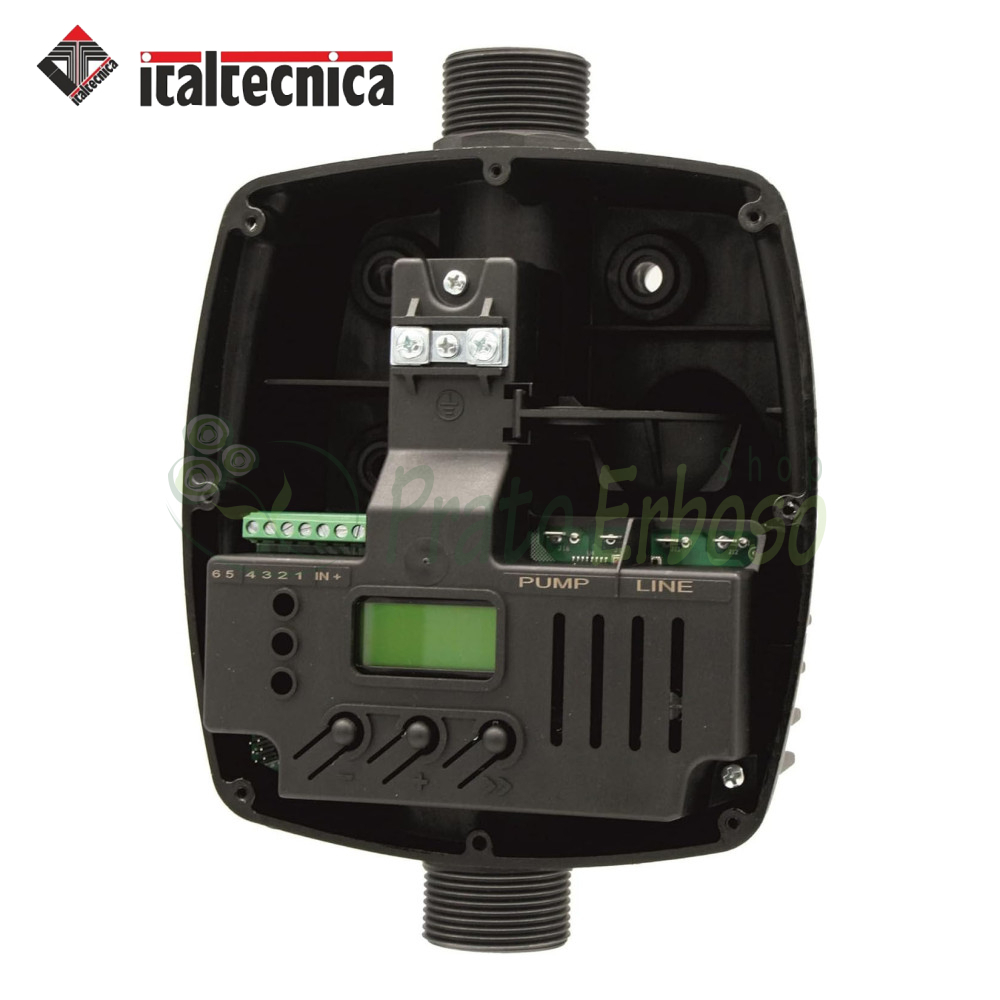

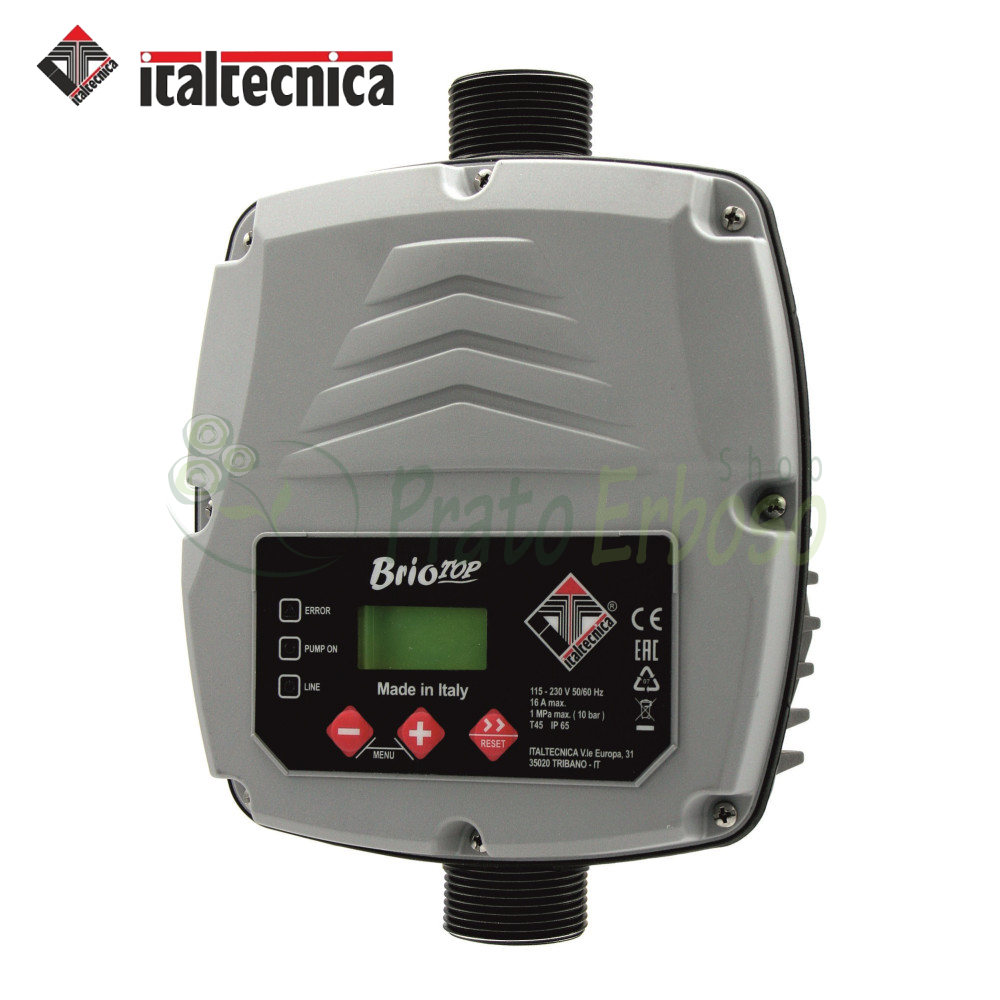

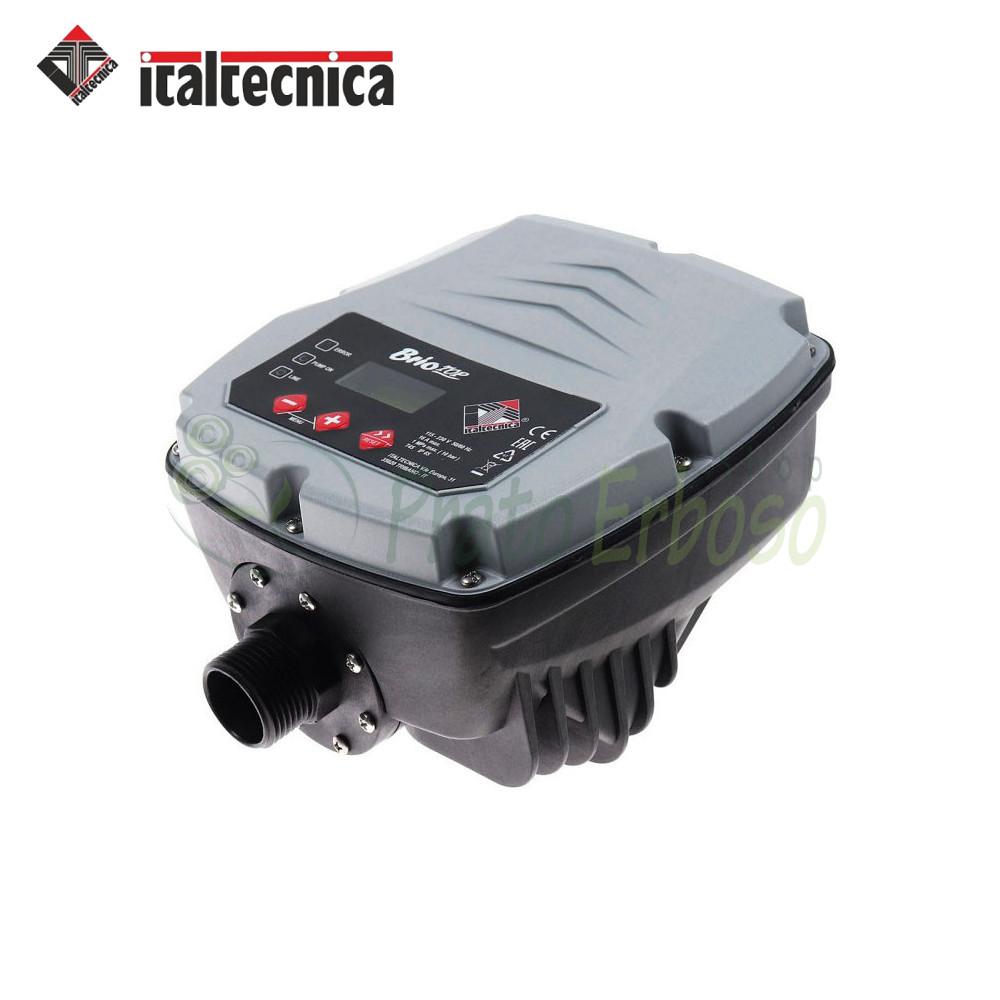

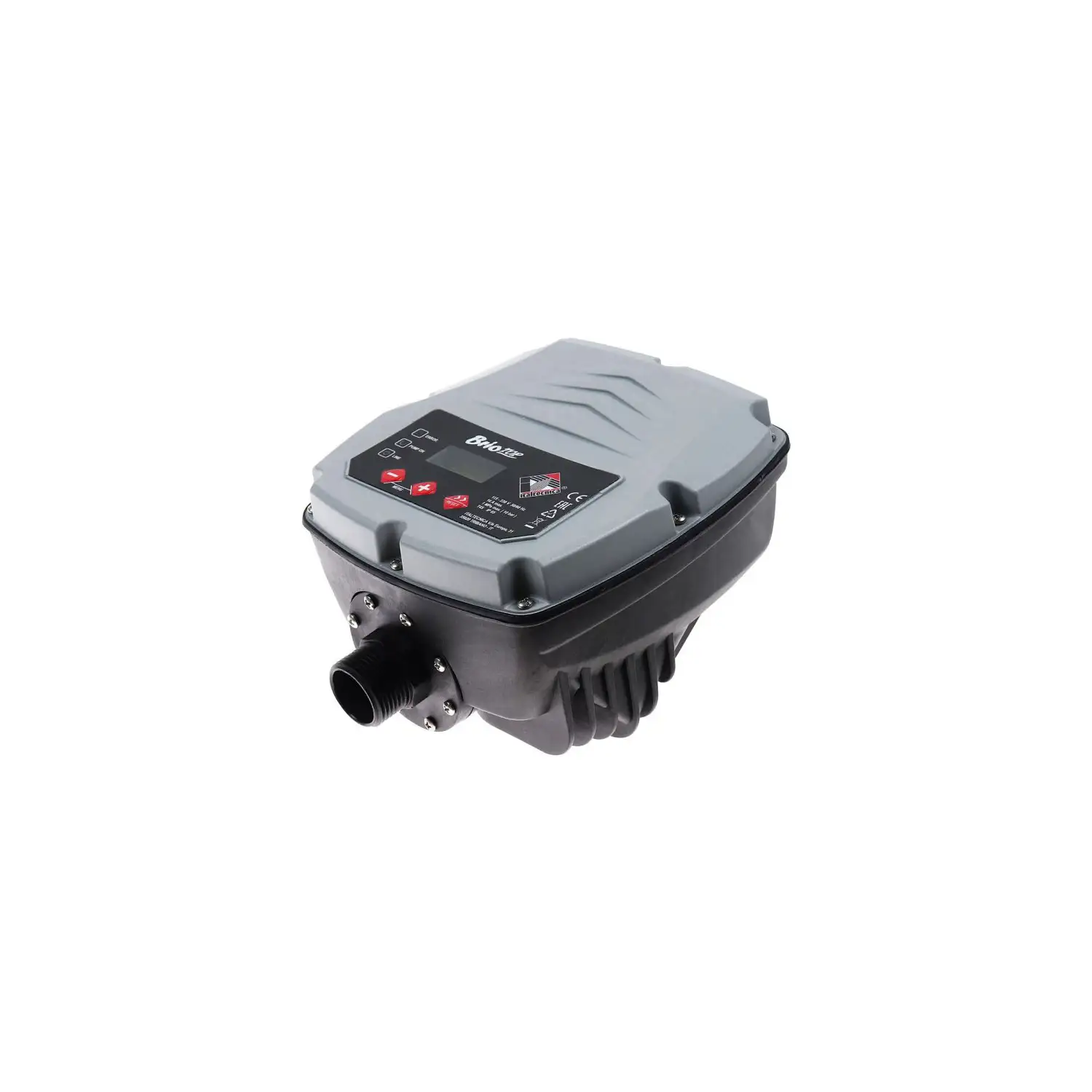

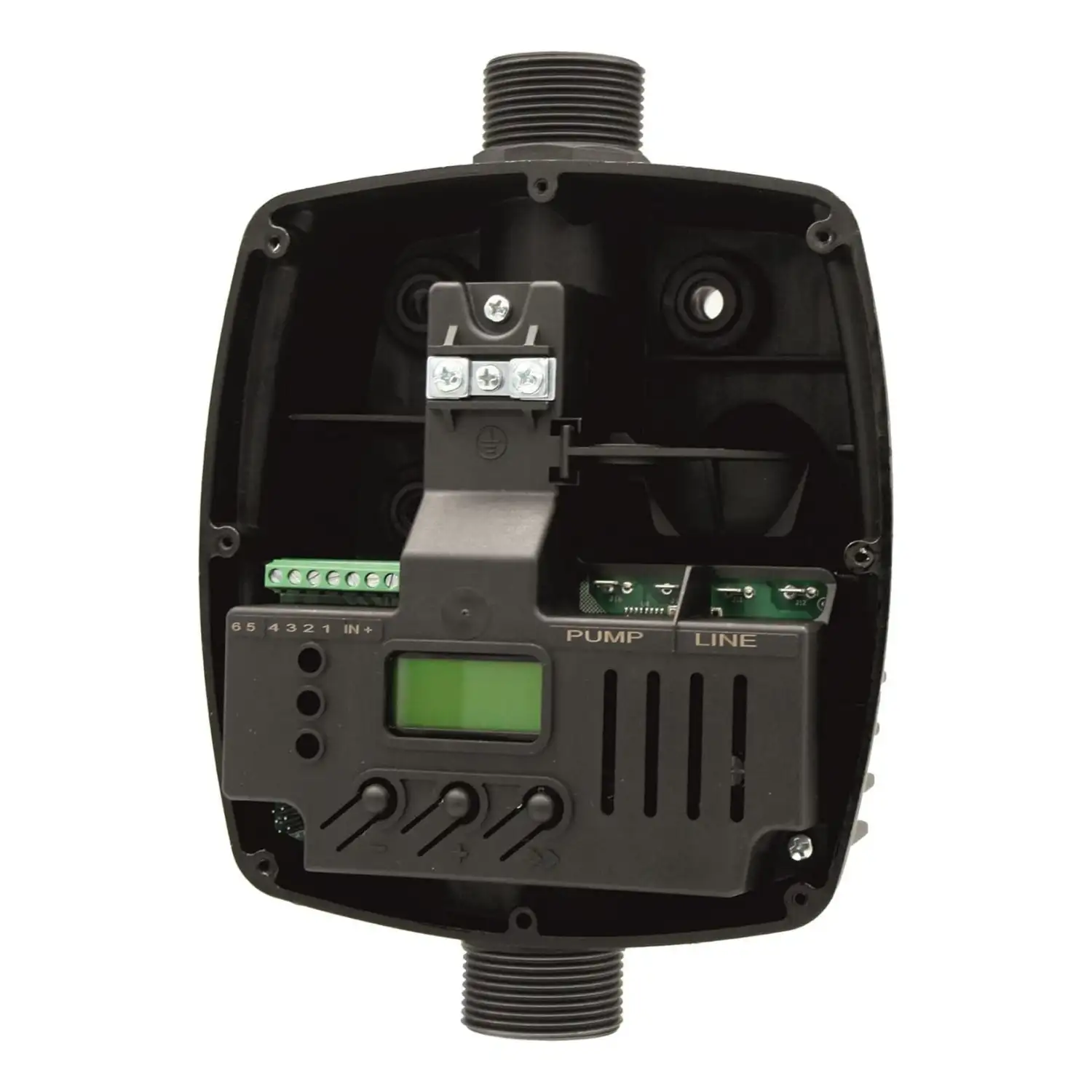

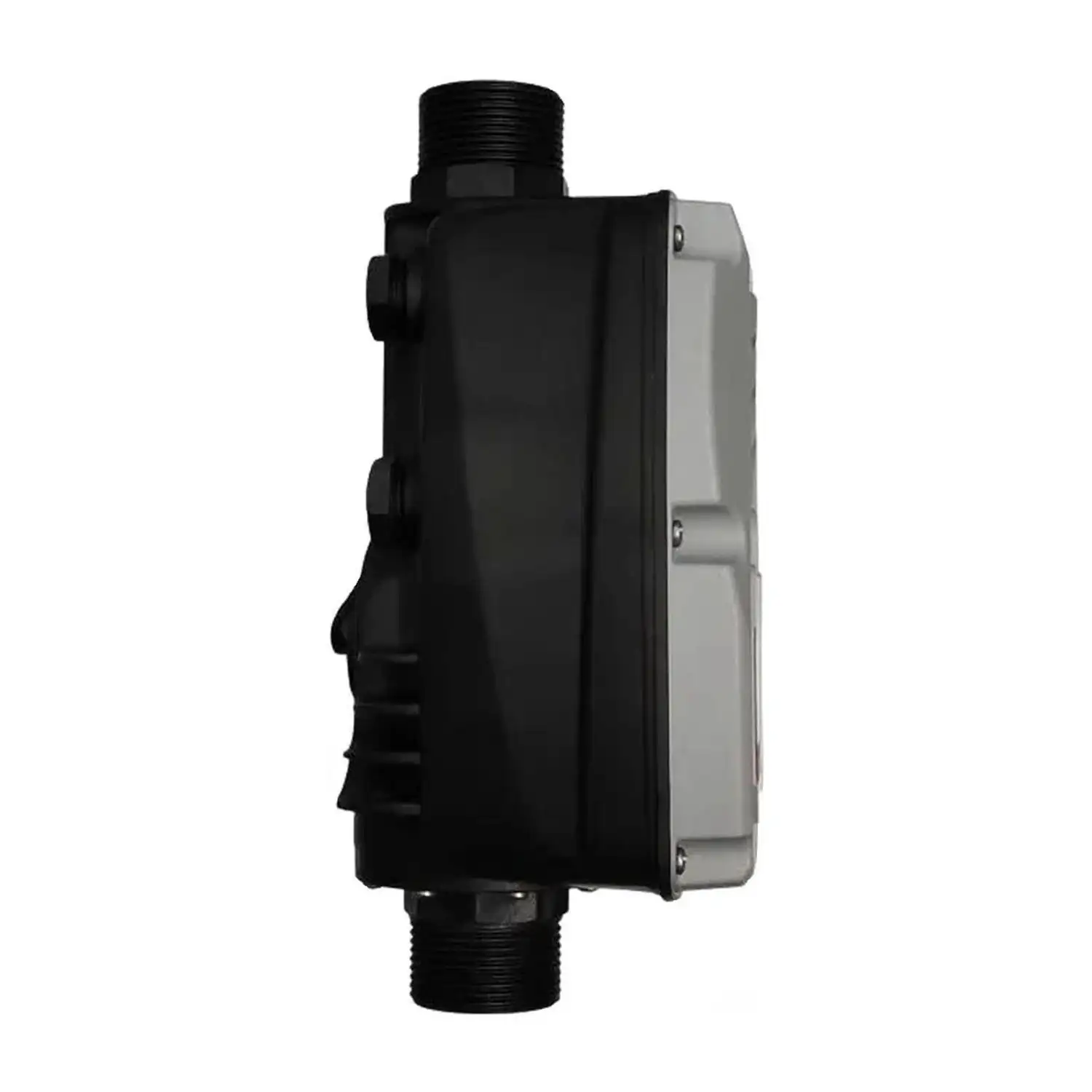

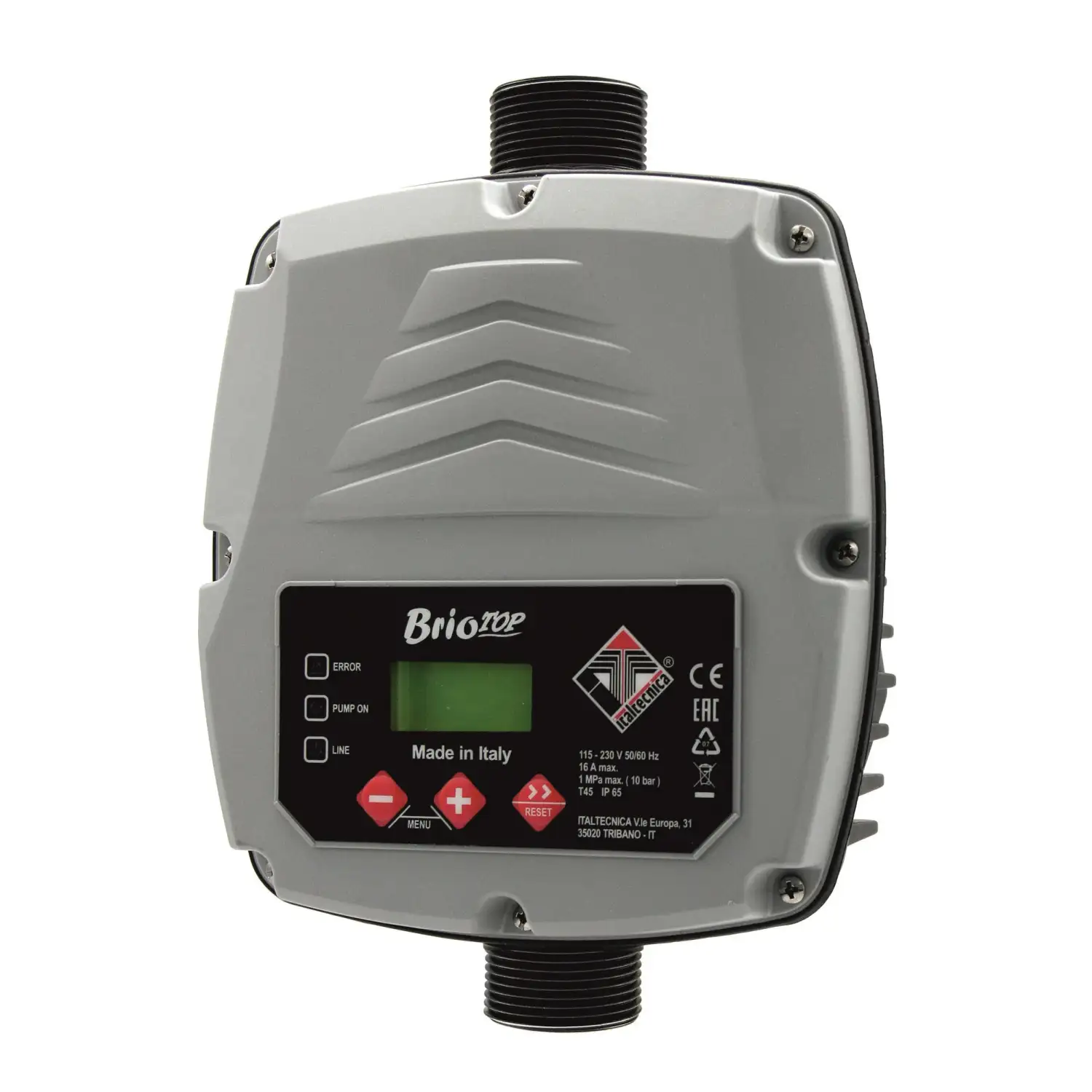

Brio Top 2.0 - 1" Electronic Pressure Regulator
For pumps up to 3 HP. With pressure gauge. With auto-reset.
Italtecnica 's Brio Top 2.0 automatically controls the starting and stopping of single-phase electric pumps.
It completely replaces the traditional system consisting of a pressure switch and expansion vessel or can be used as a digital pressure switch with two pressure thresholds.
It starts the electric pump following a decrease in pressure and stops it when the flow of liquid stops at the maximum pressure of the electric pump or when the set stop pressure is reached.
The Brio Top 2.0 protects against dry running in the event of a lack of water in the suction line, allows for automatic reset in the event of a dry running stoppage, capable of autonomously resolving the error condition, and features amperometric motor protection that intervenes in overload conditions or with a blocked rotor.
The anti-freeze protection starts the pump when the ambient temperature drops below 4°C (39°F). The rotor anti-jam function is useful for preventing mechanical parts from stopping during extended periods of pump inactivity, and the overpressure protection can stop the electric pump at a set threshold.
It can be installed in any vertical or horizontal position respecting the direction of flow.
- Power (HP)
- 3
- Degree of protection
- IP 65
- Max. flow rate (l./min.)
- Max. working pressure (bar)
- Restart pressure (bar)
- 8
- Jobs
- water supply, pressurization systems, irrigation
- Max. liquid temperature (°C)
- Line power supply
- single-phase
- Supply voltage (Volts)
- 230
- Line Current (Ampere)
- 16 A
- Engine power supply
- single phase
- Motor voltage
- 230 V
- Dry running protection
- Yes
- Height (cm)
- Attack size
- 1 "
- Weight (Kg)
- Warranty (years)
- 2
- Type of attack
- male
Compare with Similar Products
Brio Top 2.0 - 1" Electronic Pressure RegulatorThis product For pumps up to 3 HP. With pressure gauge. With auto-reset. |
Brio Tank - Electronic pressure regulatorFor pumps up to 2 HP. With pressure gauge. With auto-reset. |
EASYPRESS-YELLOW - Electronic pressure regulatorFor pumps up to 2 HP. With pressure gauge. With auto-reset. Restart pressure 0.8 bar . |
PRESFLO VARIO - Electronic pressure regulatorFor pumps up to 2 HP. With pressure gauge. With auto-reset. |
|
|---|---|---|---|---|
| Power (HP) | Power (HP) 3 | Power (HP) 2 | Power (HP) 2 | Power (HP) 2 |
| Degree of protection | Degree of protection IP 65 | Degree of protection IP 65 | Degree of protection IP 65 | Degree of protection IP 65 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) -- | Max. flow rate (l./min.) -- | Max. flow rate (l./min.) -- | Max. flow rate (l./min.) -- |
| Max. working pressure (bar) | Max. working pressure (bar) -- | Max. working pressure (bar) -- | Max. working pressure (bar) -- | Max. working pressure (bar) -- |
| Restart pressure (bar) | Restart pressure (bar) 8 | Restart pressure (bar) 1 bar | Restart pressure (bar) 0.8 | Restart pressure (bar) 0.8 |
| Jobs | Jobs water supply, pressurization systems, irrigation | Jobs water supply, pressurization systems, irrigation | Jobs irrigation, pressurization systems, water supply | Jobs water supply, pressurization systems, irrigation |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) -- | Max. liquid temperature (°C) -- | Max. liquid temperature (°C) 50 | Max. liquid temperature (°C) -- |
| Line power supply | Line power supply single-phase | Line power supply single-phase | Line power supply single-phase | Line power supply single-phase |
| Supply voltage (Volts) | Supply voltage (Volts) 230 | Supply voltage (Volts) 230 | Supply voltage (Volts) 230 | Supply voltage (Volts) 230 |
| Line Current (Ampere) | Line Current (Ampere) 16 A | Line Current (Ampere) -- | Line Current (Ampere) 16 A | Line Current (Ampere) -- |
| Engine power supply | Engine power supply single phase | Engine power supply single phase | Engine power supply single phase | Engine power supply single phase |
| Motor voltage | Motor voltage 230 V | Motor voltage 230 V | Motor voltage 230 V | Motor voltage 230 V |
| Dry running protection | Dry running protection Yes | Dry running protection Yes | Dry running protection Yes | Dry running protection Yes |
| Height (cm) | Height (cm) -- | Height (cm) -- | Height (cm) 17.7 | Height (cm) -- |
| Attack size | Attack size 1 " | Attack size 1 " | Attack size 1 " | Attack size 1 " |
| Weight (Kg) | Weight (Kg) -- | Weight (Kg) -- | Weight (Kg) 0.7 | Weight (Kg) -- |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
| Type of attack | Type of attack male | Type of attack male | Type of attack male | Type of attack female |
-
