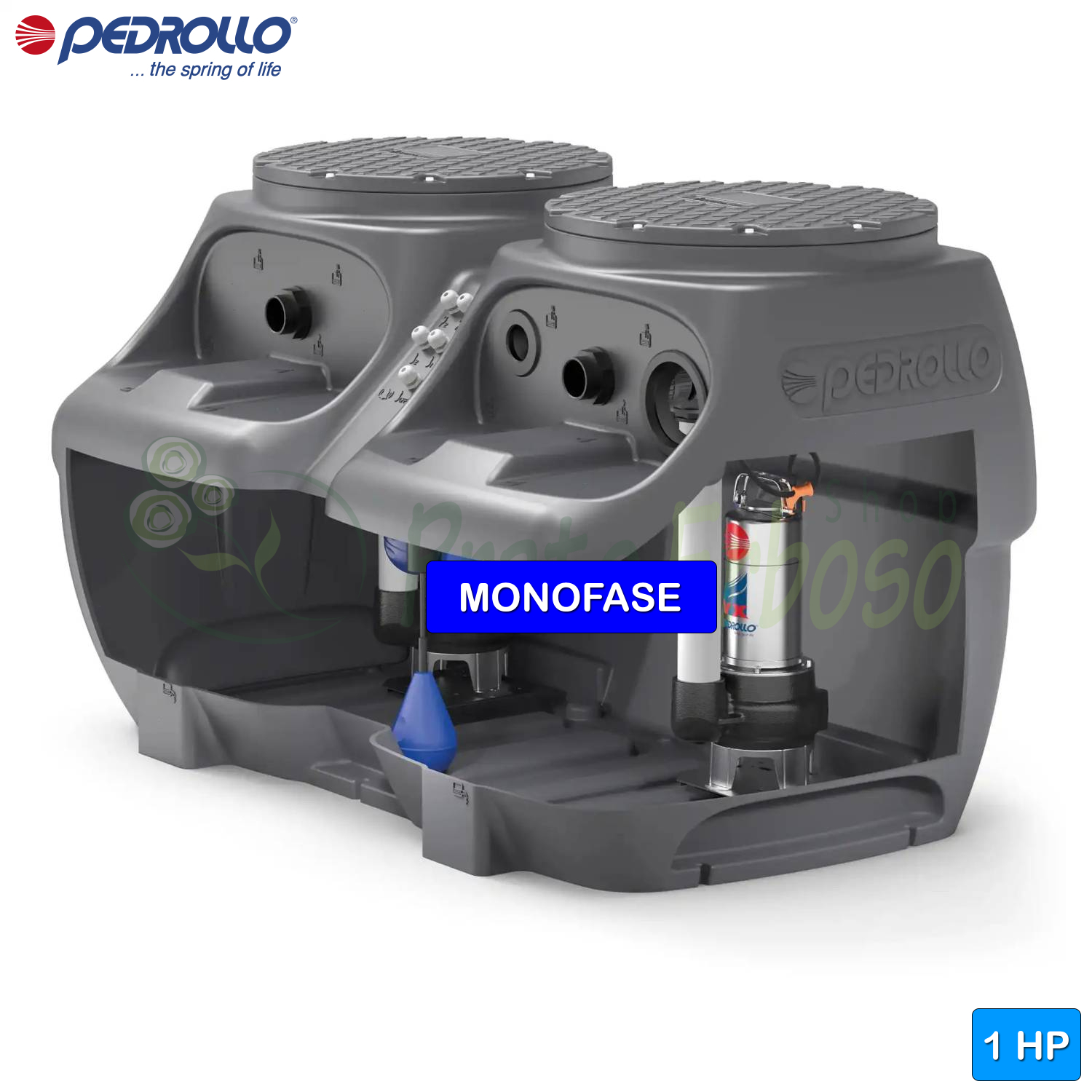

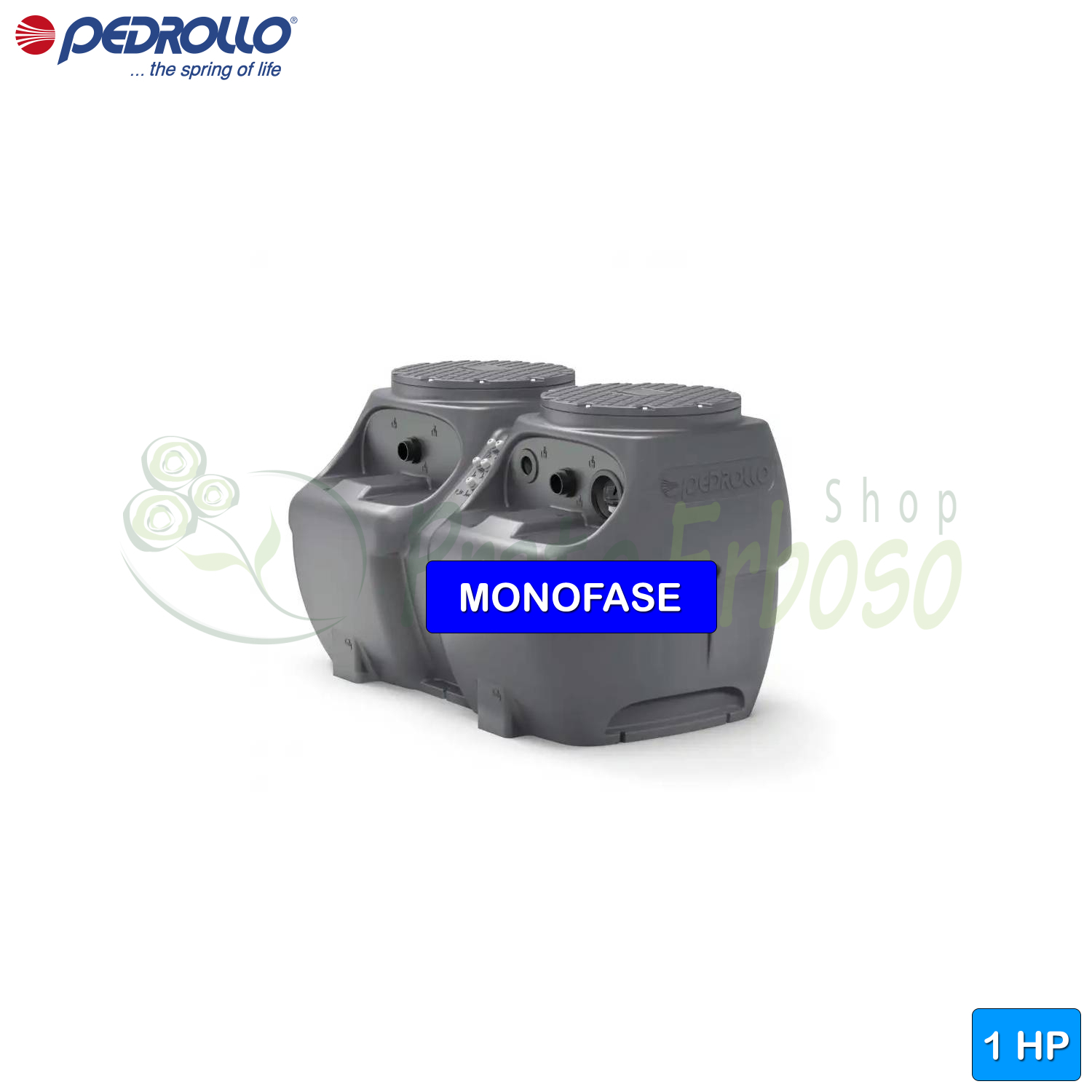

SAR 550-VXm 10/35-ST - 1 HP Waste Water Lifting Station
550 litre tank. Pedrollo VXm 10/35-ST pump. Discharge flow rate up to 400 l/min (24 m³/h). Head up to 10.5 m. 0.75 Kw (1 HP) motor.
There are no reviews yet
Telephone support for information before purchasing.
After-sales assistance for product installation.
Description
The SAR 550-VXm 10/35-ST is a rainwater storage and lifting station. It consists of a Pedrollo VXm 10/35-ST lifting pump and a 550-litre tank.
Data sheet
- Motor connection
- SINGLE PHASE
- Power (HP)
- 1
- Absorption at 230V (A)
- 4.8
- Delivery port
- 1 "1/2
- Body Pump
- Technopolymer
- Impeller
- Noryl
- Motor shaft
- AISI 431 stainless steel
- Check valve
- no
- Degree of protection
- IP 68
- Max flow (l./min.)
- 400
- Max head (m.)
- 10.5
- Container capacity (liters)
- 550
- Tank capacity (liters)
- 550
- Employments
- slightly dirty waters
- Height (cm)
- 88.4
- Width (cm)
- 147.6
- Weight kg)
- 120
- Guarantee
- 2
Models and performance SAR 550 sewage
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
