SAR 550-VXm 10/50-ST - 1 HP Waste Water Lifting Station
550 litre tank. Pedrollo VXm 10/50-ST pump. Discharge flow rate up to 550 l/min (33 m³/h). Head up to 9.5 m. 0.75 Kw (1 HP) motor.
There are no reviews yet
Telephone support for information before purchasing.
After-sales assistance for product installation.
Description

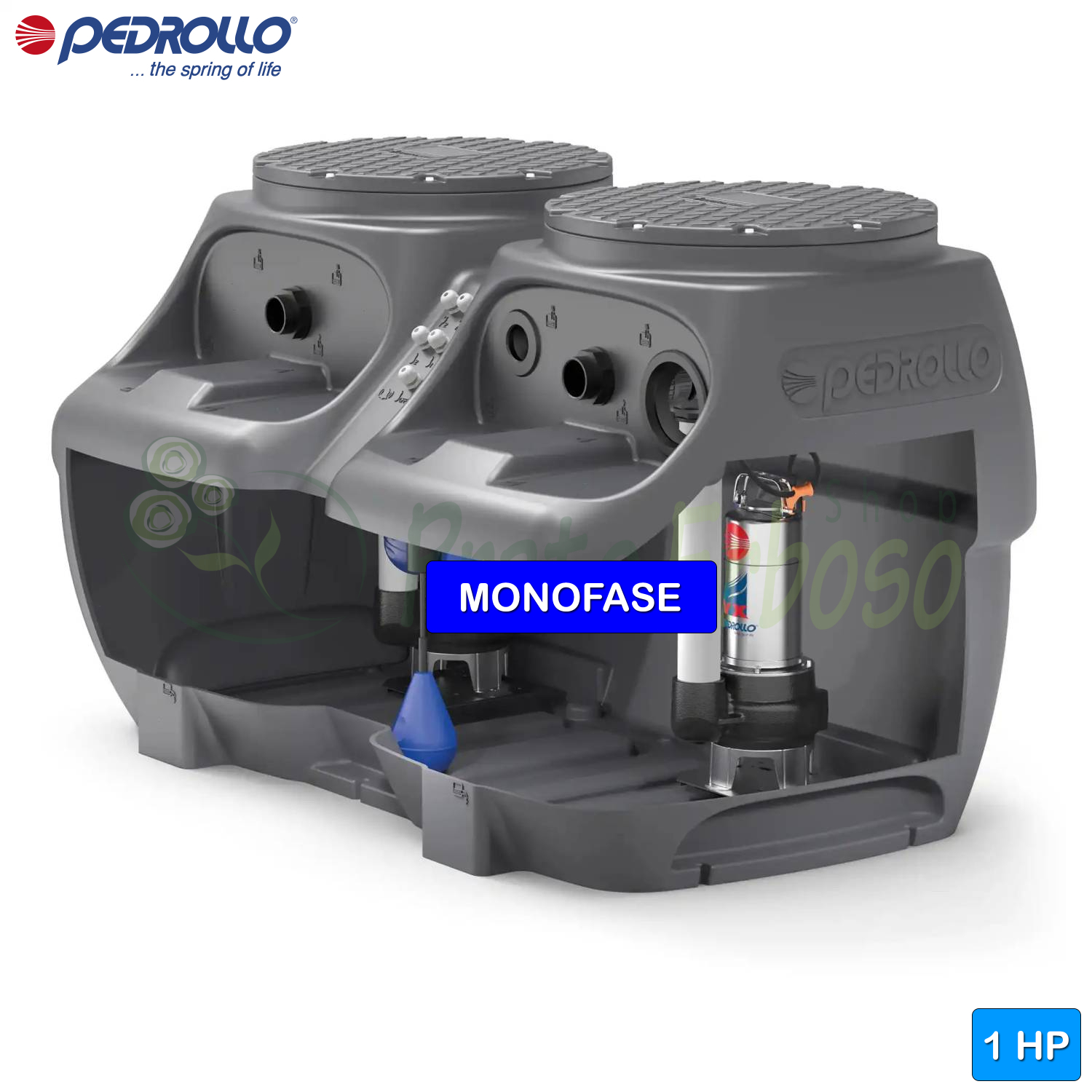

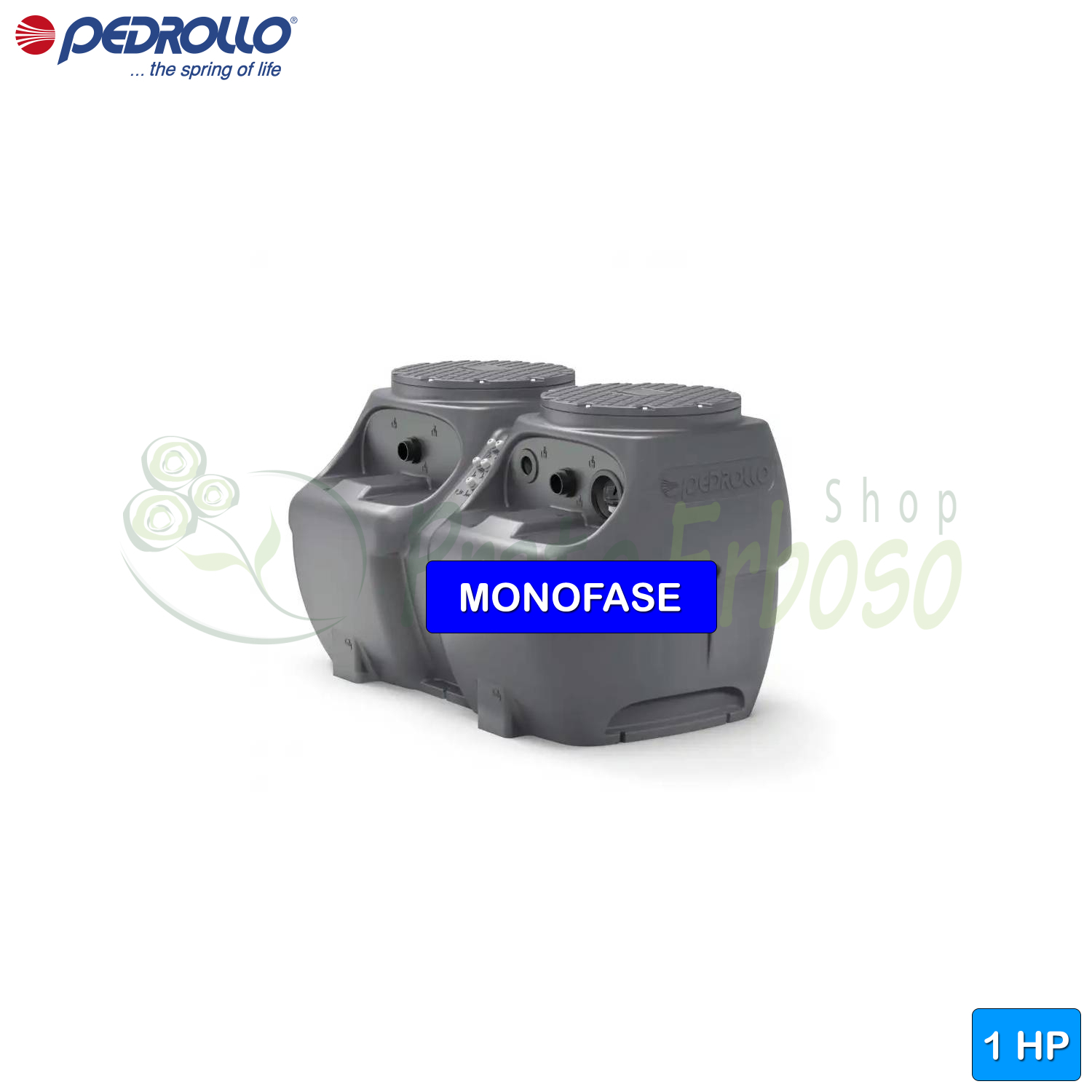

The SAR 550-VXm 10/50-ST is a rainwater storage and lifting station. It consists of a Pedrollo VXm 10/50-ST lifting pump and a 550-litre tank.
Data sheet
- Motor connection
- SINGLE PHASE
- Power (HP)
- 1
- Absorption at 230V (A)
- 5.0
- Delivery port
- 2"
- Body Pump
- Technopolymer
- Impeller
- Noryl
- Motor shaft
- AISI 431 stainless steel
- Check valve
- no
- Degree of protection
- IP 68
- Max flow (l./min.)
- 550
- Max head (m.)
- 9.5
- Container capacity (liters)
- 550
- Tank capacity (liters)
- 550
- Employments
- slightly dirty waters
- Height (cm)
- 88.4
- Width (cm)
- 147.6
- Weight kg)
- 121
- Guarantee
- 2
Models and performance SAR 550 sewage
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compare with Similar Products
 SAR 550-VXm 10/50-ST - 1 HP Waste Water Lifting StationThis product 550 litre tank. Pedrollo VXm 10/50-ST pump. Discharge flow rate up to 550 l/min (33 m³/h). Head up to 9.5 m. 0.75 Kw (1 HP) motor. |  570S - 570 Series Shrub nozzle holder | |
|---|---|---|
| Motor connection | Motor connection SINGLE PHASE | Motor connection -- |
| Power (HP) | Power (HP) 1 | Power (HP) -- |
| Absorption at 230V (A) | Absorption at 230V (A) 5.0 | Absorption at 230V (A) -- |
| Delivery port | Delivery port 2" | Delivery port -- |
| Body Pump | Body Pump Technopolymer | Body Pump -- |
| Impeller | Impeller Noryl | Impeller -- |
| Motor shaft | Motor shaft AISI 431 stainless steel | Motor shaft -- |
| Check valve | Check valve no | Check valve -- |
| Degree of protection | Degree of protection IP 68 | Degree of protection -- |
| Max flow (l./min.) | Max flow (l./min.) 550 | Max flow (l./min.) -- |
| Max head (m.) | Max head (m.) 9.5 | Max head (m.) -- |
| Container capacity (liters) | Container capacity (liters) 550 | Container capacity (liters) -- |
| Tank capacity (liters) | Tank capacity (liters) 550 | Tank capacity (liters) -- |
| Employments | Employments slightly dirty waters | Employments -- |
| Height (cm) | Height (cm) 88.4 | Height (cm) -- |
| Width (cm) | Width (cm) 147.6 | Width (cm) -- |
| Attack size | Attack size -- | Attack size 1/2 " |
| Weight kg) | Weight kg) 121 | Weight kg) -- |
| Guarantee | Guarantee 2 | Guarantee -- |
