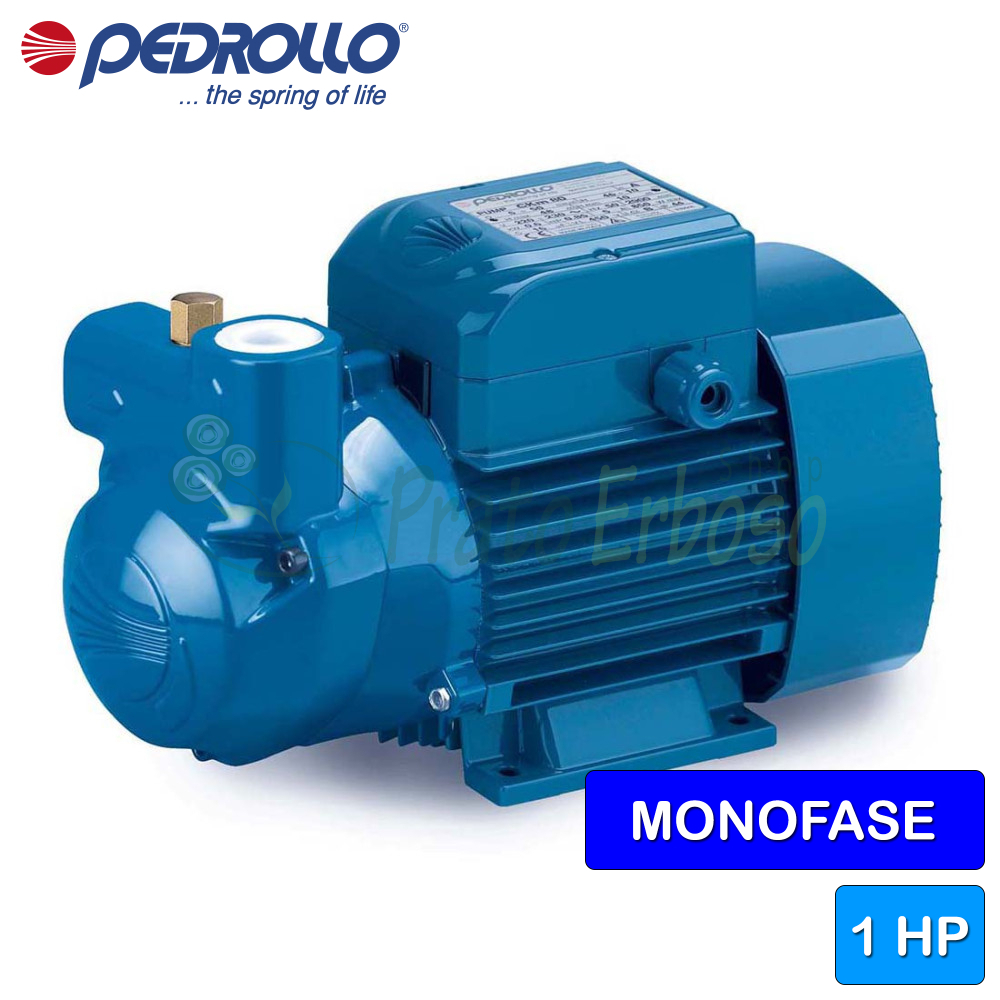

CKRm 100 - 1 HP single-phase self-priming liquid ring electric pump
Flow rate up to 70 l/min (4.2 m³/h). Head up to 40 m. Motor 0.75 Kw (1 HP).
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 22 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October
The CKRm 100 self-priming electric pump from the CKR series by Pedrollo is recommended for installations in the agricultural, domestic and industrial sectors.
Suitable for pumping clean water without abrasive particles and liquids that are chemically non-aggressive for the pump materials.
It is a happy solution in cases where the flow of the liquid is irregular or mixed with air.
The CKRm 100 also features an anti-seize front plate. A small plate positioned at the front of the impeller prevents blockage due to oxidation or deposits when the electric pump is stationary.
Compact, perfect when you are looking for a small self-priming electric pump.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 5.7
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Pump shaft
- AISI 304 stainless steel
- Check valve
- No
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 50
- Min. head (m.)
- 7
- Max. head (m.)
- 60
- Motor voltage
- 230 V
- Suction mouth
- 1"
- Delivery mouth
- 1"
- Height (cm)
- 17.9
- Width (cm)
- 13.4
- Depth (cm)
- 29.55
- Weight (Kg)
- 12
- Warranty (years)
- 2
Engine and mechanical performance
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 5.7
Pump components and construction
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Pump shaft
- AISI 304 stainless steel
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 50
- Min. head (m.)
- 7
- Max. head (m.)
- 60
Power supply and electrical parameters
- Motor voltage
- 230 V
Installation and connections
- Suction mouth
- 1"
- Delivery mouth
- 1"
Dimensions and weight
- Height (cm)
- 17.9
- Width (cm)
- 13.4
- Depth (cm)
- 29.55
- Weight (Kg)
- 12
Packaging, maintenance, and warranty
- Warranty (years)
- 2
