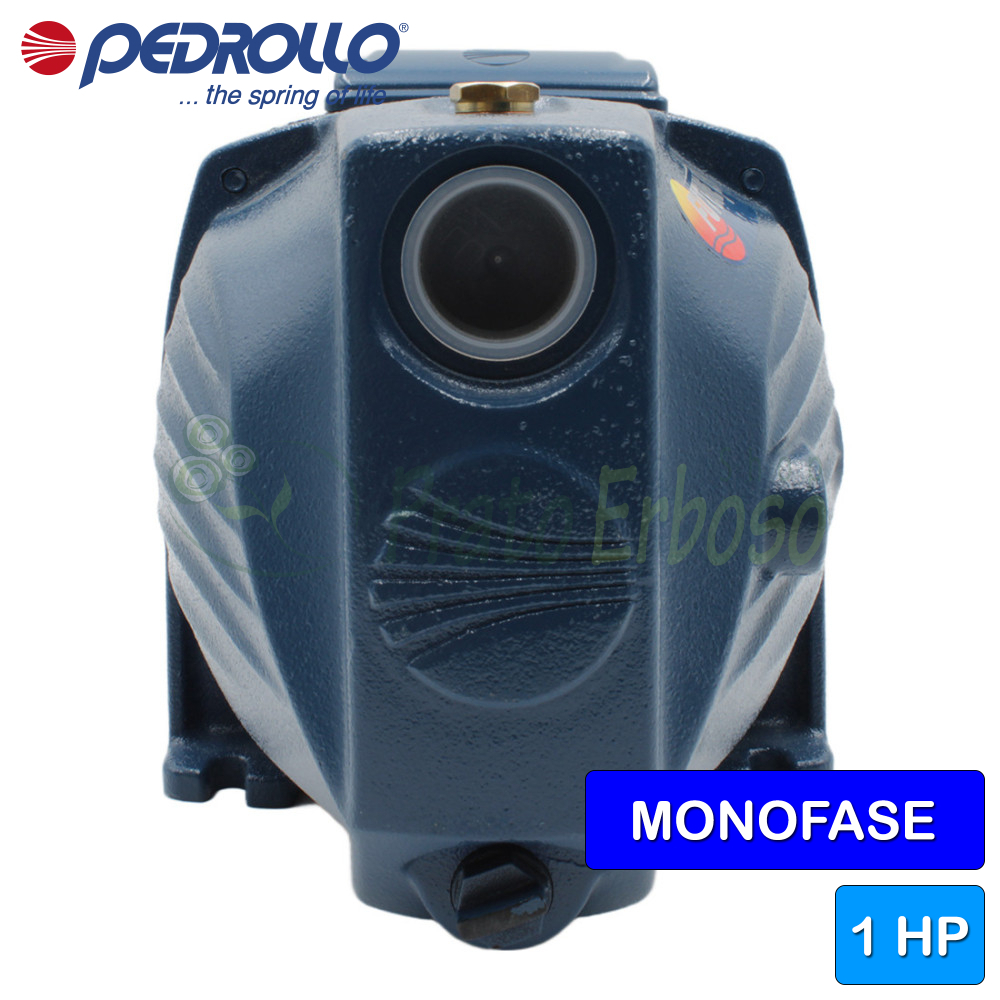

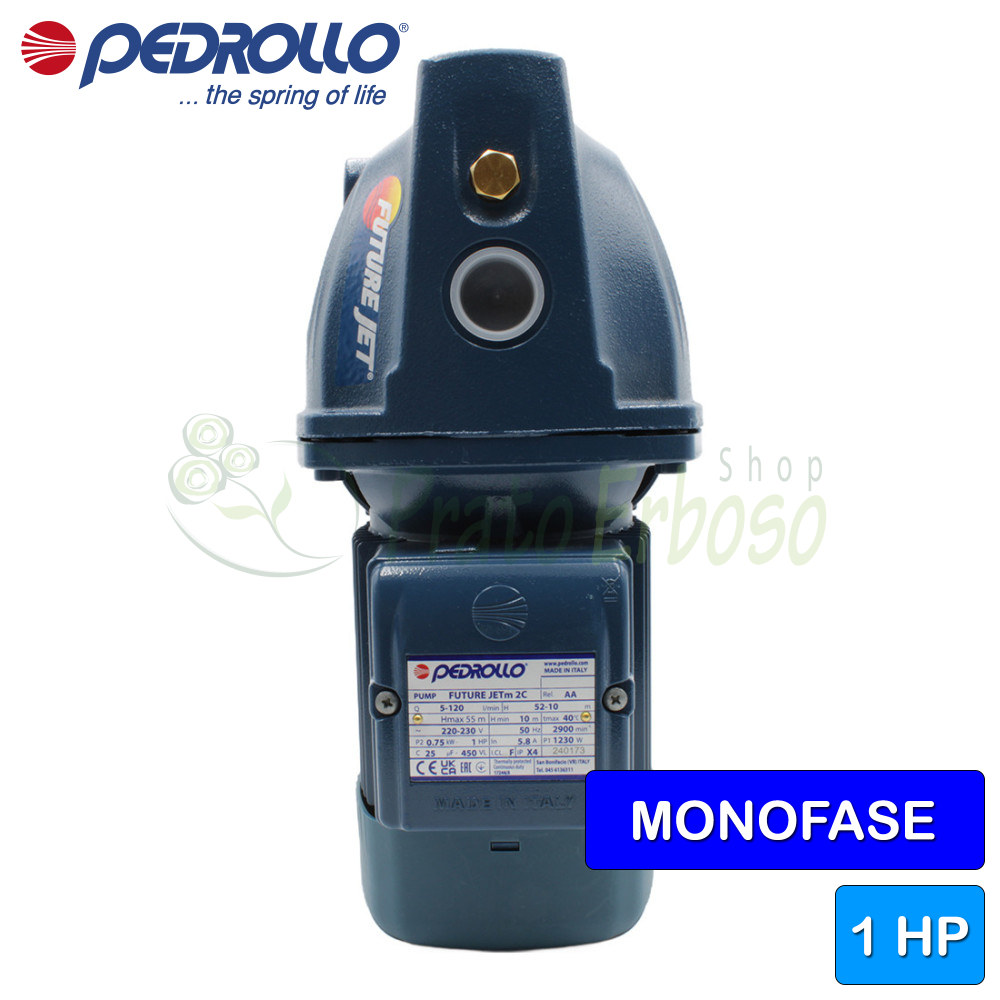

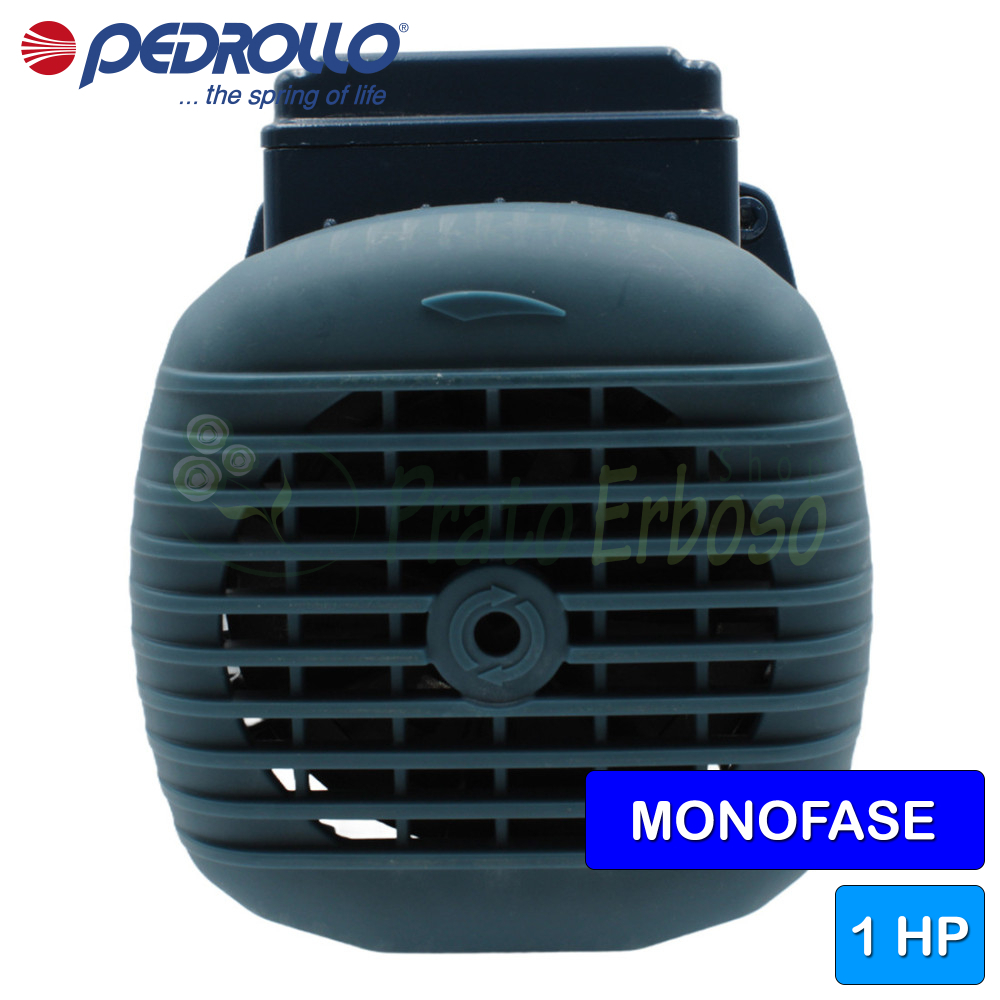

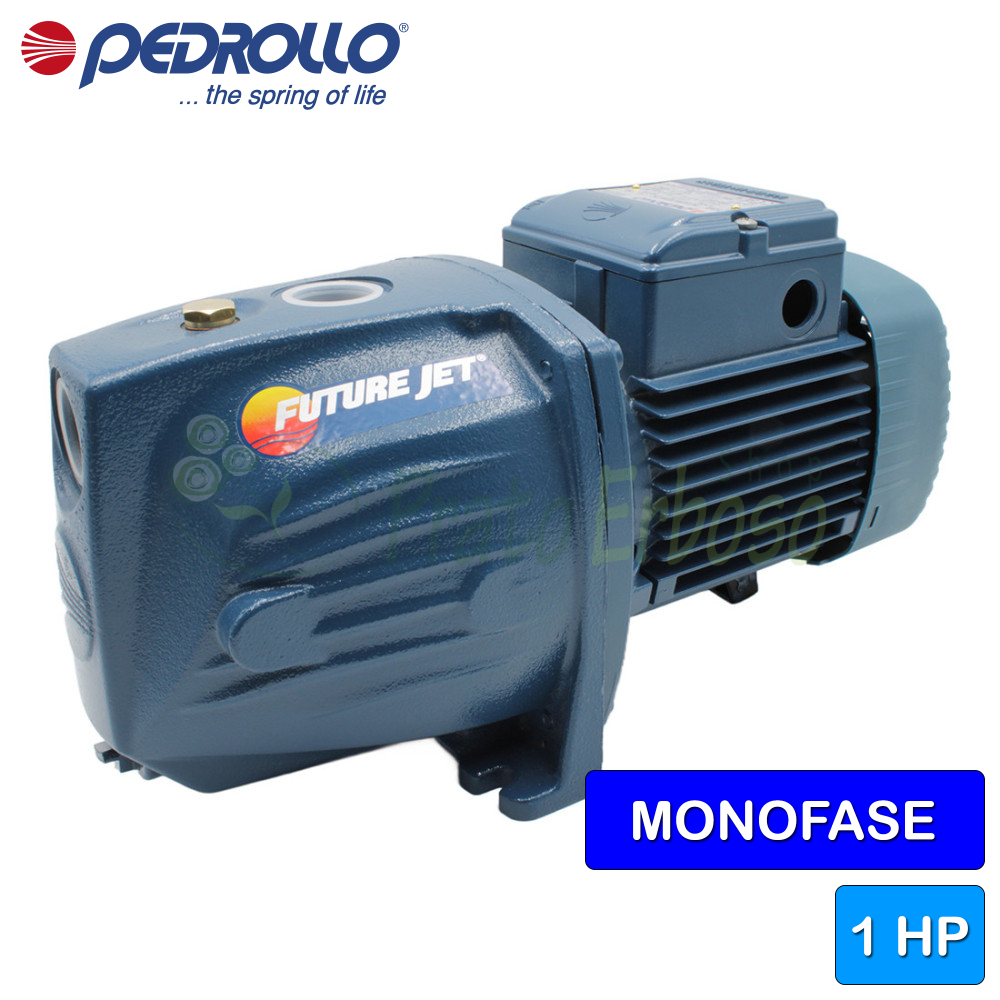

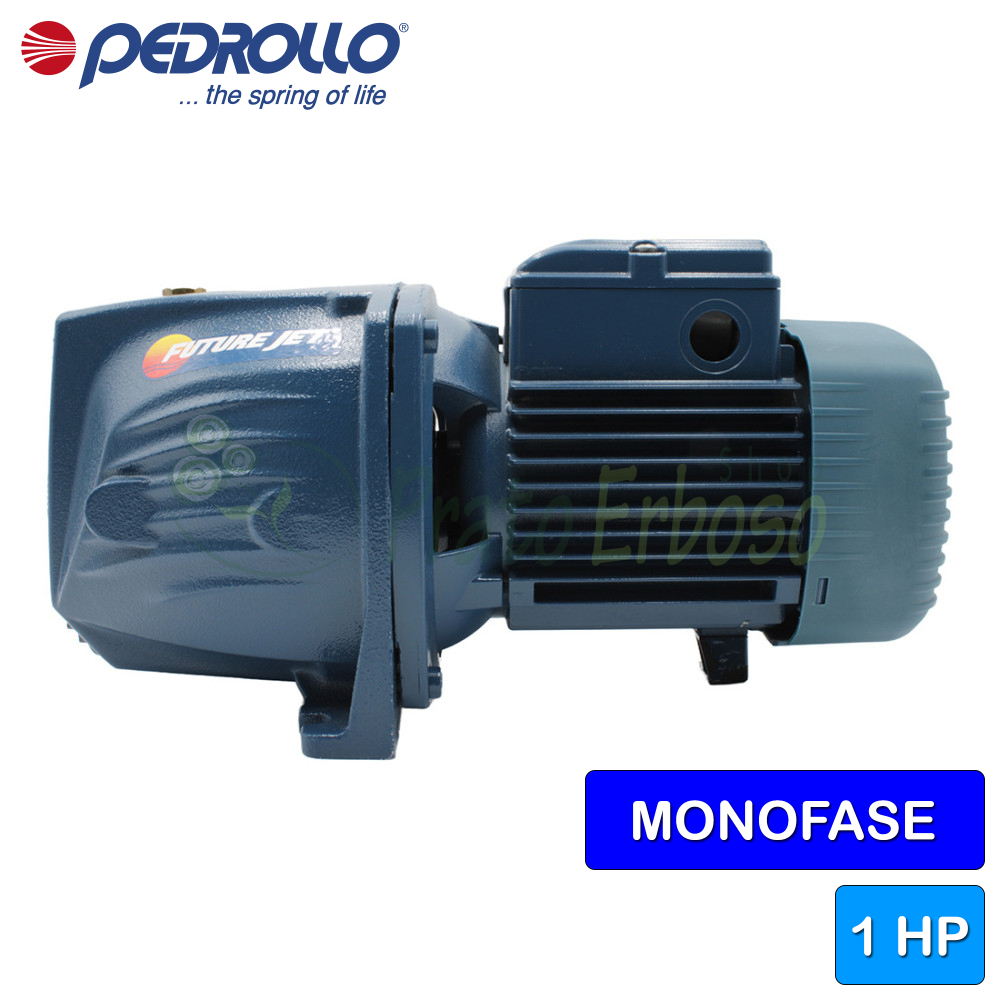

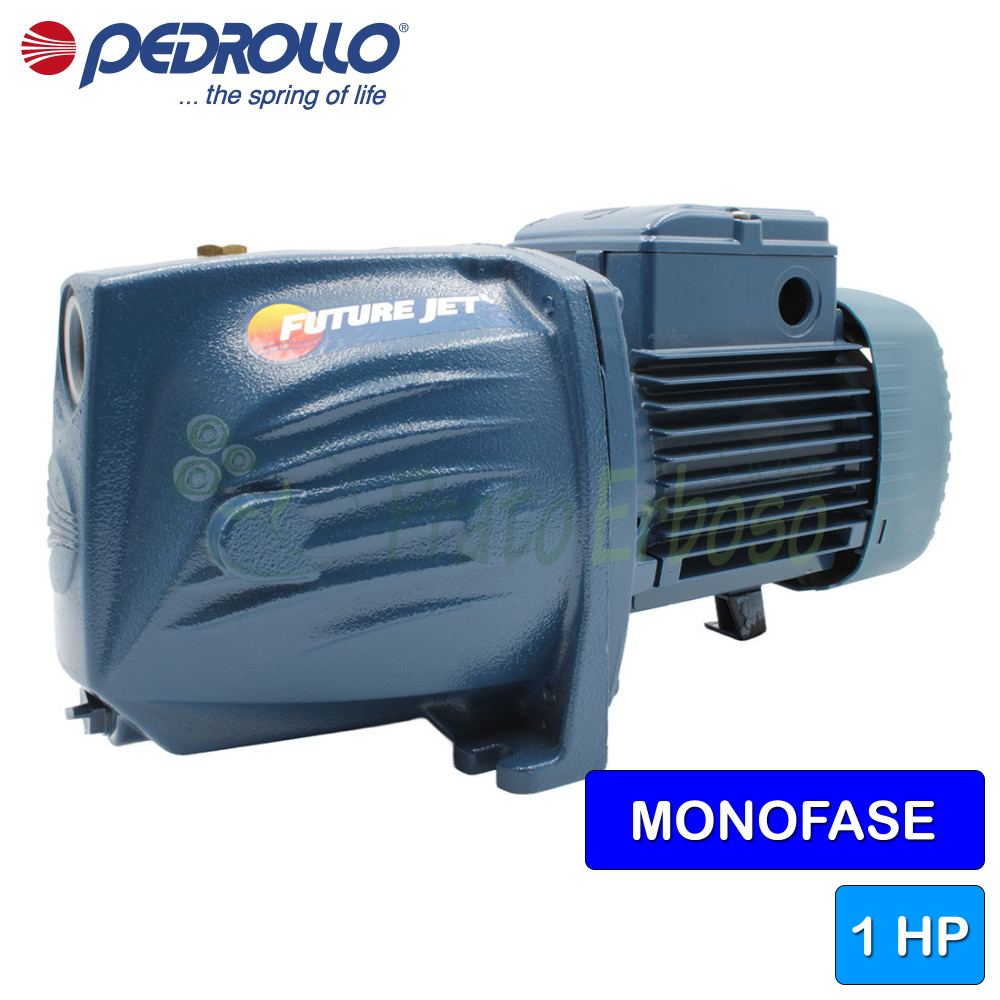

FUTURE JETm 2C - 1 HP single-phase self-priming electric pump
Flow rate up to 120 l/min (7.2 m³/h). Head up to 55 m. 0.75 Kw (1 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Friday 3 July - Monday 6 July |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Friday 3 July - Monday 6 July |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Friday 3 July - Monday 6 July
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 3 July - Monday 6 July
The FUTURE JETm 2C self-priming electric pump is recommended for pumping clean water and liquids that are chemically non-aggressive towards the pump materials. It is designed to draw water even when air is mixed with the pumped liquid.
It has a flow rate that varies from 5 to 120 litres per minute with a head from 10 to 55 metres.
With an internationally registered patent, the FUTURE JET series electric pumps are able to obtain the same pressure as a classic JET but double the flow rate, achieving a reduction in energy consumption of up to 50%.
Due to its reliability and ease of use, it is recommended for domestic use, especially for water distribution in conjunction with small or medium-sized pressure tanks, for irrigation of vegetable gardens and gardens.
Installation must be carried out in well-ventilated, closed areas or in any case protected from the elements.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 5
- Capacitor
- 20 µF 450 VL
- Suction mouth
- 1"
- Delivery mouth
- 1"
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 120
- Min. head (m.)
- 10
- Max. head (m.)
- 55
- Jobs
- water supply, pressurization systems, irrigation
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 17.1
- Width (cm)
- 15.8
- Depth (cm)
- 35.7
- Weight (Kg)
- 9.7
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6203ZZ |
| Opposite side engine bearing | 6203ZZ |
Shaft seal
| Seal type | Single Mechanical Seal |
| Pump side model | AR-14 |
| LP diameter | 14 |
| LP fixed ring | Ceramic |
| Rotating ring LP | Graphite |
| LP elastomer | NBR |
Materials
| 1.0 - Pump Body | GJL 200 EN 1561 cast iron |
| 2.1 - Seal holder cover | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 3.1 - Ejector group | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor carrier | EN-AB 46100 aluminium |
| 7.0 - Lantern | EN-AB 46100 aluminium |
