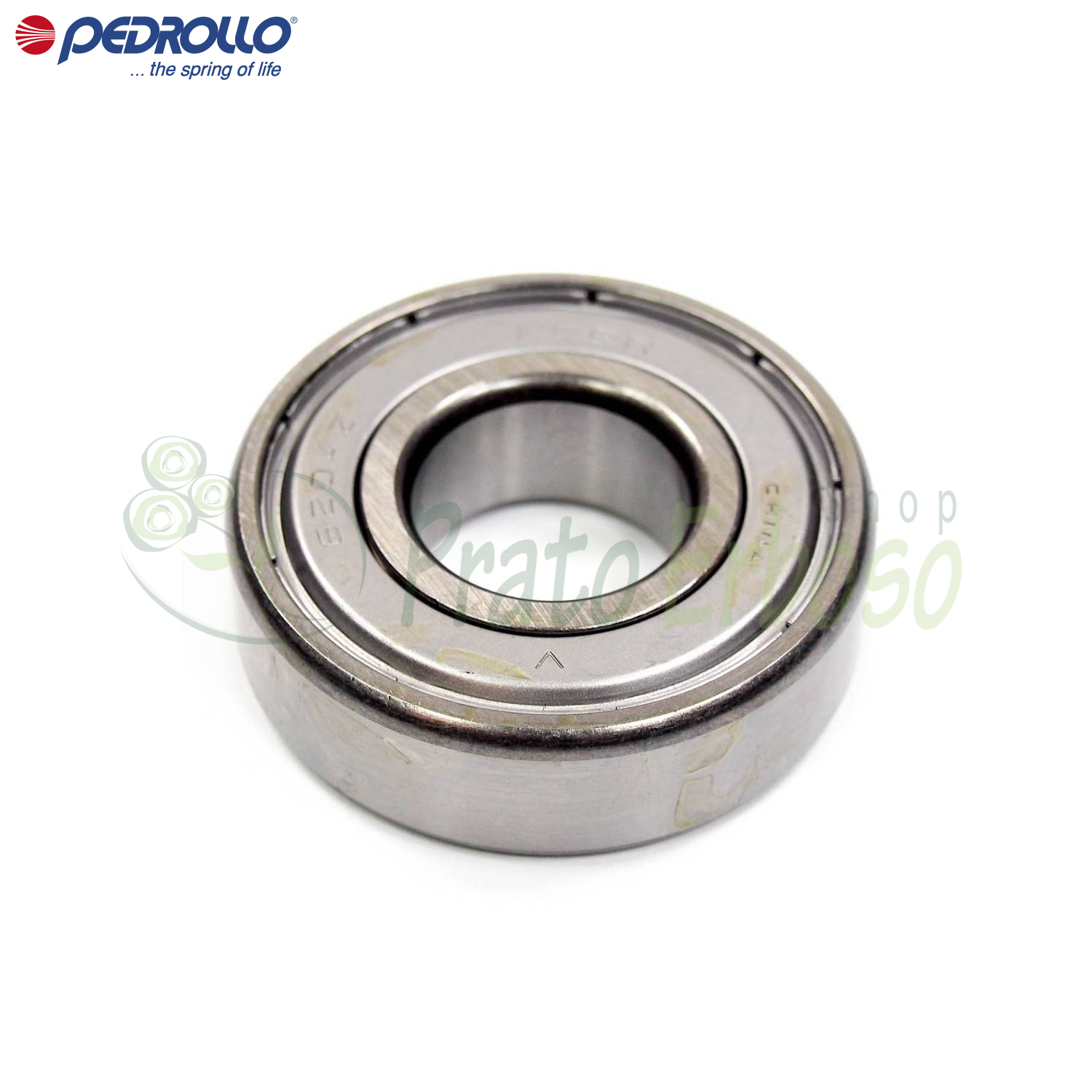

6204 ZZ-C3E - Ball Bearing 20x47x14 mm

The Pedrollo 6204 ZZ-C3E ball bearing is an original spare part for Pedrollo electric pumps.

The bearing supports and guides the rotating shaft of the electric motor, maintaining its proper alignment and allowing it to rotate with very little friction. In an electric pump, this contributes to the proper functioning of the motor, shaft, and impeller assembly.

In the name of the bearing can be divided into 3 parts: 6204, ZZ and C3.

6204 is a deep groove ball bearing in the 62 size series. It is particularly suitable for electric motors because it offers low friction, high speed capability, and the ability to support radial loads along with axial loads in both directions. It can accommodate primarily radial loads, but also a component of axial load in both directions.

ZZ means the bearing has metal shields on both sides. It's not waterproof; it has double metal shields.

C3, on the other hand, indicates a greater internal radial clearance than normal. The increased clearance is intentional and serves to compensate for operating conditions in which the actual clearance tends to decrease, for example due to assembly interference and thermal expansion.

The 6204 ZZ-C3E can operate at high speeds and reach temperatures higher than those present at the time of assembly, in fact it can be defined as a high-speed bearing.

Since it is shielded on both sides, it belongs to the family of closed bearings with grease inside. It does not require periodic relubrication.

Original spare part for model PK 100, PK 200, PK 300, HT 3/7, HT 5/2, PQ 100, PQ 200, PQ 300, CP 160A, CP 160B, CP 160C, CP 170, CP 170X, CP 170M, CP 170MX, CP 190, CP 190X, CP 200 CP 200X, CP 220C, CP 25/160B, CP 25/160A, CP 25/160AR, CP 170-ST4, CP 170-ST6, CP 170M-ST4, CP 170-ST6, CP 180-ST4, CP 180-ST6, CP 190-ST4, CP 190-ST6, CP 200-ST4, CP 200-ST6, HF 60, HF 70C, HF 70B, HF 5BM, HF 5AM, HF 5ARM, HF 6C, HF 6B, HF 6A, HF 6CR, HF 6BR, VILLABELLA 150, VILLABELLA 200, VILLABELLA 300, NGA 3A, NGA 3B, NGA 3C, NGA 3D, NGA 3A-PRO, NGA 3B-PRO, NGA 3C-PRO, NGA 3D-PRO, NF 129B, NF 129A, NF 130C, NF 130B, NF 130A, 2CP 25/140H, 2CP 25/140HX, 2CP 160/160, 2CP 160/160X, 2CP 25/140M, 2CP 25/140MX, 2CP 25/160B, 2CP 25/160BX, 2CP 25/160A, 2CP 25/160AX, 2CP 25/14A, 2CP 25/14B, 2CP 25/16A, 2CP 25/16B, 2CP 25/16C, 5CR 90, 6CR 90, 7CR 90, 3CR 130, 4CR 130, 5CR 130, 3CR 200, 4CR 200, 5CR 200, 6CR 200, 5CR 90X, 6CR 90X, 3CR 130X, 4CR 140X, 5CR 130X, 6CR 130X, 3CR 200X, 4CR 200X, 5CR 200X, 6CR 200X, FCR 240/3, FCR 240/4, FCR 240/5, MK 3/3-N, MK 3/4-N, MK 3/5-N, MK 3/6-N, MK 57 %-N , MK 5/5-N, MK 5/6-N, MK 5/7-N, MK 5/8-N, MK 8/4-N, MK 8/5-N, MK 8/6-N, MK 3/3, MK 3/4, MK 3/5, MK 3/6, MK 3/7, MK 5/4, MK 5/5, MK 5/6, MK 5/7, MK 5/8, MK 8/4, MK 8/5, MK 8/5, MK 8/6, HT 3/4, HT 3/7, HT 5/2, HT 5/3, HT 5/4, HT 5/5, HT 5/6, HT 8/3, HT 8/4, HT 8/5, HT 8/6, HT 10/3, HT 10/4, HT 10/5, HT 3/4-PRO, HT 3/5-PRO, HT 3/6-PRO, HT 3/7-PRO, HT 5/2-PRO, HT 5/3-PRO, HT 5/4-PRO, HT 5/5-PRO, HT 5/6-PRO, HT 8/3-PRO, HT 8/4-PRO, HT 8/5-PRO, HT 8/6-PRO, HT 10/3-PRO, HT 10/4-PRO, HT 10/5-PRO, JSW 3CH, JSW 3BH, JSW 3AH, JSW 3CM, JSW 3BM, JSW 3AM, JSW 3CL, JSW 3BL, JSW 3AL, FUTURE JET 1C, SKR 1.1, SKR 1.5, PLURIJET 3/130, PLURIJET 3/200, PLURIJET 4/130, PLURIJET 4/200, PLURIJET 5/90, PLURIJET 5/130, PLURIJET 5/200, PLURIJET 6/90, PLURIJET 6/130, PLURIJET 6/200, PLURIJET 3/130X, PLURIJET 3/200X, PLURIJET 4/130X, PLURIJET 4/200X, PLURIJET 5/90X, PLURIJET 5/130X, PLURIJET 5/200X, PLURIJET 6/90X, PLURIJET 6/130X, PLUTRIJET 6/200X, PLURIJET 3/130, PLURIJET 3/200, PLURIJET 4/130, PLURIJET 4/200, PLURIJET 5/90, PLURIJET 57130, PLURIJET 5/200, PLURIJET 6/90, PLURIJET 6/130, MC 15/50, MC 20/50, MC 30/50, MC 40/50, MC 30/65, MC 40/65, MC 15/50-F, MC 20/50-F, MC 30/50-F, MC 40/50-F, MC 30/65-F, MC 40/65-F, VXC 15/50, VXC 20/50, VXC 30/50, VXC 40/50, VXC 15/65, VXC 20/65, VXC 30/65, VXC 40/65, VXC 15/50-F, VXC 20/50-F, VXC 30/50-F, VXC 40/50-F, VXC 15/65-F, VXC 20/65-F, VXC 30/65-F, VXC 40/65-F, TR 3, TR 4, TR 2.2AP, F 32/160C, F 32/160B, F 40/125C, F 40/125B, F 40/125A, F 40/160C, F 50/125C, CP 170-ST4, CP 170-ST6, CP 170M-ST4, CP 170M-ST6, 2CP 25/14B, 2CP 25/16C, HF 5BM, HF 70C, CP 170, TURBO 4A, TURBO 6B.

The external diameter is 47 millimeters while the internal diameter is 20 millimeters, the width is 14 millimeters.
