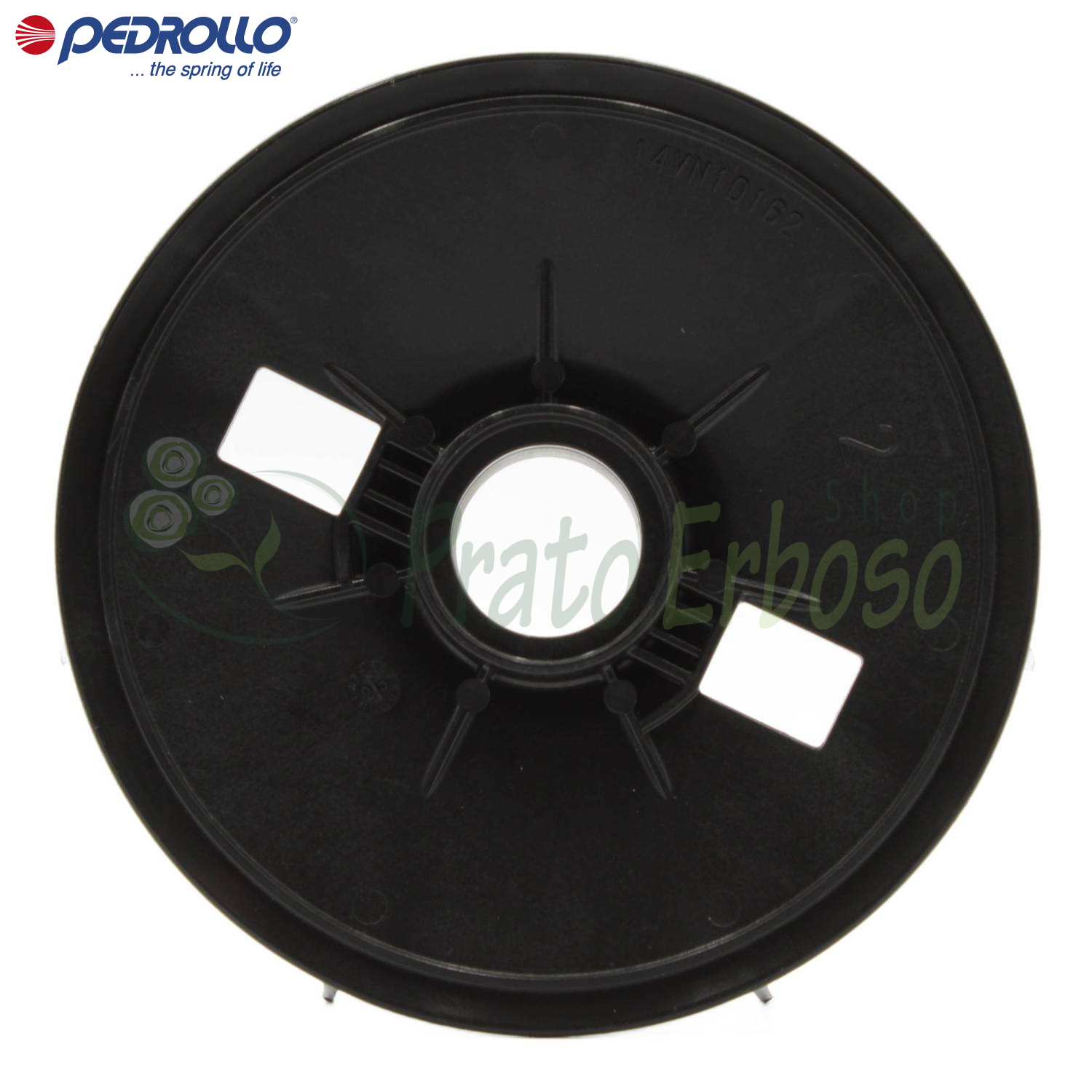

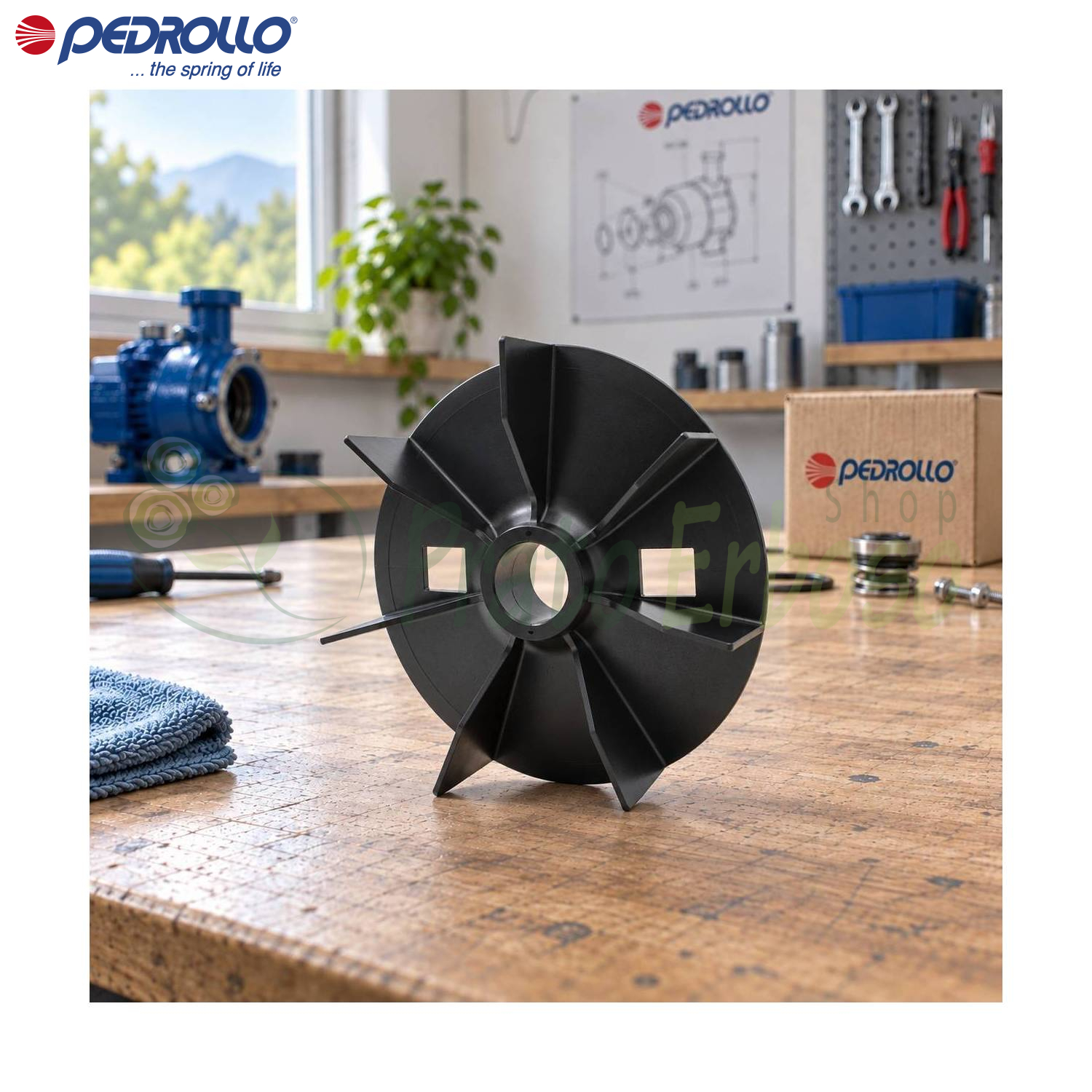

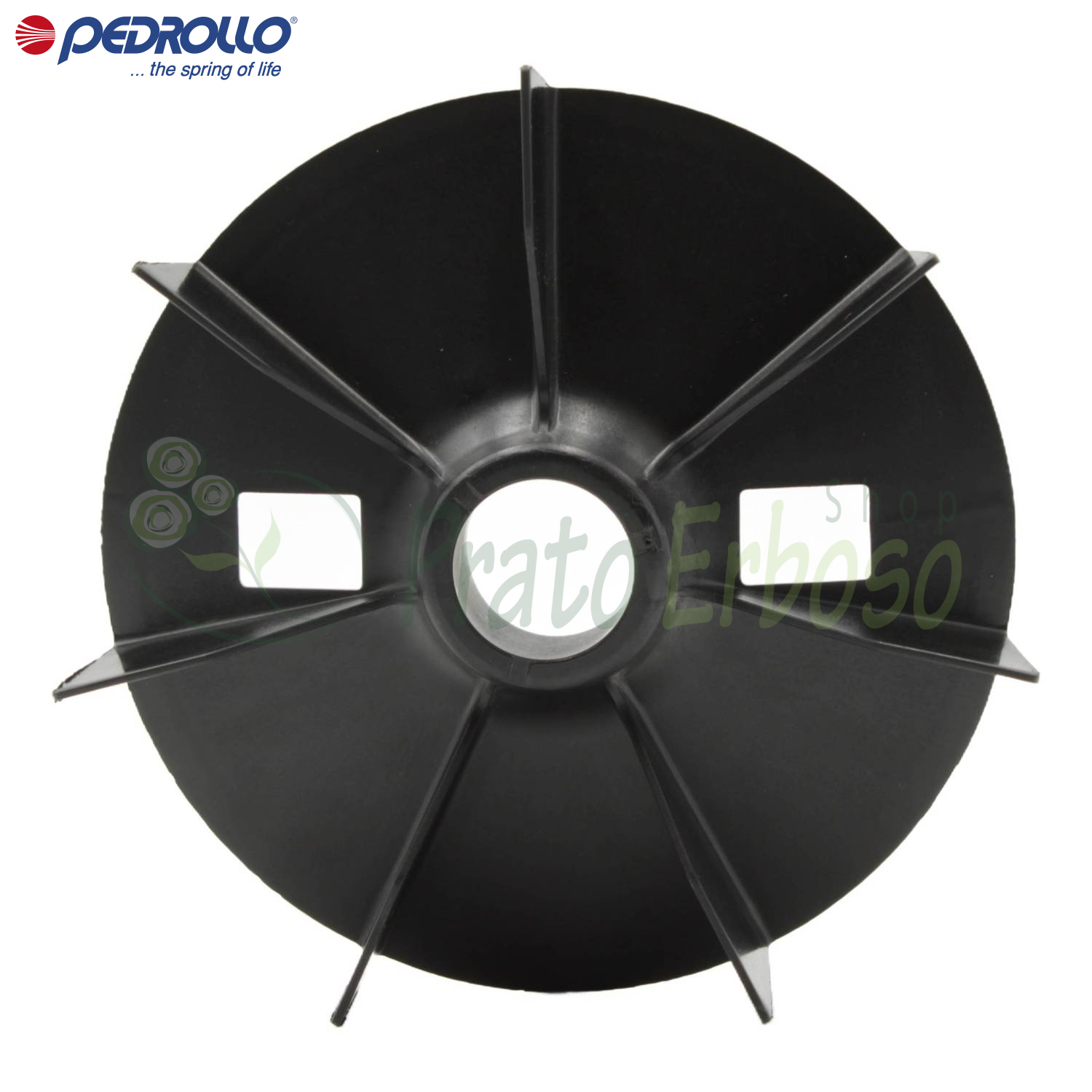

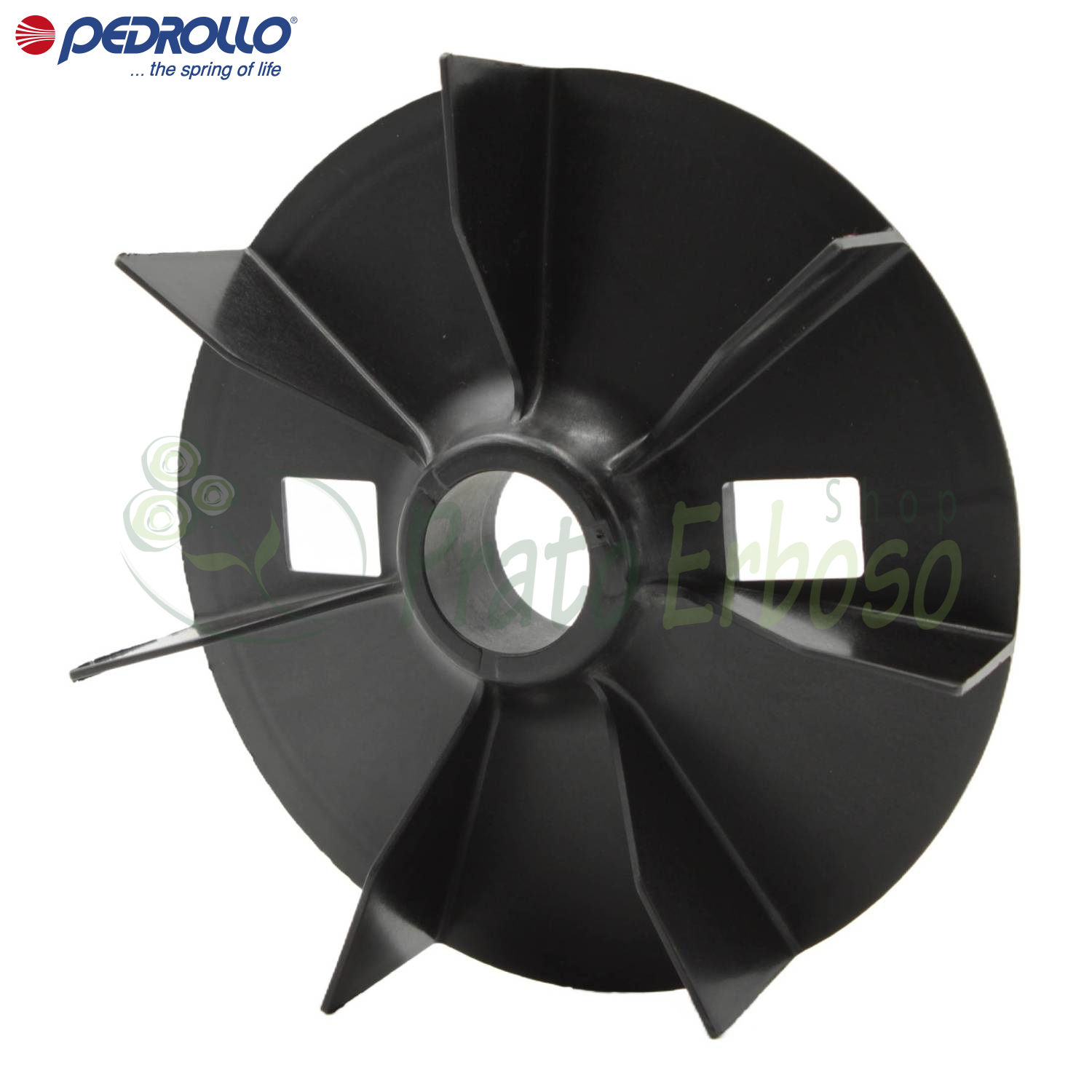

FAN-90R - Fan for electric pump, 24 mm shaft

The Pedrollo FAN-90R fan is recommended for cooling the motor of Pedrollo electric pumps.

The fan has a diameter of 162 mm and a height of 32 mm. The crankshaft diameter is 24 mm.

The FAN-90R fan rotates with the shaft and generates the airflow needed to cool the engine during operation.

During operation, the motor generates heat, mainly due to electrical losses in the windings and mechanical losses.

The FAN-90R directly exploits the rotation of the shaft. Its blades move the ambient air and produce a forced flow of cooling around the motor.

The air is guided by the fan cover and circulated over the outer surface of the engine. This increases the heat exchange between the engine and the ambient air.

The FAN-90R is used to maintain the engine temperature within suitable operating conditions.

It is mounted on the rear shaft of the electric motor.

It's important to keep the fan in top condition. If it's broken, cracked, warped, or blocked, airflow will decrease, which could increase engine temperatures.

Made of plastic material, Pedrollo has created a lightweight fan, with low rotational inertia, resistant to corrosion and easily manufactured with blades and hub in a single element.

Original spare part compatible with the electric pumps PK 100, PK 200, PK 300, CP 170X, CP 170M, CP 170MX, CP 190X, CP 25/160B, CP 25/160AR, HF 60, HF 70C, HF 70B, HF 70A, HF 5BM, HF 5AM, HF 6C, HF 6B, HF 6A, HF 6CR, HF 6BR, HF 6AR, NF 129B, NF 129A, NF 130C, NF 130B, NF 130A, 2CP 25/140H, 2CP 25/140HX, 2CP 160/160, 2CP 160/160X, 2CP 25/140M, 2CP 25/140MX, 2CP 25/160B, 2CP 25/160BX, 2CP 25/160A, 2CP 25/160AX, JSW 3CH 2007-2016, JSW 3BH 2007-2016, JSW 3AH 2007-2016, JSW 3CM 2007-2016, JSW 3BM 2007-2016, JSW 3AM 2007-2016, JSW 3AL 2007-2016, JSW 3CL 2007-2016, JSW 3BL 2007-2016, F 32/160C, F 50/125C, MK 3/4, MK 3/5, MK 3/6, MK 3/7, MK 5/4, MK 5/5, MK 5/6, MK 5/7, MK 5/8, MK 8/5, MK 8/6, PQ 100-Bz by Pedrollo .
