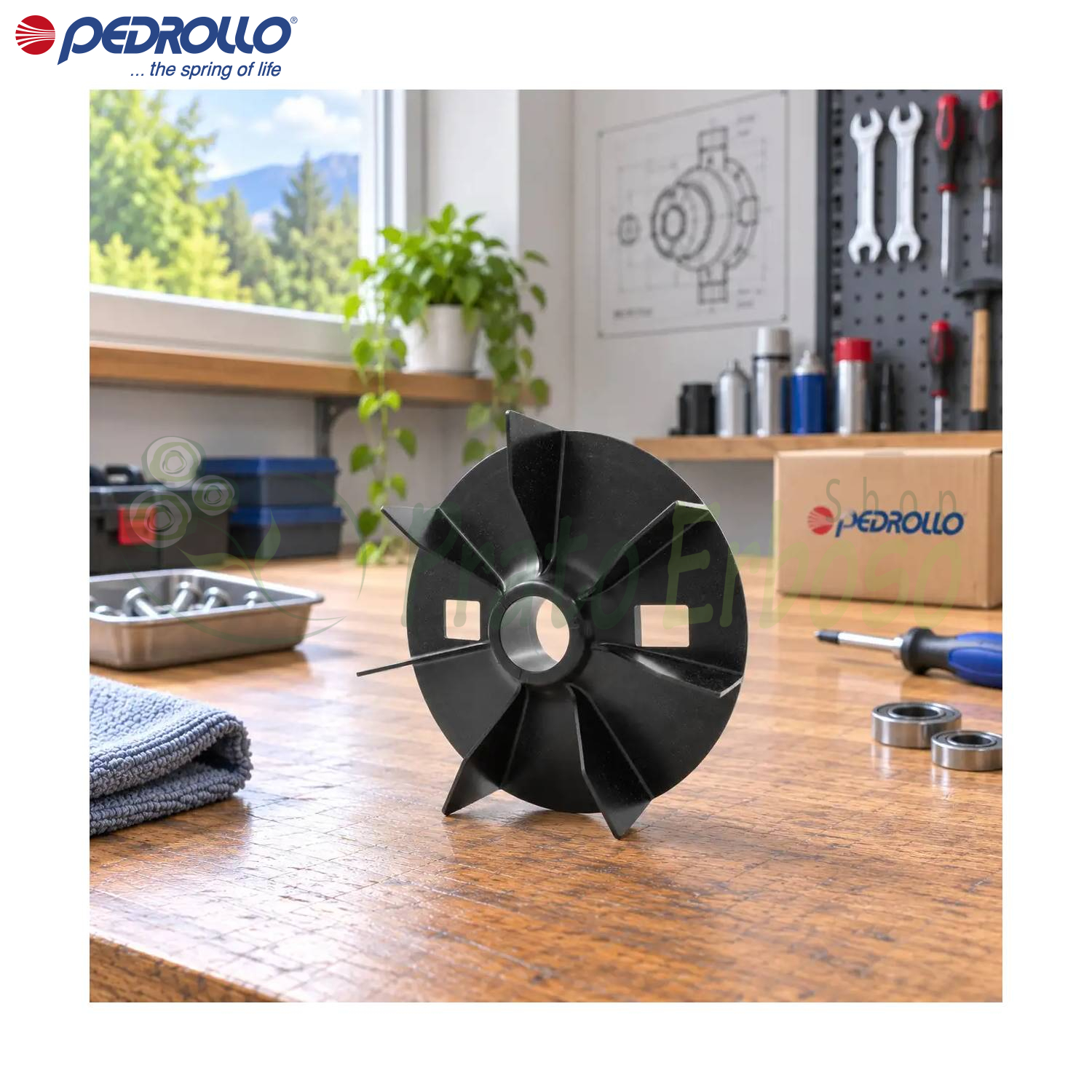

FAN-100 - Fan for electric pump, 28 mm shaft

The Pedrollo FAN-100 fan is recommended for cooling the motor of Pedrollo electric pumps.

The fan has a diameter of 155 mm and a height of 37 mm. The crankshaft diameter is 28 mm.

The FAN-100 fan rotates with the shaft and generates the airflow needed to cool the engine during operation.

During operation, the motor generates heat, mainly due to electrical losses in the windings and mechanical losses.

The FAN-100 directly exploits the rotation of the shaft. Its blades move the ambient air and produce a forced flow of cooling around the motor.

The air is guided by the fan cover and circulated over the outer surface of the engine. This increases the heat exchange between the engine and the ambient air.

The FAN-100 serves to maintain the engine temperature within suitable operating conditions.

It is mounted on the rear shaft of the electric motor.

It's important to keep the fan in top condition. If it's broken, cracked, warped, or blocked, airflow will decrease, which could increase engine temperatures.

Made of plastic material, Pedrollo has created a lightweight fan, with low rotational inertia, resistant to corrosion and easily manufactured with blades and hub in a single element.

Original spare part compatible with the electric pumps CP 220C, CP 220B, CP 220A, CP 220AH, CP 230C, CP 230B, CP 230A, CP 250C, CP 250CR, CP 250B-N, HF 8B, HF 8A, HF 20B, HF 20A-N, HF 20A, HF 30B, HF 30A, 2CP 32/200C, 2CP 32/200B, 2CP 32/210B, 2CP 32/210A, 2CP 40/180C, 2CP 40/180B, 2CP 40/180A, F 32/160A, F 32/200C, F 32/200B 230V, F 32/200B 400V, F 32/200A 230V, F 32/200A 400V, F 32/200BH, F 32/200 AH, F 40/160B, F 40/160A, F 40/200B, F 40/200A, F 50/125B, F 50/125A, F 50/160C, F 50/160B, F 50/160A, F 65/125C, F 65/125B, F 65/125A, F 50/160A-I, F 50/160B-I, F 50/160C-I, F 65/125A-I, F 65/125B-I, F 65/125C-I, FCR 15/2, FCR 30/2, FCR 30/3, FCR 30/4, HT 15/2, HT 15/2R, HT 15/3, HT 15/3R, HT 15/4, HT 15/5, HT 30/2, HT 30/2R, HT 30/3, HT 30/4, HT 15/2 - PRO, HT 15/2R - PRO, HT 15/3 - PRO, HT 15/3R - PRO, HT 15/4 - PRO, HT 15/5 - PRO, HT 30/2 - PRO, HT 30/2R - PRO, HT 30/3 - PRO, HT 30/4 - PRO by Pedrollo .
