STA-12R - 12 mm mechanical seal

The Pedrollo STA-12R mechanical seal is mainly used in small Pedrollo surface electric pumps.

Suitable for electric pumps with a 12 mm crankshaft.

The STA-12R mechanical seal is used in compact submersible drainage, emptying and lifting pumps, suitable for clean or slightly dirty water.

The mechanical seal's job is to keep the hydraulic part separate from the electrical part. It prevents water from reaching the bearings and motor.

The STA-12R seal allows shaft rotation without the use of a rigid seal.

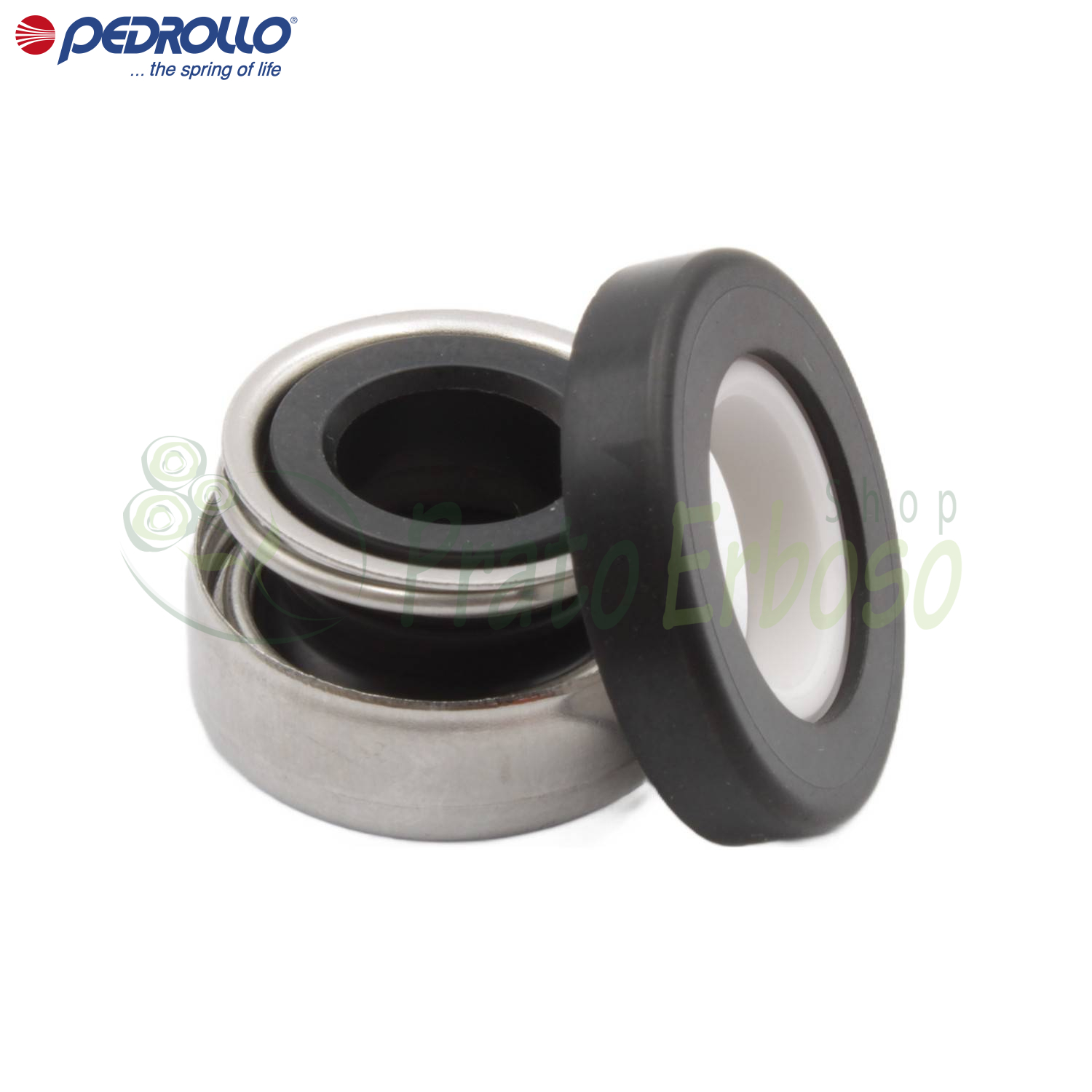

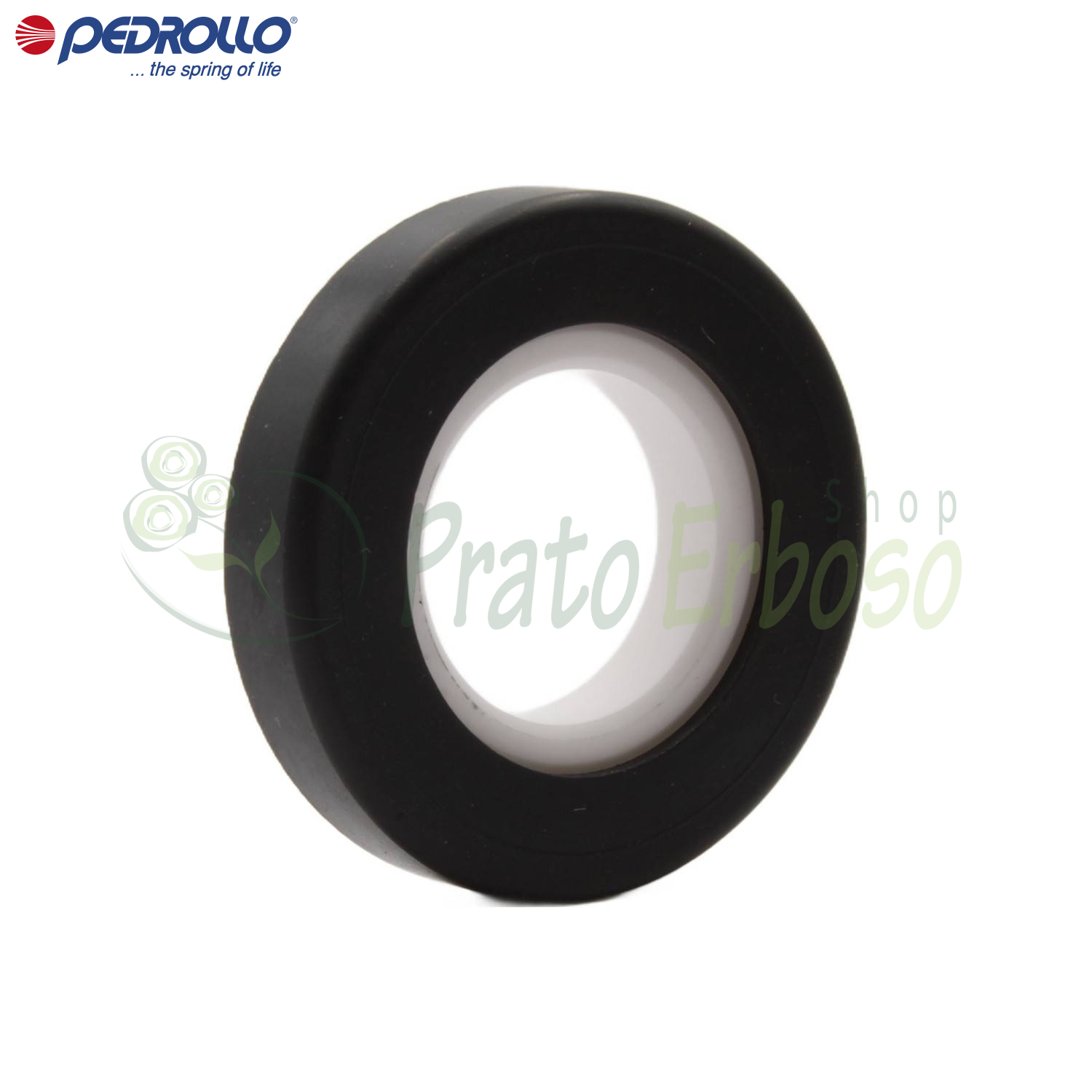

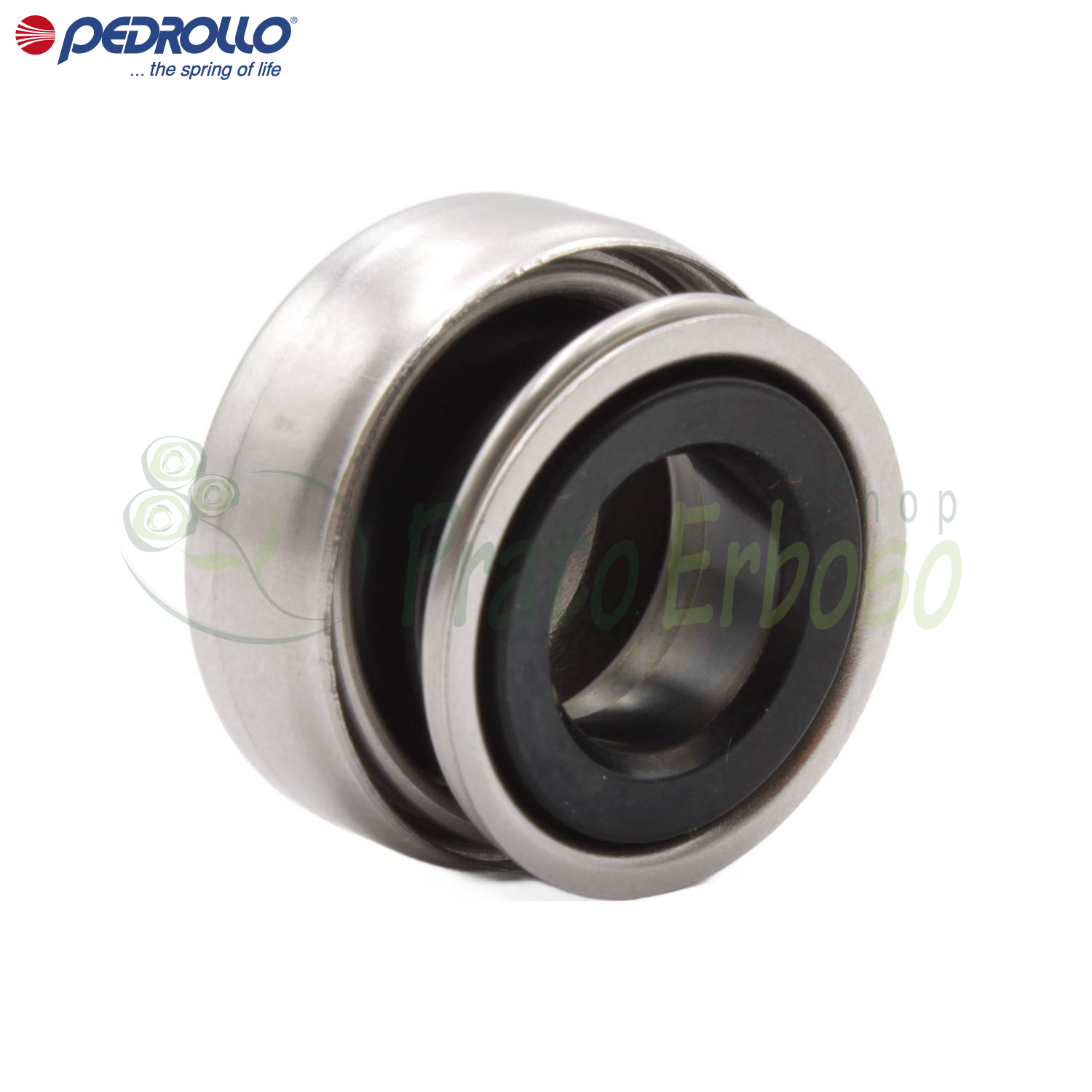

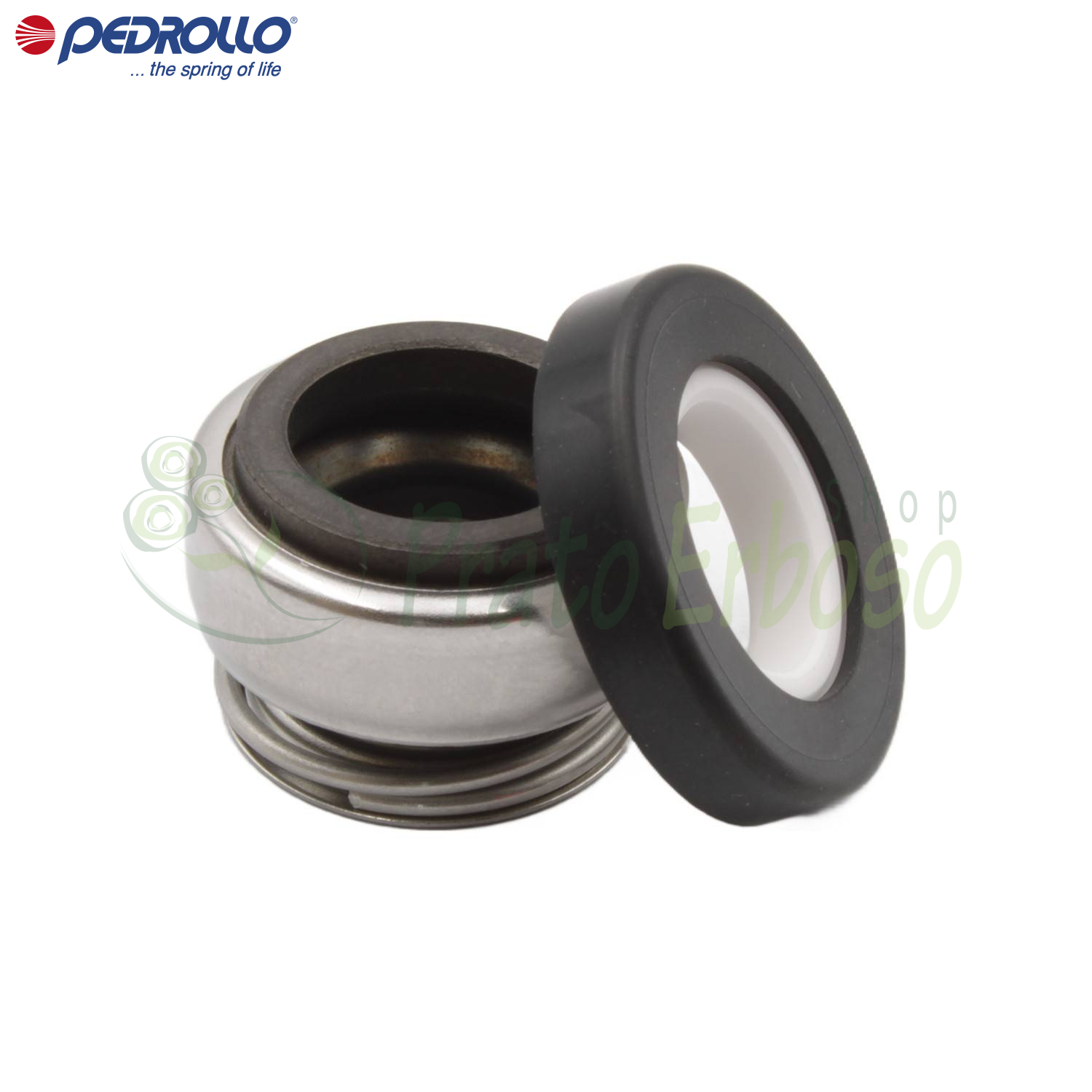

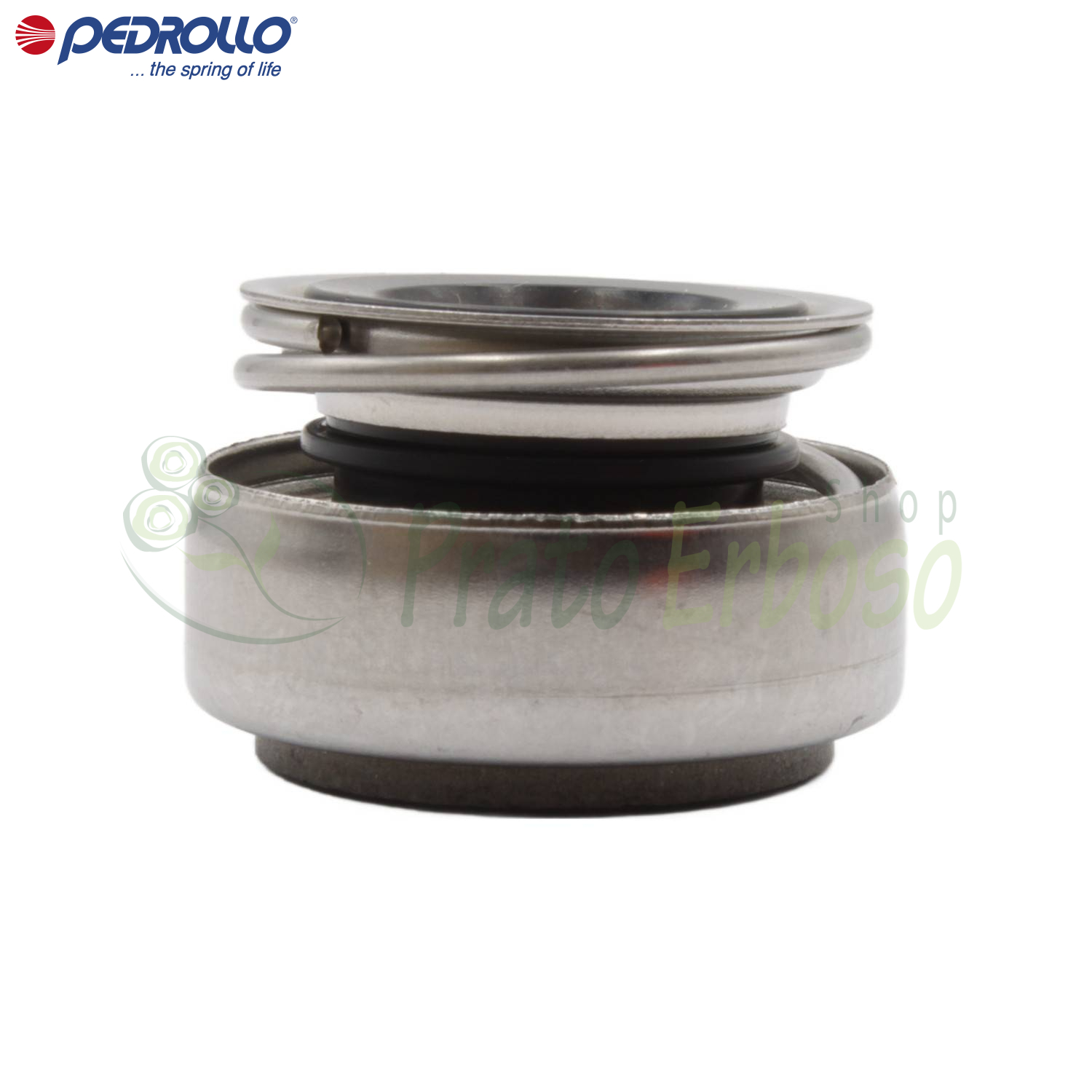

The seal consists of two parts: a rotating one and a fixed one. Made of graphite, ceramic, NBR, and AISI 316L stainless steel.

The STA-12R features standardized installation dimensions.

The seal inside the electric pump is one of the most stressed parts and is therefore subject to wear. It's important to replace it when water is found in the motor.

Original spare part for model ZX 1B/40, ZX 1A/40, TOP MULTI 1, TOP MULTI 1 - EVO, RX 1, RX 2, RX 3, RX 1-GM, RX 2-GM, RX 3-GM, TEX 2, TEX 3, TOP 1, TOP 2, TOP 3, TOP 1-FLOOR, TOP 2-FLOOR, TOP 1-VORTEX, TOP 1-VORTEX/GM, TOP 2-VORTEX, TOP 2-VORTEX/GM, TOP 3-VORTEX, TOP 3-VORTEX/GM.
