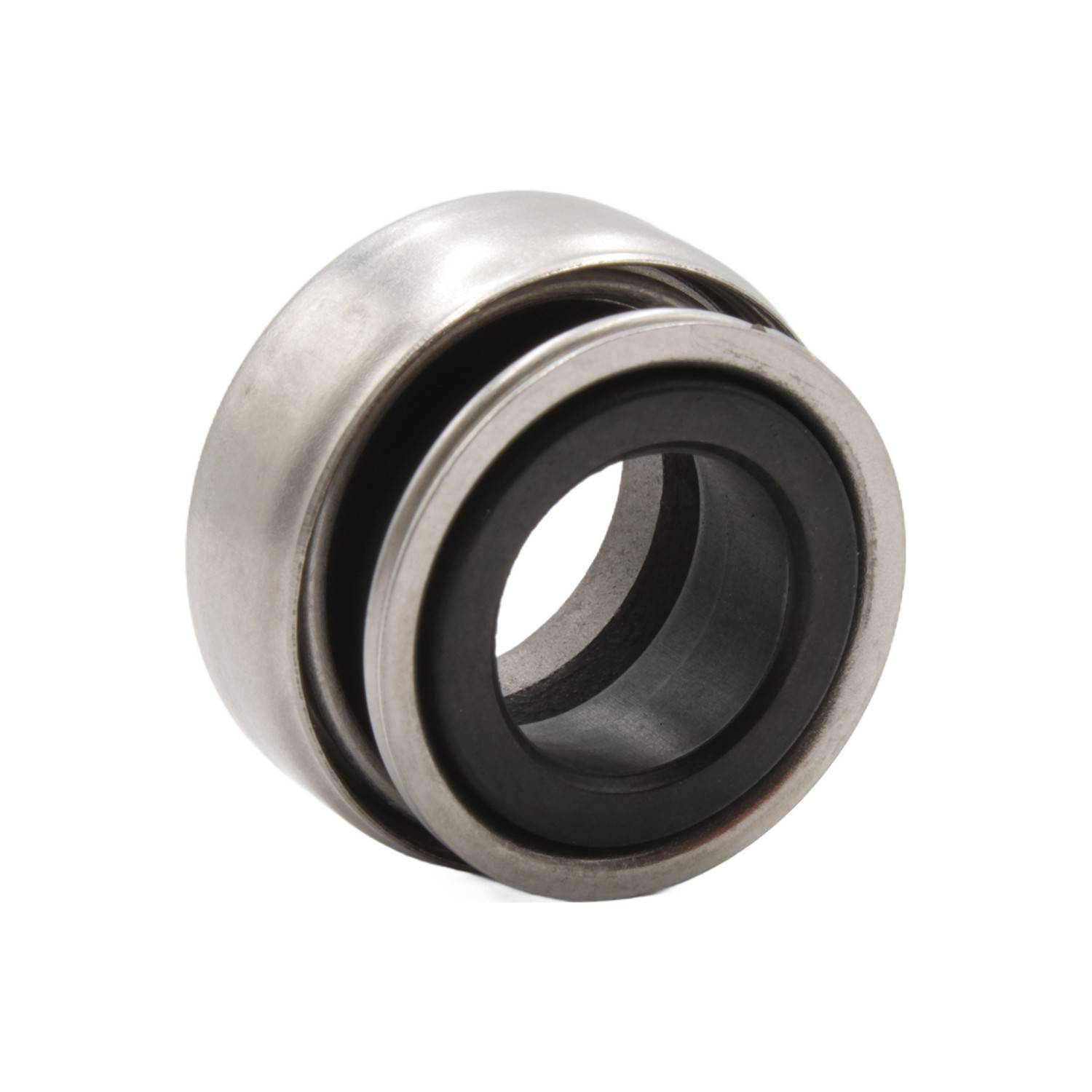

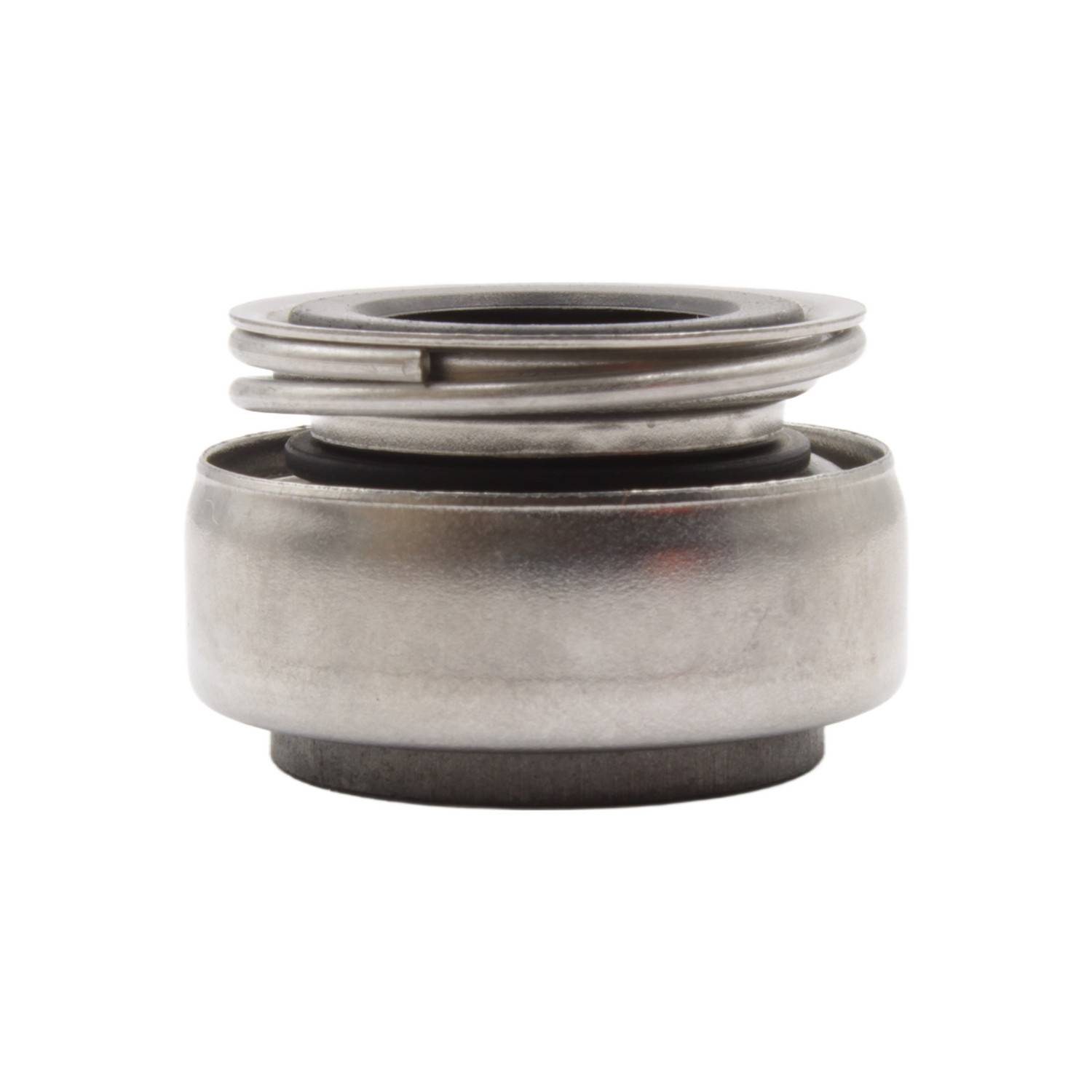

AR-13 - 13mm Mechanical Seal

The Pedrollo AR-13 mechanical seal is mainly used in small and medium-sized Pedrollo surface electric pumps.

Suitable for electric pumps with a 13 mm crankshaft.

The AR-13 mechanical seal is mainly used on multi-impeller pumps.

The mechanical seal's job is to keep the hydraulic part separate from the electrical part. It prevents water from reaching the bearings and motor.

The AR-13 seal allows the shaft to rotate without using a rigid seal.

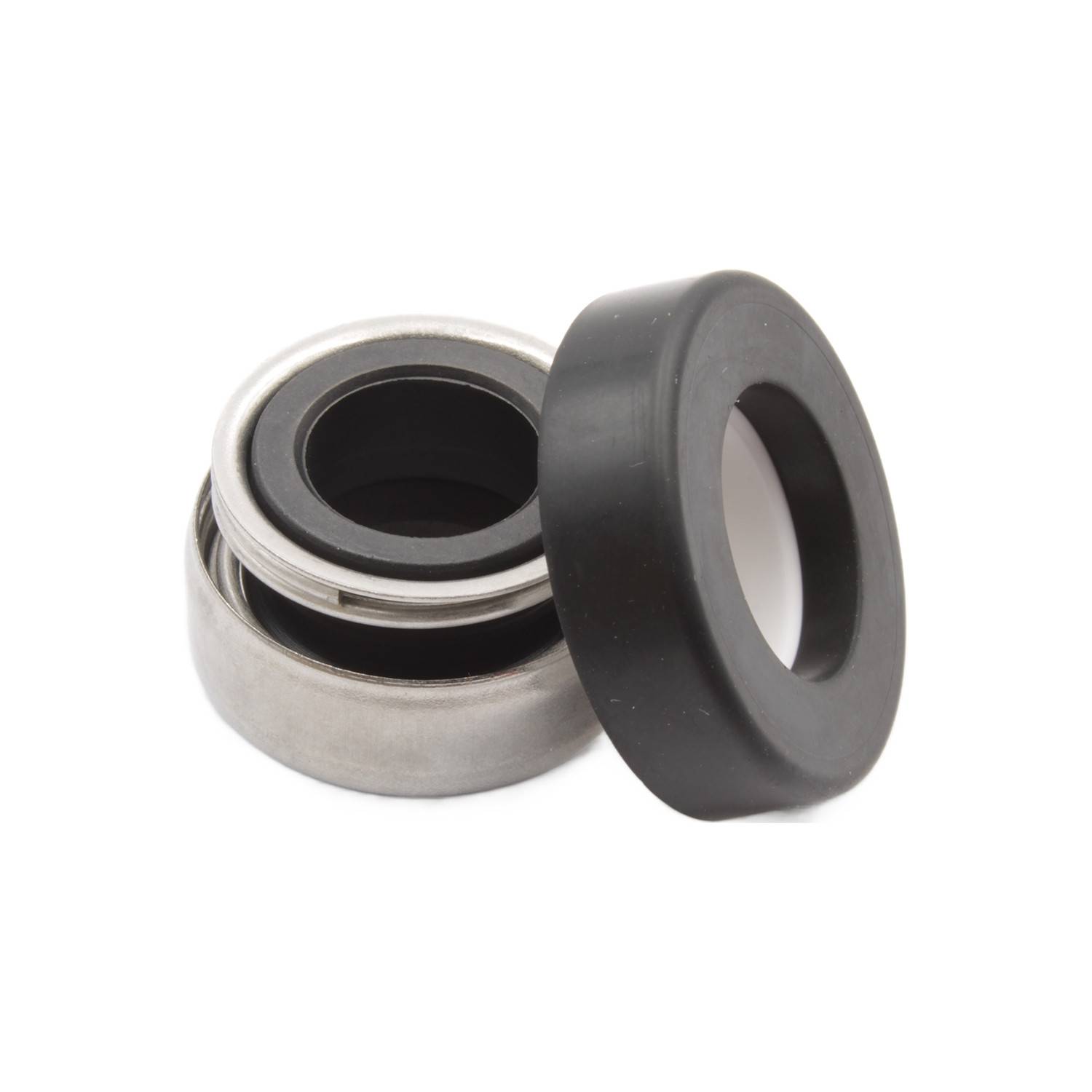

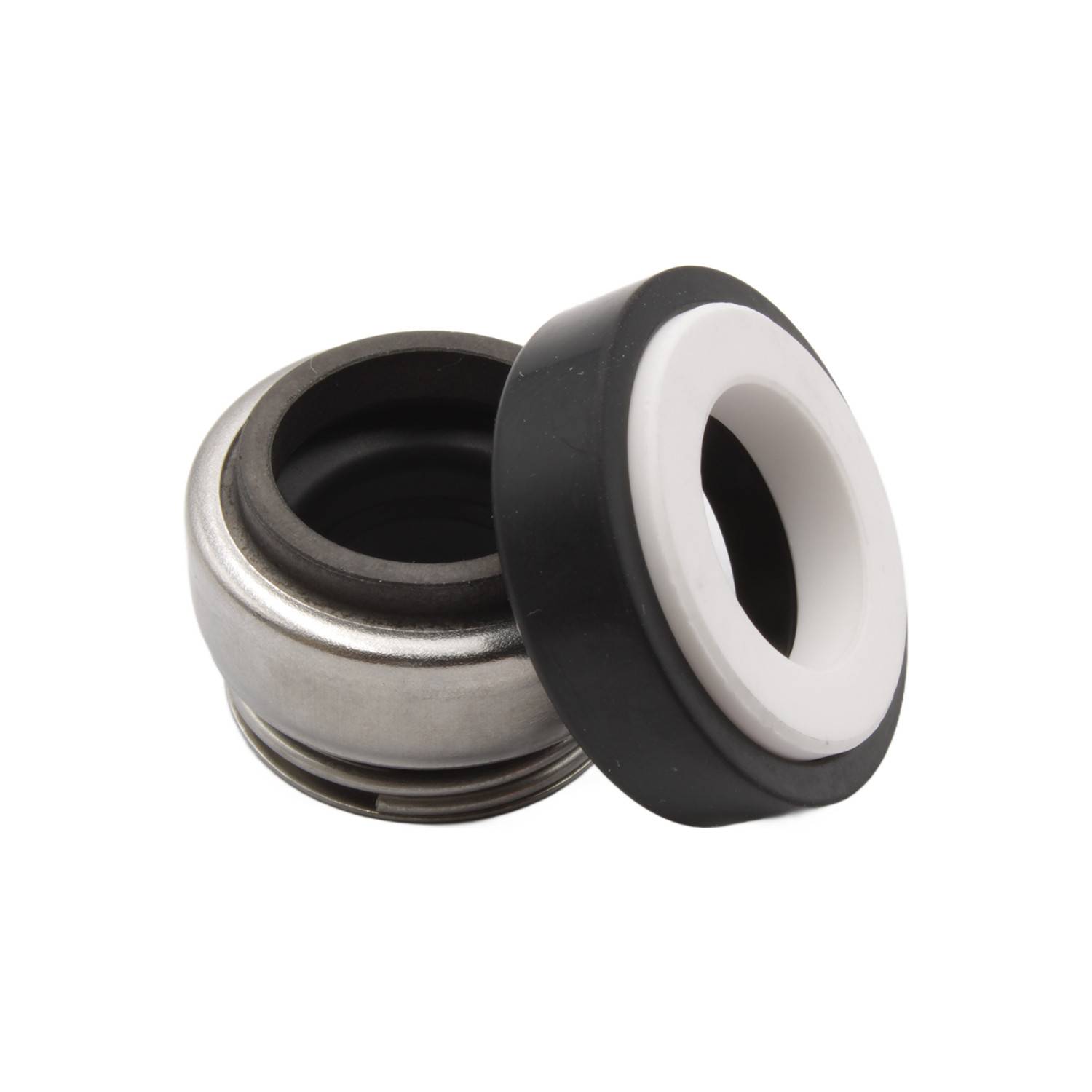

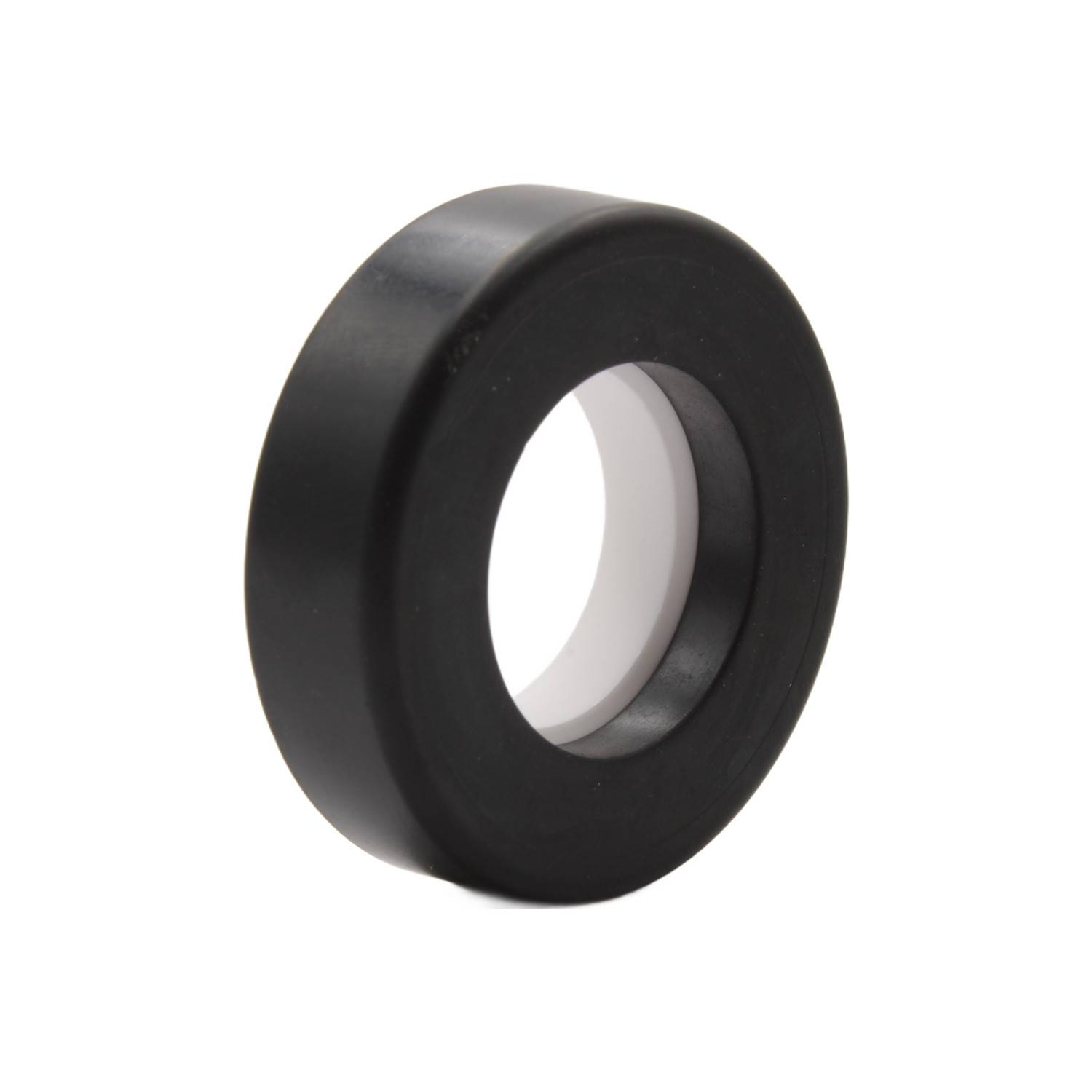

The seal consists of two parts: a rotating one and a fixed one. It is made of ceramic, graphite, NBR, and AISI 304 stainless steel.

The seal inside the electric pump is one of the most stressed parts and is therefore subject to wear. It's important to replace it when water is found in the motor.

Original spare part for model 2-4CP, 2-5CR, PLURIJET/60-80-100, 2CP 80-I, PLURIJET 3/60-N, PLURIJET 3/80-N, PLURIJET 3/100-N, PLURIJET 4/80-N, PLURIJET 4/100-N, PLURIJET 3/60X, PLURIJET 3/80X, PLURIJET 3/100X, PLURIJET 4/80X, PLURIJET 4/100X, PLURIJET 3/80, PLURIJET 4/80, PLURIJET 3/100, 2CP 80-I, 3CP 80-I, 4CP 80-I, 5CP 80-I, 3CP 100-I, 4CP 100-I, 5CP 100-I, 2CP 80, 3CP 60, 3CP 80, 4CP 80, 3CP 100, 4CP 100, 2CP 80-C, 3CP 60-C, 3CP 80-C, 4CP 80-C, 3CP 100-C, 4CP 100-C, 2CP 80E, 3CP 80E, 4CP 80E, 3CP 100E, 4CP 100E, 2CR 80-N, 3CR 60-N, 3CR 80-N, 3CR 100-N, 4CR 80-N, 4CR 100-N, 5CR 80-N, 2CR 80, 3CR 60, 3CR 80, 4CR 80, 5CR 80, 3CR 100, 4CR 100, 5CR 100, 2CR 80X, 3CR 80X, 4CR 80X, 3CR 100X, 4CR 100X.
