FN-20 NUD - 20 mm mechanical seal
Replacement for FG32/160, FG40/125, FG40/160, FG50/125, FG 32/160A, FG 32/160B, FG 32/160C, FG 40/160A, FG 40/160B, FG 40/160C, FG 50/125A, FG 50/125B, FG 50/125C. Code 11516302030.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | tomorrow - Friday 25 September |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | tomorrow - Friday 25 September |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
tomorrow - Friday 25 September
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
tomorrow - Friday 25 September

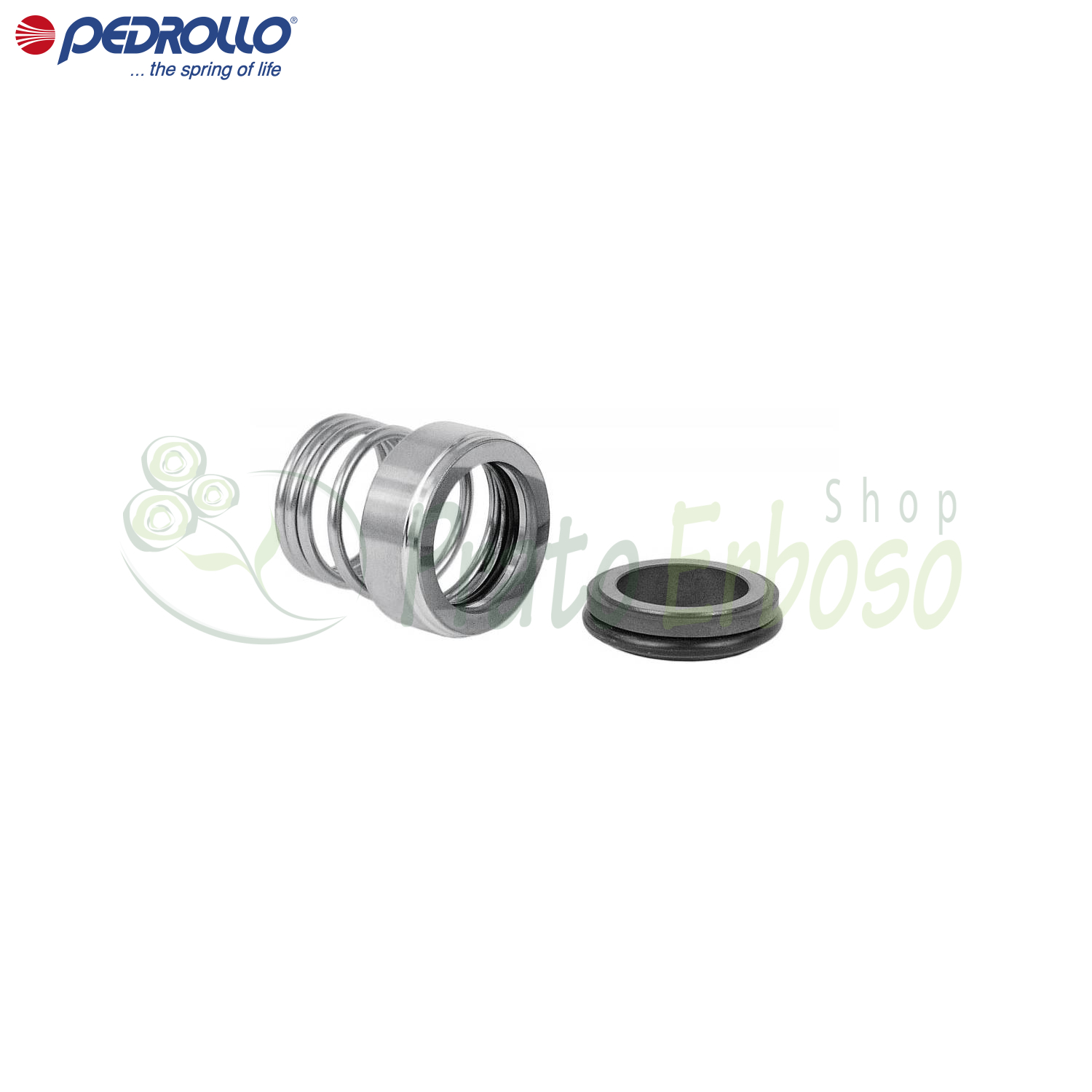

The Pedrollo FN-20 NUD mechanical seal features a different mounting geometry, specific for Pedrollo standardized centrifugal pumps of the FG series.
Suitable for electric pumps with a 20 mm crankshaft.
The FN-20 NUD mechanical seal is mainly used on standard centrifugal pumps.
The mechanical seal's job is to keep the hydraulic part separate from the electrical part. It prevents water from reaching the bearings and motor.
The FN-20 NUD seal allows shaft rotation without the use of a rigid seal.
The seal consists of two parts: a rotating one and a fixed one. Made of graphite, silicon carbide, EPDM, and AISI 316L stainless steel.
The seal inside the electric pump is one of the most stressed parts and is therefore subject to wear. It's important to replace it when water is found in the motor.
Original spare part for model FG32/160, FG40/125, FG40/160, FG50/125, FG 32/160A, FG 32/160B, FG 32/160C, FG 40/160A, FG 40/160B, FG 40/160C, FG 50/125A, FG 50/125B, FG 50/125C.
The FN-20 NUD mechanical seal model is compatible with the following pump models:
| Brand | Typology | Model | Version | See all spare parts |
|---|---|---|---|---|
| Pedrollo | Normalized | FG 32/160C | Version 00 | View |
| Pedrollo | Normalized | FG 32/160B | Version 00 | View |
| Pedrollo | Normalized | FG 32/160A | Version 00 | View |
| Pedrollo | Normalized | FG 40/160C | Version 00 | View |
| Pedrollo | Normalized | FG 40/160B | Version 00 | View |
| Pedrollo | Normalized | FG 40/160A | Version 00 | View |
| Pedrollo | Normalized | FG 50/125C | Version 00 | View |
| Pedrollo | Normalized | FG 50/125B | Version 00 | View |
| Pedrollo | Normalized | FG 50/125A | Version 00 | View |
| Pedrollo | Normalized | FG 32/160A | Version A - 2023 | View |
| Pedrollo | Normalized | FG 32/160B | Version A - 2023 | View |
| Pedrollo | Normalized | FG 32/160C | Version A - 2023 | View |
| Pedrollo | Normalized | FG 40/160A | Version 00 - 2011 | View |
| Pedrollo | Normalized | FG 40/160A | Version A - 2023 | View |
| Pedrollo | Normalized | FG 40/160B | Version 00 - 2011 | View |
| Pedrollo | Normalized | FG 40/160B | Version A - 2023 | View |
| Pedrollo | Normalized | FG 40/160C | Version A - 2023 | View |
| Pedrollo | Normalized | FG 50/125A | Version A - 2023 | View |
| Pedrollo | Normalized | FG 50/125B | Version A - 2023 | View |
| Pedrollo | Normalized | FG 50/125C | Version A - 2023 | View |
