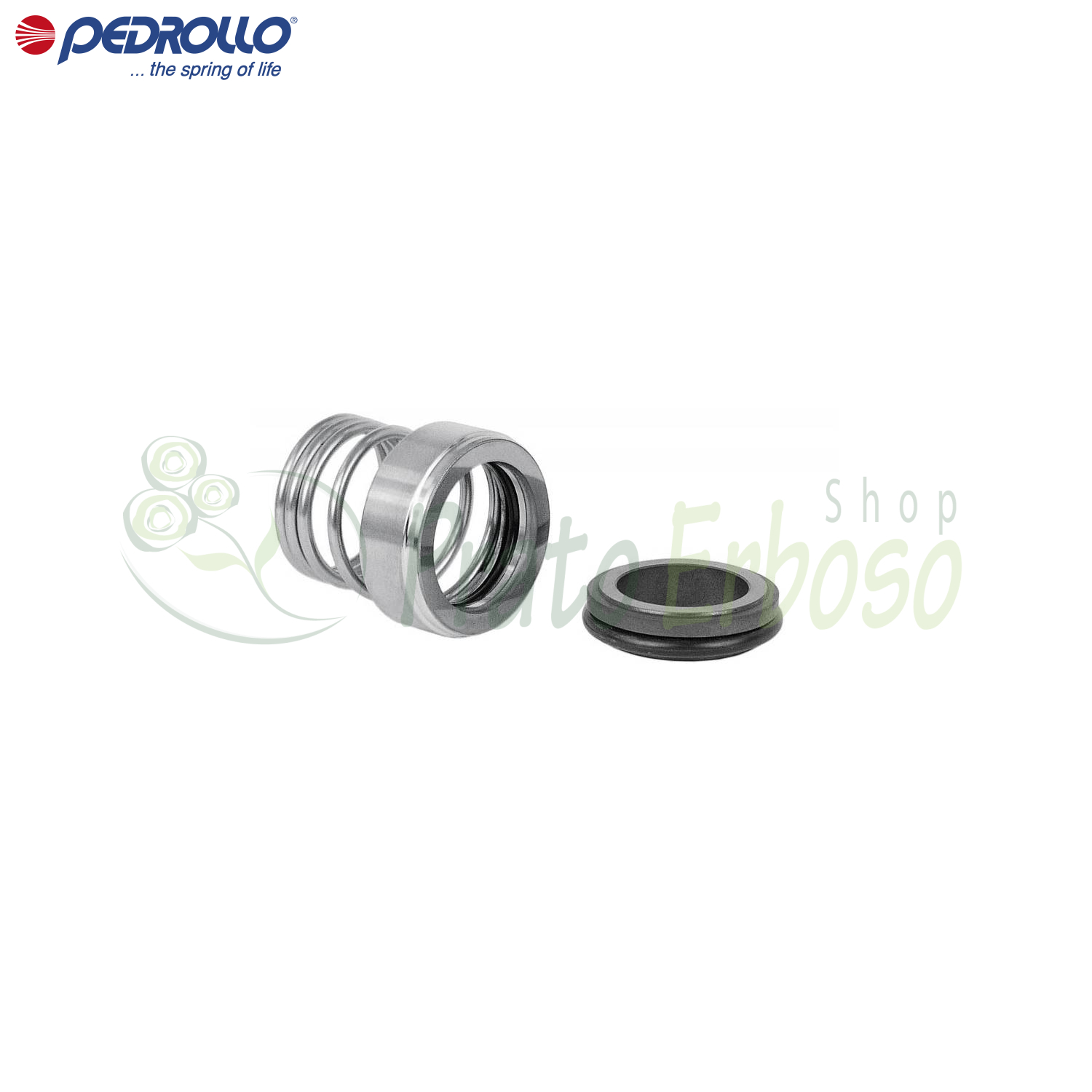

FN-40 NU - 40 mm mechanical seal

The Pedrollo FN-40 NU mechanical seal is mainly used in large Pedrollo surface electric pumps.

Suitable for electric pumps with a 40 mm crankshaft.

The FN-40 NU mechanical seal is mainly used on large-capacity standard centrifugal electric pumps.

The mechanical seal's job is to keep the hydraulic part separate from the electrical part. It prevents water from reaching the bearings and motor.

The FN-40 NU seal allows shaft rotation without the use of a rigid seal.

The seal consists of two parts: a rotating one and a fixed one. Made of graphite, ceramic, NBR, and AISI 316L stainless steel.

The FN-40 NU features standardized installation dimensions.

The seal inside the electric pump is one of the most stressed parts and is therefore subject to wear. It's important to replace it when water is found in the motor.

Original spare part for model F-F4 65/250, F-F4 80/200, F 80/250B, F-F4 100/200, FG80/200A, FG100/200A, F 65/250C, F 65/250B, F 65/250A, F 80/200B, F 80/200A, F 80/250B, F 100/200C, F 100/200B, F 100/200A, FG 80/200A, FG 80/200B, FG 100/200A, FG 100/200B, FG 100/200C.
