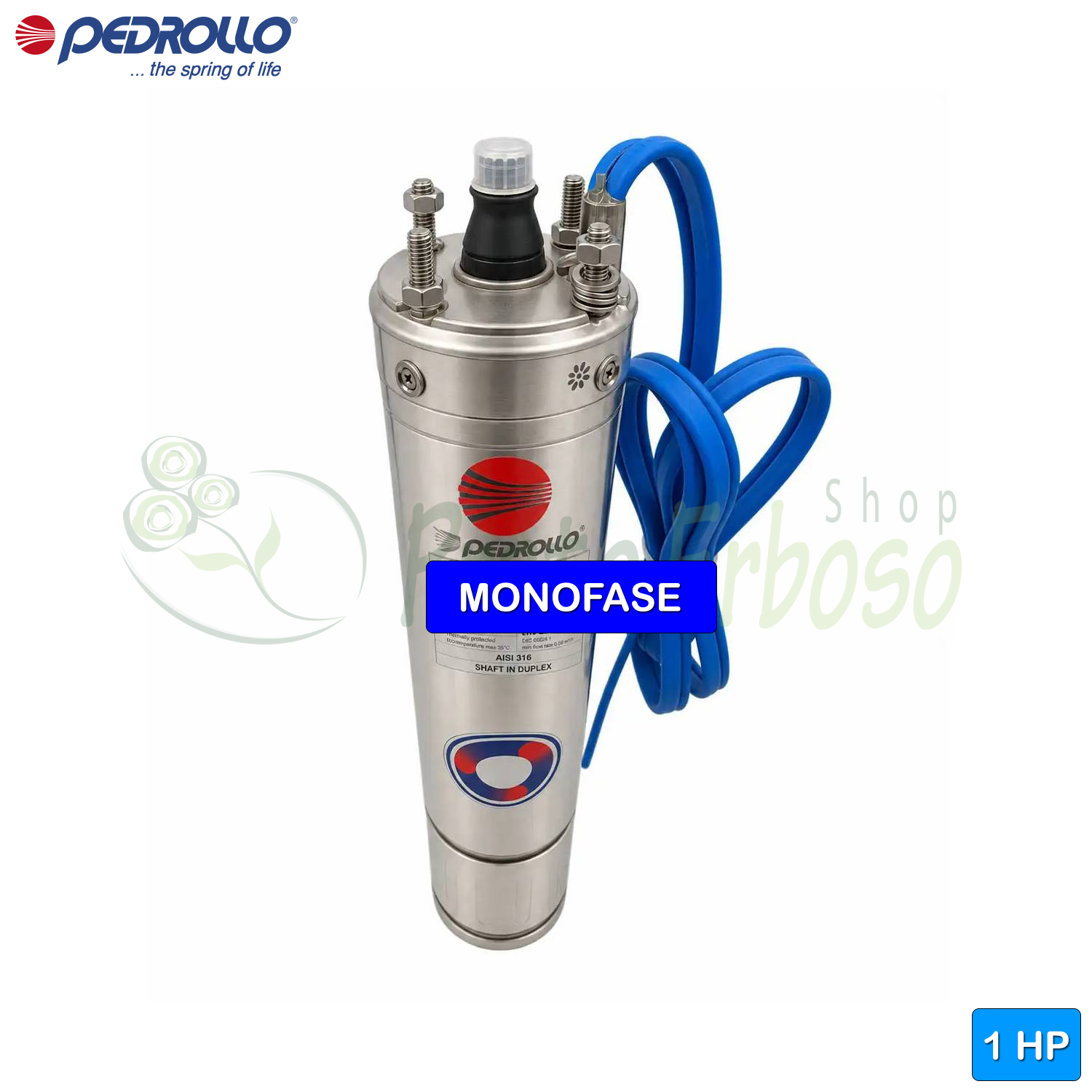

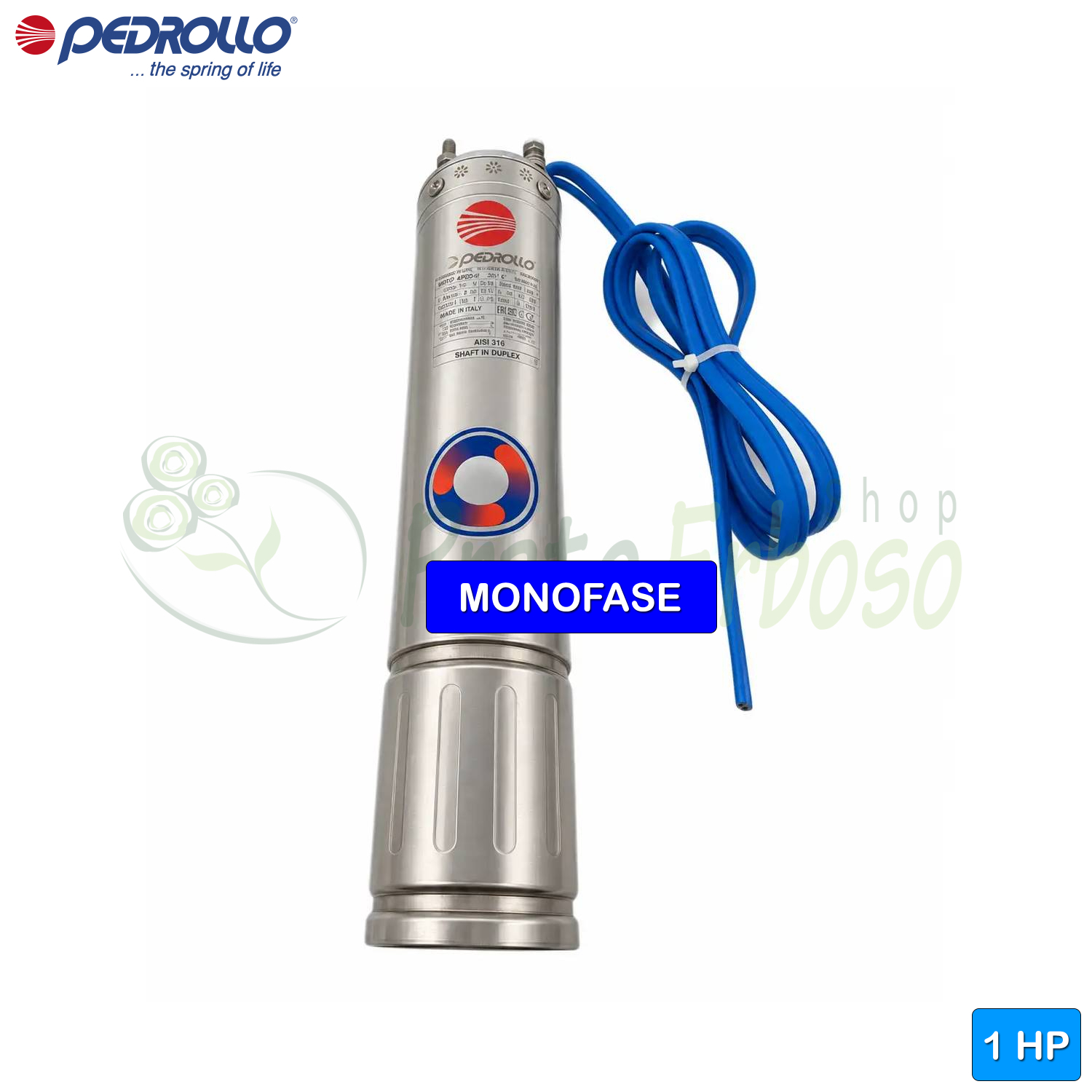

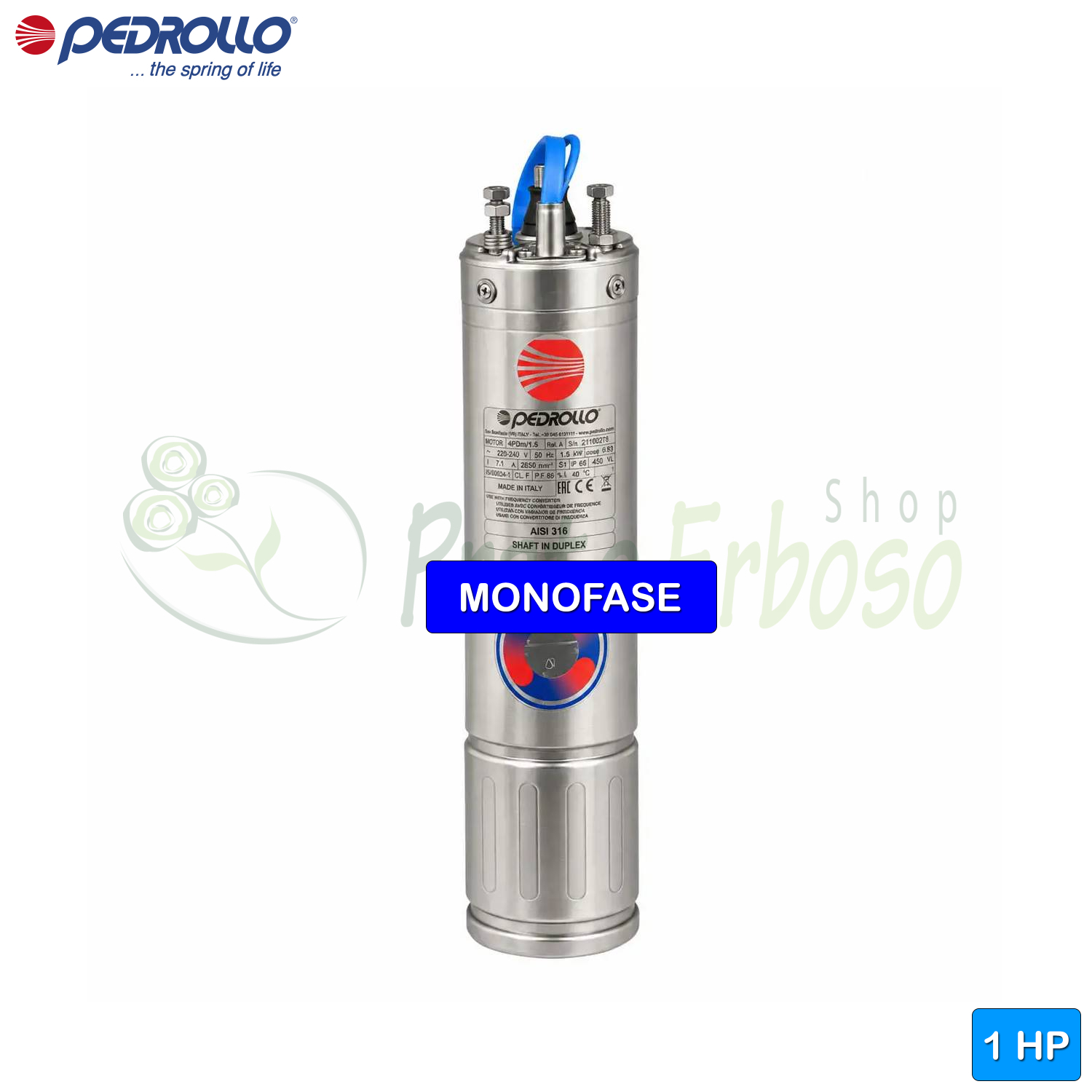

4PDm/1 - 4" 1 HP single-phase rewindable motor
Power: 0.75 Kw (1 HP). Voltage: 230 V / 50 Hz. Current: 5.9 A. Revolutions: 2825/min.
Original spare part for 4SR10/5-N, 4SR12/5-N, 4HR10/5.
The Pedrollo PD electric motor for the 4SR Submersible Pump models is the driving force of the entire pump body.
Specially sized for the pump it will have to tow, it guarantees the best performance.
The 4PDm/1 is a food-grade rewindable submersible motor in an oil bath, complete with 1.5 meter power cable.
The insulation class F and the IP68 protection degree are appropriate for use.
Original spare part for Pedrollo 4SR10/5-N, 4SR12/5-N, 4HR10/5 electric pumps.
- Motor connection
- SINGLE-PHASE
- Power (HP)
- 1
- Absorption at 230V (A)
- 5.9
- Capacitor
- 35 µF 450 VL
- Crankshaft
- Duplex Stainless Steel
- Degree of protection
- IP 68
- Cable length (m.)
- 2
- Jobs
- fire prevention systems, irrigation, pressurization systems, water supply
- Max. liquid temperature (°C)
- +35°C
- Height (cm)
- 35.6
- External diameter (cm)
- 9.2
- Weight (Kg)
- 8.9
- Warranty (years)
- 2
The 4PDm/1 motor is compatible with the following pump models:
| Brand | Typology | Model | Version | See all spare parts |
|---|---|---|---|---|
| Pedrollo | Submerged | 4SR10/5-N | Version A - 2020 | View |
| Pedrollo | Submerged | 4SR12/5-N | Version 00 - 2017 | View |
| Pedrollo | Submerged | 4SR12/5-N | Version A - 2020 | View |
| Pedrollo | Submerged | 4HR10/5 | Version 00 - 2019 | View |
Compare with Similar Products
 4PDm/1 - 4" 1 HP single-phase rewindable motorThis product Power: 0.75 Kw (1 HP). Voltage: 230 V / 50 Hz. Current: 5.9 A. Revolutions: 2825/min. Original spare part for 4SR10/5-N, 4SR12/5-N, 4HR10/5. | |
|---|---|
| Price | Price €319.64 -45% €175.80 |
| Motor connection | Motor connection SINGLE-PHASE |
| Power (HP) | Power (HP) 1 |
| Absorption at 230V (A) | Absorption at 230V (A) 5.9 |
| Capacitor | Capacitor 35 µF 450 VL |
| Crankshaft | Crankshaft Duplex Stainless Steel |
| Degree of protection | Degree of protection IP 68 |
| Cable length (m.) | Cable length (m.) 2 |
| Jobs | Jobs fire prevention systems, irrigation, pressurization systems, water supply |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +35°C |
| Height (cm) | Height (cm) 35.6 |
| External diameter (cm) | External diameter (cm) 9.2 |
| Weight (Kg) | Weight (Kg) 8.9 |
| Warranty (years) | Warranty (years) 2 |
