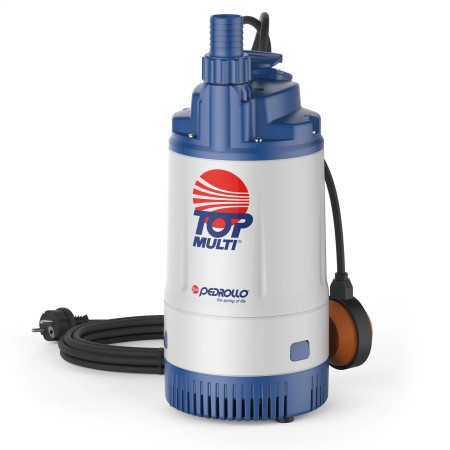

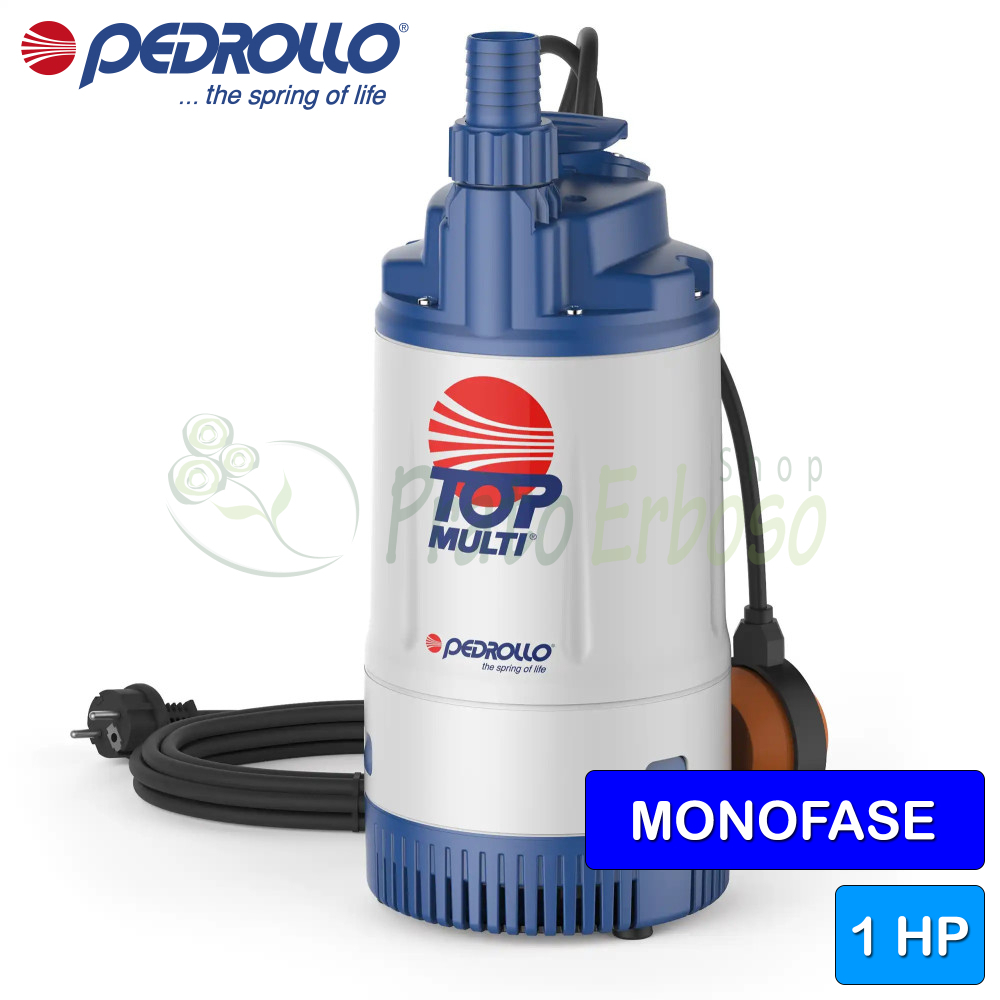

TOP MULTI 5 - 1 HP multi-impeller electric pump
Flow rate up to 120 l/min (4.8 m³/h). Head up to 41 m. 0.75 Kw (1 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Tuesday 20 October - Wednesday 21 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Tuesday 20 October - Wednesday 21 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Monday 19 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Tuesday 20 October - Wednesday 21 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Tuesday 20 October - Wednesday 21 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Monday 19 October
The TOP MULTI 5 multi-impeller electric pump by Pedrollo is ideal for the domestic and civil sectors.
Recommended for pumping clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
The flow rate ranges from 10 to 120 liters per minute. The head ranges from 6 to 41 meters.
It must be powered by a single-phase voltage, has a horsepower of 0.75 HP and the temperature of the liquid to be pumped ranges from -10 degrees centigrade up to +40.
The TOP MULTI 5 is suitable for domestic water supply from relatively deep basins, tanks or wells, for drawing rainwater from cisterns for hand watering or for feeding an irrigation system.
Also complete with 10 meter long power cable.
The pump construction is solid. Pedrollo has used technopolymer, AISI 304 stainless steel and noryl which give the product robustness and allow it to last over time.
- Jobs
- water supply, pressurization systems, irrigation
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 3.9
- Pump body
- Technopolymer
- Impeller
- Noryl
- Number of impellers
- 5
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Minimum flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 120
- Min. head (m.)
- 6
- Max. head (m.)
- 41
- Emptying level (mm)
- 35
- Max. liquid temperature (°C)
- +40°C
- Cable length (m.)
- 10
- Degree of protection
- IP 68
- Delivery mouth
- 1" 1/4
- Height (cm)
- 41.5
- Width (cm)
- 17.8
- Depth (cm)
- 17.8
- Weight (Kg)
- 10.5
- Warranty (years)
- 2
Use and formulation of products
- Jobs
- water supply, pressurization systems, irrigation
Engine and mechanical performance
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 3.9
Pump components and construction
- Pump body
- Technopolymer
- Impeller
- Noryl
- Number of impellers
- 5
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 120
- Min. head (m.)
- 6
- Max. head (m.)
- 41
Liquids and pumping conditions
- Emptying level (mm)
- 35
- Max. liquid temperature (°C)
- +40°C
Power supply and electrical parameters
- Cable length (m.)
- 10
Safety and protection
- Degree of protection
- IP 68
Installation and connections
- Delivery mouth
- 1" 1/4
Dimensions and weight
- Height (cm)
- 41.5
- Width (cm)
- 17.8
- Depth (cm)
- 17.8
- Weight (Kg)
- 10.5
Packaging, maintenance, and warranty
- Warranty (years)
- 2
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6202 ZZ - C3 |
| Opposite side engine bearing | 6201 ZZ |
Tree holding
| Type of seal | Double Mechanical Seal in tandem with oil chamber |
| Engine side model | STA-13R |
| LM diameter | 13 |
| LM fixed ring | Ceramic |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | STA-12R SG |
| LP diameter | 12 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Graphite |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Reinforced technopolymer |
| 1.3 - Delivery body | Reinforced technopolymer |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.0 - Stadium box | Reinforced technopolymer |
| 5.1 - Diffuser | Reinforced technopolymer |
| 5.2 - Wear ring | POM acetal resin |
| 5.5 - Director Crown | Reinforced technopolymer |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Reinforced technopolymer |
