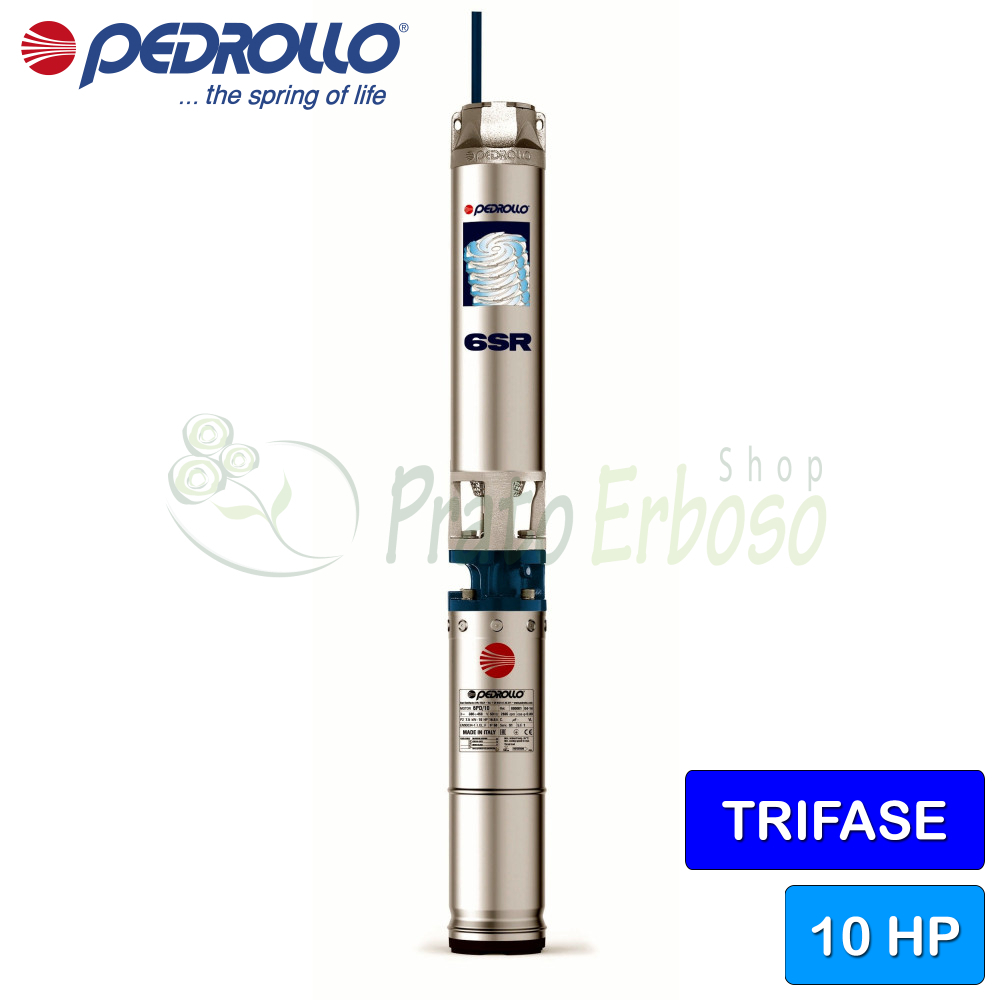

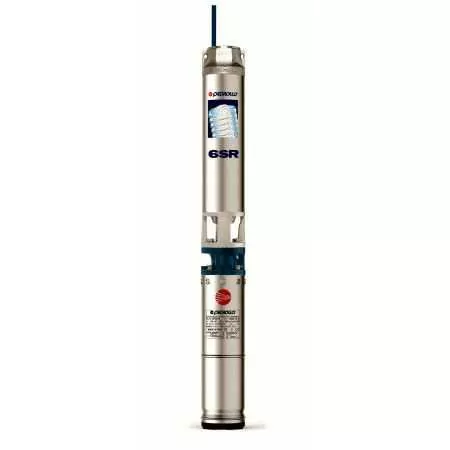

6SR18/9 - PD - 10 HP three-phase submersible electric pump
Flow rate up to 450 l/min (27 m³/h). Head up to 122 m. 7.5 Kw (10 HP) motor.
Variants:
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The 6SR18/9 - PD submersible electric pump from the 6SR series by Pedrollo boasts a solid and robust construction.
Pedrollo used noryl, cast iron and AISI 304, 316L and 420 stainless steel.
Equipped with impellers and diffusers capable of resisting abrasion caused by sand.
The 6SR18/9 - PD can pump clean water with a maximum sand content of 100 grams per cubic meter.
Equipped with a rewindable oil-bath motor.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 7.5
- Power (HP)
- 10
- Delivery mouth
- 2" 1/2
- Pump body
- Cast iron
- Impeller
- Noryl
- Number of impellers
- 9
- Pump shaft
- AISI 304 stainless steel
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 450
- Min. head (m.)
- 48
- Max. head (m.)
- 122
- Jobs
- water supply, pressurization systems, irrigation, fire prevention systems
- Max. liquid temperature (°C)
- +35°C
- Height (cm)
- 142.2
- External diameter (cm)
- 149.5
- Weight (Kg)
- 60.3
- Warranty (years)
- 2
6SR 18 models and performance
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the 6SR series
Bearings
| Pump bearing - fixed part | Special elastomer |
| Pump bearing - rotating part | Sintered AISI 316 steel with ceramic coating |
Tree holding
Materials
| 1.3 - Delivery body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4021 (AISI 420) |
| 5.0 - Stadium box | Stainless steel EN 1.4301 (AISI 304) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 7.0 - Lantern | Cast iron GJL 200 EN 1561 |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
