FLUID SOLAR 1/11 - 750W Solar Electric Pump Kit
Flow rate up to 38 l/min (2.28 m³/h). Head up to 80.5 m. 750 W motor.
The FLUID SOLAR 1/10 750 Watt solar electric pump kit by Pedrollo has a flow rate of 5 to 38 litres per minute and a head of 10 to 89 metres.

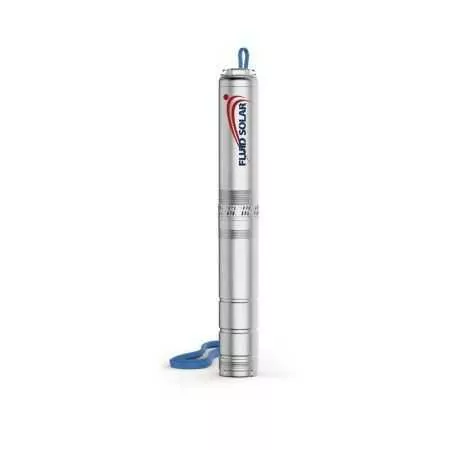

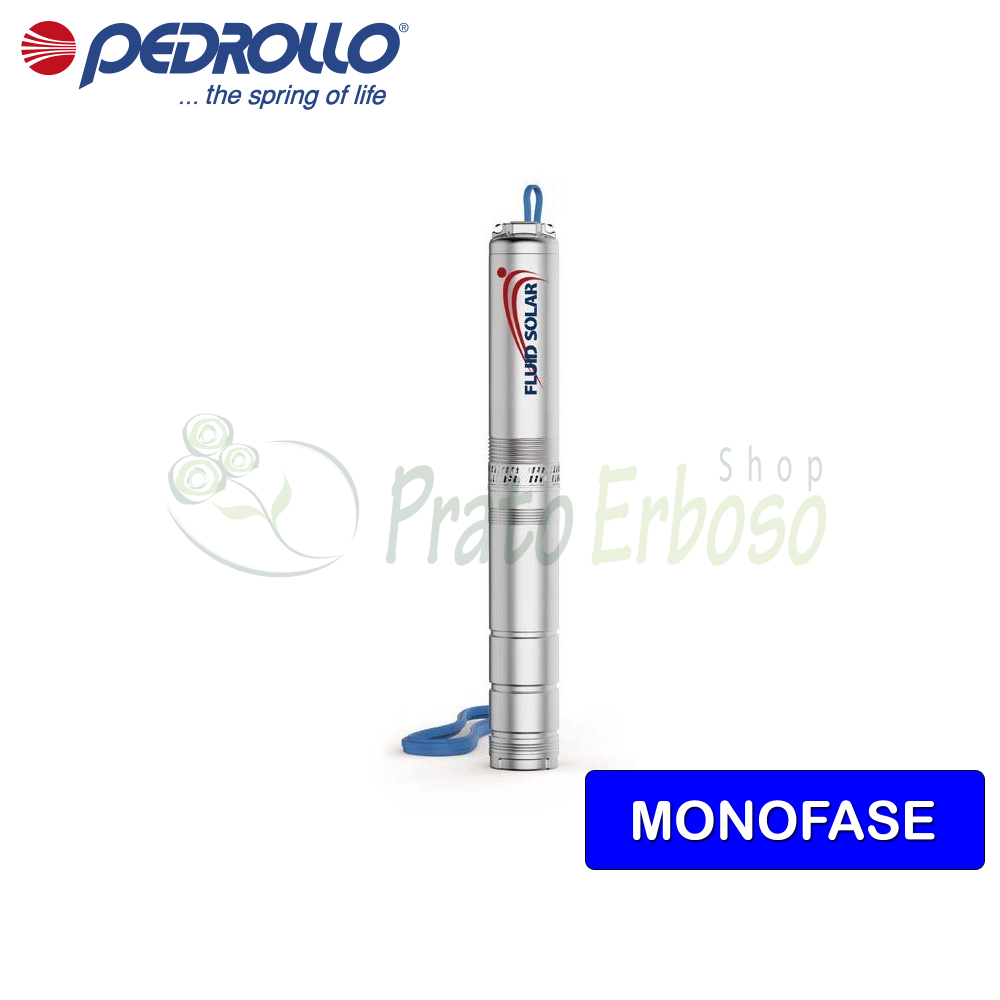

The 4-inch multi-stage submersible solar electric pump is suitable for pumping clean water with a maximum sand content of 150 grams per cubic meter. It can be used up to 40 meters below the water level.
It is particularly suitable for irrigation, pressurization systems with water drawn from a well or cistern.
The motor is equipped with an internal inverter that converts the output voltage from the modules and regulates the rotation speed of the motor in such a way as to make the most of the energy available at a given moment.

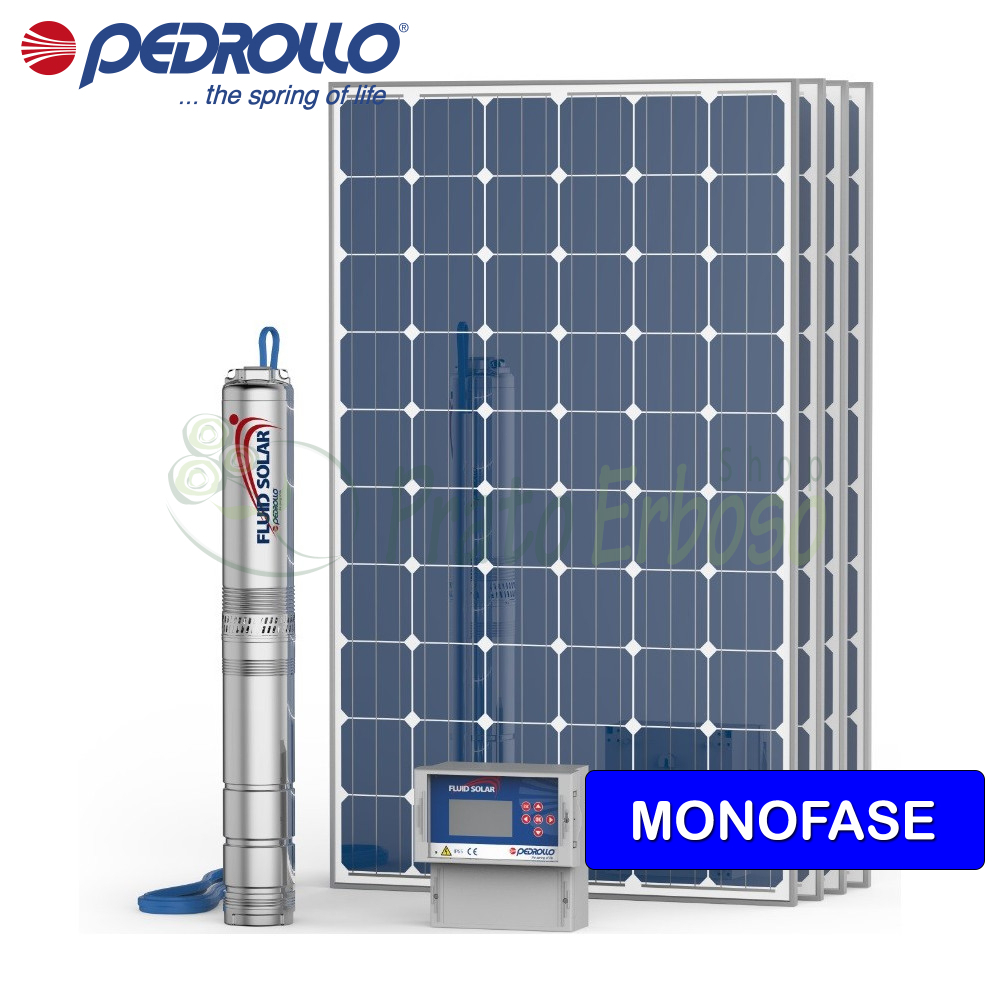

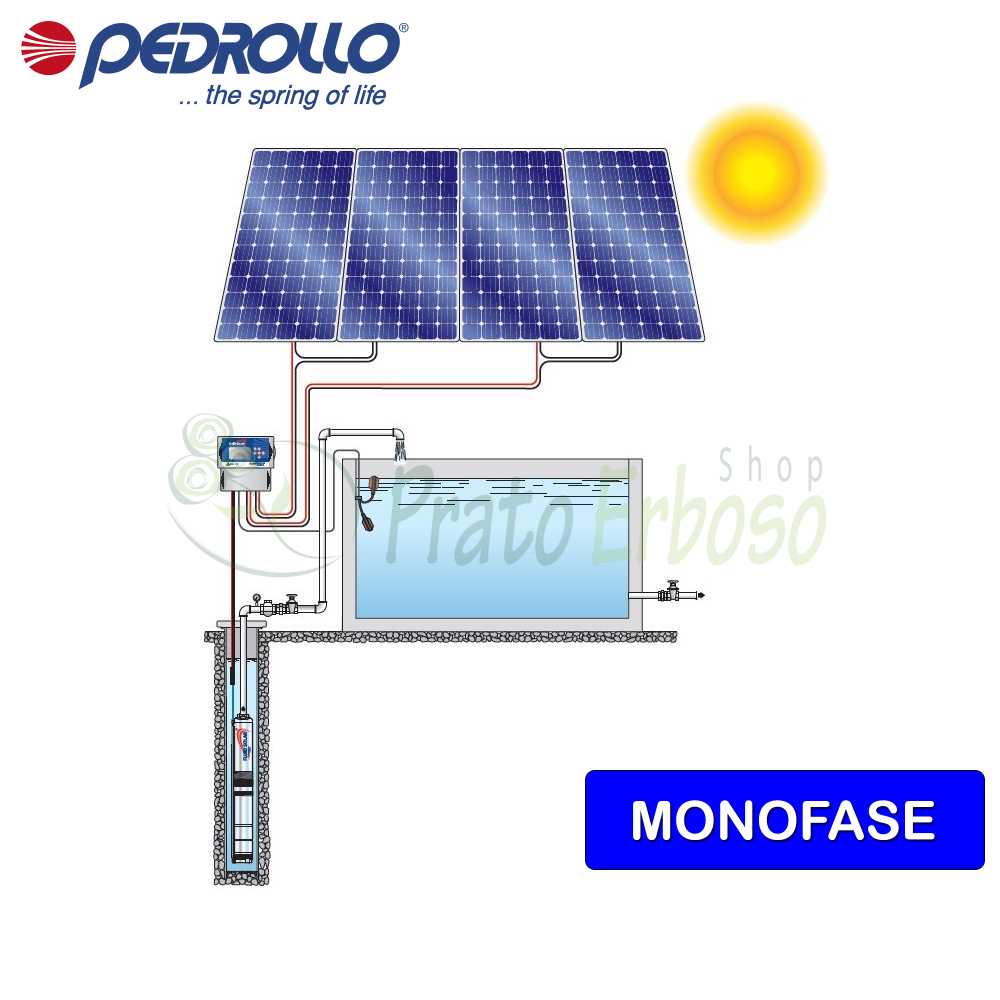

To achieve its rated performance, the electric pump must be powered by 4 photovoltaic modules with an open-circuit voltage of each module between 35 and 50 Vdc. The total rated power of the 4 modules must be at least 980 Wp. The entire system is managed by a control unit provided.

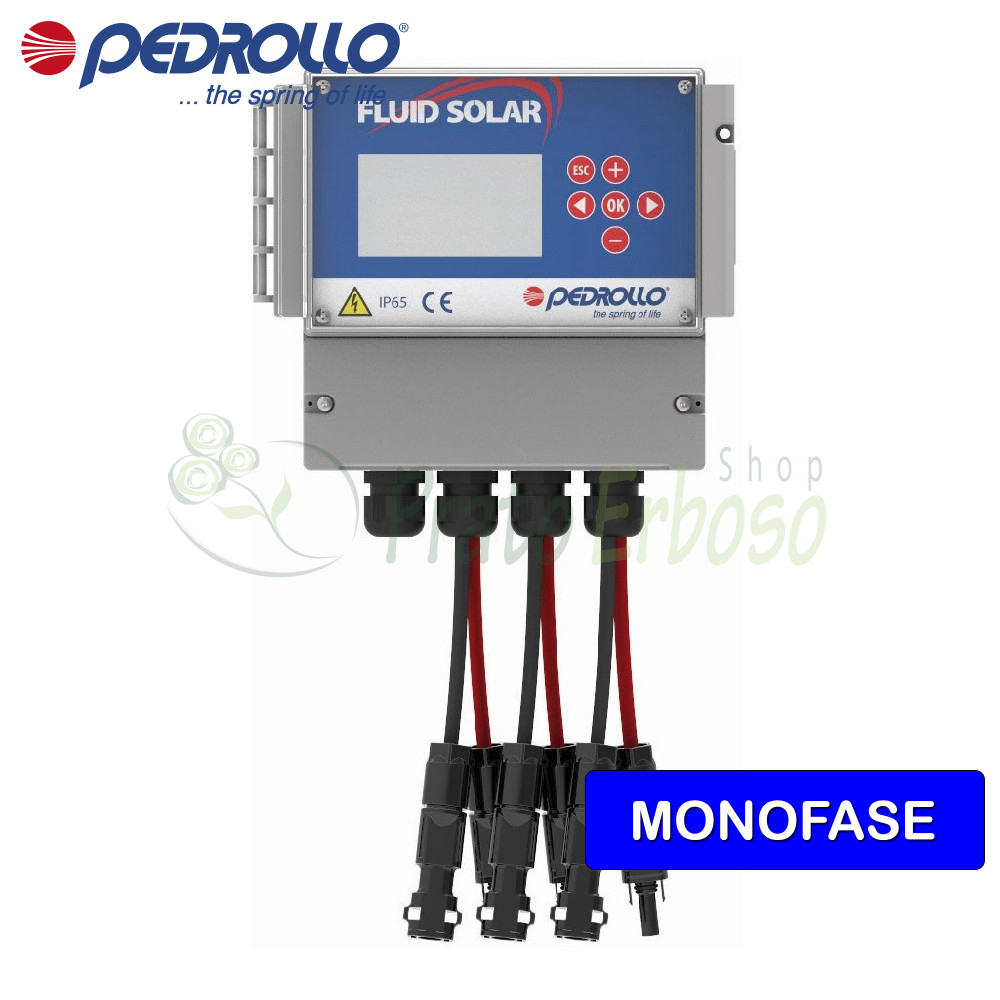

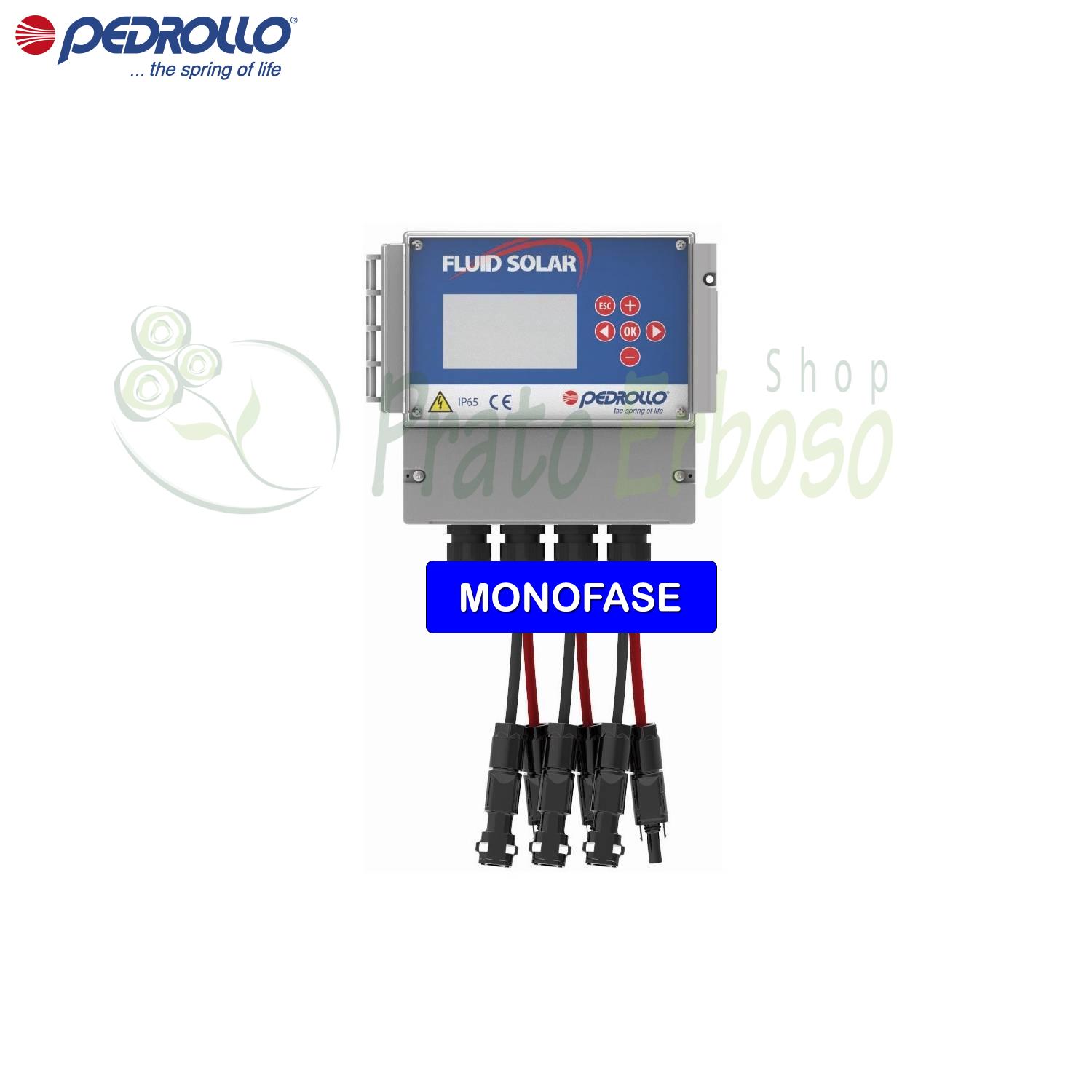

The kit includes the electric pump with a 2-meter long power cable, the electrical panel for connecting the photovoltaic panels to the pump, the cable junction kit, 5 male connectors and 5 female connectors.
- Delivery mouth
- 1"
- Impeller
- Lexan
- Number of impellers
- 10
- Crankshaft
- AISI 431 stainless steel
- Pump shaft
- AISI 304 stainless steel
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 38
- Min. head (m.)
- 10
- Max. head (m.)
- 80.5
- Jobs
- irrigation, pressurization systems, water supply
- Max. liquid temperature (°C)
- +35°C
- Height (cm)
- 71
- External diameter (cm)
- 10
- Weight (Kg)
- 12.3
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||
Compare with Similar Products
 FLUID SOLAR 1/11 - 750W Solar Electric Pump KitThis product Flow rate up to 38 l/min (2.28 m³/h). Head up to 80.5 m. 750 W motor. |  FLUID SOLAR 1/18 - 1500W Solar Electric Pump KitFlow rate up to 40 l/min (2.28 m³/h). Head up to 187 meters. 1500-watt motor. | |
|---|---|---|
| Price | Price €2,010.56 -45% €1,105.81 | Price €2,413.16 -45% €1,327.24 |
| Delivery mouth | Delivery mouth 1" | Delivery mouth 1" |
| Impeller | Impeller Lexan | Impeller Lexan |
| Number of impellers | Number of impellers 10 | Number of impellers 20 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Pump shaft | Pump shaft AISI 304 stainless steel | Pump shaft AISI 304 stainless steel |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 5 | Minimum flow rate (l./min.) 5 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 38 | Max. flow rate (l./min.) 40 |
| Min. head (m.) | Min. head (m.) 10 | Min. head (m.) 41.5 |
| Max. head (m.) | Max. head (m.) 80.5 | Max. head (m.) 187 |
| Jobs | Jobs irrigation, pressurization systems, water supply | Jobs irrigation, pressurization systems, water supply |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +35°C | Max. liquid temperature (°C) +35°C |
| Height (cm) | Height (cm) 71 | Height (cm) 99 |
| External diameter (cm) | External diameter (cm) 10 | External diameter (cm) 10 |
| Weight (Kg) | Weight (Kg) 12.3 | Weight (Kg) 13.9 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 |
