FLUID SOLAR 1/18 - 1500W Solar Electric Pump Kit
Flow rate up to 40 l/min (2.28 m³/h). Head up to 187 meters. 1500-watt motor.
The FLUID SOLAR 1/20 1500 Watt solar electric pump kit by Pedrollo has a flow rate of 5 to 40 litres per minute and a head of 41.5 to 187 metres.

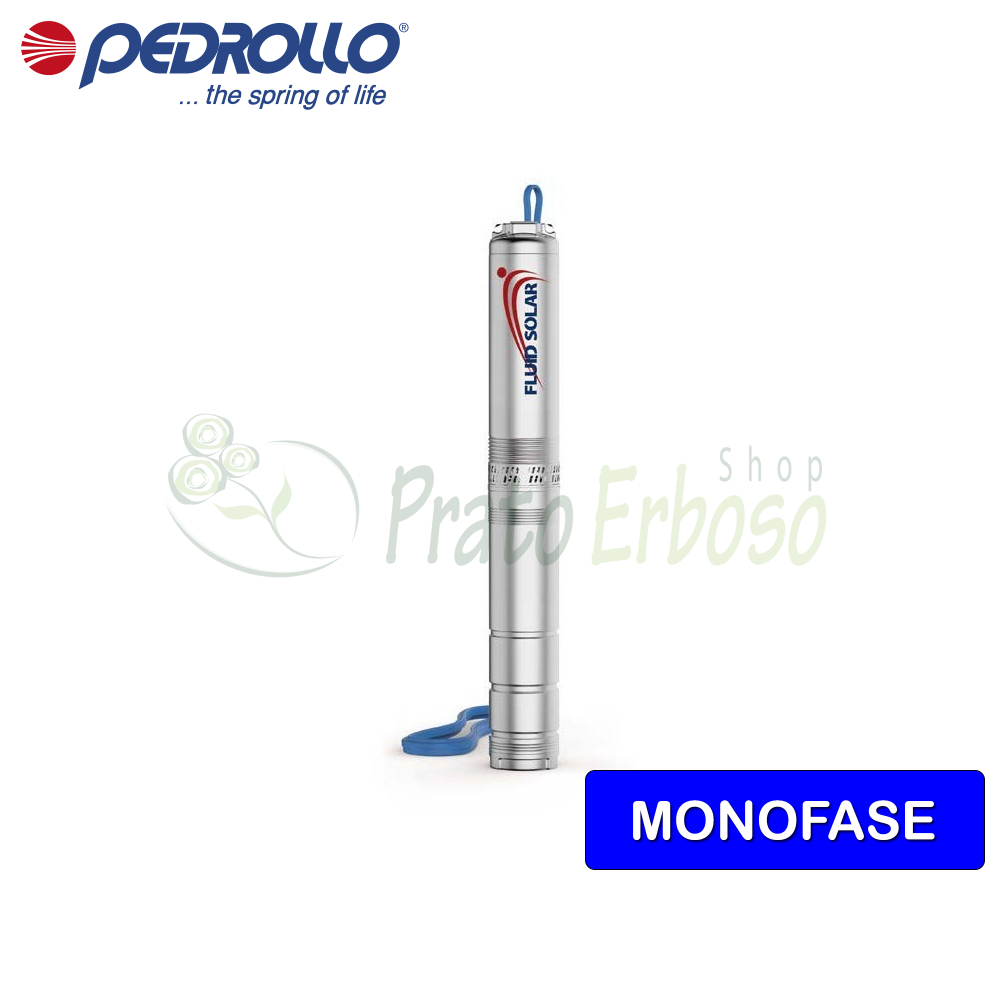

The 4-inch multi-stage submersible solar electric pump is suitable for pumping clean water with a maximum sand content of 150 grams per square meter. It can be used up to 40 meters below the water level.

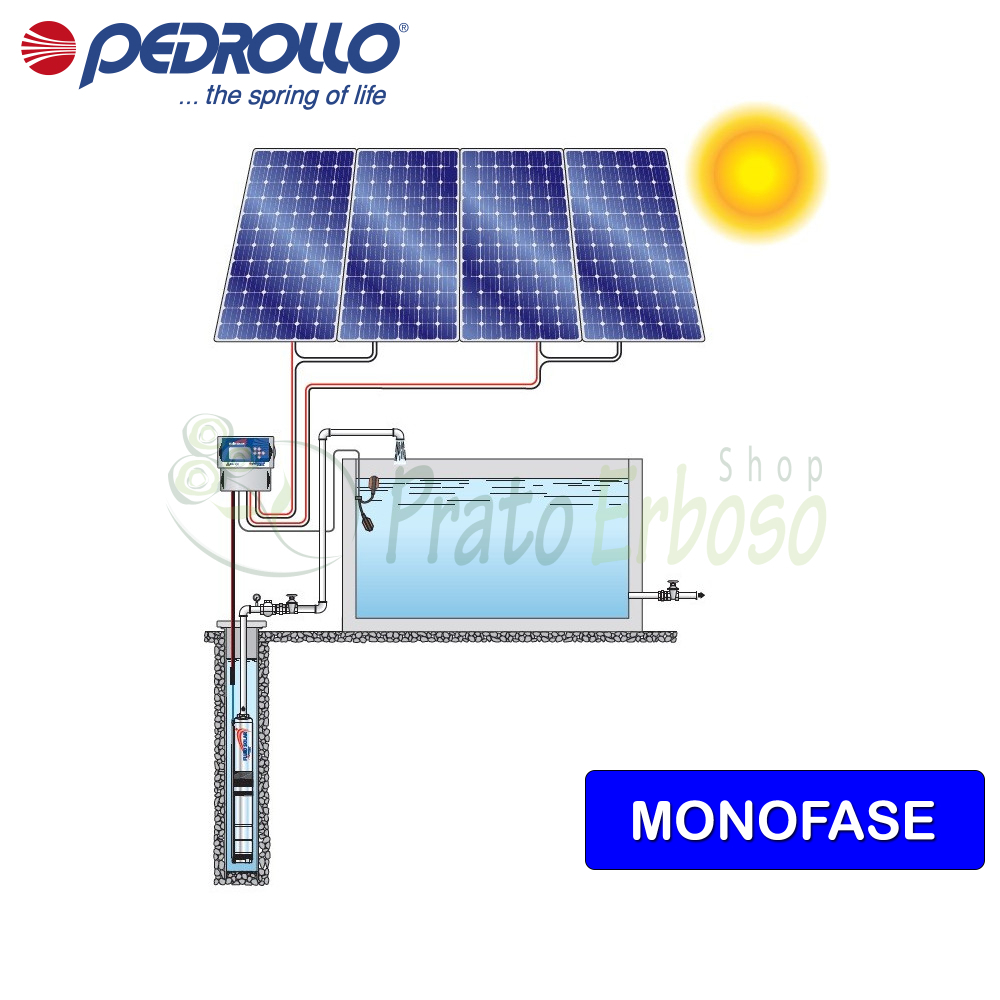

Particularly suitable for irrigation, pressurization systems with water drawn from a well or cistern.
The electric motor is a high-efficiency, submersible permanent magnet motor, specifically sized and suitable for continuous duty. It is rewindable and has insulation class F.

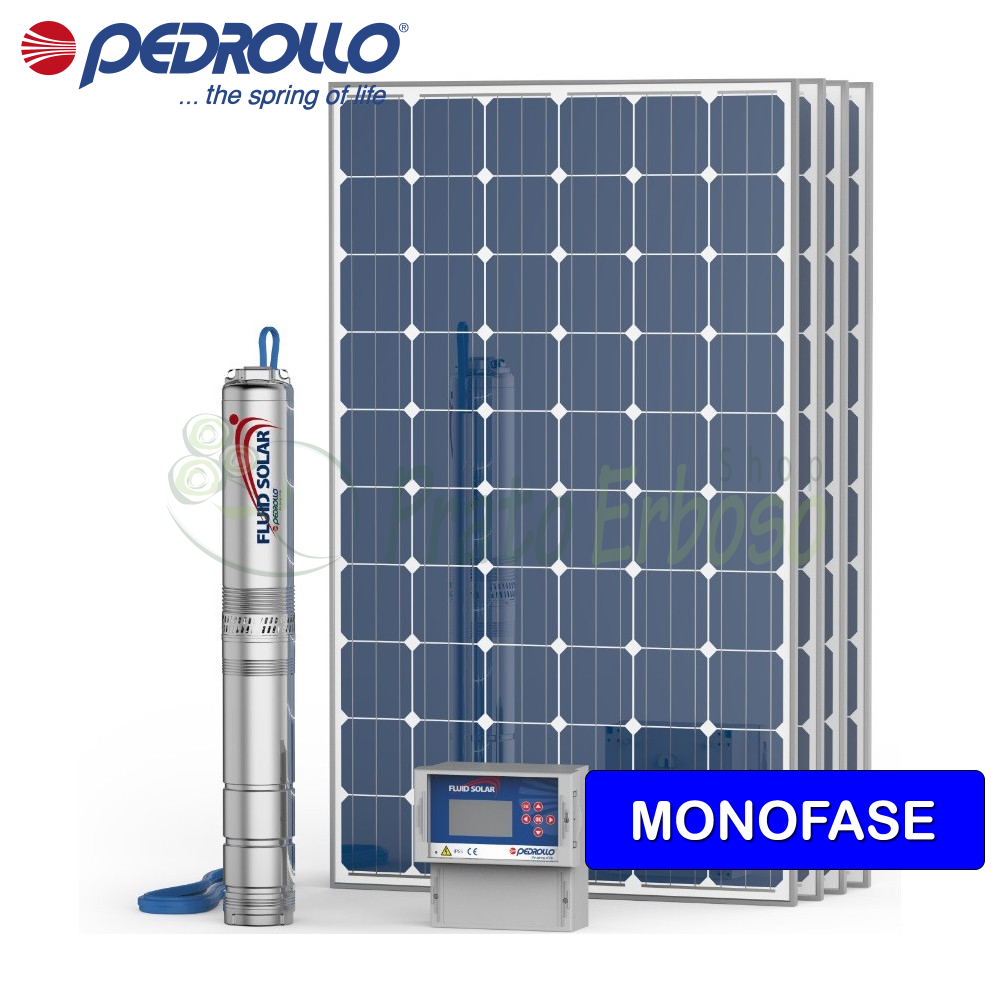

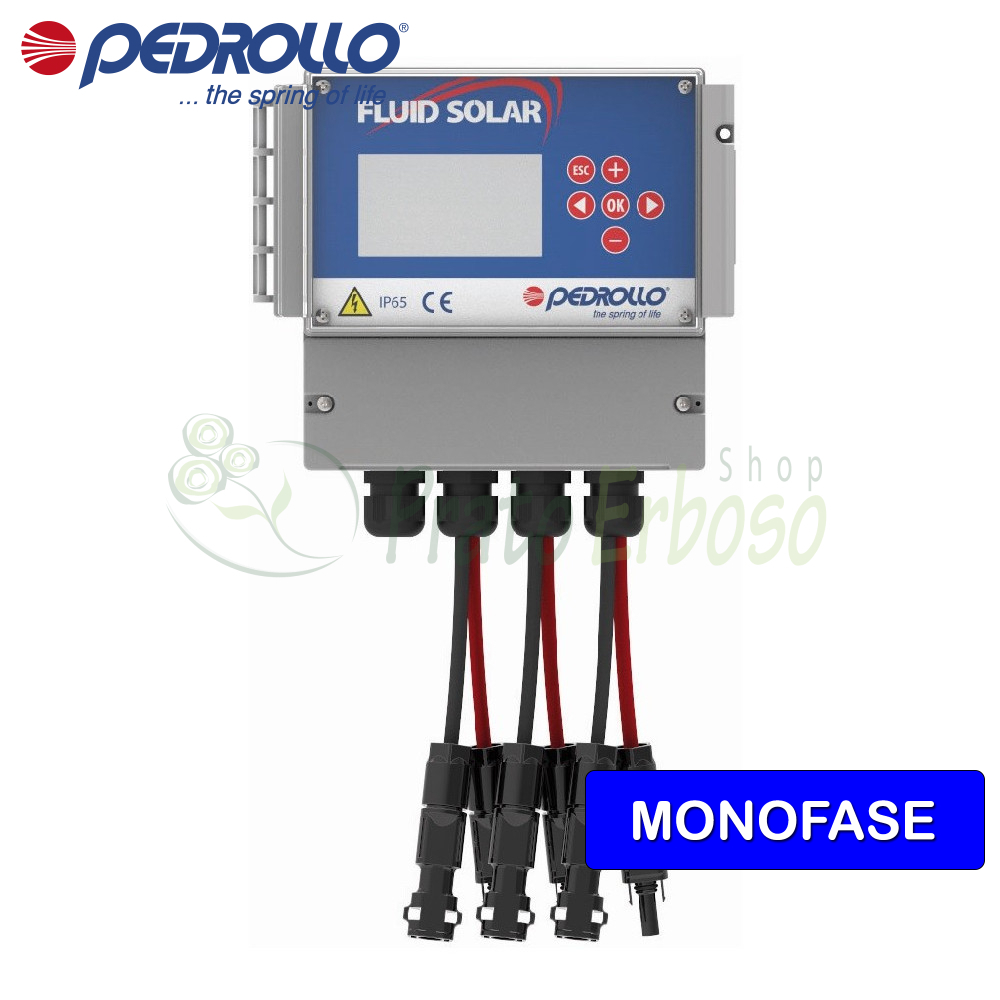

The kit includes the electric pump with a 2-meter power cable, the electrical panel for connecting the photovoltaic panels to the pump, the cable junction kit, 5 male connectors and 5 female connectors.
- Delivery mouth
- 1"
- Impeller
- Lexan
- Number of impellers
- 20
- Crankshaft
- AISI 431 stainless steel
- Pump shaft
- AISI 304 stainless steel
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 40
- Min. head (m.)
- 41.5
- Max. head (m.)
- 187
- Jobs
- irrigation, pressurization systems, water supply
- Max. liquid temperature (°C)
- +35°C
- Height (cm)
- 99
- External diameter (cm)
- 10
- Weight (Kg)
- 13.9
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||
