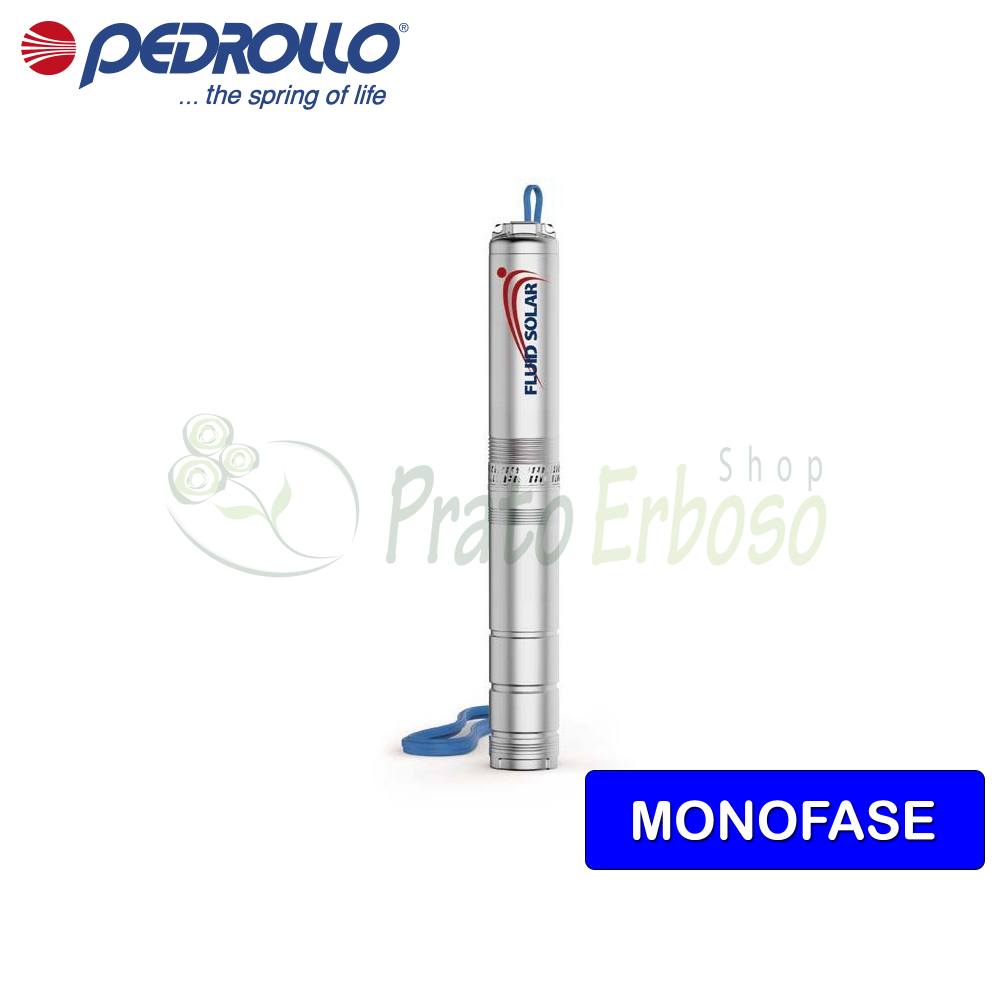

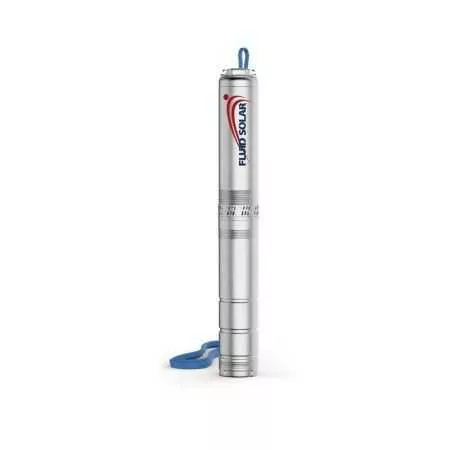

FLUID SOLAR 2/11 - 1500W Solar Electric Pump Kit
Flow rate up to 70 l/min (4.2 m³/h). Head up to 129.5 m. 1500 W motor.
The FLUID SOLAR 2/14 1500 Watt solar electric pump kit by Pedrollo has a flow rate of 5 to 70 litres per minute and a head of 19.5 to 129.5 metres.
The 4" multi-stage submersible solar electric pump is suitable for pumping clean water with a maximum sand content of 150 grams per cubic meter. It can be used up to 40 meters below the water level.
Particularly suitable for irrigation, pressurization systems with water drawn from a well or cistern.
The electric motor is a high-efficiency, submersible permanent magnet motor, specifically sized and suitable for continuous operation. It is equipped with an internal inverter that converts the output voltage from the modules and regulates the motor's rotation speed to maximize the energy available at any given moment.
The kit includes the electric pump with a 2-meter long power cable, the electrical panel for connecting the photovoltaic panels to the pump, the cable junction kit, 5 male connectors and 5 female connectors.
- Delivery mouth
- 1"
- Impeller
- Lexan
- Number of impellers
- 14
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 70
- Min. head (m.)
- 19.5
- Max. head (m.)
- 129.5
- Jobs
- irrigation, pressurization systems, water supply
- Max. liquid temperature (°C)
- +35°C
- Height (cm)
- 85.5
- External diameter (cm)
- 10
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Reviews (1) - Review moderation
Servizio puntuale ed efficiente. La merce è perfettamente conforme all'attesa
Compare with Similar Products
 FLUID SOLAR 2/11 - 1500W Solar Electric Pump KitThis product Flow rate up to 70 l/min (4.2 m³/h). Head up to 129.5 m. 1500 W motor. |  FLUID SOLAR 2/5 - 750W Solar Electric Pump KitFlow rate up to 70 l/min (4.5 m³/h). Head up to 60.5 m. 750 W motor. | |
|---|---|---|
| Price | Price €2,413.16 -45% €1,327.24 | Price €2,010.56 -45% €1,105.81 |
| Delivery mouth | Delivery mouth 1" | Delivery mouth 1" |
| Impeller | Impeller Lexan | Impeller Delrin |
| Number of impellers | Number of impellers 14 | Number of impellers 6 |
| Crankshaft | Crankshaft -- | Crankshaft AISI 431 stainless steel |
| Pump shaft | Pump shaft -- | Pump shaft AISI 304 stainless steel |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 5 | Minimum flow rate (l./min.) 5 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 70 | Max. flow rate (l./min.) 70 |
| Min. head (m.) | Min. head (m.) 19.5 | Min. head (m.) 7 |
| Max. head (m.) | Max. head (m.) 129.5 | Max. head (m.) 60.5 |
| Jobs | Jobs irrigation, pressurization systems, water supply | Jobs irrigation, pressurization systems, water supply |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +35°C | Max. liquid temperature (°C) +35°C |
| Height (cm) | Height (cm) 85.5 | Height (cm) 58.7 |
| External diameter (cm) | External diameter (cm) 10 | External diameter (cm) 10 |
| Weight (Kg) | Weight (Kg) -- | Weight (Kg) 11.4 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 |
