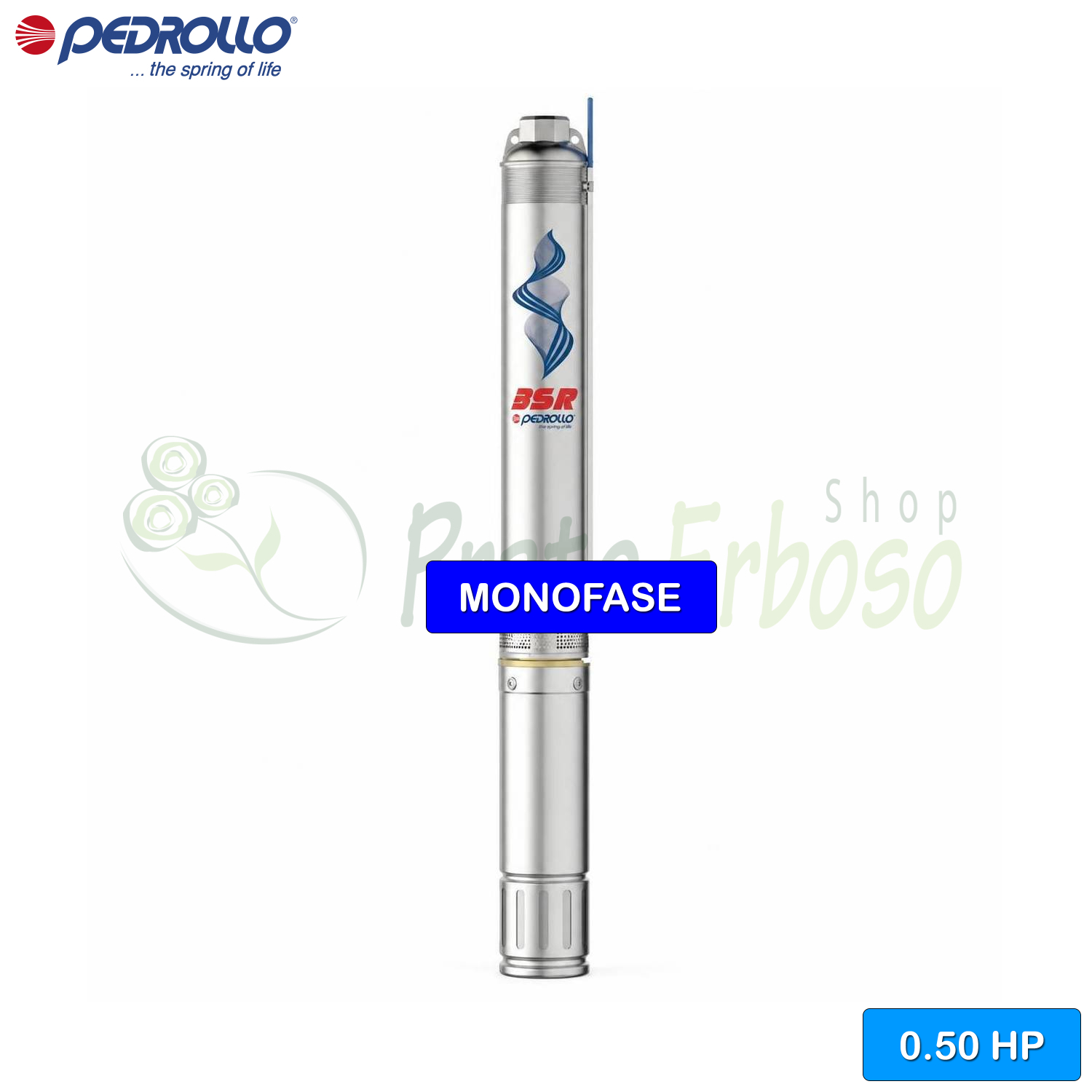

3SRm 2/15 - 0.50 HP single-phase submersible electric pump
Flow rate up to 50 l/min (2.7 m³/h). Head up to 60 meters. 0.37 kW (0.50 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 22 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October
The 3SRm 2/15 submersible electric pump from the 3SR series by Pedrollo can pump clean water and liquids that are chemically non-aggressive for the components.
Extremely efficient 3-inch electric pump in its category thanks to the hydraulic components and the high-efficiency electric motor.
Recommended for civil and domestic installations, particularly for domestic supply, irrigation and water systems for small communities.
The 3SRm 2/15 allows for massive cost savings thanks to its high efficiency and low electricity consumption.
Compact and lightweight, it can be easily installed in 3-inch wells.
- Jobs
- water supply, pressurization systems, irrigation
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.37
- Power (HP)
- 0.50
- Absorption at 230V (A)
- 3.4
- Capacitor
- 12.5 µF 450 VL
- Pump body
- AISI 304 stainless steel
- Impeller
- Delrin
- Number of impellers
- 15
- Pump shaft
- AISI 304 stainless steel
- Check valve
- Yes
- Minimum flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 50
- Min. head (m.)
- 15.5
- Max. head (m.)
- 56
- Max. liquid temperature (°C)
- +35°C
- Degree of protection
- IP 68
- Delivery mouth
- 1"
- Height (cm)
- 84.4
- External diameter (cm)
- 7.6
- Weight (Kg)
- 9.3
- Warranty (years)
- 2
Use and formulation of products
- Jobs
- water supply, pressurization systems, irrigation
Engine and mechanical performance
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.37
- Power (HP)
- 0.50
- Absorption at 230V (A)
- 3.4
- Capacitor
- 12.5 µF 450 VL
Pump components and construction
- Pump body
- AISI 304 stainless steel
- Impeller
- Delrin
- Number of impellers
- 15
- Pump shaft
- AISI 304 stainless steel
- Check valve
- Yes
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 50
- Min. head (m.)
- 15.5
- Max. head (m.)
- 56
Liquids and pumping conditions
- Max. liquid temperature (°C)
- +35°C
Safety and protection
- Degree of protection
- IP 68
Installation and connections
- Delivery mouth
- 1"
Dimensions and weight
- Height (cm)
- 84.4
- External diameter (cm)
- 7.6
- Weight (Kg)
- 9.3
Packaging, maintenance, and warranty
- Warranty (years)
- 2
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump bearing - fixed part | Anti-friction polymer |
| Pump bearing - rotating part | Sintered AISI 316 steel with ceramic coating |
Tree holding
Materials
| 1.3 - Delivery body | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | POM acetal resin |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4404 (AISI 316L) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 5.3 - Diaphragm/Diffuser Cover | Reinforced technopolymer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
