4BLOCKm 6/7 (20m) - 1 HP single-phase submersible electric pump
Flow rate up to 150 l/min (9 m³/h). Head up to 45.5 m. 0.75 kW (1 HP) motor. 20 m cable.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Monday 26 October - Tuesday 27 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Monday 26 October - Tuesday 27 October |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Monday 26 October - Tuesday 27 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Monday 26 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Monday 26 October - Tuesday 27 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Monday 26 October - Tuesday 27 October
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Monday 26 October - Tuesday 27 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Monday 26 October

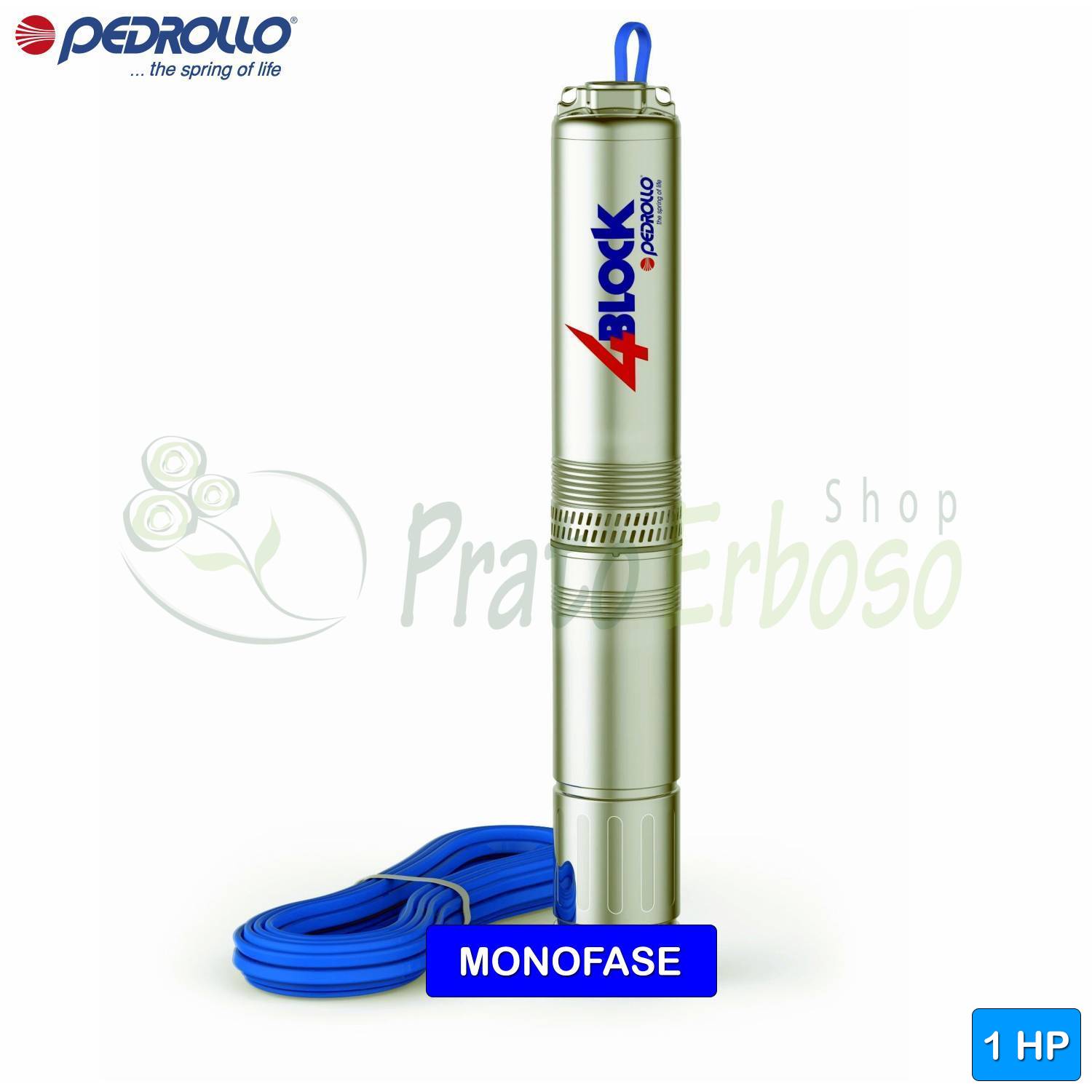

The 4-BLOCKm 6/7 submersible electric pump from the 4-BLOCK series by Pedrollo is recommended for use in the domestic, civil and agricultural sectors.
At the top of the 4-inch monoblock category for performance.
The 4-BLOCKm 6/7 has completely independent and floating impellers which make the possible presence of sand irrelevant.
It can pump clean water with a maximum content of 200 grams per cubic meter of sand.
The installation can be carried out both horizontally and vertically up to 200 metres below water level.
The supplied power cable is 20 meters long.
- Jobs
- water supply, pressurization systems, irrigation
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 6
- Capacitor
- 31.5 µF 450 VL
- Pump body
- AISI 304 stainless steel
- Impeller
- Delrin
- Number of impellers
- 7
- Pump shaft
- AISI 304 stainless steel
- Check valve
- No
- Minimum flow rate (l./min.)
- 25
- Max. flow rate (l./min.)
- 150
- Min. head (m.)
- 14.5
- Max. head (m.)
- 45.5
- Max. liquid temperature (°C)
- +35°C
- Cable length (m.)
- 20
- Degree of protection
- IP 68
- Delivery mouth
- 1" 1/4
- Height (cm)
- 71.8
- External diameter (cm)
- 10
- Weight (Kg)
- 13.1
- Warranty (years)
- 2
Use and formulation of products
- Jobs
- water supply, pressurization systems, irrigation
Engine and mechanical performance
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 6
- Capacitor
- 31.5 µF 450 VL
Pump components and construction
- Pump body
- AISI 304 stainless steel
- Impeller
- Delrin
- Number of impellers
- 7
- Pump shaft
- AISI 304 stainless steel
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 25
- Max. flow rate (l./min.)
- 150
- Min. head (m.)
- 14.5
- Max. head (m.)
- 45.5
Liquids and pumping conditions
- Max. liquid temperature (°C)
- +35°C
Power supply and electrical parameters
- Cable length (m.)
- 20
Safety and protection
- Degree of protection
- IP 68
Installation and connections
- Delivery mouth
- 1" 1/4
Dimensions and weight
- Height (cm)
- 71.8
- External diameter (cm)
- 10
- Weight (Kg)
- 13.1
Packaging, maintenance, and warranty
- Warranty (years)
- 2
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6203 |
| Opposite side engine bearing | 6203 |
Tree holding
| Type of seal | Single Mechanical Seal in oil chamber |
| Engine side model | ST1-16 |
| LM diameter | 16 |
| LM fixed ring | Ceramic |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
Materials
| 1.3 - Delivery body | Stainless steel EN 1.4301 (AISI 304) |
| 2.1 - Seal holder cover | Brass CW617N EN 12165 |
| 3.0 - Impeller | POM acetal resin |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.1 - Crankshaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.0 - Stadium box | Stainless steel EN 1.4301 (AISI 304) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 6.2 - Engine sleeve | Stainless steel EN 1.4301 (AISI 304) |
| 7.0 - Lantern | Reinforced technopolymer |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
