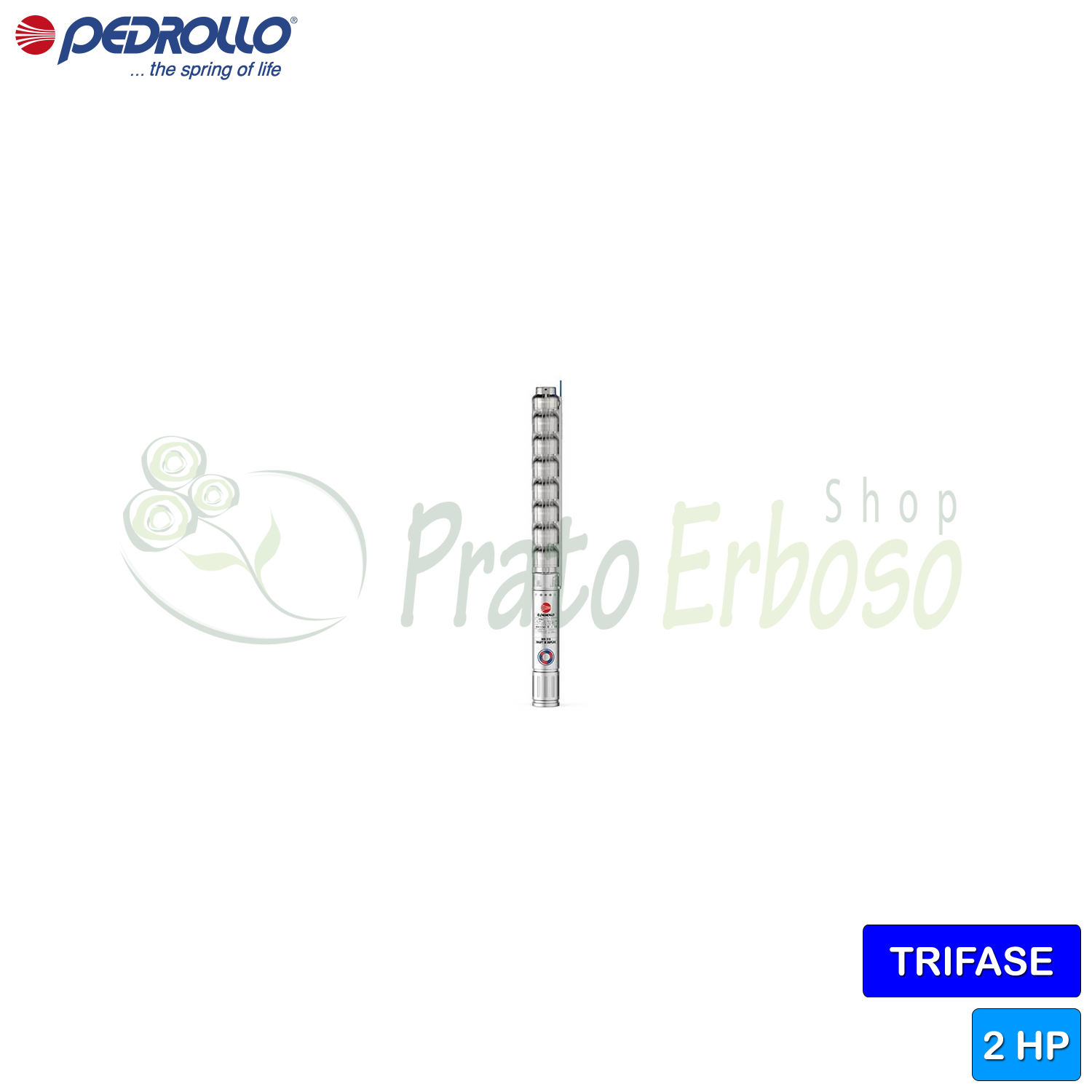

4HR 10/10 - PS - 2 HP three-phase submersible electric pump
Flow rate up to 250 l/min (15 m³/h). Head up to 57.5 meters. 1.5 Kw (2 HP) motor.
Telephone support for information before purchasing.
After-sales assistance for product installation.
Reinforced packaging to reduce transport damage.
We supply all spare parts on this product.
Description
Submersible electric pump with pump body in micro-cast AISI 304 stainless steel and PEDROLLO motor encapsulated in a water bath.
The PEDROLLO 4HR 10/10 - PS is recommended for pumping clean water with a sand content not exceeding 100 grams per cubic metre.
It has a flow rate that varies from 50 to 250 litres per minute with a head from 14 to 57.5 metres.
Due to its high performance and reliability, it is suitable for domestic, civil and industrial use, for the distribution of water in combination with pressure tanks, for irrigation of vegetable gardens and gardens, for washing systems, for pressure raising or for fire-fighting systems.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
- Body Pump
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 10
- Flow rate min. (l./min.)
- 50
- Max flow (l./min.)
- 250
- Min head (m.)
- 14
- Max head (m.)
- 57.5
- Employments
- fire prevention systems, irrigation, pressurization systems, water supply
- Liquid temperature max. (° C)
- +35°C
- Height (cm)
- 117.3
- Outside diameter (cm)
- 10
- Weight kg)
- 28.8
- Guarantee
- 2
4HR 10 models and performance
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the 4HR series
Bearings
| Pump bearing - fixed part | Special elastomer |
| Pump bearing - rotating part | Stainless steel EN 1.4301 (AISI 304) |
Tree holding
Materials
| 1.3 - Delivery body | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4301 (AISI 304) |
| 5.1 - Diffuser | Stainless steel EN 1.4301 (AISI 304) |
| 5.2 - Wear ring | Special elastomer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
