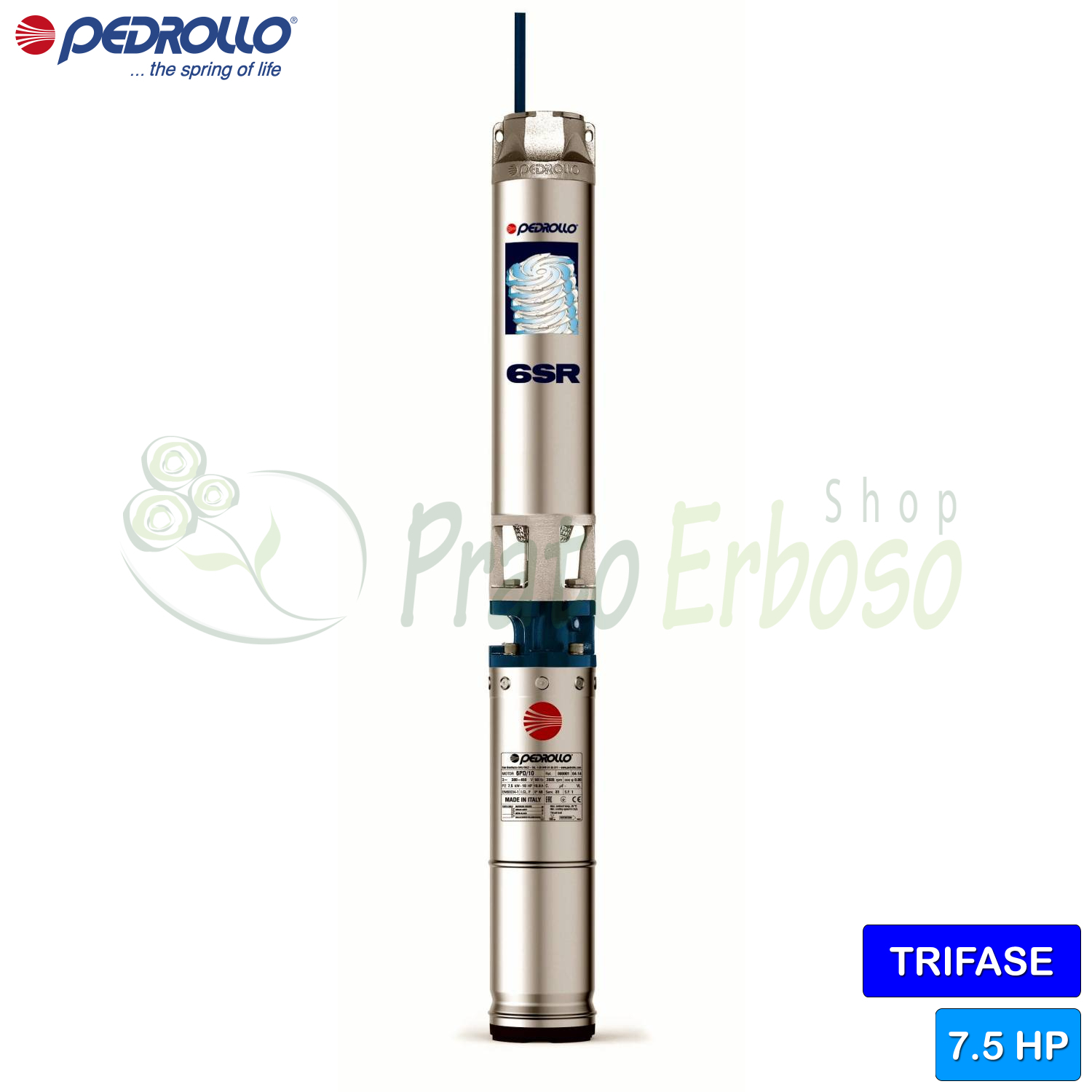

6SR36/6 - PD - 7.5 HP three-phase submersible electric pump
Flow rate up to 800 l/min (48 m³/h). Head up to 75 m. 5.5 Kw (7.5 HP) motors.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 22 October - Friday 23 October |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 23 October - Monday 26 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 22 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 23 October - Monday 26 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October
The 6SR36/6 - PD submersible electric pump from the 6SR series by Pedrollo is suitable for activities such as water distribution in conjunction with pressure tanks, for irrigation, for pressure boosting and for fire-fighting systems.
Recommended for civil, municipal and agricultural applications.
It can pump clean water with a maximum sand content of up to 100 grams per cubic meter.
Pedrollo has equipped the 6SR36/6 - PD with impellers and diffusers made of special materials capable of resisting abrasion.
Equipped with a rewindable oil-bath motor.
- Jobs
- fire prevention systems, irrigation, pressurization systems, water supply
- Motor connection
- THREE-PHASE
- Power (Kw)
- 5.5
- Power (HP)
- 7.5
- Impeller
- Noryl
- Number of impellers
- 6
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 800
- Min. head (m.)
- 25
- Max. head (m.)
- 75
- Max. liquid temperature (°C)
- +35°C
- Delivery mouth
- 3"
- Height (cm)
- 167.4
- External diameter (cm)
- 149.5
- Weight (Kg)
- 64
- Warranty (years)
- 2
Use and formulation of products
- Jobs
- water supply, pressurization systems, irrigation, fire prevention systems
Engine and mechanical performance
- Motor connection
- THREE-PHASE
- Power (Kw)
- 5.5
- Power (HP)
- 7.5
Pump components and construction
- Impeller
- Noryl
- Number of impellers
- 6
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 800
- Min. head (m.)
- 25
- Max. head (m.)
- 75
Liquids and pumping conditions
- Max. liquid temperature (°C)
- +35°C
Installation and connections
- Delivery mouth
- 3"
Dimensions and weight
- Height (cm)
- 167.4
- External diameter (cm)
- 149.5
- Weight (Kg)
- 64
Packaging, maintenance, and warranty
- Warranty (years)
- 2
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump bearing - fixed part | Anti-friction polymer |
| Pump bearing - rotating part | Sintered AISI 316 steel with ceramic coating |
Tree holding
Materials
| 1.3 - Delivery body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4021 (AISI 420) |
| 5.0 - Stadium box | Stainless steel EN 1.4301 (AISI 304) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 7.0 - Lantern | Cast iron GJL 200 EN 1561 |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
Compare with Similar Products
 6SR36/6 - PD - 7.5 HP three-phase submersible electric pumpThis product Flow rate up to 800 l/min (48 m³/h). Head up to 75 m. 5.5 Kw (7.5 HP) motors. |  6SR36/6 - PSR - 7.5 HP three-phase submersible electric pump Flow rate up to 800 l/min (48 m³/h). Head up to 75 m. 5.5 Kw (7.5 HP) motors. | |
|---|---|---|
| Price | Price €2,619.34 -45% €1,440.64 | Price €3,182.98 -45% €1,750.64 |
| Jobs | Jobs fire prevention systems, irrigation, pressurization systems, water supply | Jobs fire prevention systems, irrigation, pressurization systems, water supply |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 5.5 | Power (Kw) 5.5 |
| Power (HP) | Power (HP) 7.5 | Power (HP) 7.5 |
| Impeller | Impeller Noryl | Impeller Noryl |
| Number of impellers | Number of impellers 6 | Number of impellers 6 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 100 | Minimum flow rate (l./min.) 100 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 800 | Max. flow rate (l./min.) 800 |
| Min. head (m.) | Min. head (m.) 25 | Min. head (m.) 25 |
| Max. head (m.) | Max. head (m.) 75 | Max. head (m.) 75 |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +35°C | Max. liquid temperature (°C) +35°C |
| Delivery mouth | Delivery mouth 3" | Delivery mouth 3" |
| Height (cm) | Height (cm) 167.4 | Height (cm) -- |
| External diameter (cm) | External diameter (cm) 149.5 | External diameter (cm) -- |
| Weight (Kg) | Weight (Kg) 64 | Weight (Kg) -- |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 |
