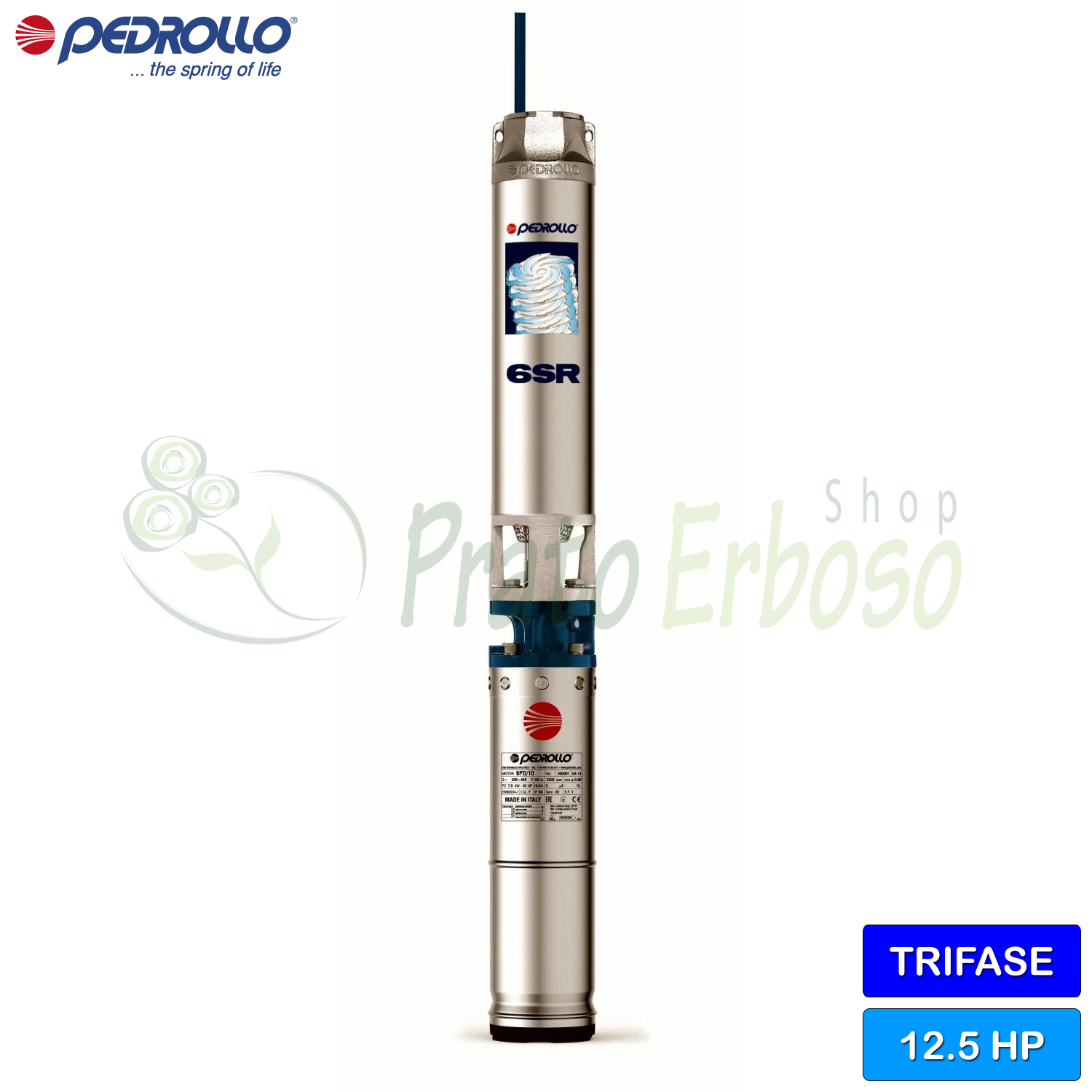

6SR36/9 - PD - 12.5 HP three-phase submersible electric pump
Flow rate up to 800 l/min (48 m³/h). Head up to 112 m. 9.2 Kw (12.5 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 22 October - Friday 23 October |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 23 October - Monday 26 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 22 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 23 October - Monday 26 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October
The 6SR36/9 - PD electric pump by Pedrollo is equipped with impellers and diffusers made of special materials capable of resisting abrasion caused by sand.
Recommended for pumping clean water with sand content not exceeding 100 grams per cubic meter.
The 6SR36/9 - PD is recommended in the civil and agricultural sectors. In particular, its characteristics make it suitable for water distribution in combination with pressure tanks, for irrigation, for pressure boosting and for fire-fighting systems.
Equipped with a PD engine, this allows it to be installed up to 200 meters below water level.
It can be installed in all wells larger than 6 inches in diameter.
The 6SR36/9 - PD has a flow rate ranging from 100 to 800 litres per minute with a head from 37.5 to 112 metres.
It must be powered by a three-phase voltage, has a horsepower of 12.5 HP and the temperature of the liquid to be pumped goes up to +35 degrees centigrade.
The pump construction is solid. Pedrollo has used stainless steel and cast iron to create a product that is resistant and robust.
The 6SR36/9 - PD comes with a 4-meter long power cable.
- Jobs
- fire prevention systems, irrigation, pressurization systems, water supply
- Motor connection
- THREE-PHASE
- Power (Kw)
- 9.2
- Power (HP)
- 12.5
- Pump body
- Cast iron
- Impeller
- Noryl
- Number of impellers
- 9
- Crankshaft
- AISI 304 stainless steel
- Check valve
- No
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 800
- Min. head (m.)
- 37.5
- Max. head (m.)
- 112
- Max. liquid temperature (°C)
- +35°C
- Cable length (m.)
- 4
- Degree of protection
- IP 68
- Delivery mouth
- 3"
- Height (cm)
- 195.3
- External diameter (cm)
- 14.8
- Weight (Kg)
- 73.9
- Warranty (years)
- 2
Use and formulation of products
- Jobs
- water supply, pressurization systems, irrigation, fire prevention systems
Engine and mechanical performance
- Motor connection
- THREE-PHASE
- Power (Kw)
- 9.2
- Power (HP)
- 12.5
Pump components and construction
- Pump body
- Cast iron
- Impeller
- Noryl
- Number of impellers
- 9
- Crankshaft
- AISI 304 stainless steel
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 800
- Min. head (m.)
- 37.5
- Max. head (m.)
- 112
Liquids and pumping conditions
- Max. liquid temperature (°C)
- +35°C
Power supply and electrical parameters
- Cable length (m.)
- 4
Safety and protection
- Degree of protection
- IP 68
Installation and connections
- Delivery mouth
- 3"
Dimensions and weight
- Height (cm)
- 195.3
- External diameter (cm)
- 14.8
- Weight (Kg)
- 73.9
Packaging, maintenance, and warranty
- Warranty (years)
- 2
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump bearing - fixed part | Anti-friction polymer |
| Pump bearing - rotating part | Sintered AISI 316 steel with ceramic coating |
Tree holding
Materials
| 1.3 - Delivery body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4021 (AISI 420) |
| 5.0 - Stadium box | Stainless steel EN 1.4301 (AISI 304) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 7.0 - Lantern | Cast iron GJL 200 EN 1561 |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
