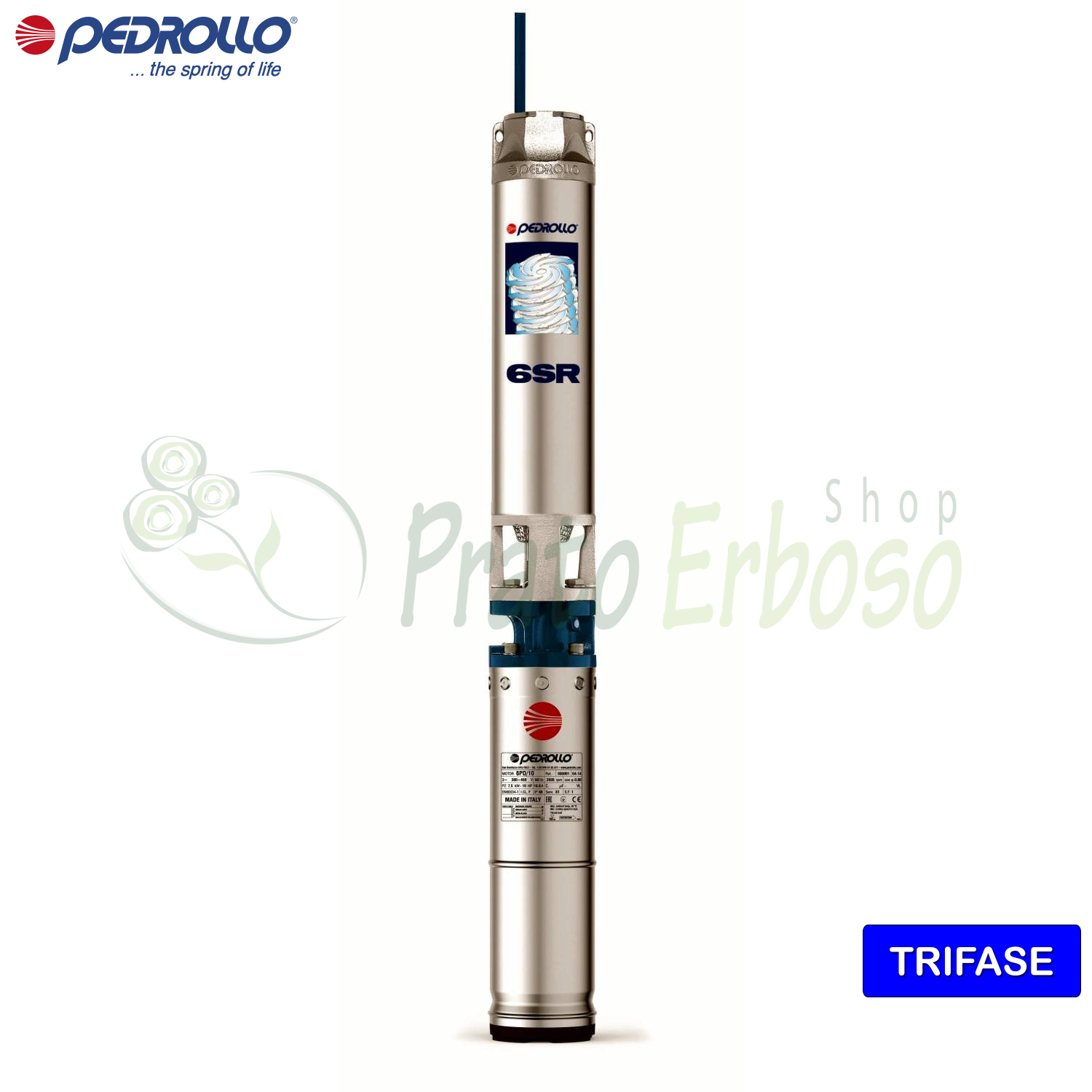

6SR18/15 - PSR - 17.5 HP three-phase submersible electric pump
Flow rate up to 450 l/min (27 m³/h). Head up to 203 m. 13 Kw (17.5 HP) motor.
Reinforced packaging to reduce transport damage.
Telephone support for information before purchasing.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The PEDROLLO 6SR18/15 submersible electric pump is recommended for pumping clean water with a sand content not exceeding 100 grams per cubic metre.
The PEDROLLO 6SR18/15 has a flow rate that varies from 50 to 450 litres per minute with a head from 80 to 203 metres.
Due to its high performance and reliability, it is suitable for use in the civil, industrial and agricultural fields, for the distribution of water in conjunction with pressure tanks, for irrigation, for washing systems, for pressure raising or for fire-fighting systems.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 9.2
- Power (HP)
- 12.5
- Delivery port
- 3 "
- Body Pump
- Cast iron
- Impeller
- Noryl
- Number of impellers
- 15
- Pump shaft
- AISI 304 stainless steel
- Degree of protection
- IP 68
- Flow rate min. (l./min.)
- 50
- Max flow (l./min.)
- 450
- Min head (m.)
- 80
- Max head (m.)
- 203
- Employments
- fire prevention systems, irrigation, pressurization systems, water supply
- Liquid temperature max. (° C)
- 35
- Guarantee
- 2
6SR 18 models and performance
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the 6SR series
Bearings
| Pump bearing - fixed part | Special elastomer |
| Pump bearing - rotating part | Sintered AISI 316 steel with ceramic coating |
Tree holding
Materials
| 1.3 - Delivery body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4021 (AISI 420) |
| 5.0 - Stadium box | Stainless steel EN 1.4301 (AISI 304) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 7.0 - Lantern | Cast iron GJL 200 EN 1561 |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
