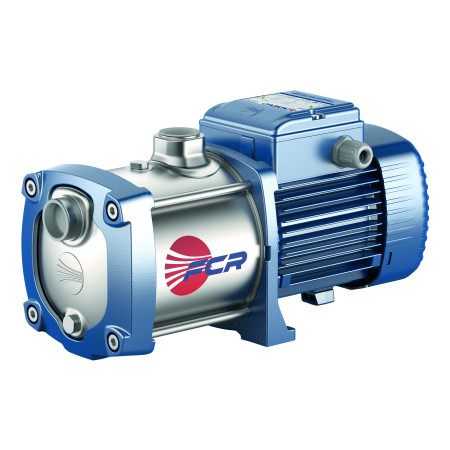

FCRm 100/5 - 1.25 HP single-phase multi-impeller electric pump OFFER
With stainless steel impeller. Flow rate up to 130 l/min (4.8 m³/h). Head up to 63 m. 0.90 Kw (1.25 HP) motor.
The Pedrollo FCRm 100/5 centrifugal electric pump is recommended for water distribution in combination with pressure tanks, for industrial applications, and irrigation systems.
It must be powered by a single-phase voltage, has a horsepower of 1.25 HP and the temperature of the liquid to be pumped ranges from -10 degrees centigrade up to +60.
The flow rate ranges from 5 to 130 metres and the head from 8 to 63 litres.
The FCRm 100/5 is recommended for domestic and civil use.
Pedrollo designed this pump with the aim of reducing noise and energy consumption as much as possible.
Thanks to its multi-stage construction, the pump is particularly quiet.
The FCRm 100/5 is made entirely of stainless steel which guarantees good strength and durability over time.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.90
- Power (HP)
- 1.25
- Absorption at 230V (A)
- 6.8
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 5
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 130
- Min. head (m.)
- 8
- Max. head (m.)
- 63
- Jobs
- irrigation
- Max. liquid temperature (°C)
- +60°C
- Height (cm)
- 18.9
- Width (cm)
- 16.0
- Depth (cm)
- 37.7
- Weight (Kg)
- 12.4
- Warranty (years)
- 2
