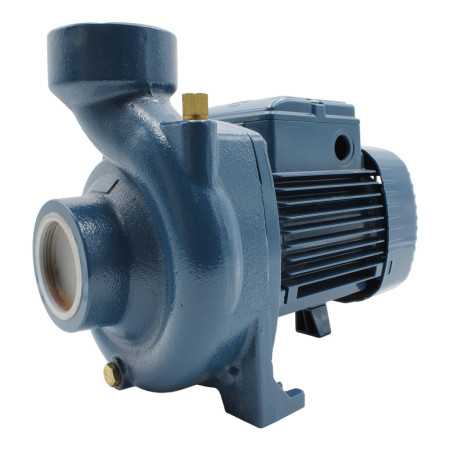

HF 5A - 1.25 HP three-phase centrifugal electric pump OFFER
Flow rate up to 600 l/min (36 m³/h). Head up to 16 m. 0.90 Kw (1.25 HP) motor.
Telephone support for information before purchasing.
After-sales assistance for product installation.
After-sales assistance in the correct use of the product.
We supply all spare parts on this product.
Description
The PEDROLLO HF medium flow rate submersible pumps are recommended for civil and agricultural environments.
The PEDROLLO HF 5A has a flow rate ranging from 100 to 600 litres per minute with a head from 16 to 4.3 metres.
The high yields that can be achieved and the possibility of continuous use make the use of this electric pump advantageous for flow or rain irrigation, for drawing water from lakes, rivers, wells or for the most varied industrial uses characterised by the need to achieve considerable flow rates in a medium-low prevalence ratio.
Installation must be carried out indoors or in any case protected from the elements.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.90
- Power (HP)
- 1.25
- Absorption at 230V (A)
- 5
- Current consumption at 400V (A)
- 2.9
- Suction mouth
- 2"
- Delivery mouth
- 2"
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 600
- Min. head (m.)
- 4.3
- Max. head (m.)
- 16
- Jobs
- water supply, irrigation, cooling systems, tank transfer
- Max. liquid temperature (°C)
- +90°C
- Motor voltage
- 400V
- Height (cm)
- 23.8
- Width (cm)
- 31.6
- Depth (cm)
- 19.2
- Weight (Kg)
- 14.7
- Warranty (years)
- 2
