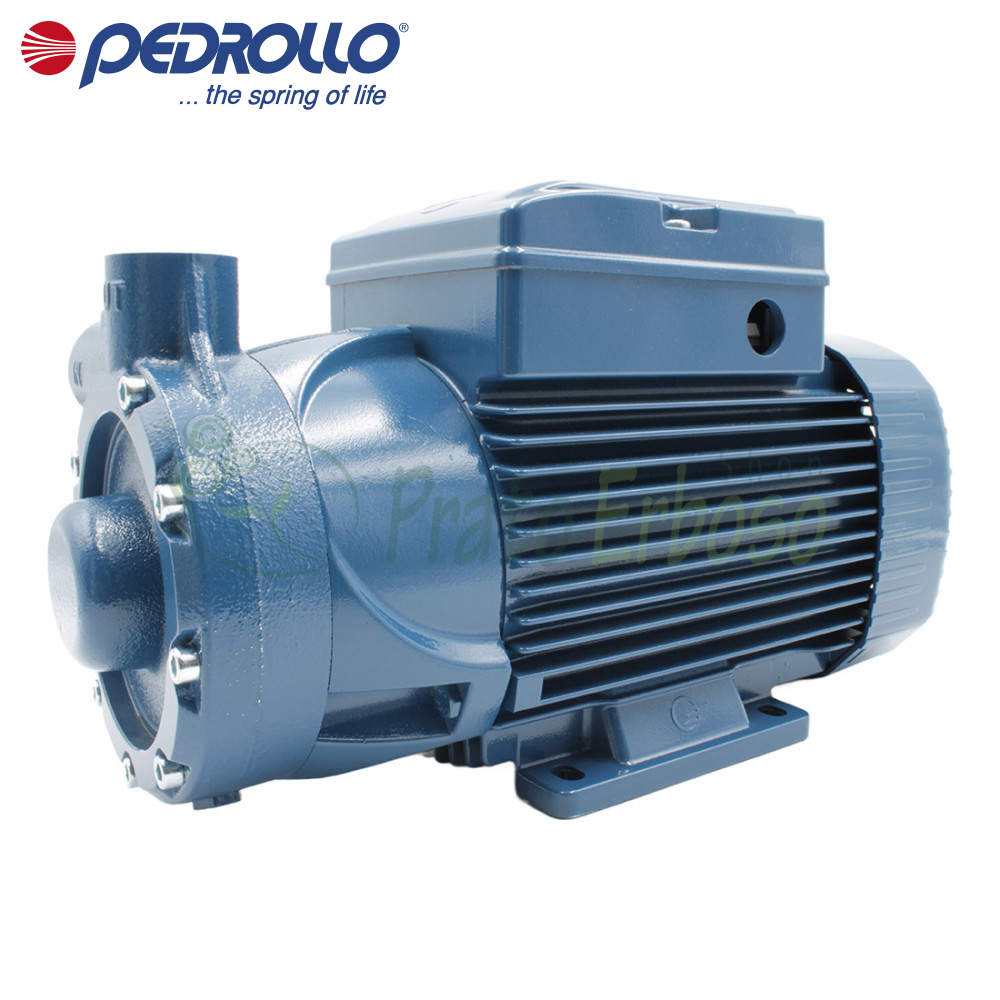

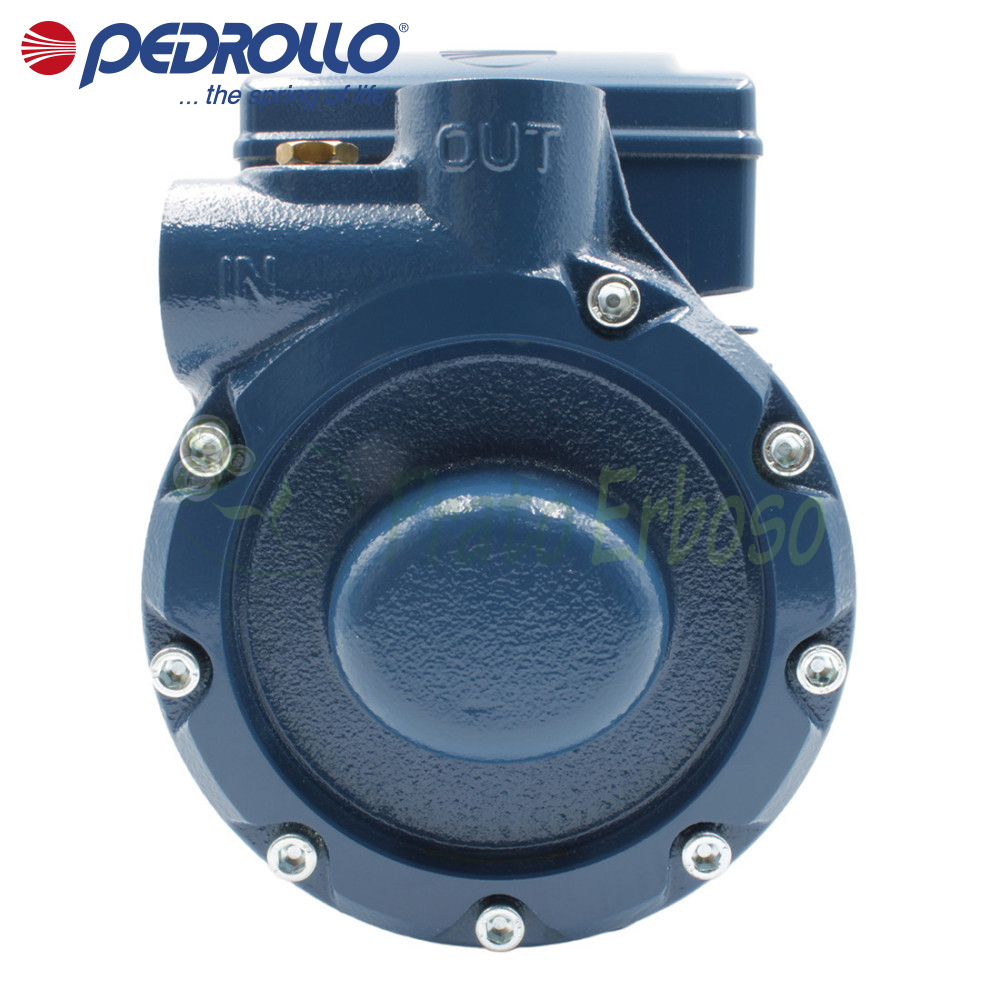

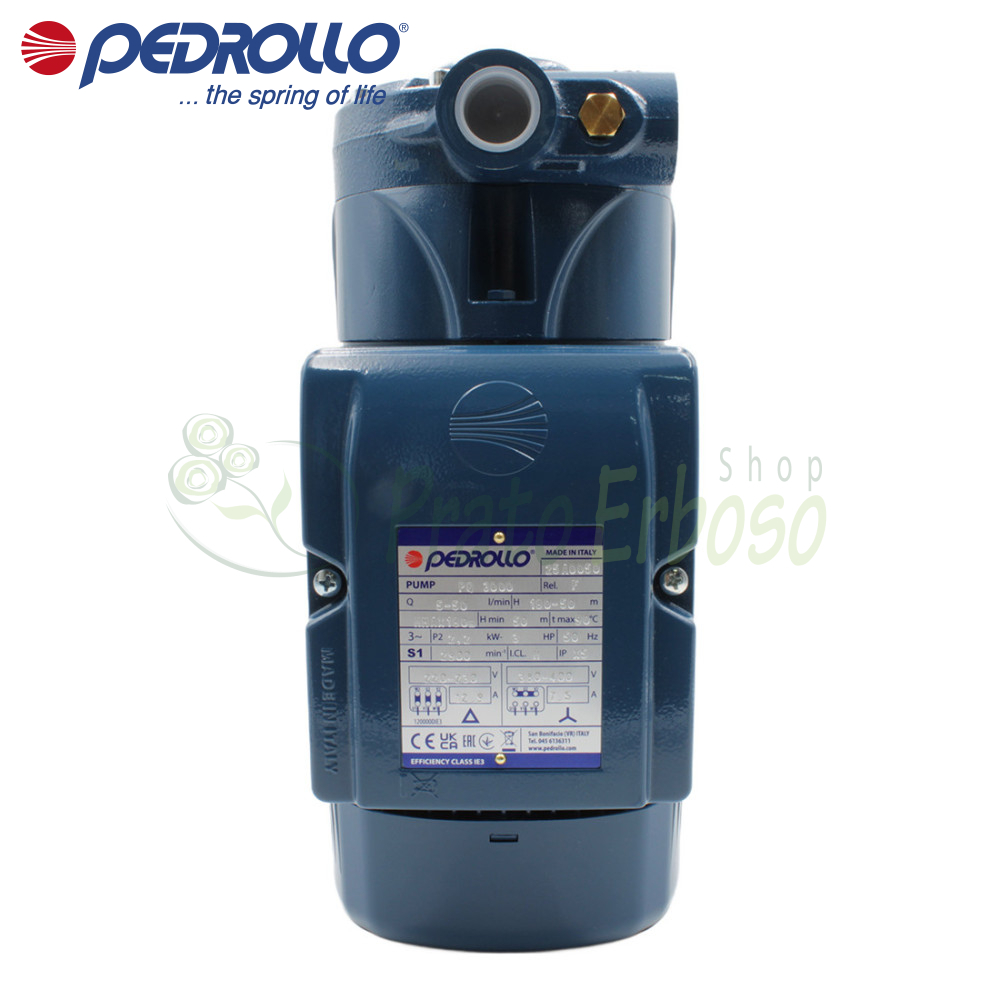

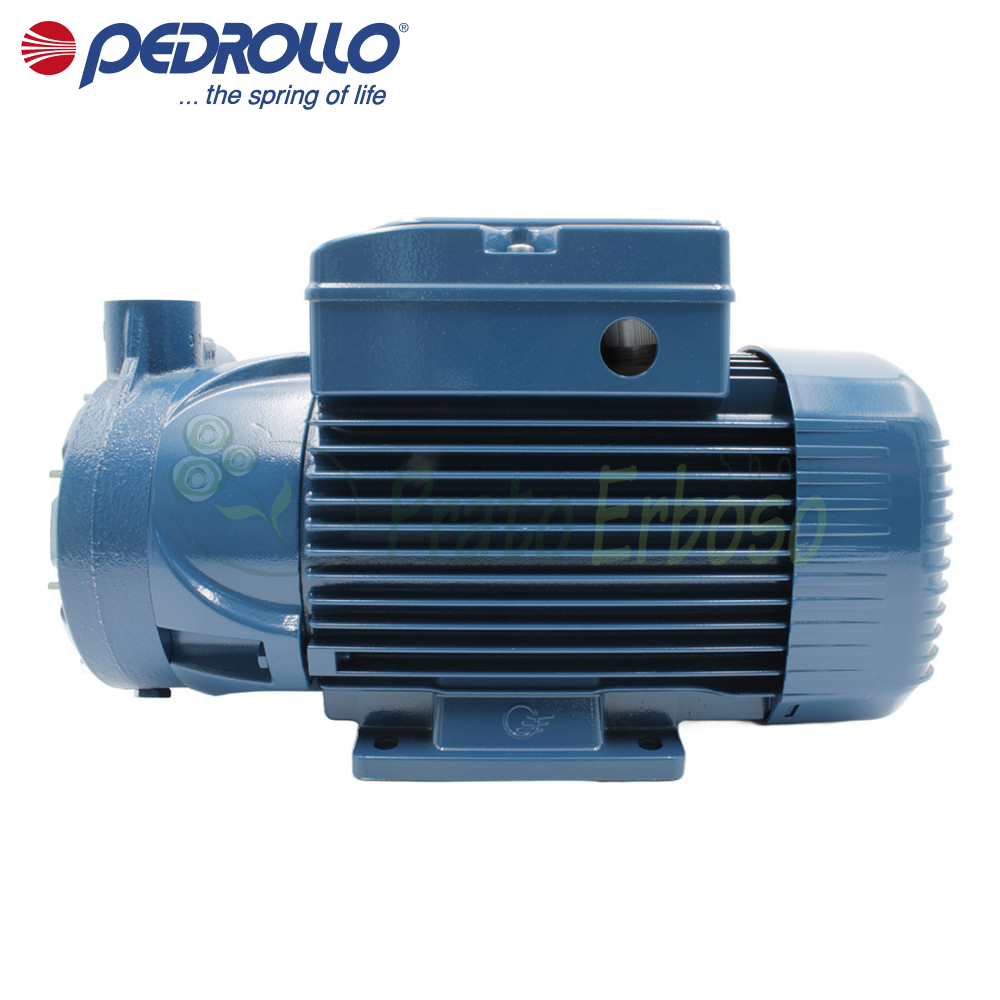

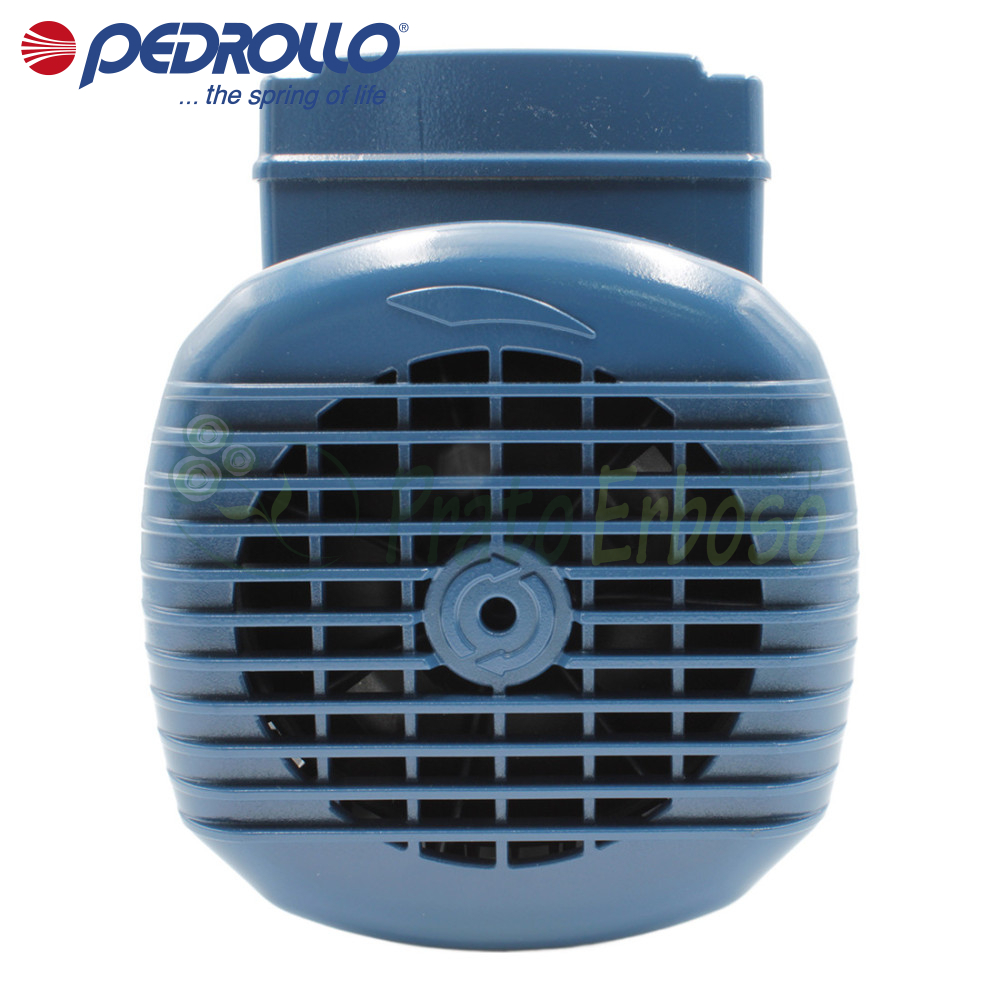

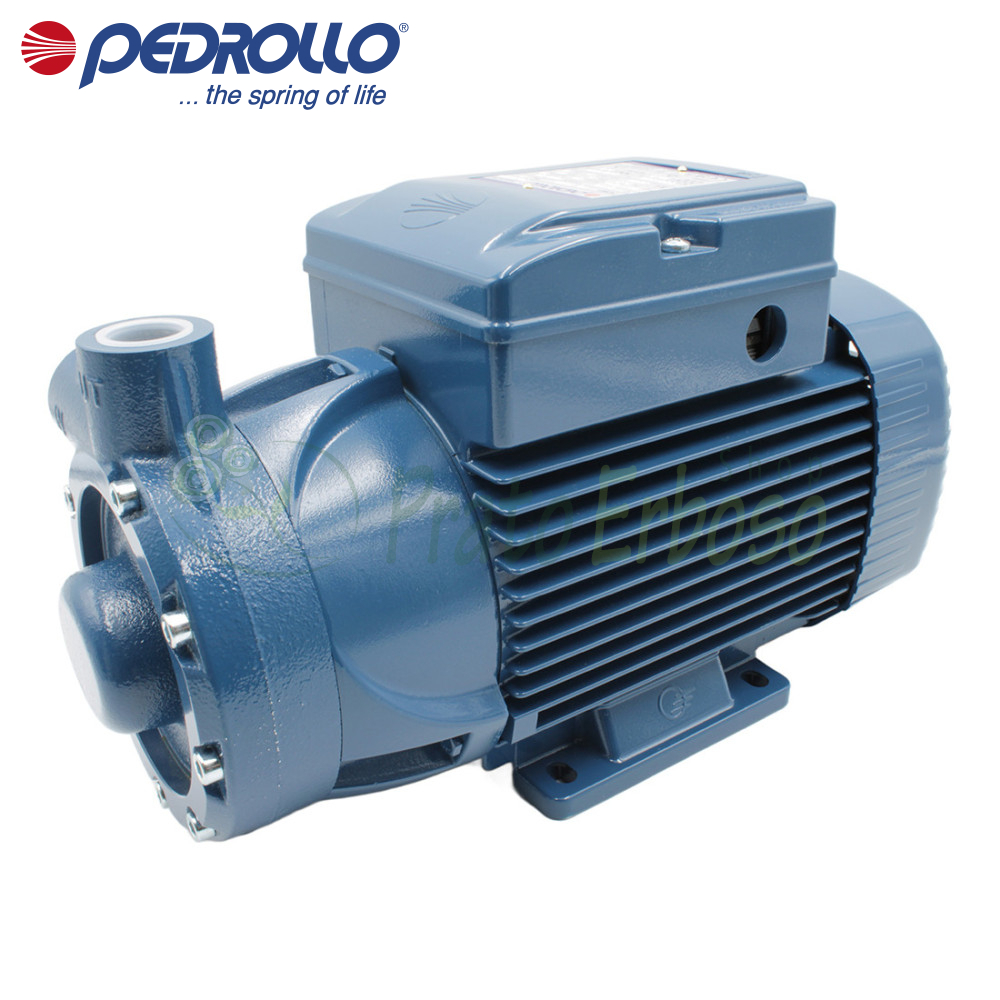

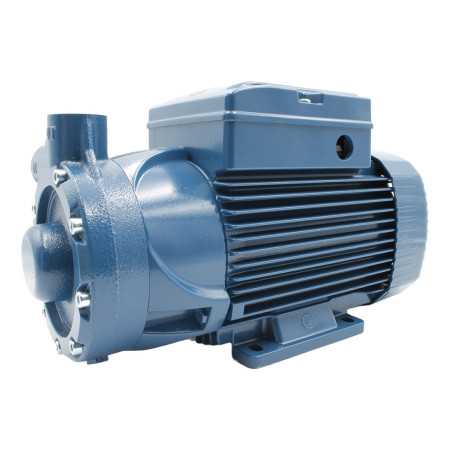

PQ 3000 - 3 HP three-phase peripheral impeller electric pump OFFER
The Pedrollo PQ 3000 electric pump is recommended for industrial use.
Ideal for pumping clean water without abrasive particles and liquids that are chemically non-aggressive for the materials from which the pump is made.
Thanks to its hydraulic characteristics, small size and compactness, the PQ 3000 allows for industrial use in very restricted areas in chillers, air conditioning, cooling or boiler power equipment.
The flow rate ranges from 5 to 50 liters per minute. The head ranges from 50 to 180 meters.
The pump's delivery and suction port is 1 inch.
The PQ 3000 must be powered by a three-phase voltage, has a horsepower of 3 HP and the temperature of the liquid to be pumped ranges from -10 degrees centigrade up to +90.
The maximum supported pressure is 18 bar . The manometric suction height is up to 8 meters.
Made of materials such as cast iron, stainless steel, aluminium, bronze, graphite and ceramic, the PQ 3000 is very robust, resistant and guarantees a long life over time.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 2.2
- Power (HP)
- 3
- Absorption at 230V (A)
- 12.9
- Current consumption at 400V (A)
- 7.5
- Suction mouth
- 3/4"
- Delivery mouth
- 3/4"
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 55
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 50
- Min. head (m.)
- 50
- Max. head (m.)
- 180
- Jobs
- water supply
- Max. liquid temperature (°C)
- +90°C
- Motor voltage
- 230 V, 400V
- Height (cm)
- 21.1
- Width (cm)
- 35.6
- Depth (cm)
- 15.1
- Weight (Kg)
- 19.6
- Warranty (years)
- 2
