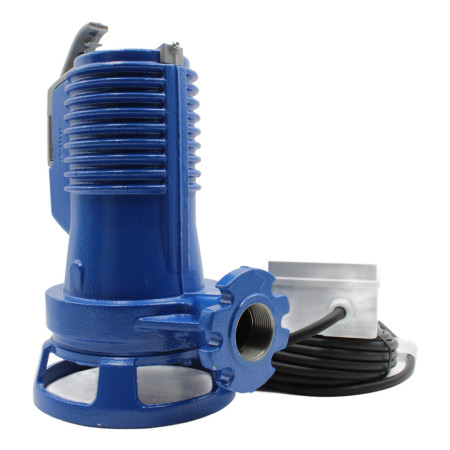

200/2/G40H A1CM - DAMAGED single-phase electric grinder pump
New but damaged product.
Flow rate up to 335 l/min (20.1 m³/h). Head up to 27 m. 1.5 Kw (2 HP) motor.
The GR bluePRO 200/2/G40H A1CM series submersible grinder electric pump is suitable for the presence of filamentous or fibrous bodies and in general of unstrained civil sewage wastewater.
It is used where high performance or heavy and prolonged use is required in domestic and professional environments.
All components are designed to allow high reliability and simple and quick maintenance operations.
Each model is subjected to a pressure test to ensure perfect assembly and operation of gaskets, cable glands and mechanical seals.
The cast iron structure and the double mechanical seal in oil make this pump robust and reliable and allow for even heavy-duty use in lifting strained or loaded wastewater, with solids and filaments in domestic and residential installations or small civil systems.
As clearly visible in the photos, the handle of the electric pump is broken.
- Motor connection
- SINGLE-PHASE
- Power (HP)
- 1.5
- Delivery mouth
- 1" 1/2
- Pump body
- Cast iron
- Impeller
- Cast iron
- Crankshaft
- AISI 420 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Max. flow rate (l./min.)
- 336
- Min. head (m.)
- 9.3
- Max. head (m.)
- 27
- Cable length (m.)
- 10 m with sc huko plug
- Weight (Kg)
- 25
- Warranty (years)
- 2
