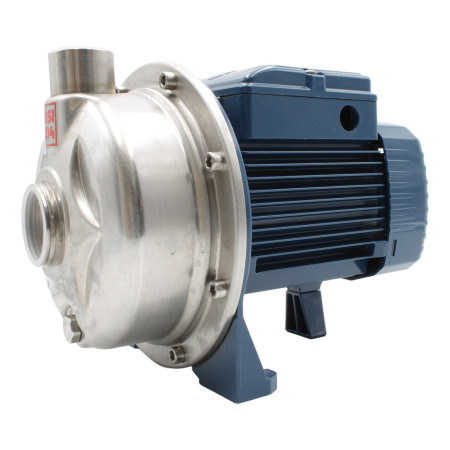

CP 130-ST4 - Three-phase stainless steel centrifugal electric pump 0.50 HP

Name: CP 130-ST4 - Three-phase stainless steel centrifugal electric pump 0.50 HP
Brand: Pedrollo
SKU: CP 130-ST4
Price: 196.71 EUR
Availability: InStock

In AISI 304 stainless steel. Flow rate up to 100 l/min (6 m³/h). Head up to 22.5 m. 0.37 Kw (0.50 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

It is recommended for pumping clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.

Due to its construction features, this centrifugal pump is recommended for use in the domestic, agricultural and industrial sectors.

All components in contact with the pumped liquid are made of AISI 304 stainless steel to guarantee total hygiene and maximum resistance to corrosion.

Installation must be carried out indoors or in any case protected from the elements.

Data sheet

Motor connection: THREE-PHASE
Power (HP): 0.50
Absorption at 230V (A): 1.9
Absorption at 400V (A): 1.1
Suction mouth: 1 "1/4
Delivery mouth: 1 "
Pump body: AISI 304 stainless steel
Impeller: AISI 304 stainless steel
Number of impellers: 1
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 44
Min. flow rate (l./min.): 10
Max. flow rate (l./min.): 100
Min. head (m.): 9
Max. head (m.): 22.5
Jobs: water supply, irrigation, cooling systems, air conditioning systems, washing systems, water treatment plants
Max. liquid temperature (°C): +90°C
Motor voltage: 230 V, 400V
Height (cm): 18.55
Width (cm): 26.6
Depth (cm): 18.1
Weight (Kg): 6.5
Warranty (years): 2

Attachments

CP-ST data sheet

Models, performance curves and construction features of Pedrollo CP-ST series pumps.

Download (762.97KB)

CP-ST4 models and performance

GUY

three-phase

CP 100-ST4

CP 130-ST4

CP 132-ST4

CP 150-ST4

CP 158-ST4

CP 170-ST4

CP 170M-ST4

CP 180-ST4

CP 190-ST4

CP 200-ST4

POWER
KW	HP
0.25	0.33
0.37	0.50
0.55	0.75
0.75	1
0.75	1
1.1	1.5
1.1	1.5
1.1	1.5
1.5	2
2.2	3

PERFORMANCE
Q litres/min	H meters
10 ÷ 90	16 ÷ 6.5
10 ÷ 100	22.5 ÷ 9
10 ÷ 120	24 ÷ 12
10 ÷ 150	32 ÷ 14
10 ÷ 120	36.5 ÷ 19
10 ÷ 140	41 ÷ 20
10 ÷ 160	36.5 ÷ 19
10 ÷ 230	31.5 ÷ 13
10 ÷ 250	37 ÷ 15.5
10 ÷ 270	45 ÷ 18

MOUTH
wait.	send.
1 1/4"	1"

Q	m³/hour	0	0.6	1.2	2.4	3.6	5.4	6.0	7.2	8.4	9.0	9.6	12	13.8	15	16.2
Q	l/min	0	10	20	40	60	90	100	120	140	150	160	200	230	250	270
H	meters	16	15.5	15	13.5	11.2	6.5
		22.5	21.5	20.8	18.8	16	10.8	9
		24	-	23	21.5	19.8	16.5	15	12
		32	-	31	29.8	28	24.8	23.2	20	16	14
		36.5	35.5	34.5	33	31	26.2	24	19
		41	40	39.2	37.8	36	32	30	25.8	20
		36.5	-	35.5	34.3	33	30	29	26.4	23	21	19
		31.5	-	-	30	29.2	27.5	26.8	25.2	23.5	22.5	21.5	17	13
		37	-	-	35	34	32.2	31.5	30.2	28.7	27.8	27	22.7	18.5	15.5
		45	-	-	43	42	40.2	39.5	38	36.5	35.5	34.5	29.8	25.5	22	18

Construction data of the CP 100-130-132-ST4

Bearings

Pump side motor bearing	6201 ZZ
Opposite side motor bearing	6201 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	AR-12
LP diameter	12
Fixed ring LP	Ceramic
Rotating ring LP	Graphite
LP elastomer	NBR

Mat

1.0 - Pump Body	EN 1.4301 stainless steel (AISI 304)
2.1 - Seal holder cover	EN 1.4301 stainless steel (AISI 304)
3.0 - Impeller	EN 1.4301 stainless steel (AISI 304)
4.0 - Pump shaft	EN 1.4057 stainless steel (AISI 431)
5.2 - Shim Ring	PTFE
6.0 - Motor holder	Aluminum EN-AB 46100
6.1 - Engine cover	Aluminum EN-AB 46100
7.0 - Lantern	Aluminum EN-AB 46100
