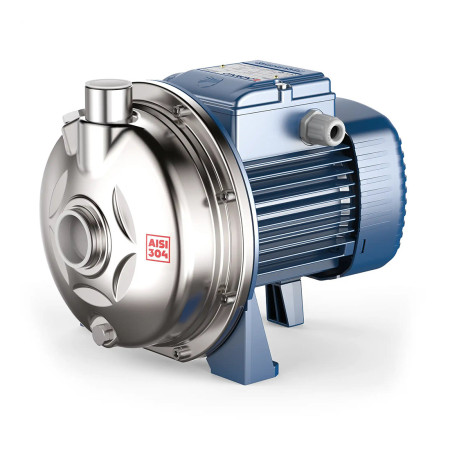

CPm 132-ST6 - Single-phase stainless steel centrifugal electric pump 0.75 HP Pedrollo - 1

-42%

CPm 132-ST6 - 0.75 HP single-phase stainless steel centrifugal electric pump

Name: CPm 132-ST6 - 0.75 HP single-phase stainless steel centrifugal electric pump
Brand: Pedrollo
SKU: CPm 132-ST6
Price: 247.66 EUR
Availability: InStock

Made of AISI 316L stainless steel. Flow rate up to 120 l/min (7.2 m³/h). Head up to 24 m. 0.55 kW (0.75 HP) motor.

€247.66 Tax included

€203.00 Tax excluded

€427.00 -42%

Last items in stock

Quantity

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The CPm 132-ST6 centrifugal electric pump from the CP-ST series by Pedrollo is designed to avoid corrosion damage or prevent the formation of rust.

Pedrollo has made the electric pump entirely of stainless steel to ensure maximum strength and durability.

The pump body and impeller are made of AISI 304 stainless steel and the motor shaft is made of AISI 431 stainless steel.

To ensure maximum hygiene, Pedrollo has made all the components of the CPm 132-ST6 that come into contact with water in AISI 304 stainless steel.

Recommended for use in agricultural, domestic, and industrial sectors. The CPm 132-ST6 can pump clean water and chemically non-aggressive liquids for its components.

The pump flow rate ranges from 10 to 120 litres per minute and the head from 12 to 24 metres.

Data sheet

Motor connection: SINGLE-PHASE
Power (Kw): 0.55
Power (HP): 0.75
Absorption at 230V (A): 3.7
Capacitor: 14 µF 450 VL
Suction mouth: 1" 1/4
Delivery mouth: 1"
Pump body: AISI 316L stainless steel
Impeller: AISI 316L stainless steel
Number of impellers: 1
Crankshaft: AISI 316 stainless steel
Check valve: No
Degree of protection: IP 44
Minimum flow rate (l./min.): 20
Max. flow rate (l./min.): 120
Min. head (m.): 12
Max. head (m.): 24
Jobs: water supply, irrigation, cooling systems, air conditioning systems, washing systems, water treatment plants
Max. liquid temperature (°C): +90°C
Motor voltage: 230 V
Height (cm): 6.55pm
Width (cm): 26.6
Depth (cm): 18.1
Weight (Kg): 7.2
Warranty (years): 2

Attachments

CP-ST data sheet

Models, performance curves and construction features of Pedrollo CP-ST series pumps.

Download (762.97KB)

CPm-ST6 models and performance

GUY

single phase

CPm 100-ST6

CPm 130-ST6

CPm 132-ST6

CPm 150-ST6

CPm 158-ST6

CPm 170-ST6

CPm 170M-ST6

CPm 180-ST6

CPm 190-ST6

CPm 200-ST6

POWER
KW	HP
0.25	0.33
0.37	0.50
0.55	0.75
0.75	1
0.75	1
1.1	1.5
1.1	1.5
1.1	1.5
1.5	2
2.2	3

PERFORMANCE
Q litres/min	H meters
10 ÷ 90	16 ÷ 6.5
10 ÷ 100	22.5 ÷ 9
10 ÷ 120	24 ÷ 12
10 ÷ 150	32 ÷ 14
10 ÷ 120	36.5 ÷ 19
10 ÷ 140	41 ÷ 20
10 ÷ 160	36.5 ÷ 19
10 ÷ 230	31.5 ÷ 13
10 ÷ 250	37 ÷ 15.5
10 ÷ 270	45 ÷ 18

MOUTH
wait.	send.
1 1/4"	1"

Q	m³/hour	0	0.6	1.2	2.4	3.6	5.4	6.0	7.2	8.4	9.0	9.6	12	13.8	15	16.2
Q	l/min	0	10	20	40	60	90	100	120	140	150	160	200	230	250	270
H	meters	16	15.5	15	13.5	11.2	6.5
		22.5	21.5	20.8	18.8	16	10.8	9
		24	-	23	21.5	19.8	16.5	15	12
		32	-	31	29.8	28	24.8	23.2	20	16	14
		36.5	35.5	34.5	33	31	26.2	24	19
		41	40	39.2	37.8	36	32	30	25.8	20
		36.5	-	35.5	34.3	33	30	29	26.4	23	21	19
		31.5	-	-	30	29.2	27.5	26.8	25.2	23.5	22.5	21.5	17	13
		37	-	-	35	34	32.2	31.5	30.2	28.7	27.8	27	22.7	18.5	15.5
		45	-	-	43	42	40.2	39.5	38	36.5	35.5	34.5	29.8	25.5	22	18

Construction data of the CP 100-130-132-ST6

Bearings

Pump side motor bearing	6201 ZZ
Opposite side motor bearing	6201 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	AR-12
LP diameter	12
Fixed ring LP	Ceramic
Rotating ring LP	Graphite
LP elastomer	NBR

Mat

1.0 - Pump Body	EN 1.4404 stainless steel (AISI 316L)
2.1 - Seal holder cover	EN 1.4404 stainless steel (AISI 316L)
3.0 - Impeller	EN 1.4404 stainless steel (AISI 316L)
4.0 - Pump shaft	EN 1.4404 stainless steel (AISI 316L)
5.2 - Shim Ring	PTFE
6.0 - Motor holder	Aluminum EN-AB 46100
6.1 - Engine cover	Aluminum EN-AB 46100
7.0 - Lantern	Aluminum EN-AB 46100
