CPm 180-ST6 - Single-phase 1.5 HP stainless steel centrifugal electric pump Pedrollo - 1

-42%

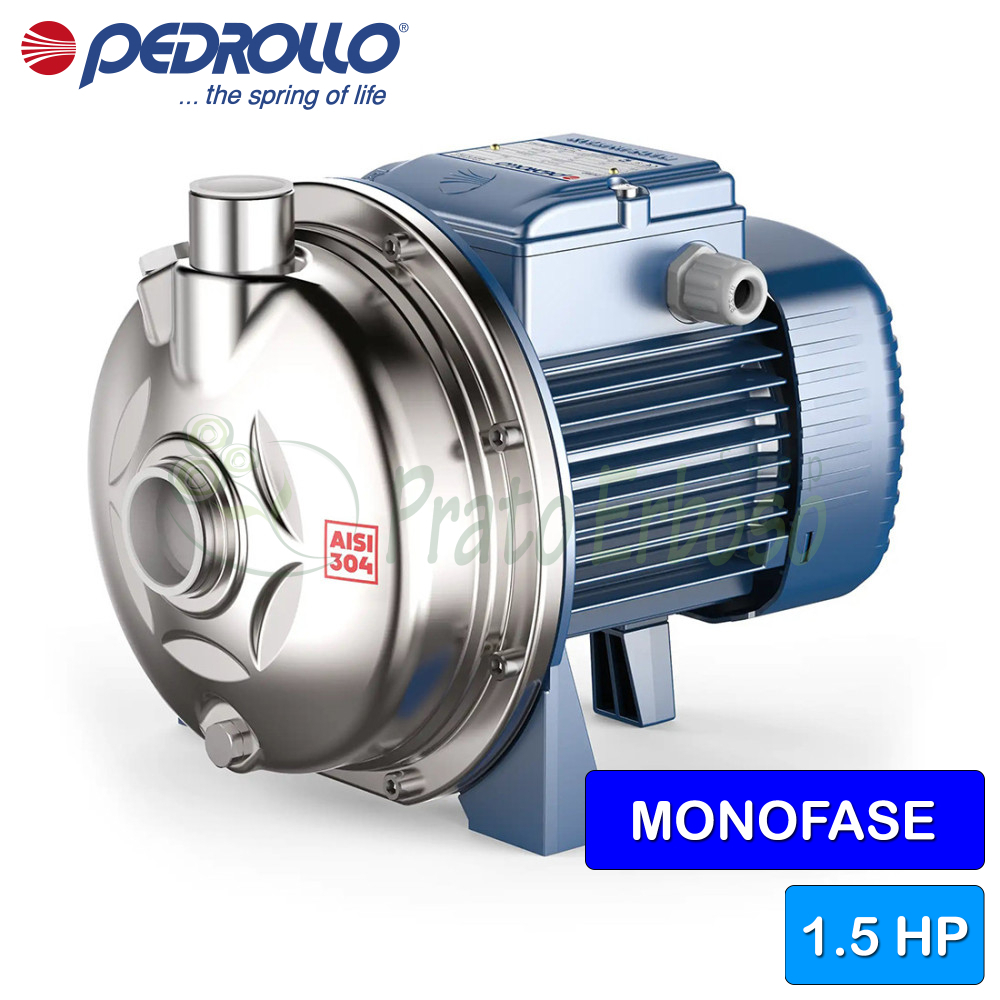

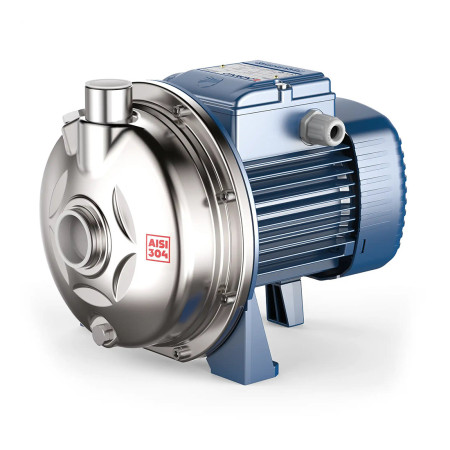

CPm 180-ST6 - 1.5 HP single-phase stainless steel centrifugal electric pump

Name: CPm 180-ST6 - 1.5 HP single-phase stainless steel centrifugal electric pump
Brand: Pedrollo
SKU: CPm 180-ST6
Price: 450.74 EUR
Availability: InStock

Made of AISI 316L stainless steel. Flow rate up to 230 l/min (13.8 m³/h). Head up to 31.5 m. 1.1 kW (1.5 HP) motor.

Variants:

Order it before 12:00 and receive it between Thursday 25 June and Friday 26 June with Mail Boxes - 2 giorni

Delivery Options

Carrier		Description	Estimated Delivery
	Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Thursday 25 June - Friday 26 June
	Poste Italiane - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust them with the products.	Thursday 25 June - Friday 26 June

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Thursday 25 June - Friday 26 June

Carrier: Poste Italiane - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.

Estimated delivery:
Thursday 25 June - Friday 26 June

There are no reviews yet

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The Pedrollo CPm 180-ST6 centrifugal electric pump boasts a solid and robust construction.

Pedrollo has created a product entirely in stainless steel. The pump body is made of AISI 304 stainless steel and the shaft is made of AISI 431 stainless steel.

To ensure total hygiene and maximum corrosion resistance, all components in contact with the pumped liquid are made of AISI 304 stainless steel.

The CPm 180-ST6 is recommended for use in the domestic, agricultural and industrial sectors.

It can pump clean water and liquids that are chemically non-aggressive for the pump materials.

Data sheet

Motor connection: SINGLE-PHASE
Power (Kw): 1.1
Power (HP): 1.5
Absorption at 230V (A): 8.5
Capacitor: 31.5 µF 450 VL
Suction mouth: 1" 1/4
Delivery mouth: 1"
Pump body: AISI 316L stainless steel
Impeller: AISI 316L stainless steel
Number of impellers: 1
Crankshaft: AISI 316 stainless steel
Check valve: No
Degree of protection: IP 44
Minimum flow rate (l./min.): 40
Max. flow rate (l./min.): 230
Min. head (m.): 13
Max. head (m.): 31.5
Jobs: water supply, irrigation, cooling systems, air conditioning systems, washing systems, water treatment plants
Max. liquid temperature (°C): +90°C
Motor voltage: 230 V
Height (cm): 23.75
Width (cm): 36.8
Depth (cm): 24.4
Weight (Kg): 15.8
Warranty (years): 2

Attachments

CP-ST data sheet

Models, performance curves and construction features of Pedrollo CP-ST series pumps.

Download (762.97KB)

CPm-ST6 models and performance

GUY

single phase

CPm 100-ST6

CPm 130-ST6

CPm 132-ST6

CPm 150-ST6

CPm 158-ST6

CPm 170-ST6

CPm 170M-ST6

CPm 180-ST6

CPm 190-ST6

CPm 200-ST6

POWER
KW	HP
0.25	0.33
0.37	0.50
0.55	0.75
0.75	1
0.75	1
1.1	1.5
1.1	1.5
1.1	1.5
1.5	2
2.2	3

PERFORMANCE
Q litres/min	H meters
10 ÷ 90	16 ÷ 6.5
10 ÷ 100	22.5 ÷ 9
10 ÷ 120	24 ÷ 12
10 ÷ 150	32 ÷ 14
10 ÷ 120	36.5 ÷ 19
10 ÷ 140	41 ÷ 20
10 ÷ 160	36.5 ÷ 19
10 ÷ 230	31.5 ÷ 13
10 ÷ 250	37 ÷ 15.5
10 ÷ 270	45 ÷ 18

MOUTH
wait.	send.
1 1/4"	1"

Q	m³/hour	0	0.6	1.2	2.4	3.6	5.4	6.0	7.2	8.4	9.0	9.6	12	13.8	15	16.2
Q	l/min	0	10	20	40	60	90	100	120	140	150	160	200	230	250	270
H	meters	16	15.5	15	13.5	11.2	6.5
		22.5	21.5	20.8	18.8	16	10.8	9
		24	-	23	21.5	19.8	16.5	15	12
		32	-	31	29.8	28	24.8	23.2	20	16	14
		36.5	35.5	34.5	33	31	26.2	24	19
		41	40	39.2	37.8	36	32	30	25.8	20
		36.5	-	35.5	34.3	33	30	29	26.4	23	21	19
		31.5	-	-	30	29.2	27.5	26.8	25.2	23.5	22.5	21.5	17	13
		37	-	-	35	34	32.2	31.5	30.2	28.7	27.8	27	22.7	18.5	15.5
		45	-	-	43	42	40.2	39.5	38	36.5	35.5	34.5	29.8	25.5	22	18

Construction data of the CP 170-170M-180-190-200-ST6

Bearings

Pump side motor bearing	6204 ZZ
Opposite side motor bearing	6204 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	FN-18
LP diameter	18
Fixed ring LP	Graphite
Rotating ring LP	Ceramic
LP elastomer	NBR

Mat

1.0 - Pump Body	EN 1.4404 stainless steel (AISI 316L)
2.1 - Seal holder cover	EN 1.4404 stainless steel (AISI 316L)
3.0 - Impeller	EN 1.4404 stainless steel (AISI 316L)
4.0 - Pump shaft	EN 1.4404 stainless steel (AISI 316L)
5.2 - Shim Ring	PTFE
6.0 - Motor holder	Aluminum EN-AB 46100
6.1 - Engine cover	Aluminum EN-AB 46100
7.0 - Lantern	Aluminum EN-AB 46100
