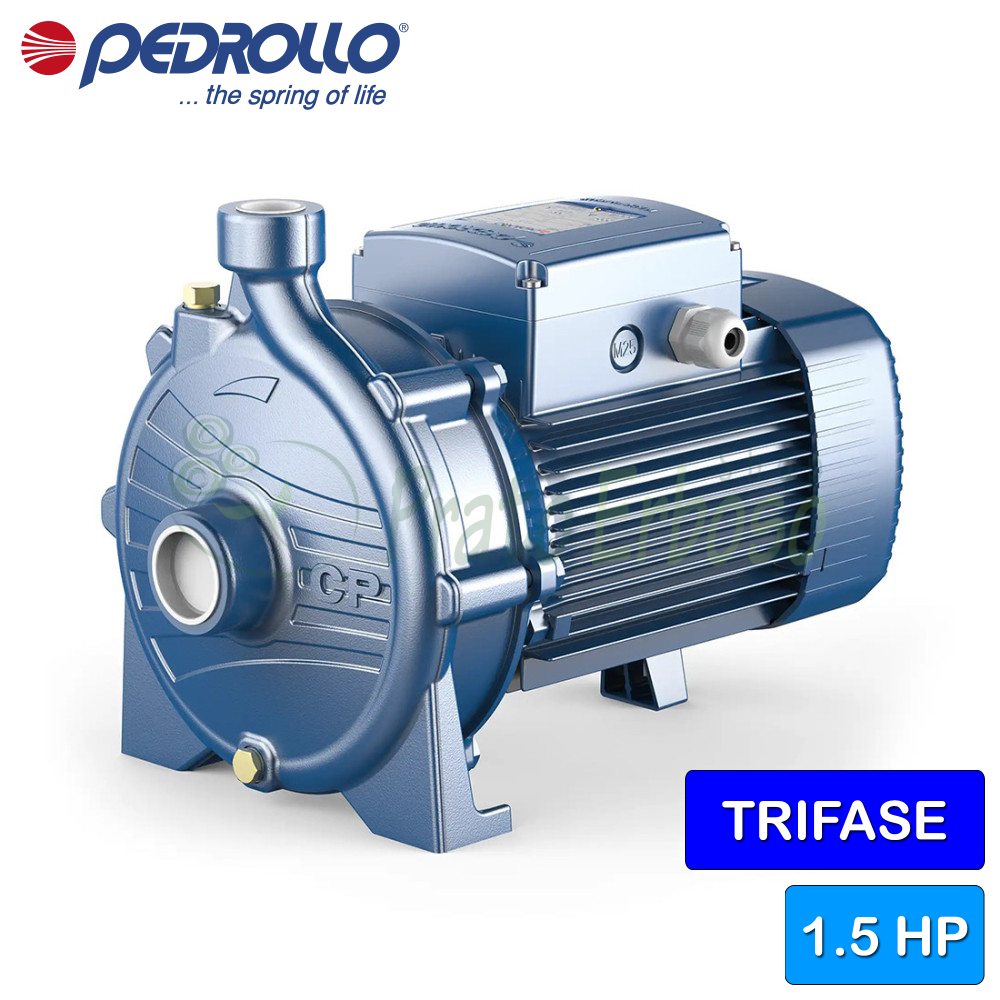

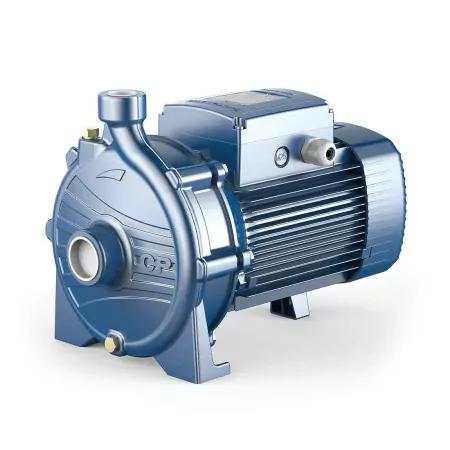

CP 160C - 1.5 HP three-phase centrifugal electric pump
Flow rate up to 200 l/min (12 m³/h). Head up to 32 m. 1.1 Kw (1.5 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
It is recommended for pumping clean water without abrasive particles and liquids that are not chemically aggressive for the materials from which the pump is made.
Due to their reliability and ease of use, they are widely used in the domestic and civil sector, in particular for the distribution of water in conjunction with small and medium-sized pressure tanks, for decanting and for irrigation of vegetable gardens and gardens.
Installation must be carried out indoors or in any case protected from the elements.
Data sheet
- Motor connection
- THREE-PHASE
- Absorption at 400V (A)
- 5.7
- Suction mouth
- 3.3
- Max. flow rate (l./min.)
- 50
- Min. head (m.)
- 200
- Max. head (m.)
- 20
- Jobs
- 32
- Motor voltage
- 90
- Width (cm)
- 26
- Depth (cm)
- 37
- Weight (Kg)
- 20.6
- Warranty (years)
- 18.8
Models and performances CP 160-210
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the CP 160C-160B-160A
Bearings
| Pump side motor bearing | 6304 ZZ |
| Opposite side motor bearing | 6204 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | FN-18 |
| LP diameter | 18 |
| Fixed ring LP | Graphite |
| Rotating ring LP | Ceramic |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | EN 1.4301 stainless steel (AISI 304) |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Cast iron GJL 200 EN 1561 |
Compare with Similar Products
 CP 160C - 1.5 HP three-phase centrifugal electric pumpThis product Flow rate up to 200 l/min (12 m³/h). Head up to 32 m. 1.1 Kw (1.5 HP) motor. |  CP 200 - 3 HP three-phase centrifugal electric pumpFlow rate up to 150 l/min (9 m³/h). Head up to 56 m. 2.2 Kw (3 HP) motor. |  CP 160B - 2 HP three-phase centrifugal electric pumpFlow rate up to 220 l/min (13.2 m³/h). Head up to 37 m. 1.5 Kw (2 HP) motor. |  CP 160A - 3 HP Three-Phase Centrifugal Electric PumpFlow rate up to 240 l/min (14.4 m³/h). Head up to 43 m. 2.2 Kw (3 HP) motor. | |
|---|---|---|---|---|
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) -- | Power (Kw) 2.2 | Power (Kw) 1.5 | Power (Kw) 2.2 |
| Power (HP) | Power (HP) -- | Power (HP) 3 | Power (HP) 2 | Power (HP) 3 |
| Absorption at 230V (A) | Absorption at 230V (A) -- | Absorption at 230V (A) 9.3 | Absorption at 230V (A) 6.9 | Absorption at 230V (A) 8.9 |
| Absorption at 400V (A) | Absorption at 400V (A) 5.7 | Absorption at 400V (A) 5.4 | Absorption at 400V (A) 4.0 | Absorption at 400V (A) 5.1 |
| Suction mouth | Suction mouth 3.3 | Suction mouth 1 "1/4 | Suction mouth 1 "1/2 | Suction mouth 1 "1/2 |
| Delivery mouth | Delivery mouth -- | Delivery mouth 1 " | Delivery mouth 1 " | Delivery mouth 1 " |
| Pump body | Pump body -- | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller -- | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel |
| Number of impellers | Number of impellers -- | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft -- | Crankshaft Stainless steel EN 10088-3 1.4104 | Crankshaft Stainless steel EN 10088-3 1.4104 | Crankshaft Stainless steel EN 10088-3 1.4104 |
| Check valve | Check valve -- | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection -- | Degree of protection IP 55 | Degree of protection IP 44 | Degree of protection IP 44 |
| Min. flow rate (l./min.) | Min. flow rate (l./min.) -- | Min. flow rate (l./min.) 30 | Min. flow rate (l./min.) 50 | Min. flow rate (l./min.) 50 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 50 | Max. flow rate (l./min.) 150 | Max. flow rate (l./min.) 220 | Max. flow rate (l./min.) 240 |
| Min. head (m.) | Min. head (m.) 200 | Min. head (m.) 36 | Min. head (m.) 23 | Min. head (m.) 26 |
| Max. head (m.) | Max. head (m.) 20 | Max. head (m.) 56 | Max. head (m.) 37 | Max. head (m.) 43 |
| Jobs | Jobs 32 | Jobs water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, transfer of tanks | Jobs water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, transfer of tanks | Jobs water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, transfer of tanks |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) -- | Max. liquid temperature (°C) 90 | Max. liquid temperature (°C) 90 | Max. liquid temperature (°C) 90 |
| Motor voltage | Motor voltage 90 | Motor voltage 400V | Motor voltage 400V | Motor voltage 400V |
| Height (cm) | Height (cm) -- | Height (cm) 29 | Height (cm) 26 | Height (cm) 26 |
| Width (cm) | Width (cm) 26 | Width (cm) 38.4 | Width (cm) 37 | Width (cm) 39.1 |
| Depth (cm) | Depth (cm) 37 | Depth (cm) 24.2 | Depth (cm) 20.6 | Depth (cm) 20.6 |
| Weight (Kg) | Weight (Kg) 20.6 | Weight (Kg) 24.2 | Weight (Kg) 20.5 | Weight (Kg) 23.5 |
| Warranty (years) | Warranty (years) 18.8 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
