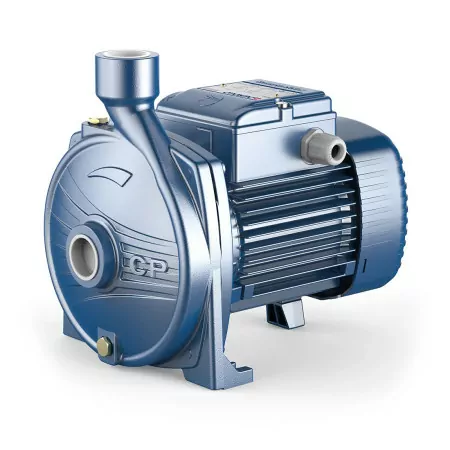

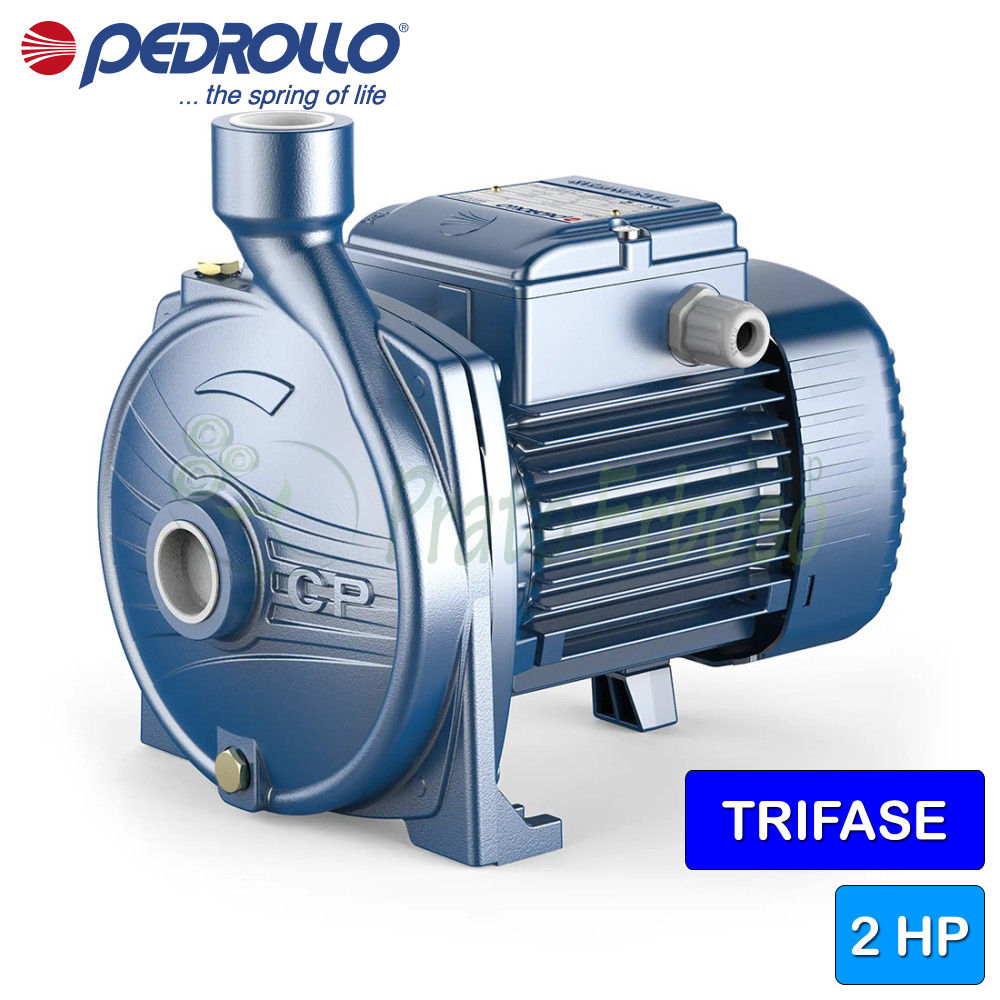

CP 190 - 2 HP three-phase centrifugal electric pump
Flow rate up to 140 l/min (8.4 m³/h). Head up to 48 m. 1.5 Kw (2 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
It is recommended for pumping clean water without abrasive particles and liquids that are not chemically aggressive for the materials from which the pump is made.
Due to their reliability and ease of use, they are widely used in the domestic and civil sector, in particular for the distribution of water in conjunction with small and medium-sized pressure tanks, for decanting and for irrigation of vegetable gardens and gardens.
Installation must be carried out indoors or in any case protected from the elements.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
- Absorption at 230V (A)
- 7.5
- Absorption at 400V (A)
- 4.3
- Suction mouth
- 1 "1/4
- Delivery mouth
- 1 "
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 44
- Min. flow rate (l./min.)
- 30
- Max. flow rate (l./min.)
- 140
- Min. head (m.)
- 26
- Max. head (m.)
- 48
- Jobs
- water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, transfer of tanks
- Max. liquid temperature (°C)
- 90
- Motor voltage
- 230 V
- Height (cm)
- 29
- Width (cm)
- 36.4
- Depth (cm)
- 24.2
- Weight (Kg)
- 21.5
- Warranty (years)
- 2
CP models and performance
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the CP 190-200
Bearings
| Pump side motor bearing | 6304 ZZ |
| Opposite side motor bearing | 6204 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | FN-18 |
| LP diameter | 18 |
| Fixed ring LP | Graphite |
| Rotating ring LP | Ceramic |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | EN 1.4301 stainless steel (AISI 304) |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
