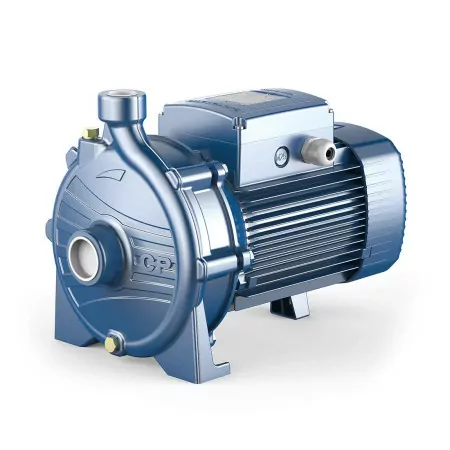

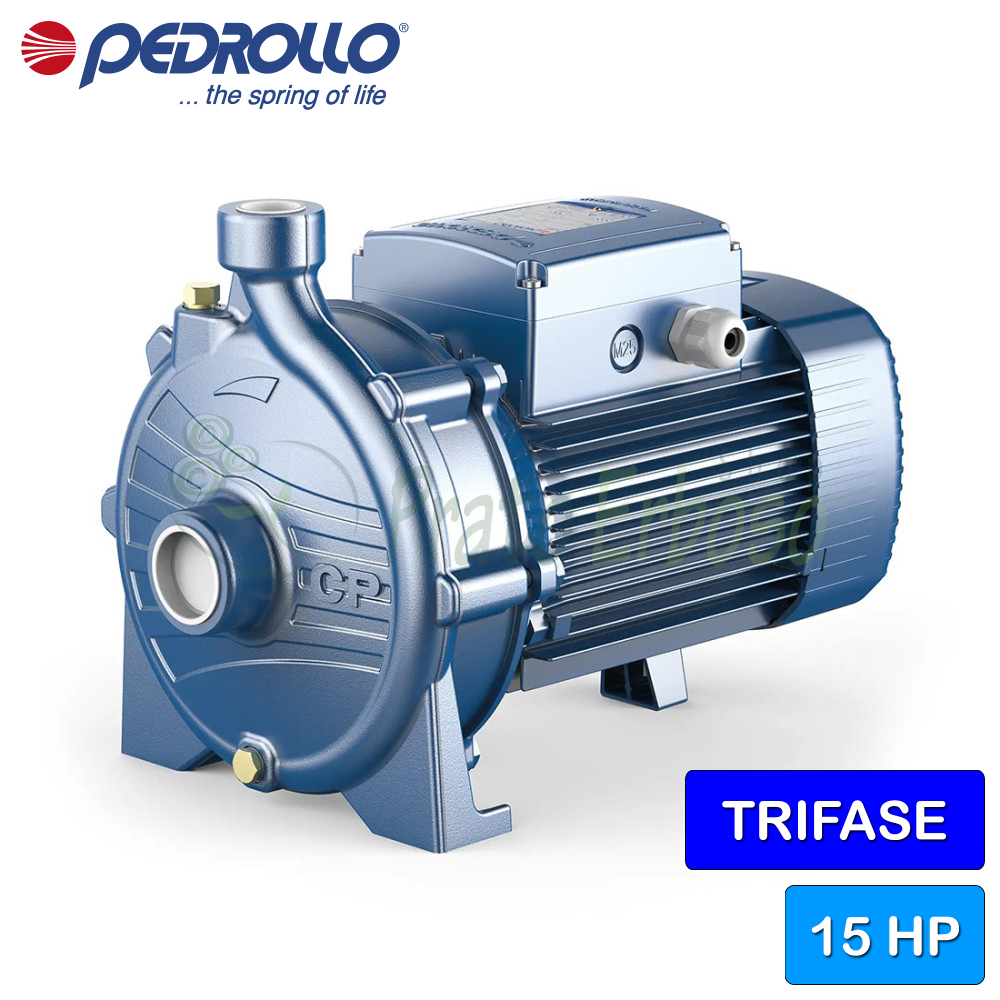

CP 250A - 15 HP Three-Phase Centrifugal Electric Pump

Name: CP 250A - 15 HP Three-Phase Centrifugal Electric Pump
Brand: Pedrollo
SKU: CP 250A
Price: 1431.05 EUR
Availability: InStock

Flow rate up to 900 l/min (54 m³/h). Head up to 76 m. 11 Kw (15 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

It is recommended for pumping clean water without abrasive particles and liquids that are not chemically aggressive for the materials from which the pump is made.

Due to their reliability and ease of use, they are widely used in the domestic and civil sector, in particular for the distribution of water in conjunction with small and medium-sized pressure tanks, for decanting and for irrigation of vegetable gardens and gardens.

Installation must be carried out indoors or in any case protected from the elements.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 11
Power (HP): 15
Absorption at 230V (A): 39.0
Absorption at 400V (A): 22.5
Suction mouth: 3 "
Delivery mouth: 3 "
Pump body: Cast iron
Impeller: Cast iron
Number of impellers: 1
Crankshaft: Stainless steel EN 10088-3 1.4104
Check valve: No
Degree of protection: IP 55
Min. flow rate (l./min.): 100
Max. flow rate (l./min.): 900
Min. head (m.): 45
Max. head (m.): 76
Jobs: water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, transfer of tanks
Max. liquid temperature (°C): 90
Motor voltage: 400V
Height (cm): 39.2
Width (cm): 57
Depth (cm): 29.4
Weight (Kg): 103
Warranty (years): 2

Attachments

CP 11Kw data sheet

Models, performance curves and construction features of the Pedrollo pumps of the CP 11Kw series.

Download (976.67KB)

CP 250 models and performances

GUY

single phase

CP 250B

CP 250A

POWER
KW	HP
7.5	10
11	15

PERFORMANCE
Q litres/min	H meters
100 ÷ 800	57 ÷ 31
100 ÷ 900	76 ÷ 45

MOUTH
wait.	send.
2"	2"

Q	m³/hour	0	6	12	18	24	30	36	42	48	54
Q	l/min	0	100	200	300	400	500	600	700	800	900
H	meters	57	57	56.5	54.5	52	48.5	44	38	31
H	meters	76	76	75	73.5	71	67.5	63	58	52	45

Construction data of the CP 250A

Bearings

Pump side motor bearing	6310 ZZ - C3
Opposite side motor bearing	6308 ZZ - C3

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	FN-32 NU
LP diameter	32
Fixed ring LP	Graphite
Rotating ring LP	Ceramic
LP elastomer	NBR

Mat

1.0 - Pump Body	Cast iron GJL 200 EN 1561
2.1 - Seal holder cover	Cast iron GJL 200 EN 1561
3.0 - Impeller	Cast iron GJL 200 EN 1561
4.0 - Pump shaft	EN 1.4057 stainless steel (AISI 431)
6.0 - Motor holder	Aluminum EN-AB 46100
6.1 - Engine cover	Aluminum EN-AB 46100
7.0 - Lantern	Aluminum EN-AB 46100
