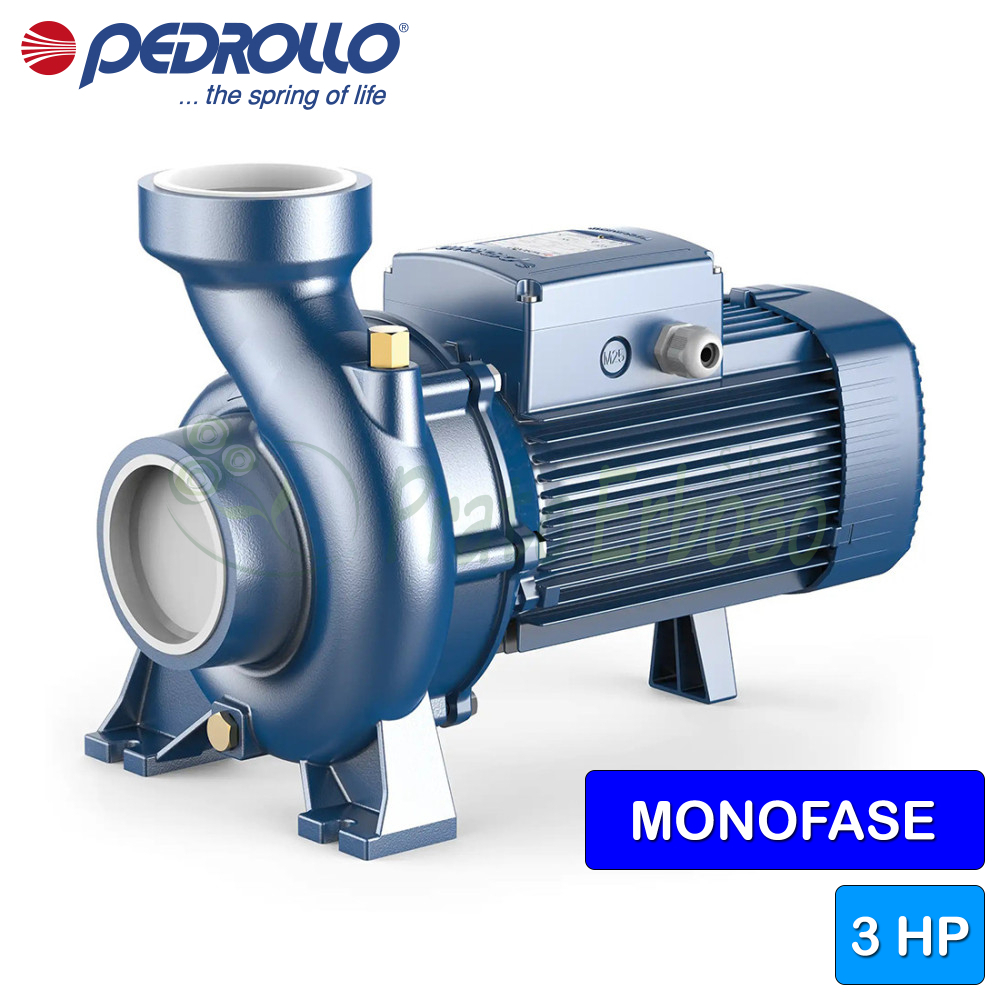

HFm 6A - 3 HP Single Phase Centrifugal Electric Pump
Flow rate up to 1200 l/min (72 m³/h). Head up to 24.5 m. 2.2 Kw (3 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The PEDROLLO pumps of the HF high flow rate line are recommended for civil and agricultural environments.
The PEDROLLO HF 6A has a flow rate that varies from 200 to 1200 litres per minute with a head from 18.5 to 6 metres.
The high achievable yields and the possibility of continuous use make the use of this electric pump advantageous for flow or rain irrigation, for drawing water from lakes, rivers, wells or for the most varied industrial uses characterised by the need to achieve considerable flow rates in a medium-low prevalence ratio.
Installation must be carried out indoors or in any case protected from the elements.
Data sheet
- Motor connection
- SINGLE PHASE
- Power (Kw)
- 2.2
- Power (HP)
- 3
- Absorption at 230V (A)
- 13.5
- Suction mouth
- 3 "
- Delivery mouth
- 3 "
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 44
- Min. flow rate (l./min.)
- 200
- Max. flow rate (l./min.)
- 1200
- Min. head (m.)
- 6
- Max. head (m.)
- 18.5
- Jobs
- water supply, irrigation, cooling systems, transfer of tanks
- Max. liquid temperature (°C)
- +90°C
- Motor voltage
- 230 V
- Height (cm)
- 31.0
- Width (cm)
- 24.0
- Depth (cm)
- 42.8
- Weight (Kg)
- 29.6
- Warranty (years)
- 2
HF models and performances - High flow rates
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compare with Similar Products
 HFm 6A - 3 HP Single Phase Centrifugal Electric PumpThis product Flow rate up to 1200 l/min (72 m³/h). Head up to 24.5 m. 2.2 Kw (3 HP) motor. |  HFm 4 - 1 HP single-phase centrifugal electric pumpFlow rate up to 800 l/min (48 m³/h). Head up to 9.8 m. 0.75 Kw (1 HP) motor. |  HFm 6C - 1.5 HP Single Phase Centrifugal Electric PumpFlow rate up to 1000 l/min (60 m³/h). Head up to 12 m. 1.1 Kw (1.5 HP) motor. |  HFm 6B - 2 HP Single Phase Centrifugal Electric PumpFlow rate up to 1100 l/min (66 m³/h). Head up to 14.8 m. 1.5 Kw (2 HP) motor. | |
|---|---|---|---|---|
| Motor connection | Motor connection SINGLE PHASE | Motor connection SINGLE PHASE | Motor connection SINGLE PHASE | Motor connection SINGLE PHASE |
| Power (Kw) | Power (Kw) 2.2 | Power (Kw) 0.75 | Power (Kw) 1.1 | Power (Kw) 1.5 |
| Power (HP) | Power (HP) 3 | Power (HP) 1 | Power (HP) 1.5 | Power (HP) 2 |
| Absorption at 230V (A) | Absorption at 230V (A) 13.5 | Absorption at 230V (A) 5.9 | Absorption at 230V (A) 8.8 | Absorption at 230V (A) 10.4 |
| Capacitor | Capacitor -- | Capacitor 20 µF450 VL | Capacitor 31.5 µF450 VL | Capacitor 45 µF450 VL |
| Suction mouth | Suction mouth 3 " | Suction mouth 2 "1/2 | Suction mouth 3 " | Suction mouth 3 " |
| Delivery mouth | Delivery mouth 3 " | Delivery mouth 2 "1/2 | Delivery mouth 3 " | Delivery mouth 3 " |
| Pump body | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller Brass | Impeller Brass | Impeller Brass | Impeller Brass |
| Number of impellers | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 44 | Degree of protection IP 44 | Degree of protection IP 44 | Degree of protection IP 44 |
| Min. flow rate (l./min.) | Min. flow rate (l./min.) 200 | Min. flow rate (l./min.) 200 | Min. flow rate (l./min.) 200 | Min. flow rate (l./min.) 200 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 1200 | Max. flow rate (l./min.) 800 | Max. flow rate (l./min.) 1000 | Max. flow rate (l./min.) 1100 |
| Min. head (m.) | Min. head (m.) 6 | Min. head (m.) 4 | Min. head (m.) 4 | Min. head (m.) 5 |
| Max. head (m.) | Max. head (m.) 18.5 | Max. head (m.) 9.8 | Max. head (m.) 12 | Max. head (m.) 14.8 |
| Jobs | Jobs water supply, irrigation, cooling systems, transfer of tanks | Jobs water supply, irrigation, cooling systems, transfer of tanks | Jobs water supply, irrigation, cooling systems, transfer of tanks | Jobs water supply, irrigation, cooling systems, transfer of tanks |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +90°C | Max. liquid temperature (°C) +90°C | Max. liquid temperature (°C) +90°C | Max. liquid temperature (°C) +90°C |
| Motor voltage | Motor voltage 230 V | Motor voltage 230 V | Motor voltage 230 V | Motor voltage 230 V |
| Height (cm) | Height (cm) 31.0 | Height (cm) 24 | Height (cm) 31.2 | Height (cm) 31.2 |
| Width (cm) | Width (cm) 24.0 | Width (cm) 31.7 | Width (cm) 41.1 | Width (cm) 41.1 |
| Depth (cm) | Depth (cm) 42.8 | Depth (cm) 19.8 | Depth (cm) 24 | Depth (cm) 24 |
| Weight (Kg) | Weight (Kg) 29.6 | Weight (Kg) 14.3 | Weight (Kg) 25.5 | Weight (Kg) 26.8 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
