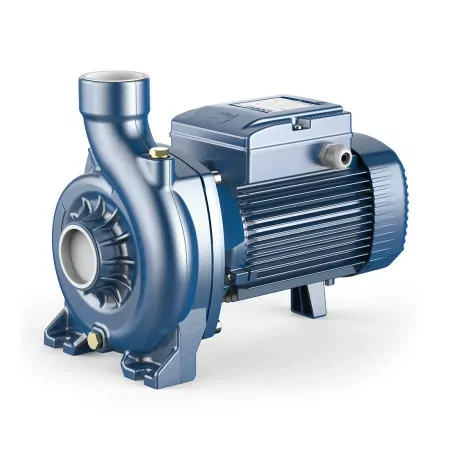

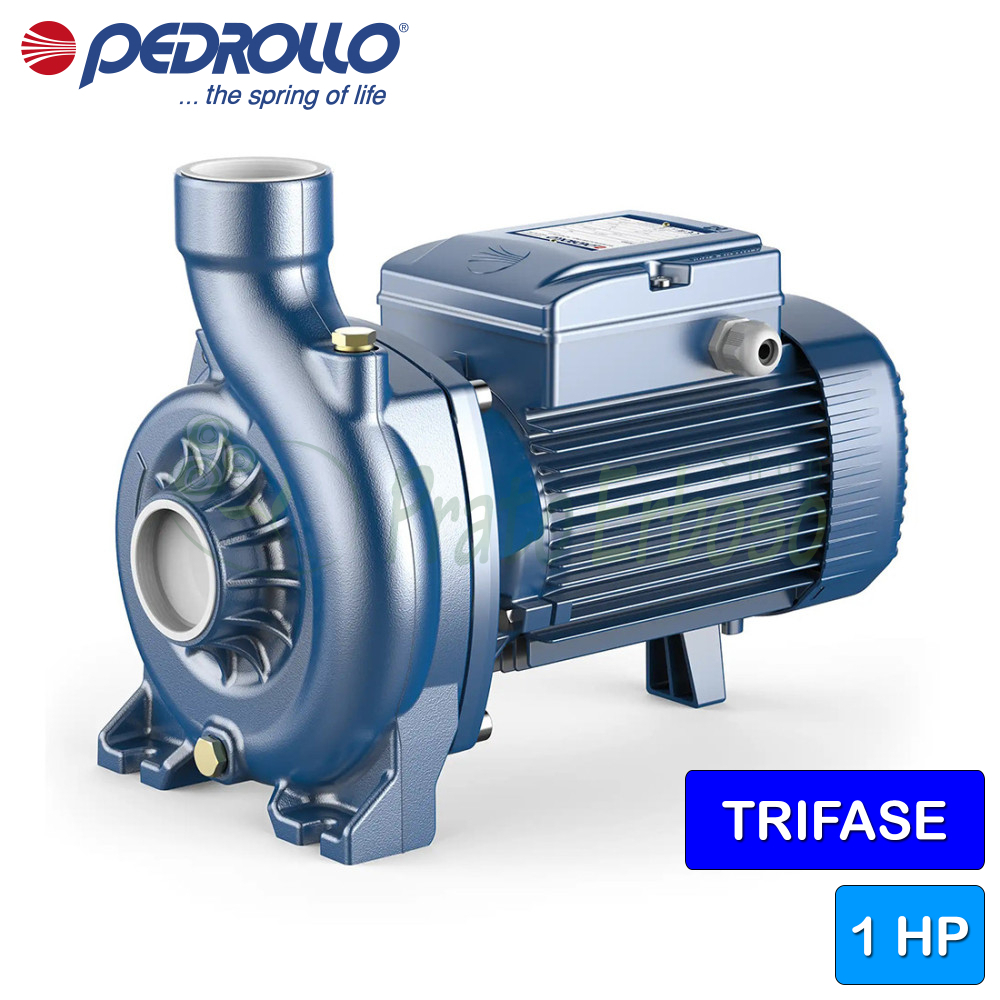

NGA 2A - 1 HP three-phase open impeller centrifugal electric pump

Name: NGA 2A - 1 HP three-phase open impeller centrifugal electric pump
Brand: Pedrollo
SKU: NGA 2A
Price: 223.6 EUR
Availability: InStock

Flow rate up to 550 l/min (33 m³/h). Head up to 11 m. 0.75 Kw (1 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The PEDROLLO pumps of the NGA line are recommended for pumping water and liquids that are chemically non-aggressive for the materials from which the pump is made.

The PEDROLLO NGA 2A has a flow rate that varies from 50 to 550 litres per minute with a head from 11 to 4 metres.

The open impeller design solution allows pumping fluids relatively loaded with impurities without the risk of clogging the impeller. For this feature, the NGA series pumps are used in industry, in the transfer of water from canals, rivers, tanks, basins, etc.

Installation must be carried out indoors or in any case protected from the elements.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 0.75
Power (HP): 1
Suction mouth: 2"
Delivery mouth: 2"
Pump body: Cast iron
Impeller: AISI 316 stainless steel
Number of impellers: 1
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 44
Min. flow rate (l./min.): 50
Max. flow rate (l./min.): 550
Min. head (m.): 4
Max. head (m.): 11
Jobs: washing systems, water supply
Max. liquid temperature (°C): +90°C
Motor voltage: 400V
Warranty (years): 2

Attachments

NGA data sheet

Construction and operating characteristics. Working curves and limits of use of Pedrollo NGA series pumps.

Download (478.7KB)

NGA models and performance 2-3

GUY

three-phase

NGA 2B

NGA 2A

NGA 3D

NGA 3C

NGA 3B

NGA 3A

POWER
KW	HP
0.55	0.75
0.75	1
1.1	1.5
1.5	2
1.8	2.5
2.2	3

PERFORMANCE
Q litres/min	H meters
50 ÷ 450	9.5 ÷ 4
50 ÷ 550	11 ÷ 4
50 ÷ 700	12.5 ÷ 5
100 ÷ 770	14.8 ÷ 5.7
100 ÷ 840	17 ÷ 7
100 ÷ 900	19.5 ÷ 8.5

MOUTH
wait.	send.
1/2"	1/2"
2"	2"

Q	m³/hour	0	3	6	12	18	24	27	33	42	46.2	50.4	54
Q	l/min	0	50	100	200	300	400	450	550	700	770	840	900
H	meters	9.5	9.4	9.3	8.4	7	5.2	4
		11	10.8	10.5	9.8	8.8	7.4	6.4	4
		12.5	-	12	11.5	10.8	9.8	9.3	7.8	5
		14.8	-	14.4	13.8	13.1	12.2	11.7	10.3	7.4	5.7
		17	-	16.5	16	15.3	14.5	14	12.8	10.3	8.8	7
		19.5	-	19	18.4	17.8	17	16.5	15.4	13	11.5	10	8.5
