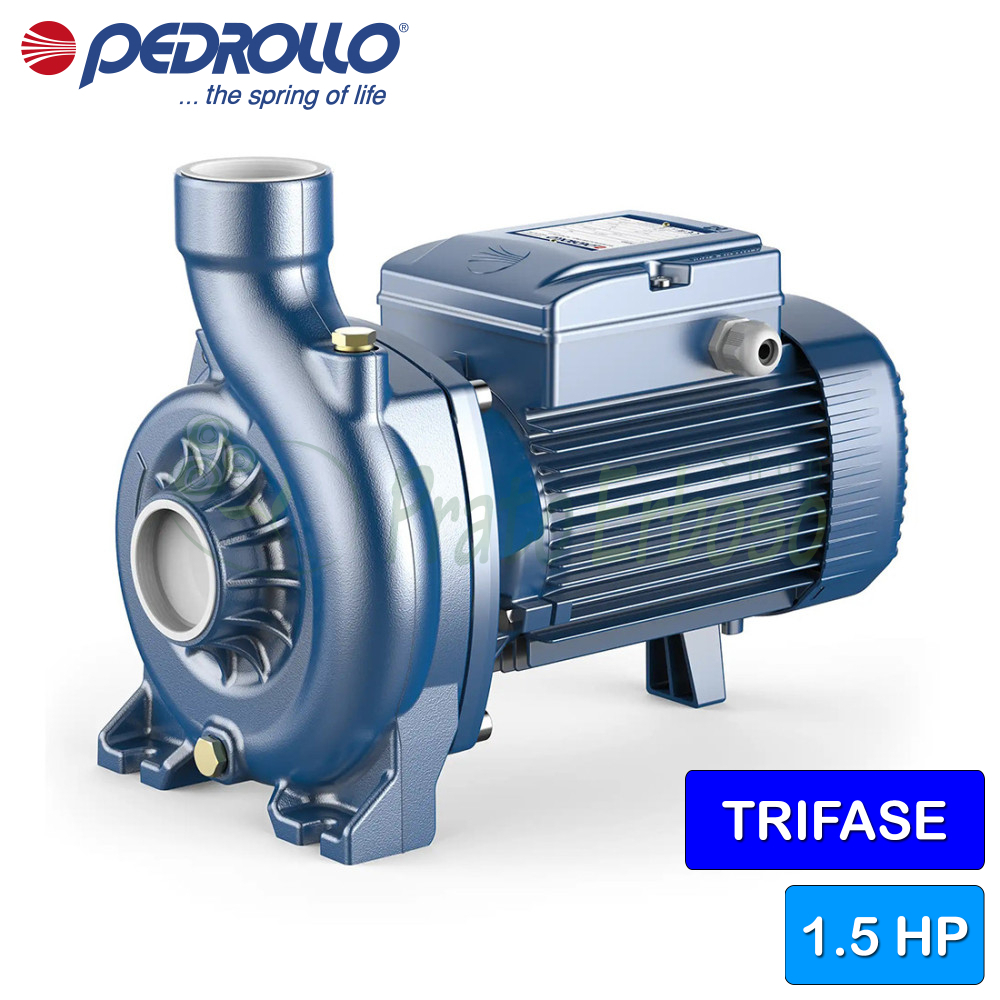

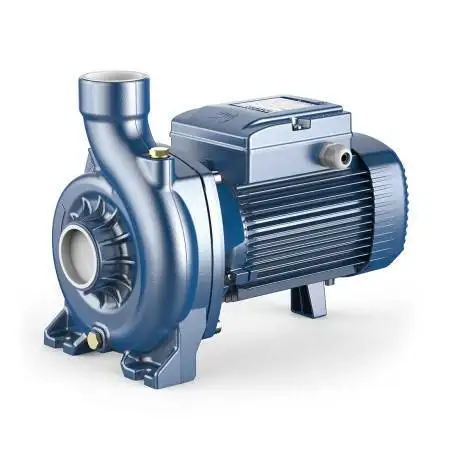

NGA 3D - 1.5 HP three-phase open impeller centrifugal electric pump

Name: NGA 3D - 1.5 HP three-phase open impeller centrifugal electric pump
Brand: Pedrollo
SKU: NGA 3D
Price: 394.84 EUR
Availability: InStock

Flow rate up to 700 l/min (42 m³/h). Head up to 12.5 m. 1.1 kW (1.5 HP) motor.

Variants:

Order it before 23:59 and receive it on Thursday 26 February with Poste Italiane - 3 giorni punto di ritiro

Delivery Options

	Description	Estimated Delivery
Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Thursday 26 February - Friday 27 February
Poste Italiane - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust them with the products.	Thursday 26 February - Friday 27 February
DHL - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust the products to him.	Thursday 26 February - Friday 27 February
Poste Italiane - 3 giorni punto di ritiro	This courier delivers within 24/72 hours from the moment we entrust them with the products.	Thursday 26 February
Ritiro in negozio	Choose where to collect your order within 24/48 hours.	Thursday 26 February

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Thursday 26 February - Friday 27 February

Carrier: Poste Italiane - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.

Estimated delivery:
Thursday 26 February - Friday 27 February

Carrier: DHL - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.

Estimated delivery:
Thursday 26 February - Friday 27 February

Carrier: Poste Italiane - 3 giorni punto di ritiro

Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.

Estimated delivery:
Thursday 26 February

Carrier: Ritiro in negozio

Description: Choose where to collect your order within 24/48 hours.

Estimated delivery:
Thursday 26 February

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The Pedrollo NGA 3D centrifugal electric pump is recommended for use in the agricultural, domestic and industrial sectors.

Pedrollo designed this pump with an open impeller, allowing it to pump relatively heavy liquids without clogging the impeller. It allows solids up to 12 millimeters in diameter to pass through.

The NGA 3D, due to the open impeller design, is suitable for applications such as transfers from canals, rivers, tanks and basins.

It has a flow rate ranging from 100 to 700 liters and a reach of 5 to 12.5 meters. The pump body supports a maximum working pressure of 10 bar .

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 1.1
Power (HP): 1.5
Suction mouth: 2"
Delivery mouth: 2"
Pump body: Cast iron
Impeller: AISI 316 Stainless Steel
Number of impellers: 1
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 44
Minimum flow rate (l./min.): 100
Max. flow rate (l./min.): 700
Min. head (m.): 5
Max. head (m.): 12.5
Jobs: washing systems, water supply
Max. liquid temperature (°C): +90°C
Motor voltage: 400V
Warranty (years): 2

Attachments

NGA data sheet

Construction and operating characteristics. Working curves and limits of use of Pedrollo NGA series pumps.

Download (478.7KB)

NGA models and performance 2-3

GUY

three-phase

NGA 2B

NGA 2A

NGA 3D

NGA 3C

NGA 3B

NGA 3A

POWER
KW	HP
0.55	0.75
0.75	1
1.1	1.5
1.5	2
1.8	2.5
2.2	3

PERFORMANCE
Q litres/min	H meters
50 ÷ 450	9.5 ÷ 4
50 ÷ 550	11 ÷ 4
50 ÷ 700	12.5 ÷ 5
100 ÷ 770	14.8 ÷ 5.7
100 ÷ 840	17 ÷ 7
100 ÷ 900	19.5 ÷ 8.5

MOUTH
wait.	send.
1/2"	1/2"
2"	2"

Q	m³/hour	0	3	6	12	18	24	27	33	42	46.2	50.4	54
Q	l/min	0	50	100	200	300	400	450	550	700	770	840	900
H	meters	9.5	9.4	9.3	8.4	7	5.2	4
		11	10.8	10.5	9.8	8.8	7.4	6.4	4
		12.5	-	12	11.5	10.8	9.8	9.3	7.8	5
		14.8	-	14.4	13.8	13.1	12.2	11.7	10.3	7.4	5.7
		17	-	16.5	16	15.3	14.5	14	12.8	10.3	8.8	7
		19.5	-	19	18.4	17.8	17	16.5	15.4	13	11.5	10	8.5

Construction data of the NGA 3D-3C-3B-3A

Bearings

Pump side motor bearing	6204 ZZ
Opposite side motor bearing	6204 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	FN-18
LP diameter	18
Fixed ring LP	Graphite
Rotating ring LP	Ceramic
LP elastomer	NBR

Mat

1.0 - Pump Body	Cast iron GJL 250 EN 1561
2.1 - Seal holder cover	Cast iron GJL 200 EN 1561
3.0 - Impeller	Cast iron GJL 250 EN 1561
4.0 - Pump shaft	EN 1.4057 stainless steel (AISI 431)
6.0 - Motor holder	Aluminum EN-AB 46100
7.0 - Lantern	Aluminum EN-AB 46100
