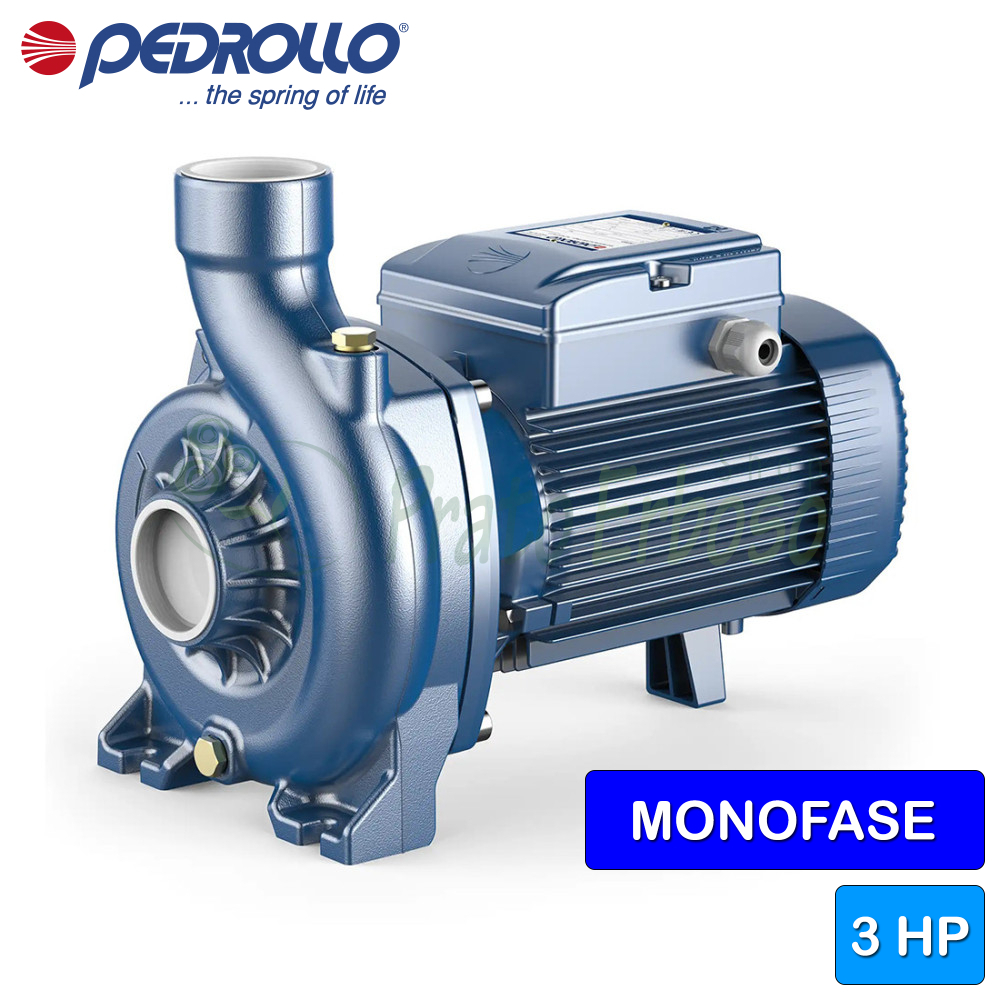

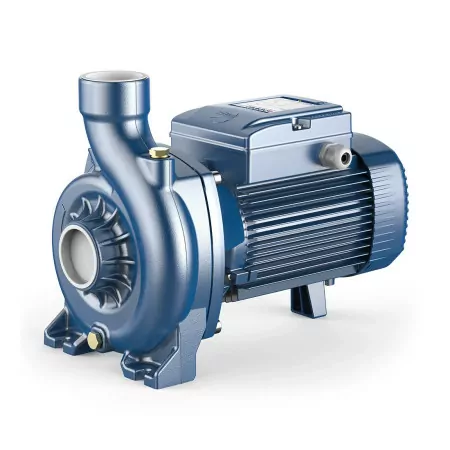

NGAm 3A - 3 HP single-phase open impeller centrifugal electric pump
Flow rate up to 900 l/min (54 m³/h). Head up to 19.5 m. 2.2 Kw (3 HP) motor.
Variants:
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The Pedrollo NGAm 3A centrifugal electric pump has an open impeller for pumping liquids relatively full of impurities.
The open impeller allows for pumping water and less-than-clean liquids without the risk of clogging the impeller. It allows the passage of solids up to 12 millimeters.
The NGAm 3A is recommended for agricultural, domestic, and industrial use. It is especially suitable for transferring water from canals, rivers, reservoirs, and tanks.
The use of cast iron and stainless steel in construction makes this pump solid, robust and built to last over time.
Data sheet
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 2.2
- Power (HP)
- 3
- Suction mouth
- 2"
- Delivery mouth
- 2"
- Pump body
- Cast iron
- Impeller
- AISI 316 Stainless Steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 900
- Min. head (m.)
- 8.5
- Max. head (m.)
- 19.5
- Jobs
- washing systems, water supply
- Max. liquid temperature (°C)
- +90°C
- Motor voltage
- 230 V
- Warranty (years)
- 2
NGAm 2-3 models and performance
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the NGA 3D-3C-3B-3A
Bearings
| Pump side motor bearing | 6204 ZZ |
| Opposite side motor bearing | 6204 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | FN-18 |
| LP diameter | 18 |
| Fixed ring LP | Graphite |
| Rotating ring LP | Ceramic |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Cast iron GJL 250 EN 1561 |
| 2.1 - Seal holder cover | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Cast iron GJL 250 EN 1561 |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
